Specification:

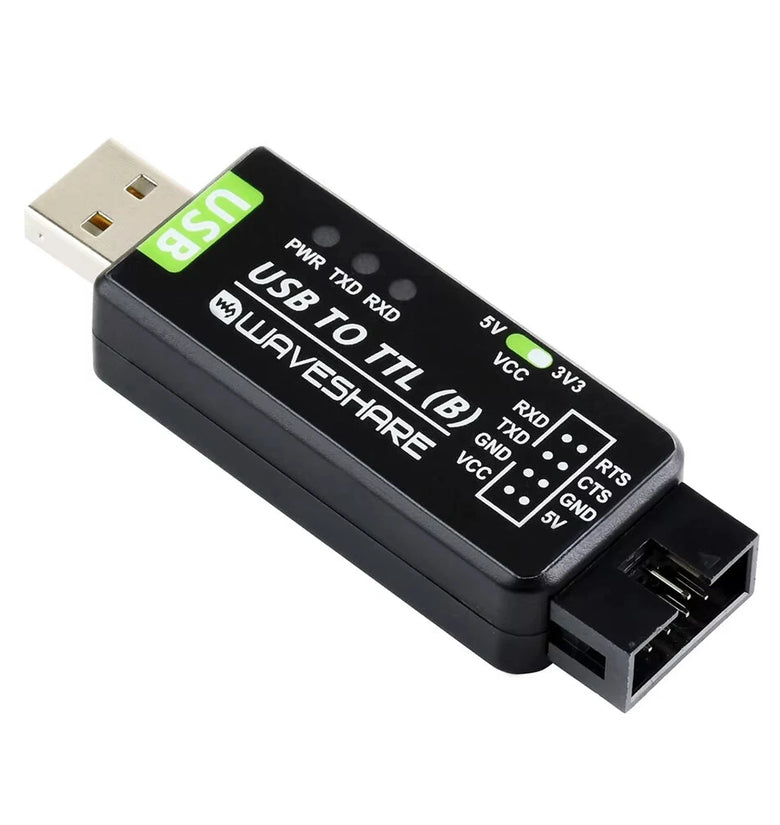

Model: USB to TTL (B) Module
Chipset: Original CH343G
Operating Voltage Levels: Switch between 3.3V and 5V
Transmission Speed: Supports baud rates from 50bps to 6Mbps
Interface Type: USB to UART
Operating Systems: Compatible with Windows (Win7/8/8.1/10/11), Macs, Linux, Android
| Product category | Industrial USB TO TTL converter | Host port | USB |
| Data rate | 50bps ~ 6Mbps | Device Port | UART |
| USB port | Connector: USB-A | ||
| Protection: resettable fuse, ESD protection | |||
| UART port | Connector: 8PIN fool-proof header | ||
| Protection: IO protection diode | |||
| Indicator | PWR: power indicator, turns red when USB voltage is detected | ||
| TXD: TX indicator, turns red while the USB port is sending data | |||
| RXD: RX indicator, turns red while the device port is receiving data | |||
Features:
1. Stable Data Transmission: Equipped with CH343G chip for reliable communication.
2. Multi-Protection Design: ESD (Electrostatic Discharge), IO protection, and resettable fuse for enhanced safety.
3. Voltage Selection: Adjustable voltage levels (3.3V/5V).
4. Indicator LEDs: Power, TXD, and RXD indicator lights for visualizing module status.
5. User-Friendly Connector: Fool-proof TTL design for convenient usage.
6. Multi-System Compatibility: Works seamlessly across Windows, Linux, Macs, and Android platforms.
Package Includes:
1 x USB to TTL (B) Module
