Specification:

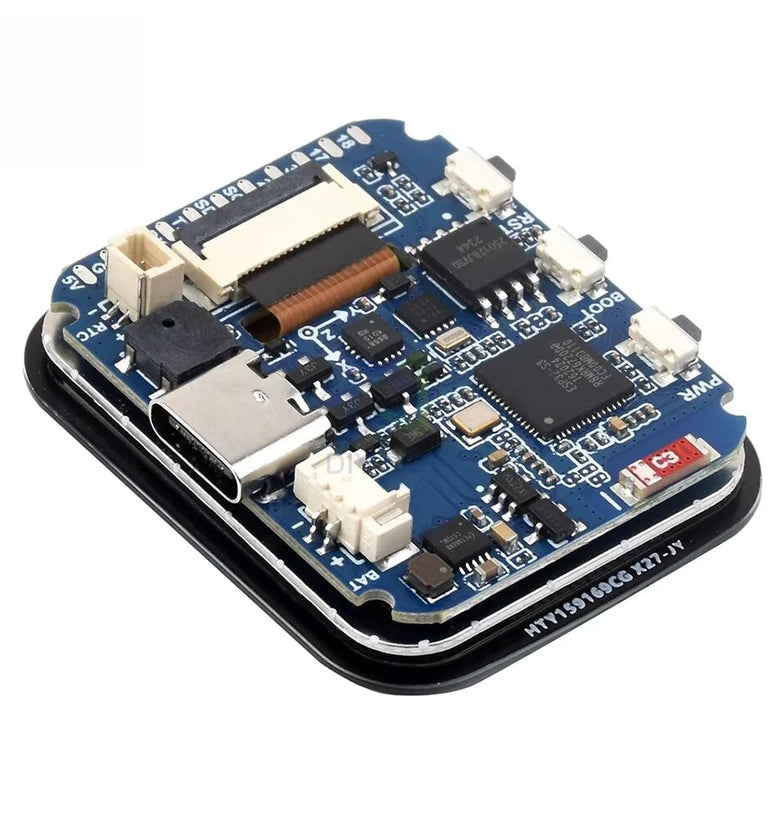

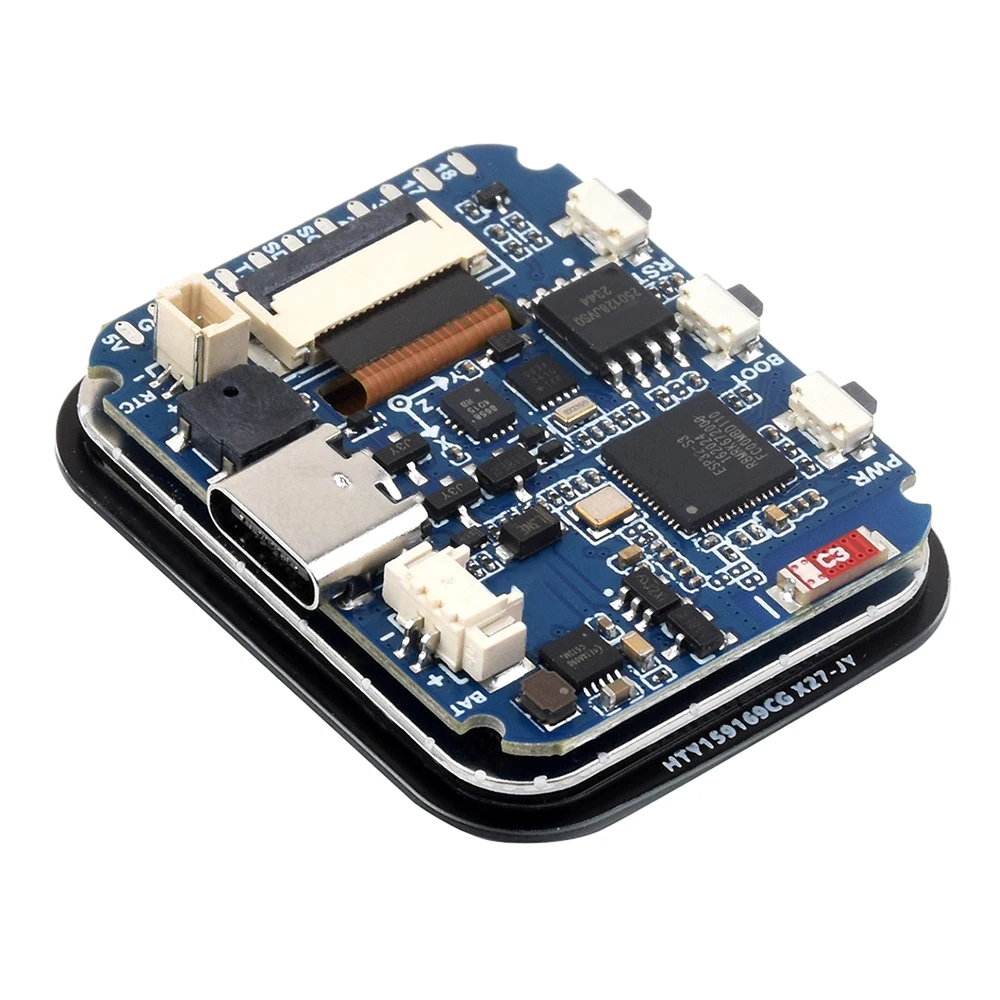

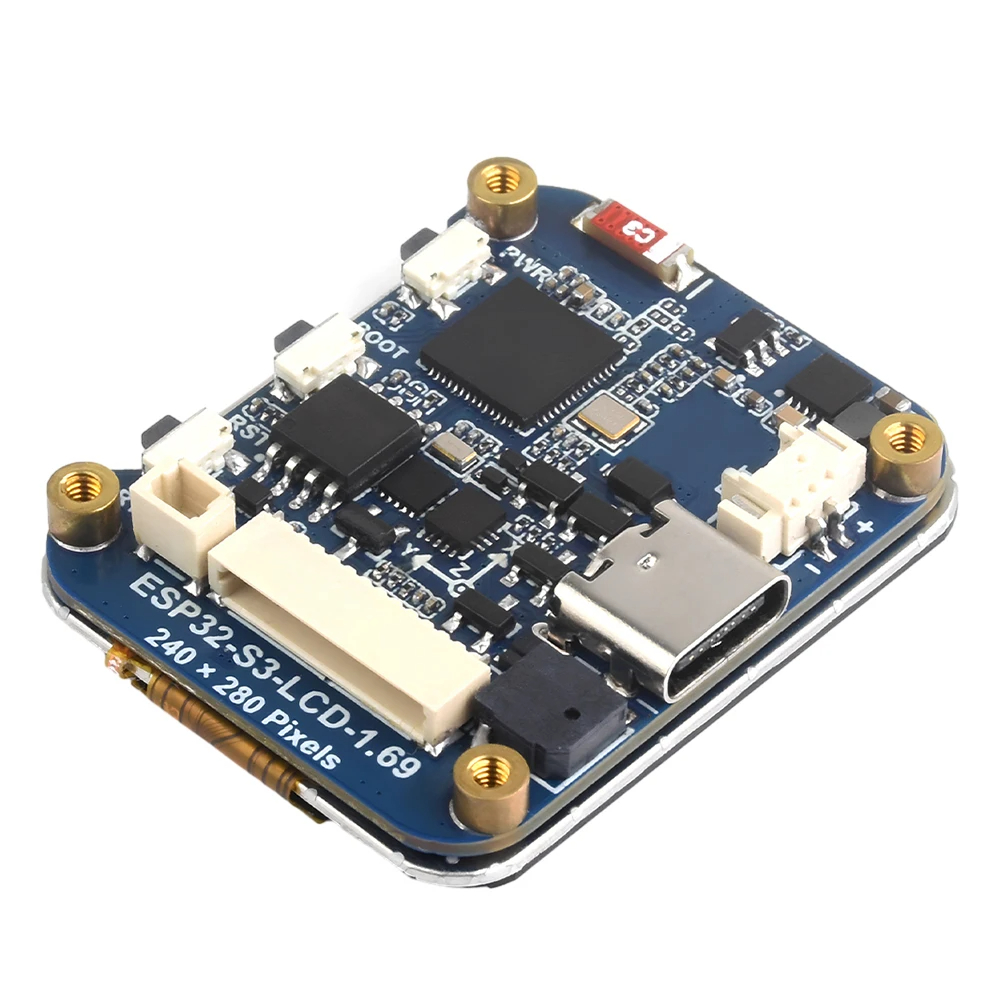

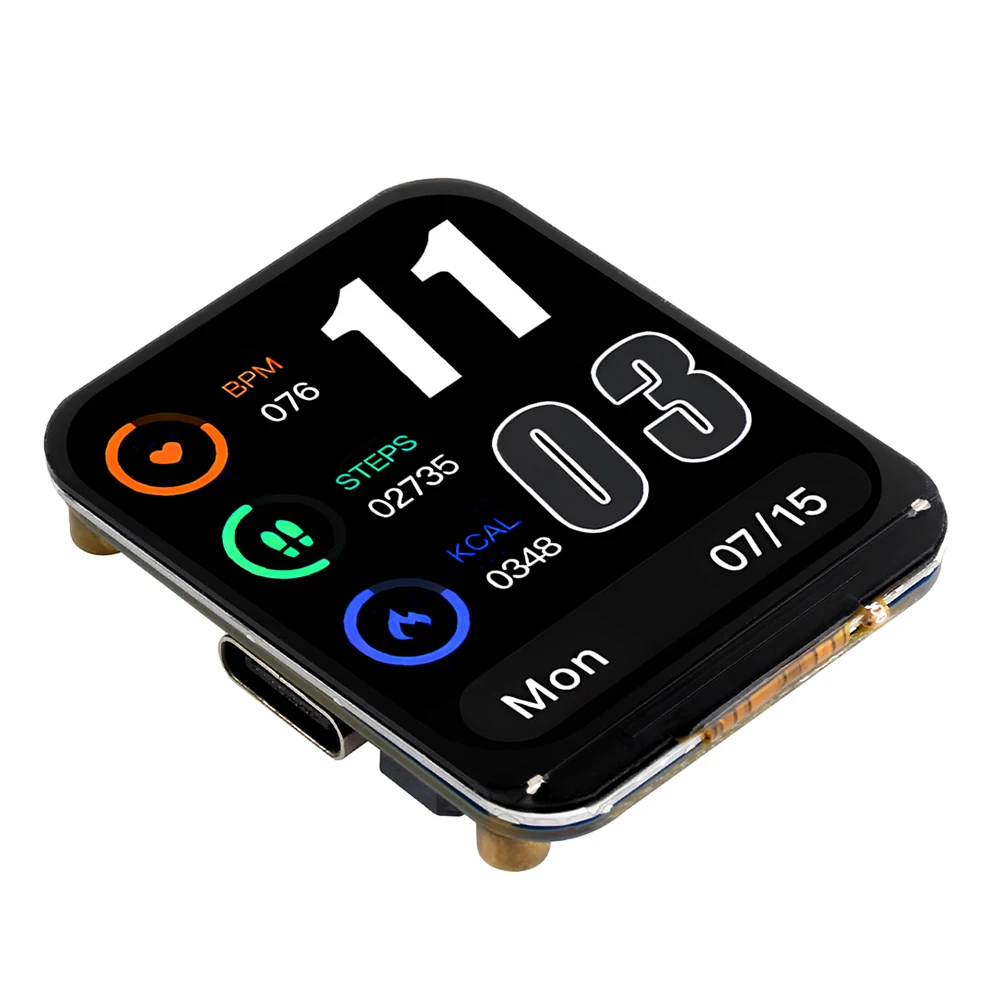

Model: ESP32-S3-LCD-1.69

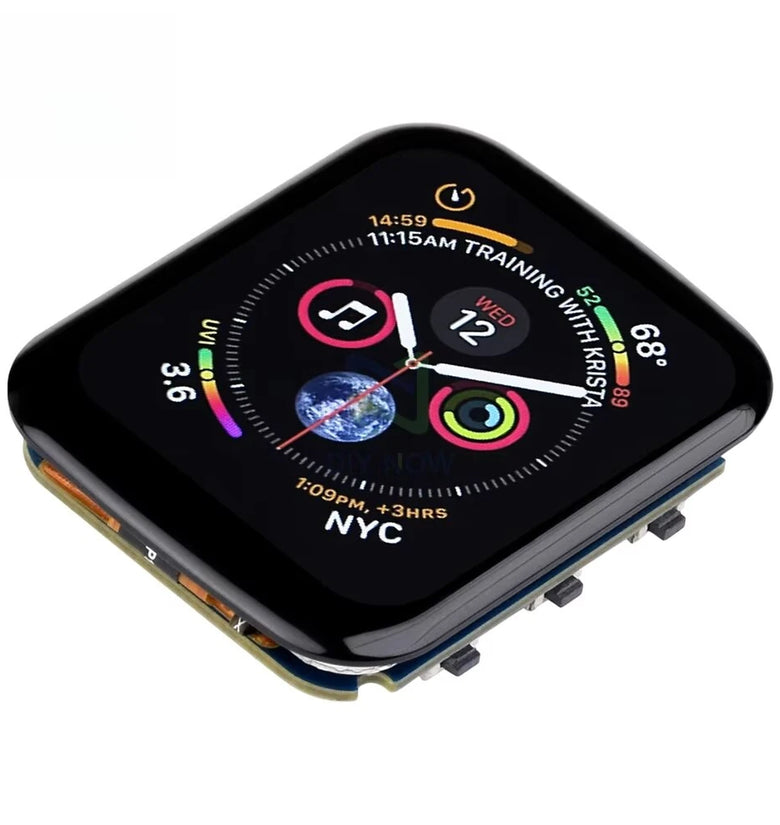

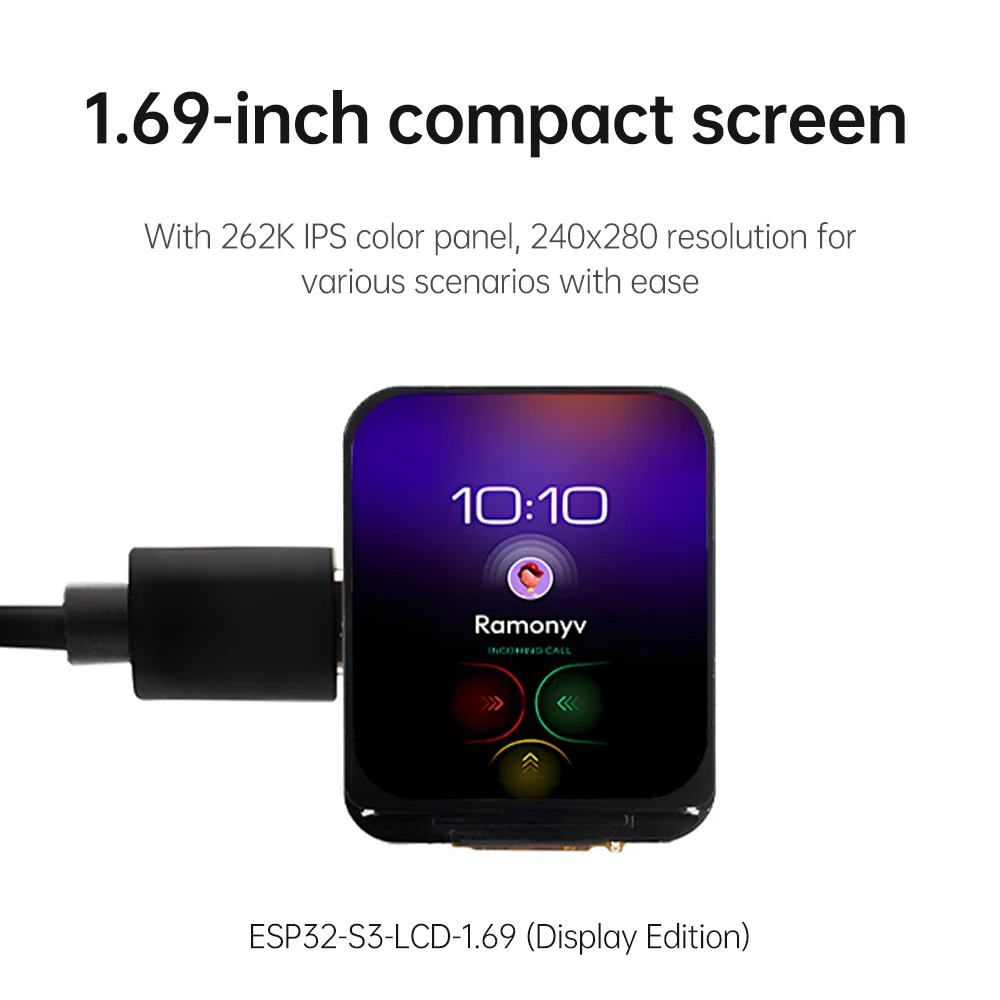

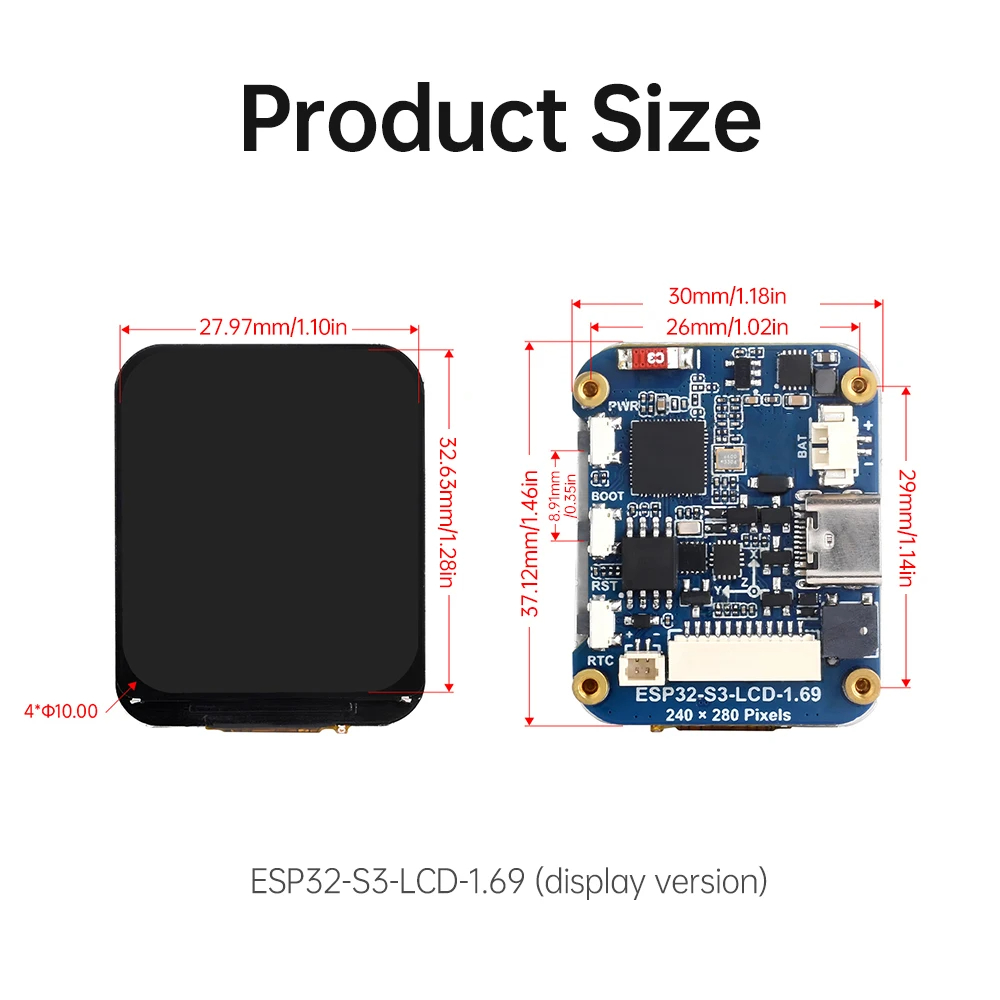

Screen Size: 1.69 inches IPS panel
Display Resolution: 240 x 280 pixels, 262K colors
Processor: ESP32-S3R8 Dual-core CPU, operating at 240MHz
Connectivity: 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE)
Memory: 8MB PSRAM and 16MB NOR-Flash

Features:

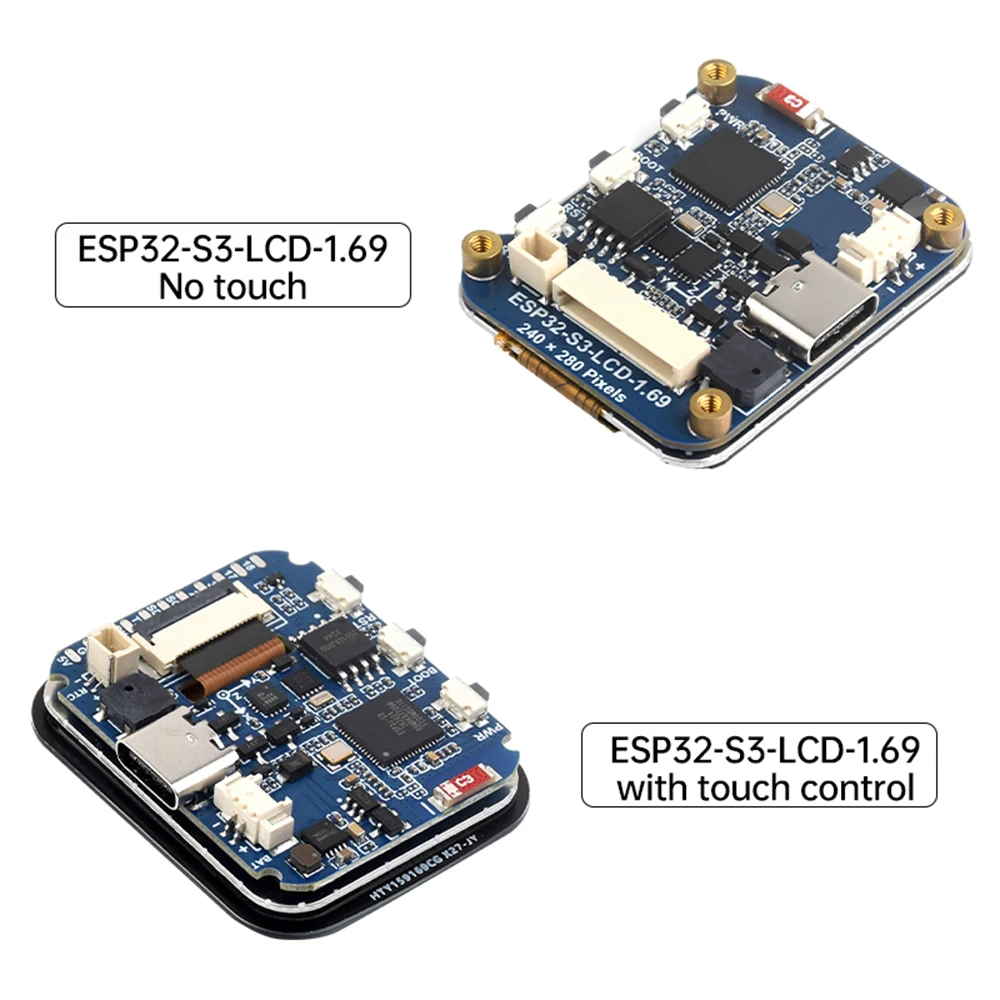

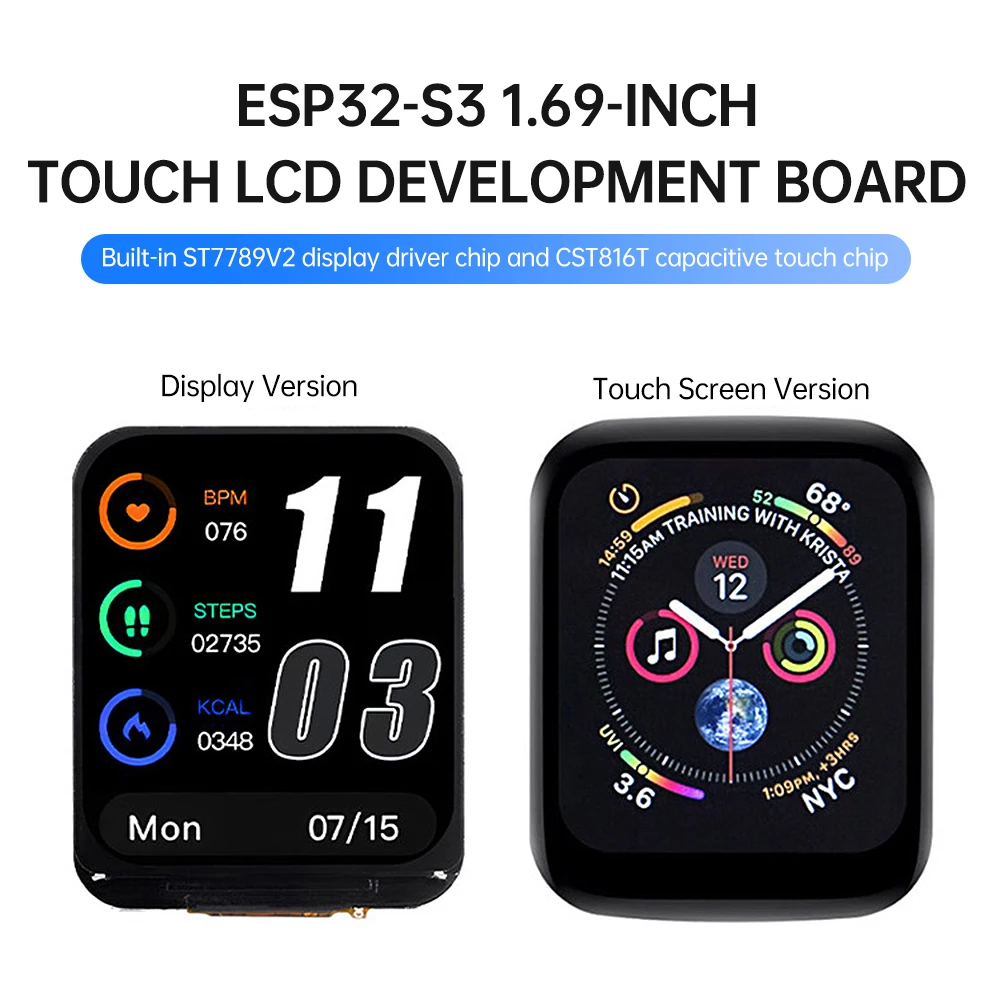

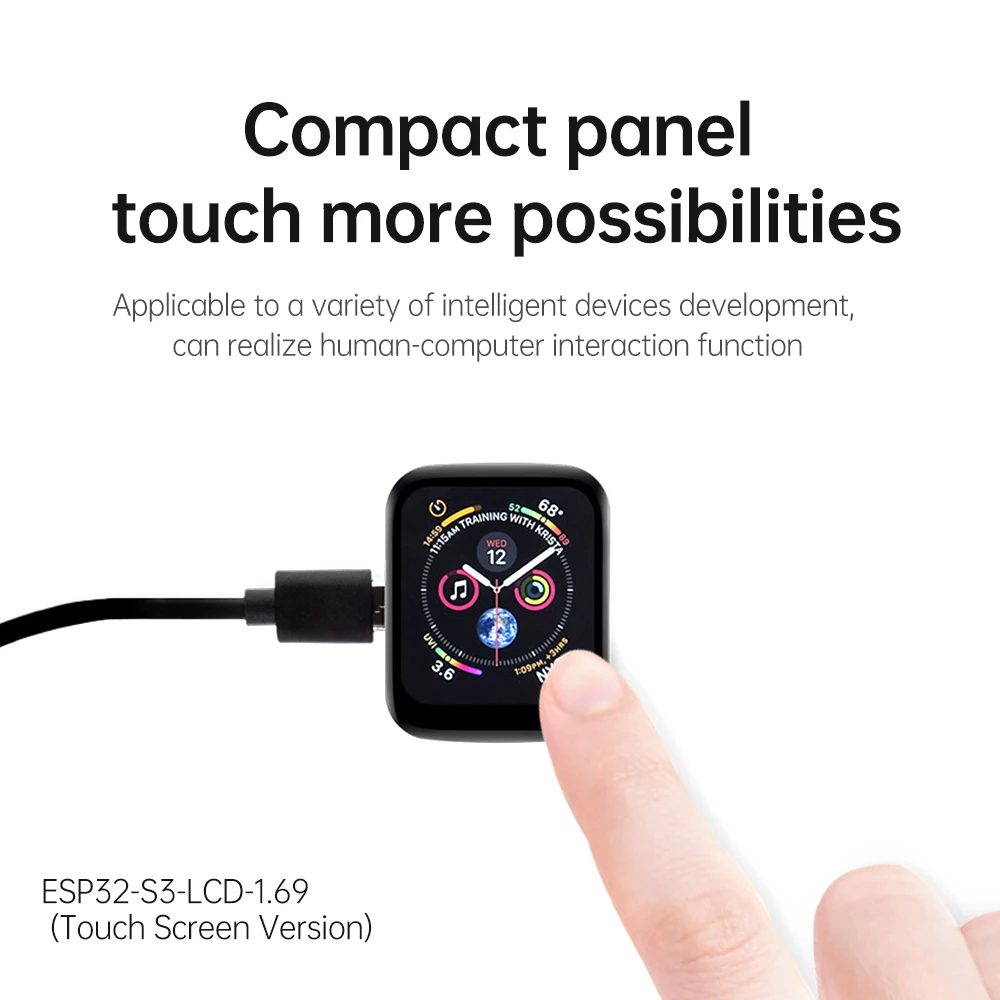

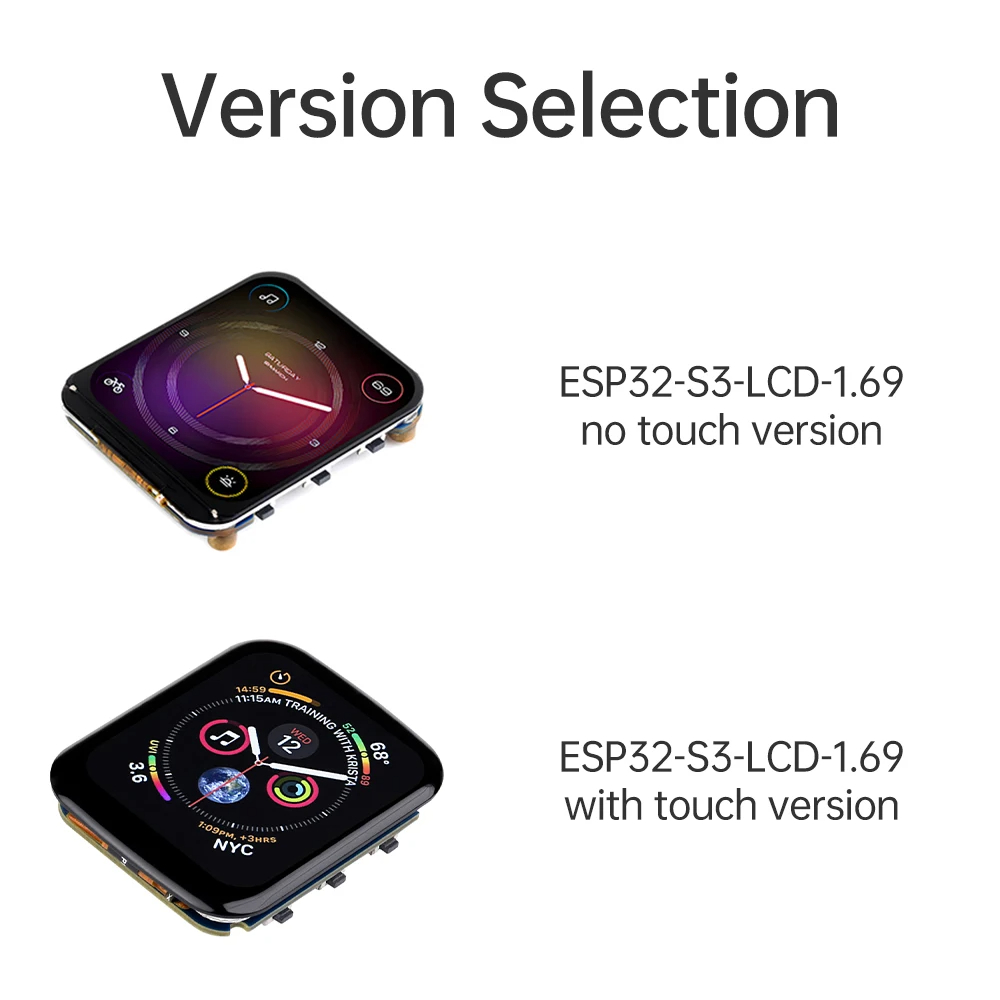

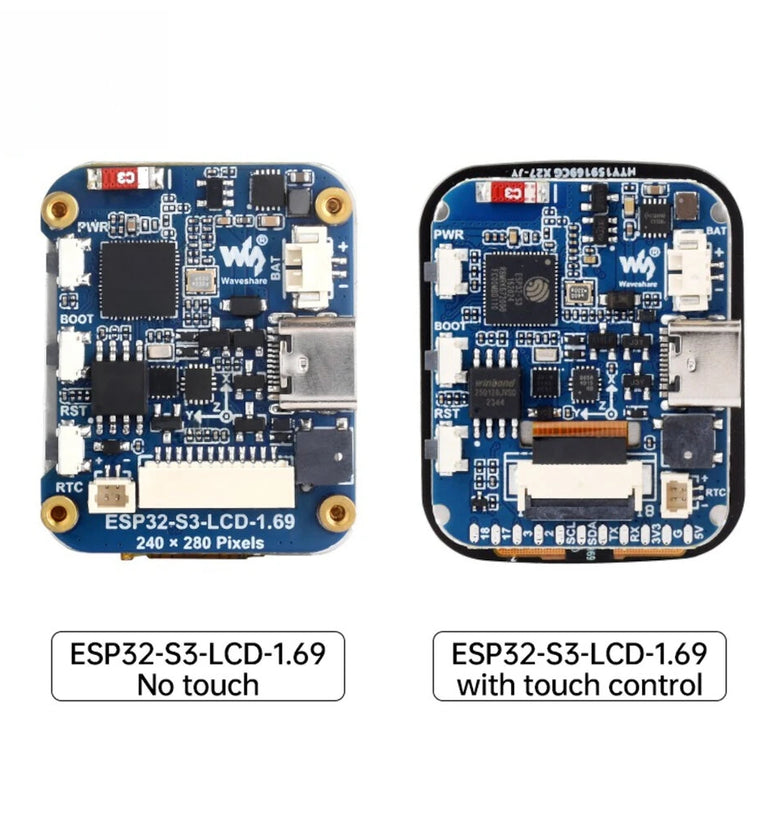

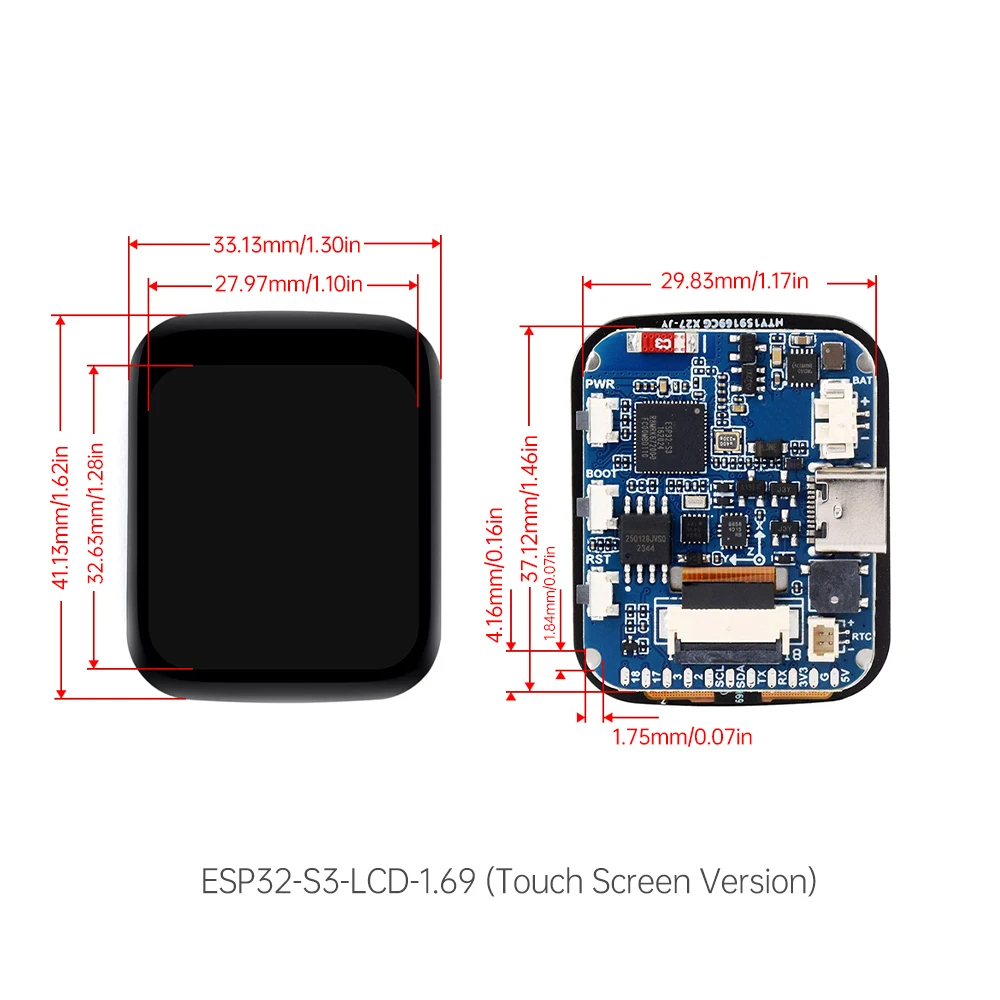

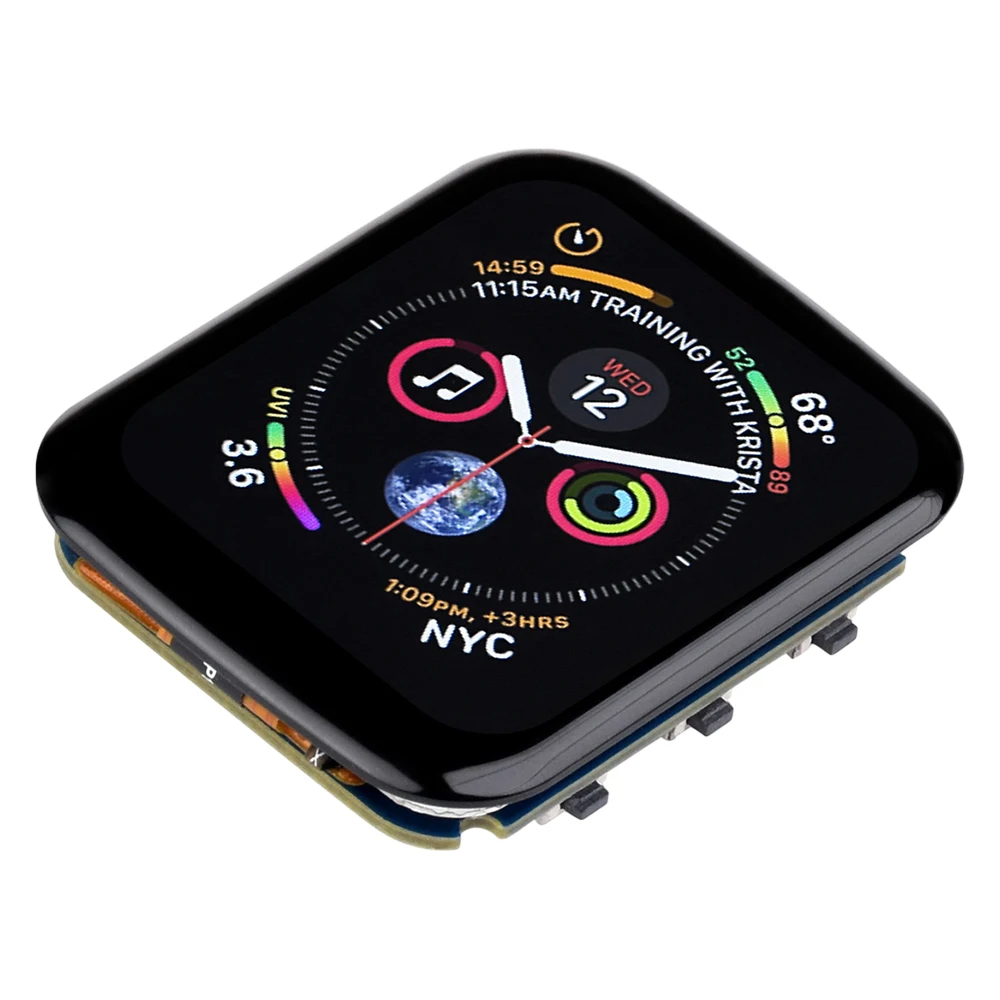

1. Touchscreen Options: Available in both touchscreen and non-touchscreen versions to suit your development requirements.
2. High-quality Display: IPS panel with vibrant 262K color depth and a compact 240x280 resolution.
3. Extensive Connectivity: On-board antenna supporting Wi-Fi and Bluetooth 5 for seamless wireless integration.
4. Type-C Interface: USB port for program burning, debugging, and log printing.
5. Six-axis Sensor Integration: Equipped with QMI8658 inertial measurement unit (IMU) for advanced motion sensing and positioning.
6. RTC Clock Support: Built-in PCF85063 clock chip allows precise RTC functionality.

Description:

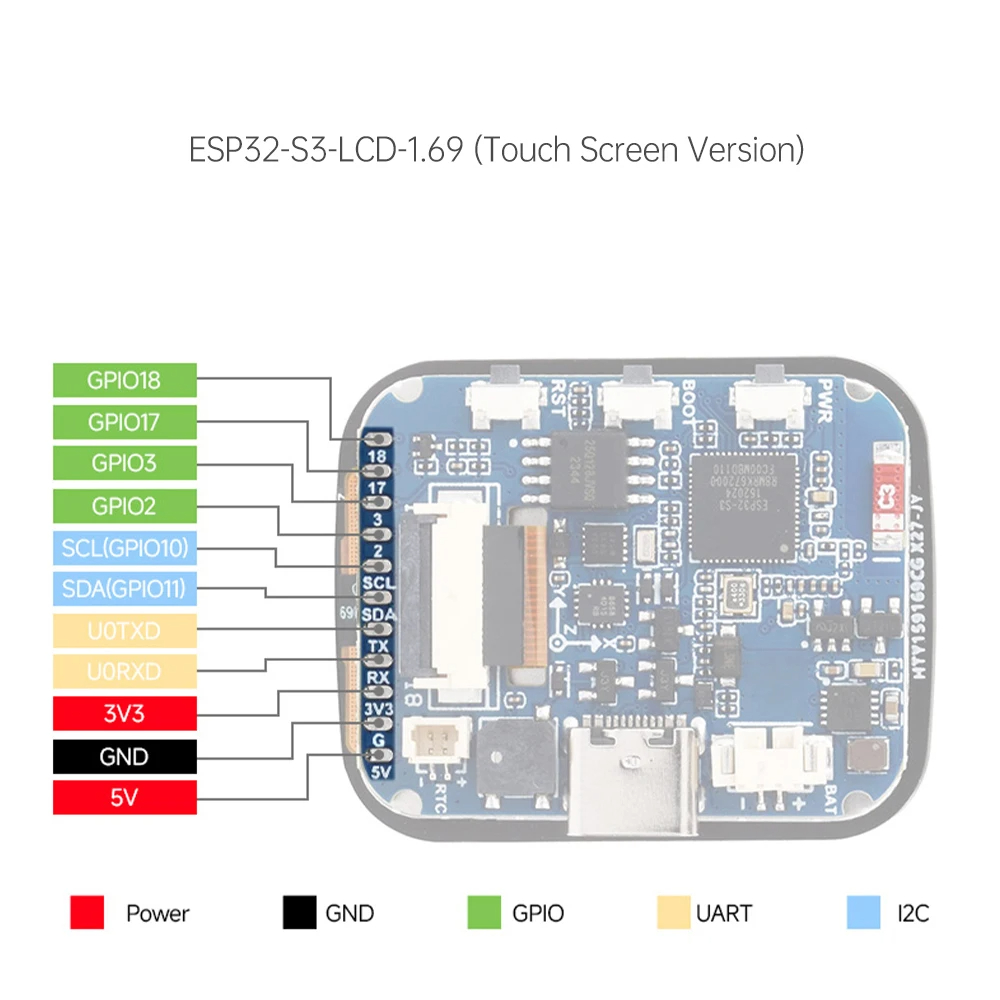

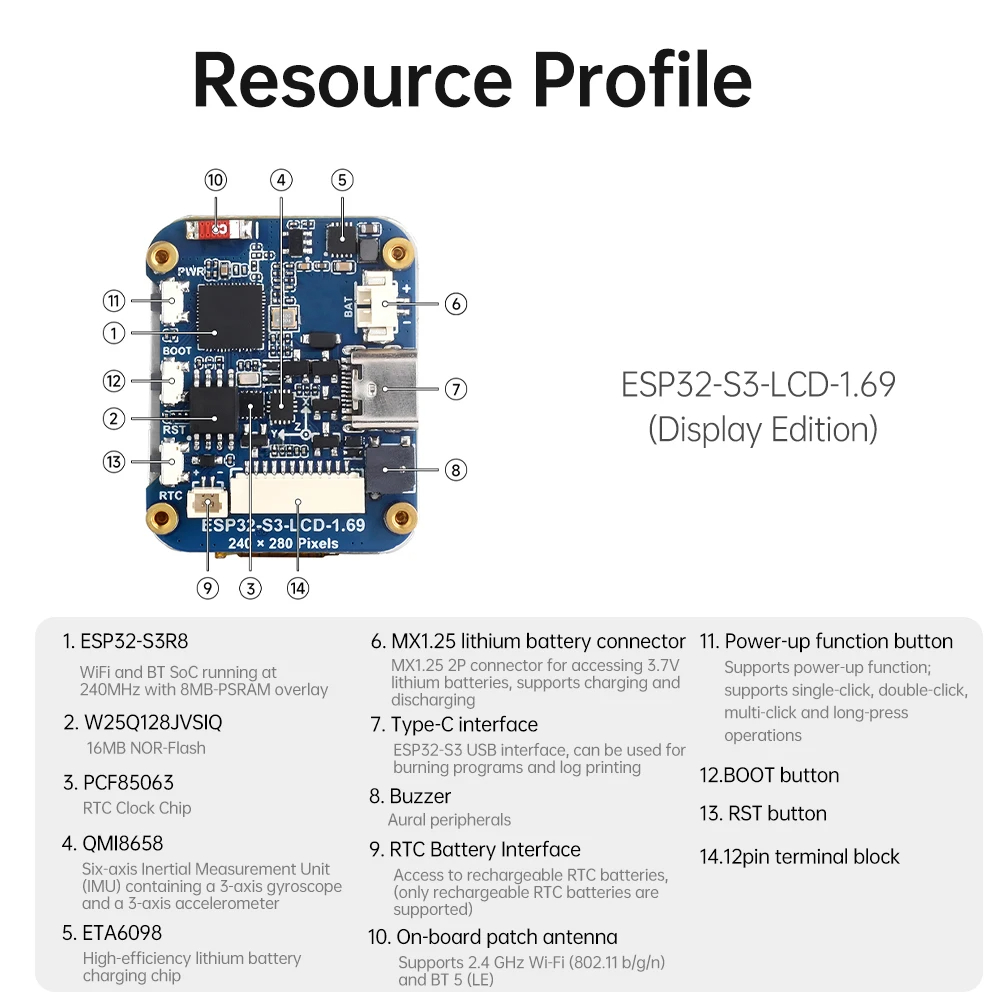

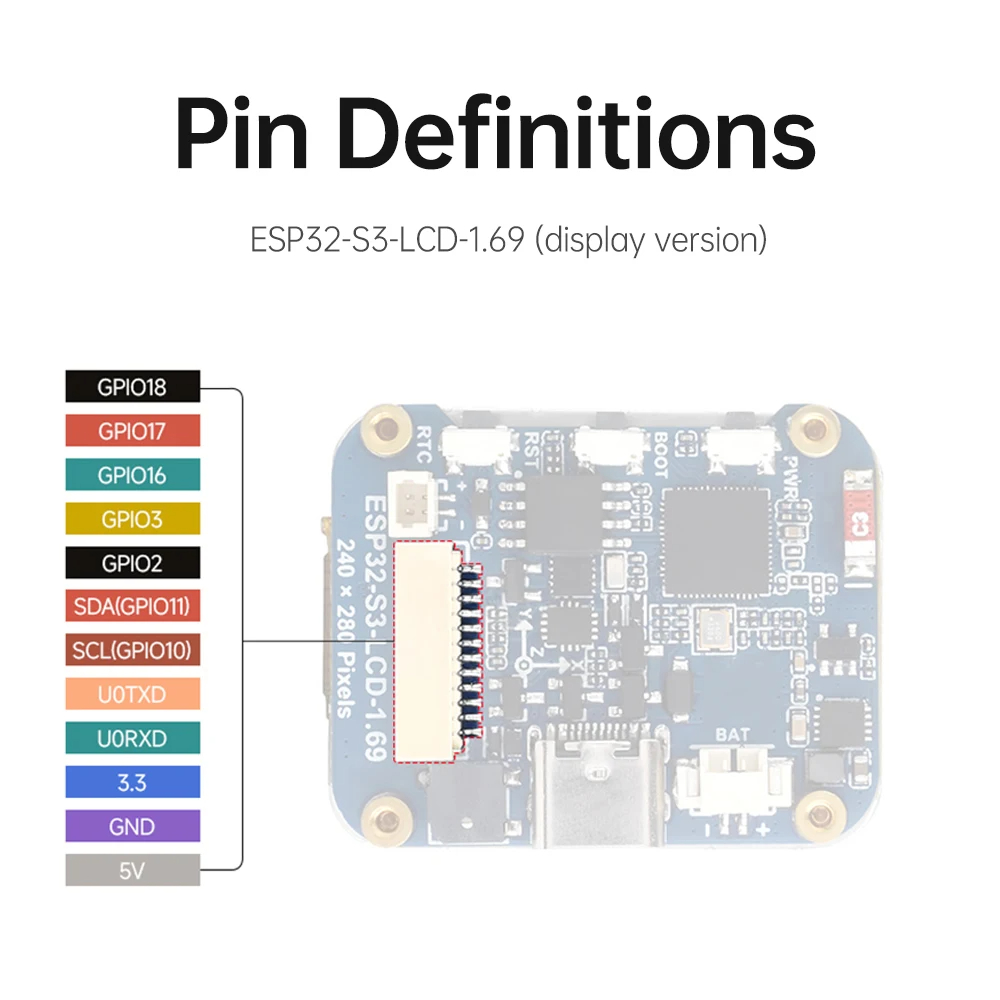

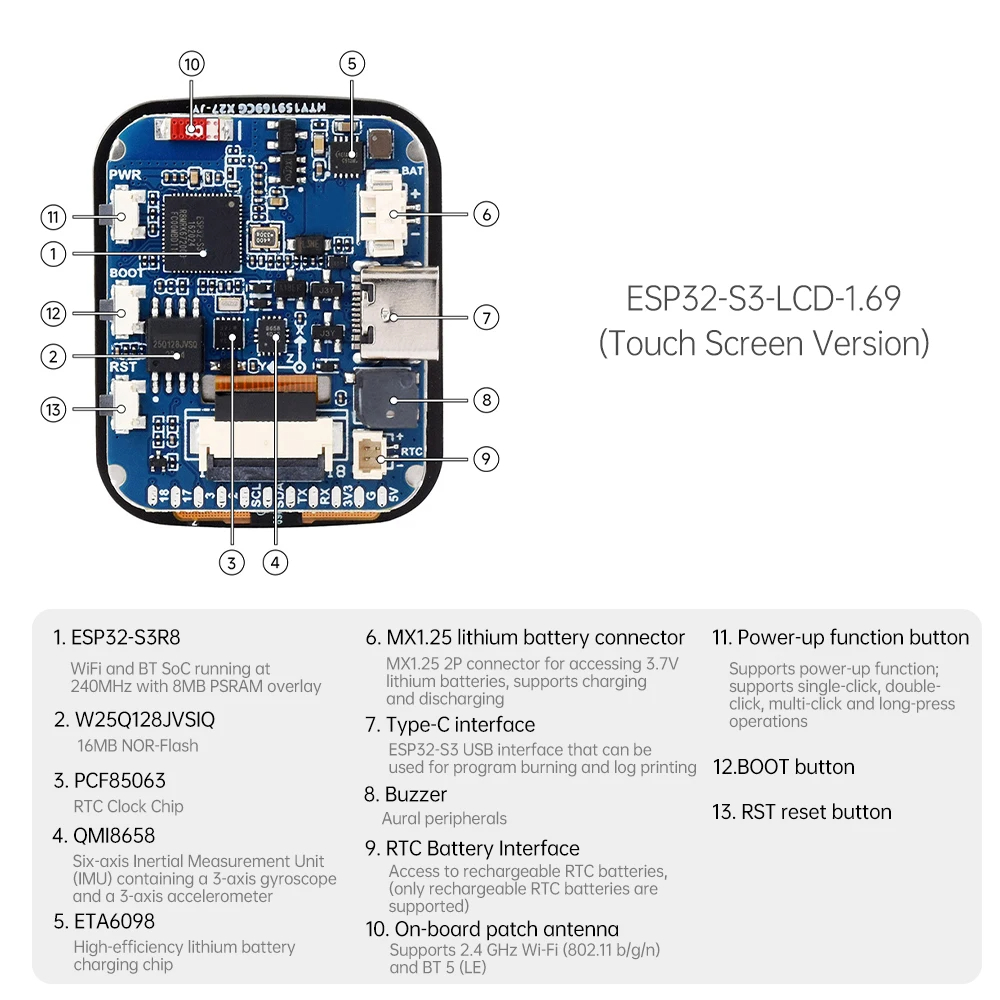

1. Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna3. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory4. Type-C connector, keeps it up to date, easier to use5. Onboard 1.69inch 240×280 pixels 262K display for clear color pictures6. Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources7. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.8. Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement9. Onboard RST, BOOT and a programmable PWM button for easy custom function development10. Onboard 3.7V MX1.25 lithium battery recharge/discharge header11. Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging12. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Package Includes:
1 x ESP32-S3-LCD-1.69 Development Board
