Features:
1. Wide Frequency Coverage, Complete Model Range: Offers an 8GHz wide frequency range to meet various application needs.

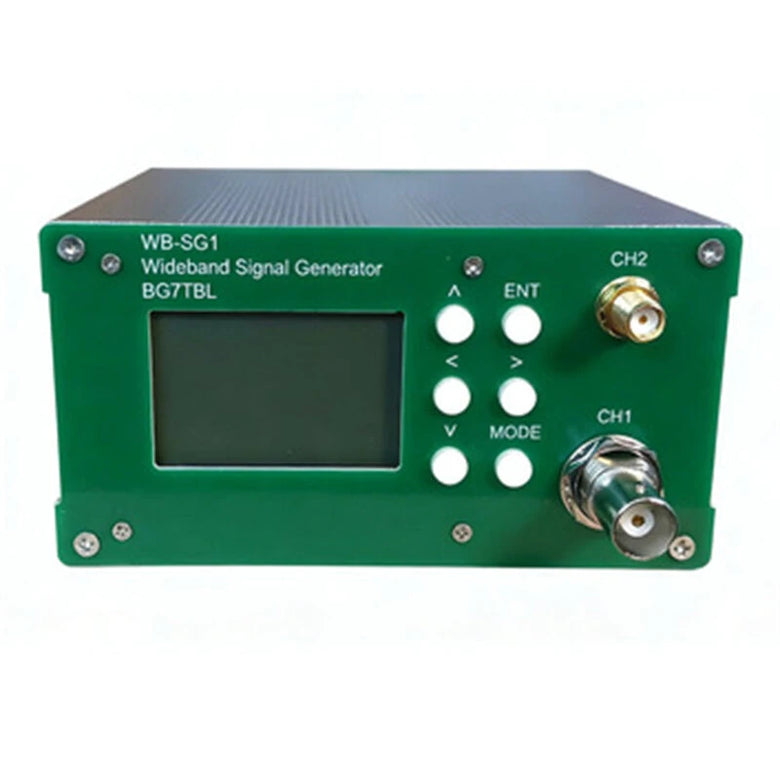

2. Dual-Channel Output: CH1 for low-frequency output, CH2 for high-frequency output, with CH2 featuring on/off modulation.
3. High-Precision Reference: Built-in OCXO temperature-controlled crystal oscillator with an annual aging rate as low as 0.5ppm, supports external 10MHz reference input.

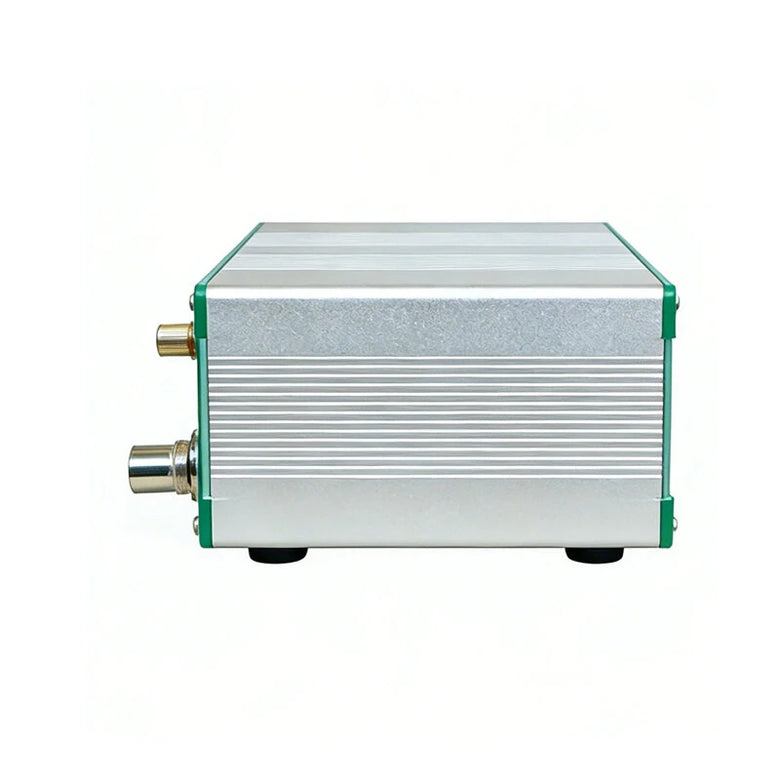

4. Portable and Compact: Aluminum alloy casing, weighing only 350 grams, easy to carry.
Specifications:
Product Model: WB-SG1-8GHZ
Frequency Range:
CH1: 1Hz - 250MHz
CH2: 1Hz - 6.4G / 9.5G / 15G / 20G / 22G (depending on specific model)
Frequency Step: CH2 1Hz
Output Impedance: 50Ω
Interface Type: SMA Female
Dimensions: 106mm (L) * 55mm (H) * 105mm (D)
Weight: Approx. 350g
CH2 Reference Output Power (Typical):
@1GHz Reference Value: +5dBm to -7dBm
Typical Output Power at Each Frequency:
6G: +8.5 dBm
7G: +4.5 dBm
8G: +5.2 dBm
9G: +4.4 dBm
10G: +3.4 dBm
11G: +4.3 dBm
12G: +4.6 dBm
13G: +3.0 dBm
14G: +3.0 dBm
15G: +1.7 dBm dBm
16G: -1.4 dBm
17G: -4.9 dBm
18G: -6.4 dBm
19G: -6.5 dBm
20G: -8.3 dBm
Internal Reference and Time Base:
Internal Reference Frequency: 10MHz
Reference Type: Oven-Operated Crystal Oscillator (OCXO)
Annual Aging Rate: ≤ 0.5ppm
External Reference: Supported (External Frequency Standard Input)
Package Included:

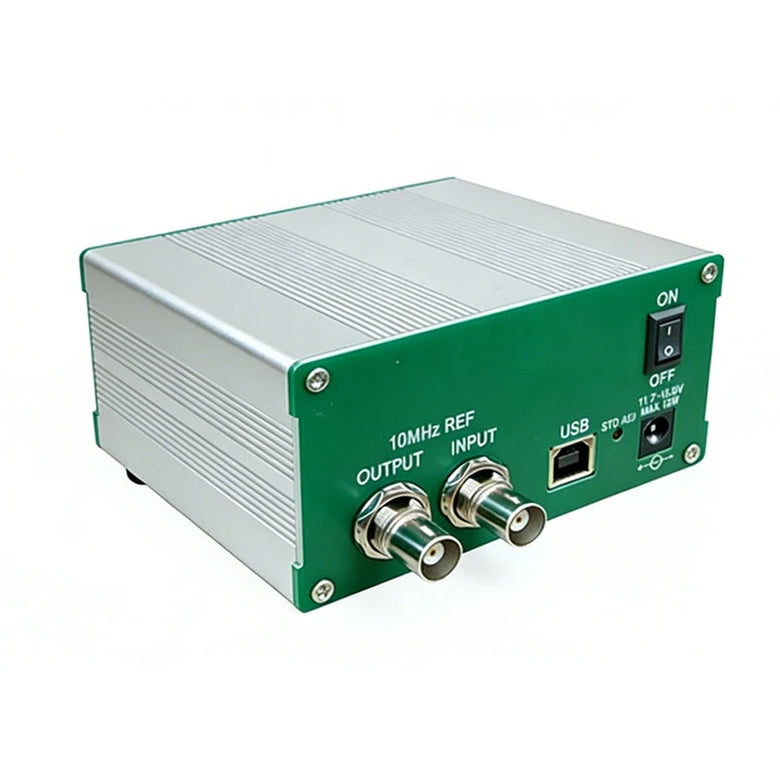

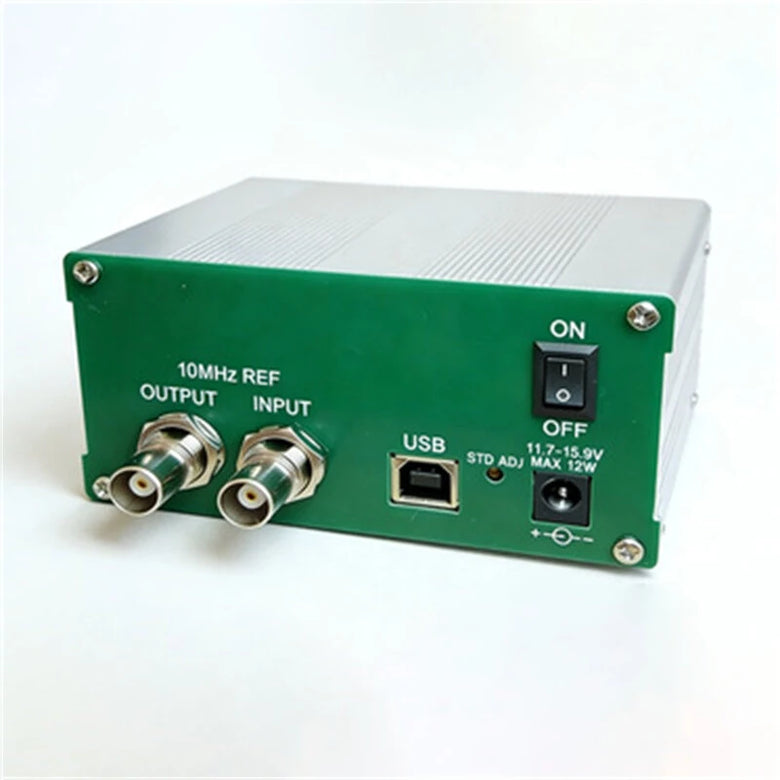

1 x WB-SG1-8GHZ Signal Generator
1 x DC12V Power Adapter(EU Plug)
