Features:

1. The frequency diagram of the watch can be displayed on the LCD screen.

2. According to different watches, the instrument will automatically adjust the optimal signal level during the test.

3. The instrument will automatically calculate the rate deviation, amplitude, be-at error, and display them by the data in real time; select '±99.9s/d' at item rate ranges for result display, which can make the accuracy of rate deviation up to 0.1s/d.

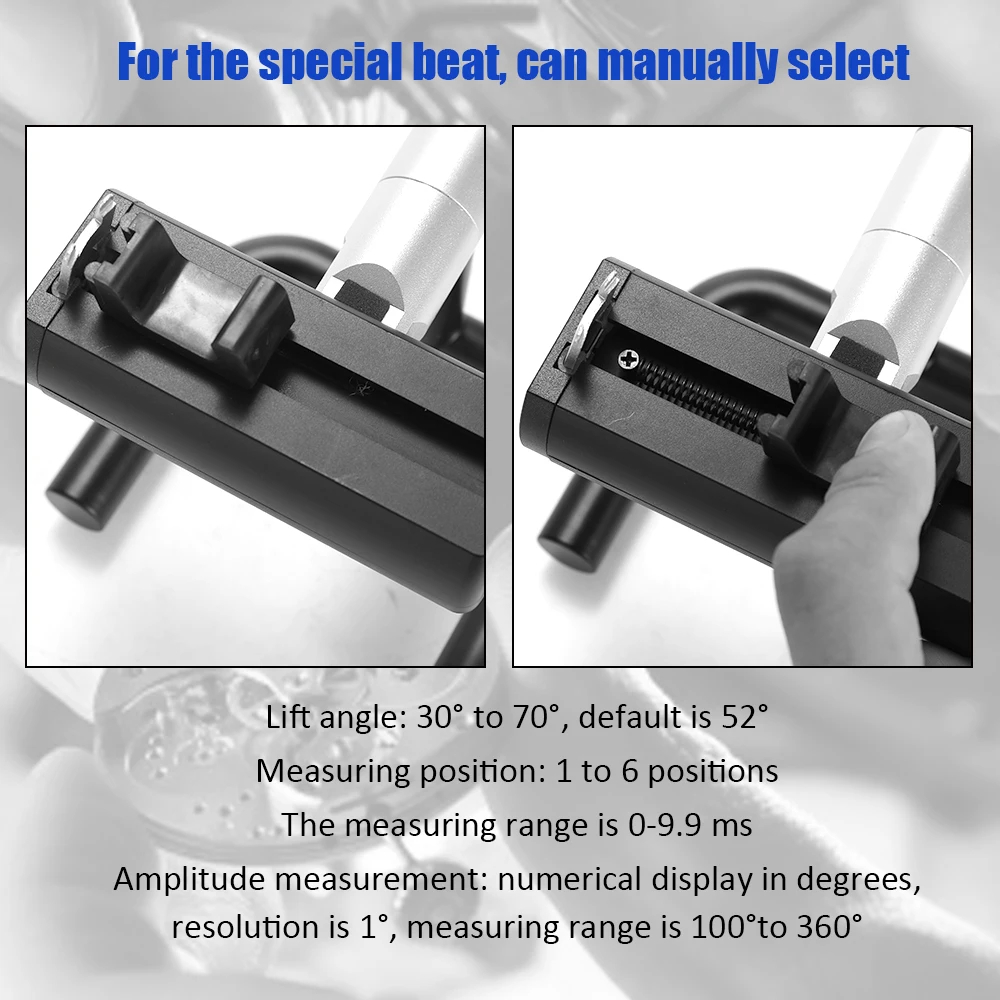

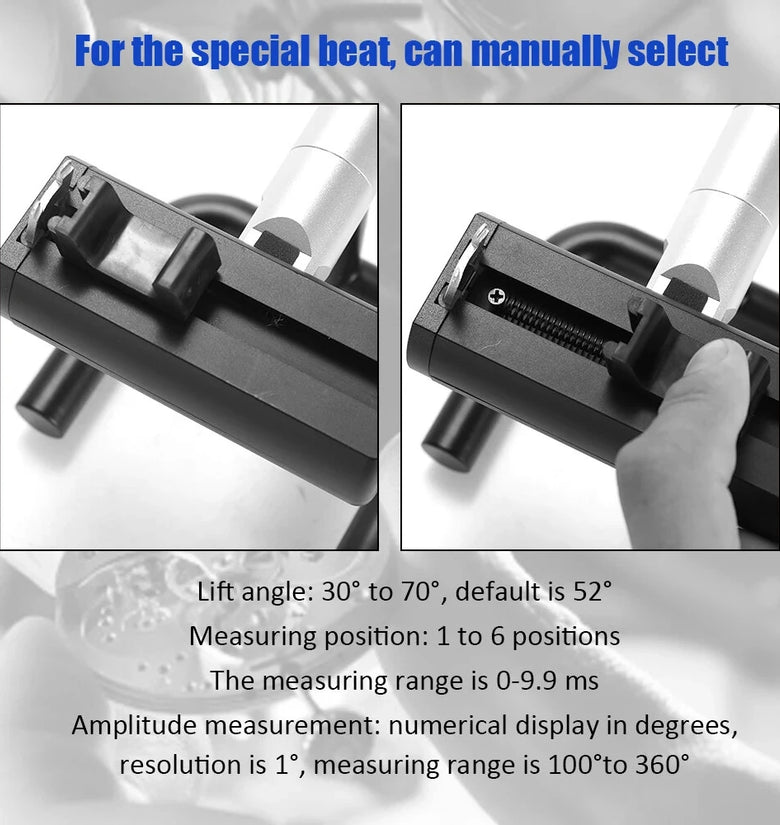

4. For the conventional be-at, the instrument can automatically respond; for the special be-at, can manually select.

5. The sampling period can be selected by 2 seconds, 4 seconds, 6 seconds, 8 seconds, 12 seconds, 20 seconds, 30 seconds, 60 seconds, and the average value of corresponding period will be regarded as the precise value of the watch.

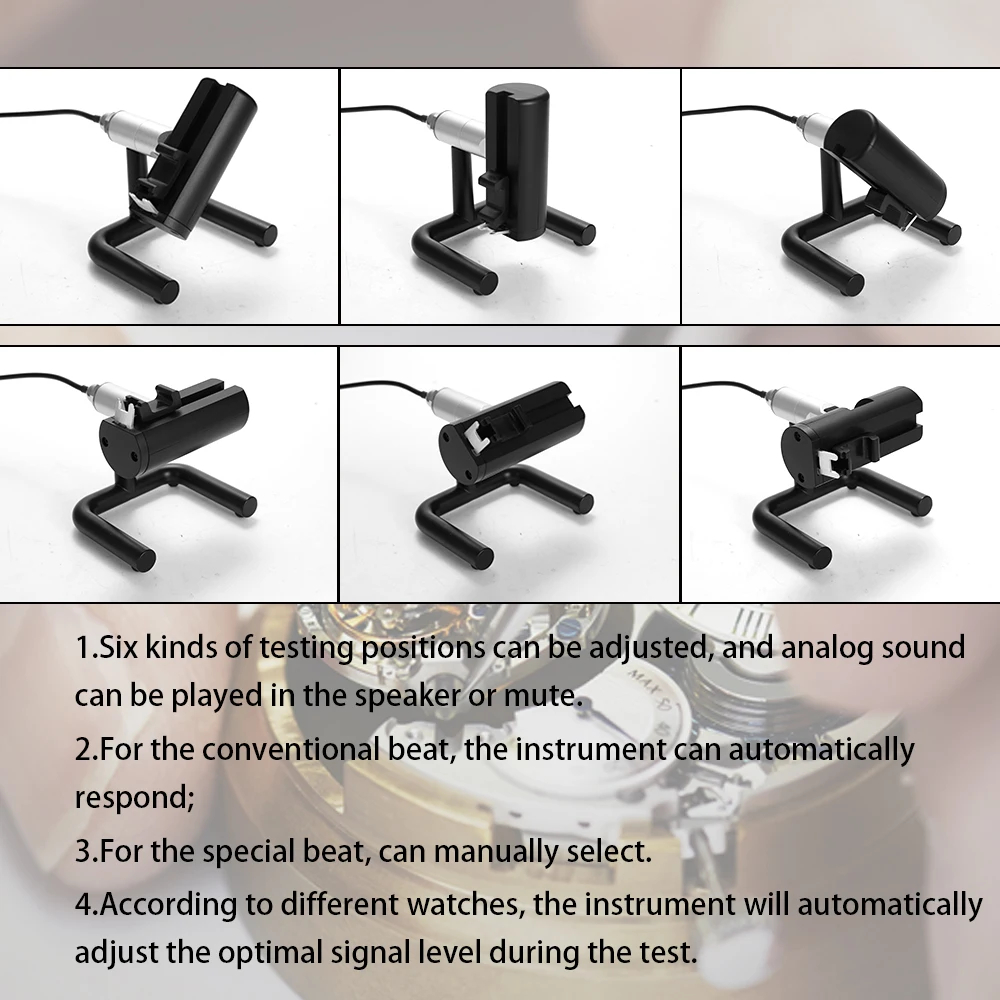

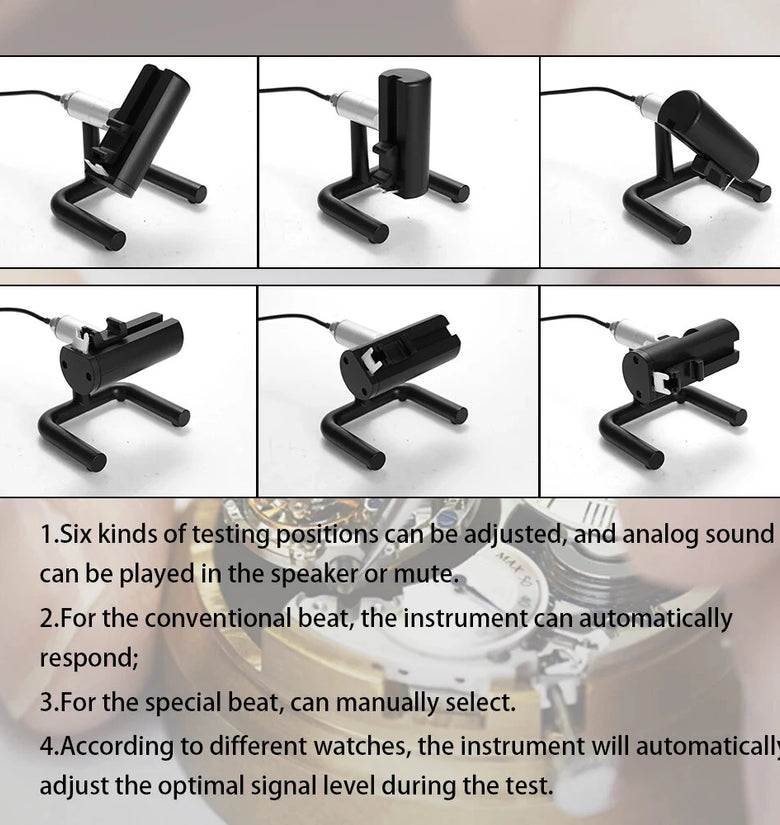

6. Six kinds of testing positions can be adjusted, and the simulation sound can be played in the speaker or mute.

Specifications:

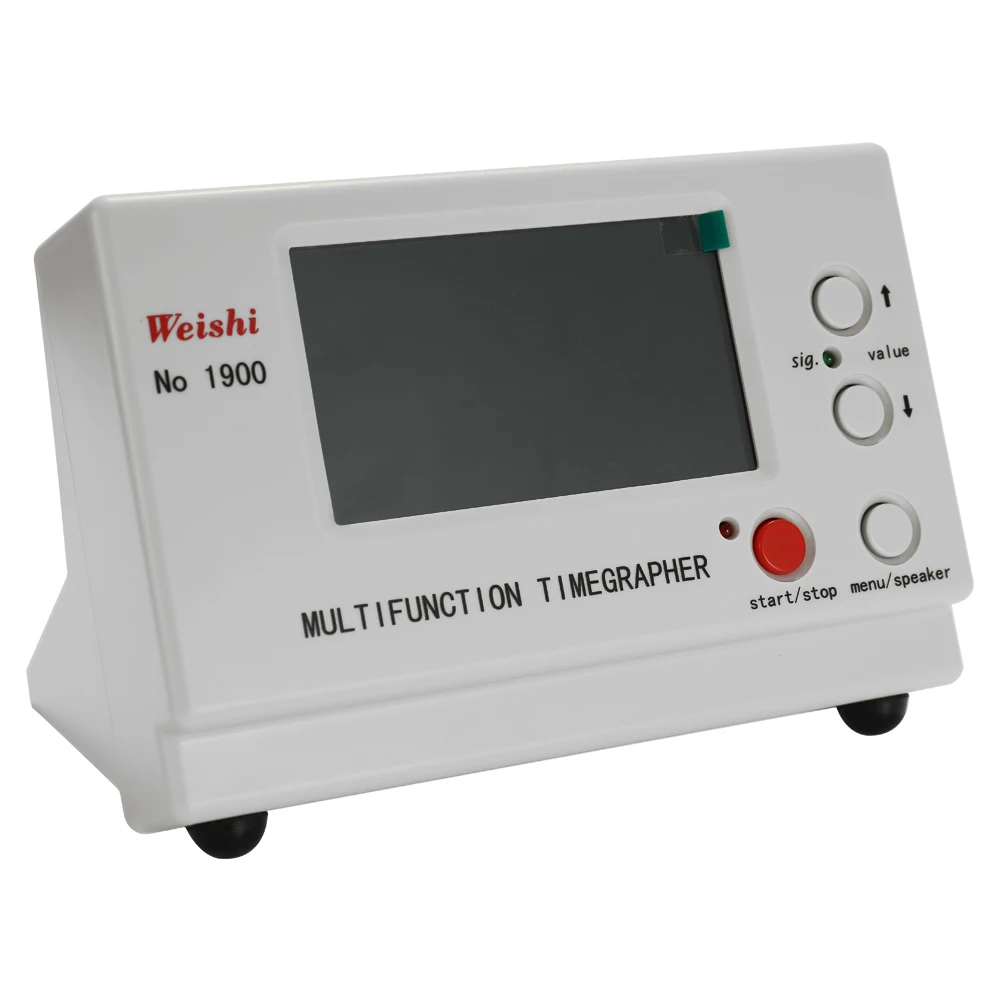

No.1900:

Plug: EU-plug, US-plug (optional)

Main material: ABS

Color: grey+black

Measuring possibilities: rate deviation, amplitude, be-at error of mechanical watches and diagram recording of the be-at noise.

Rate deviation measurement:

Measuring ranges: ±999s/d or ±99.9s/d

Resolution: 1.0s/d or 0.1s/d

Amplitude measurement:

Measuring ranges: 100°~360°

Resolution: 1°

Measuring of the be-at error:

Measuring ranges: 0.0~9.9 ms

Resolution: 0.1 milliseconds

Lift angle:

Measuring ranges: 30°~70°

Default value: 52°

Measure positions: 1-6 positions

Line length: 480 points

Measuring times periods: 2/4/6/8/12/20/30/60 seconds

Language: Chinese, English, Japanese

Display: color LCD graphic monitor, 480*272 pixels

Working environment: 10℃~40℃

Relative humidity: 0~80% RH

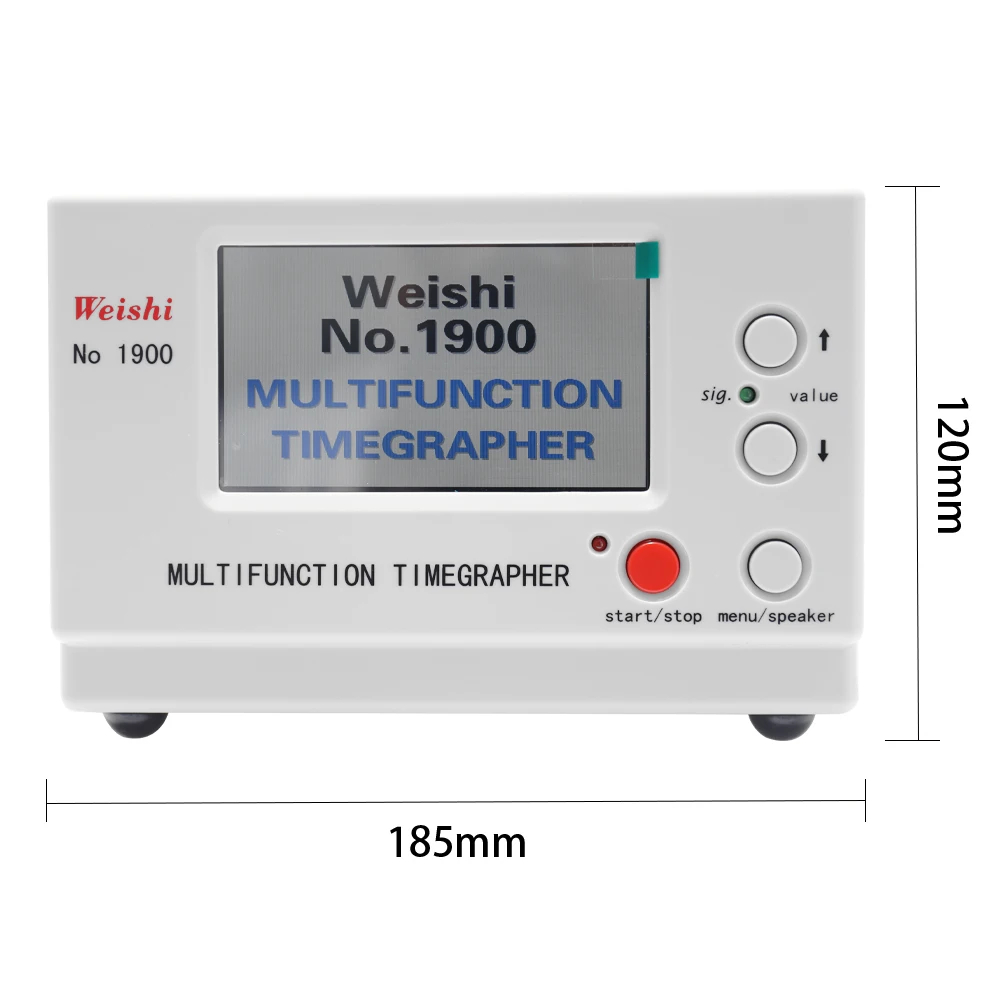

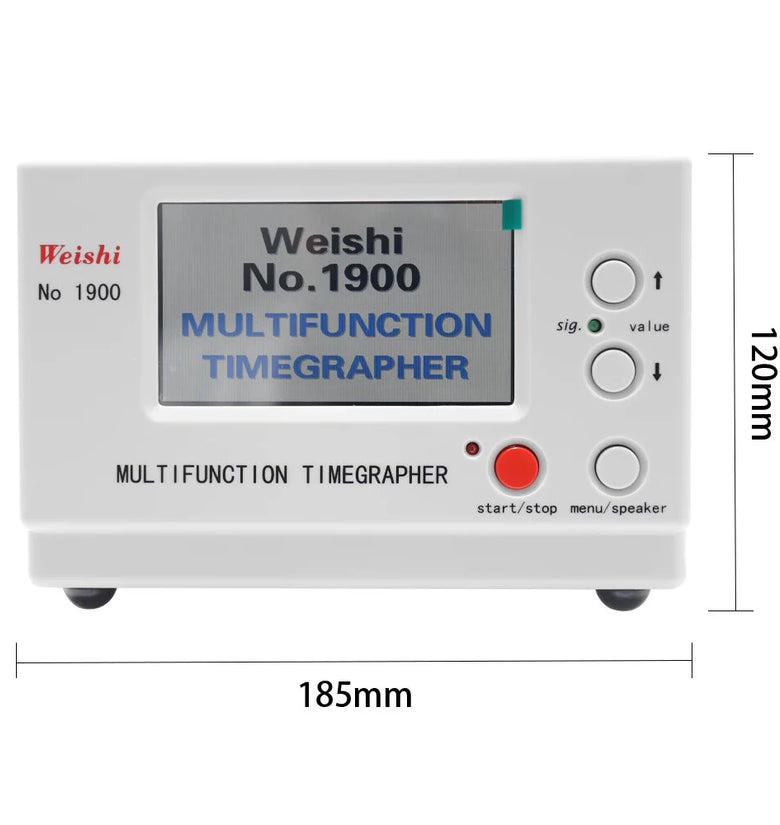

Item size: 185 * 120 * 40mm / 7.3 * 4.7 * 1.6in

Item weight: 337g / 11.9ounce

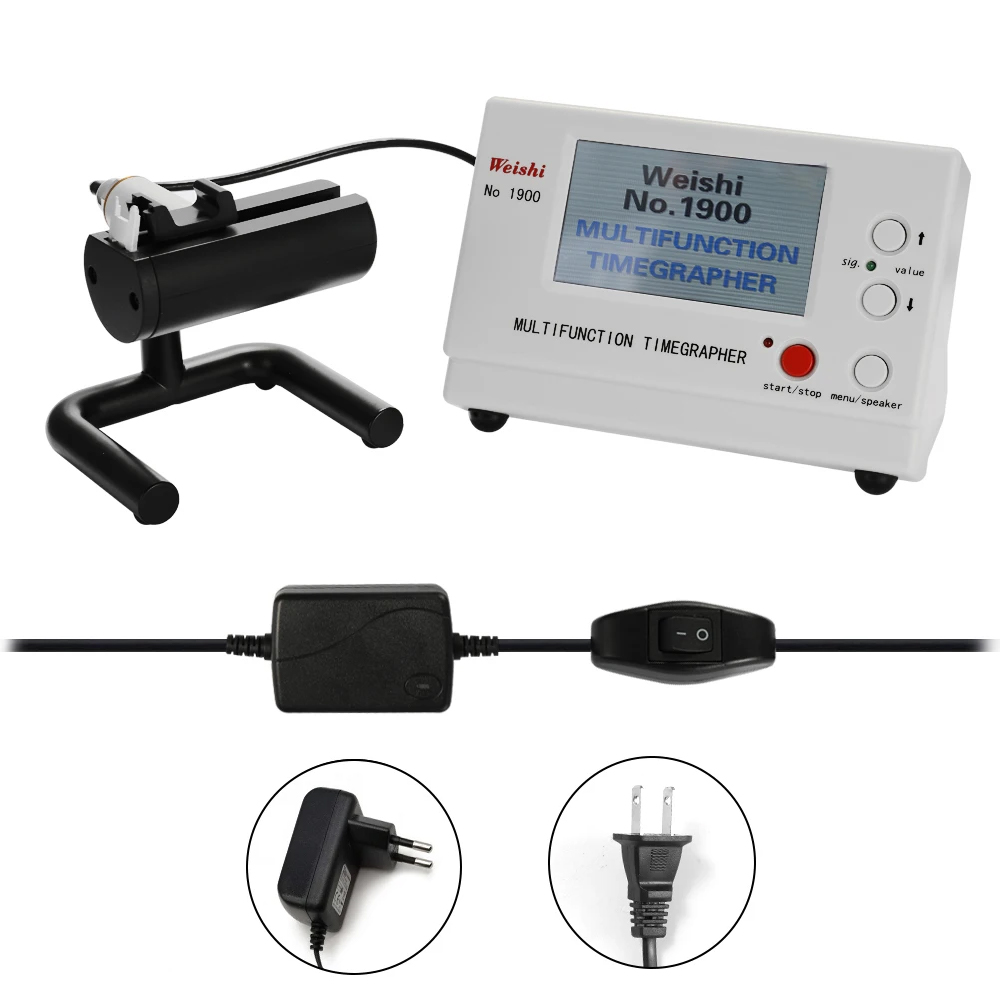

Package Included:

1 x Timegrapher

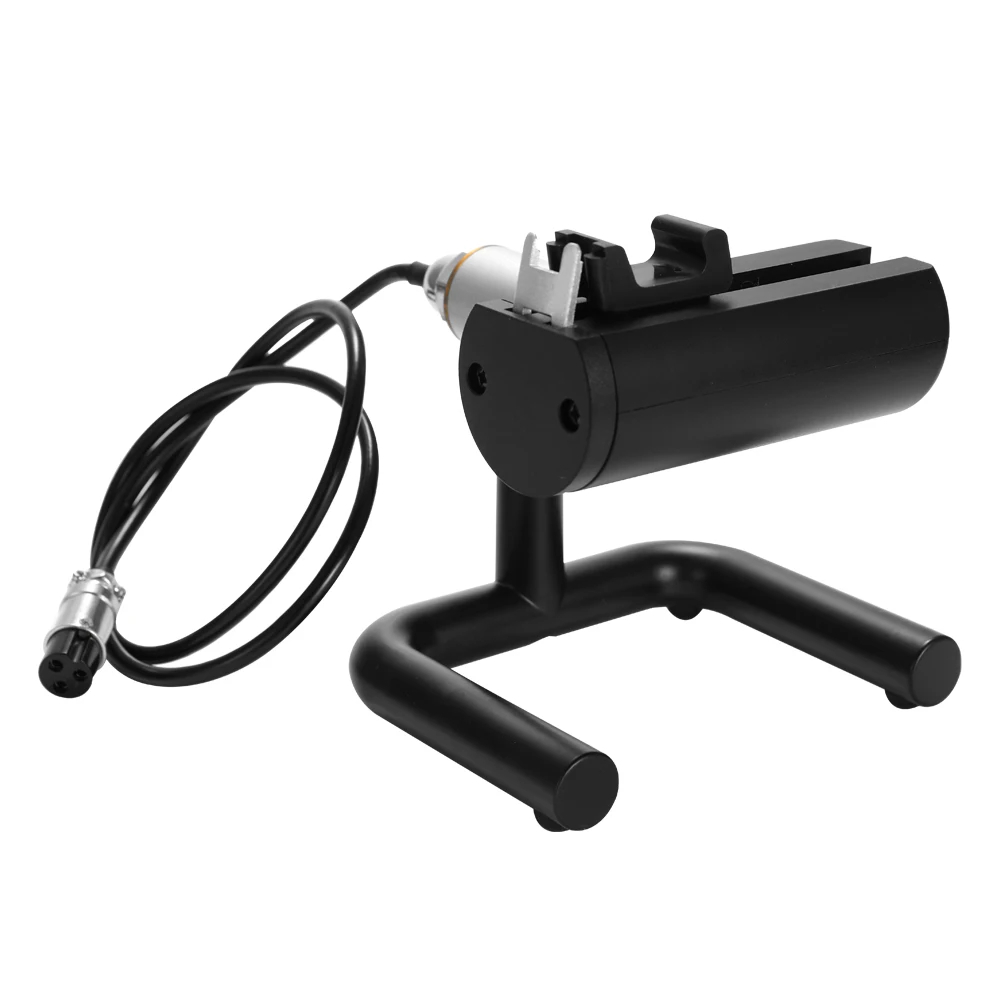

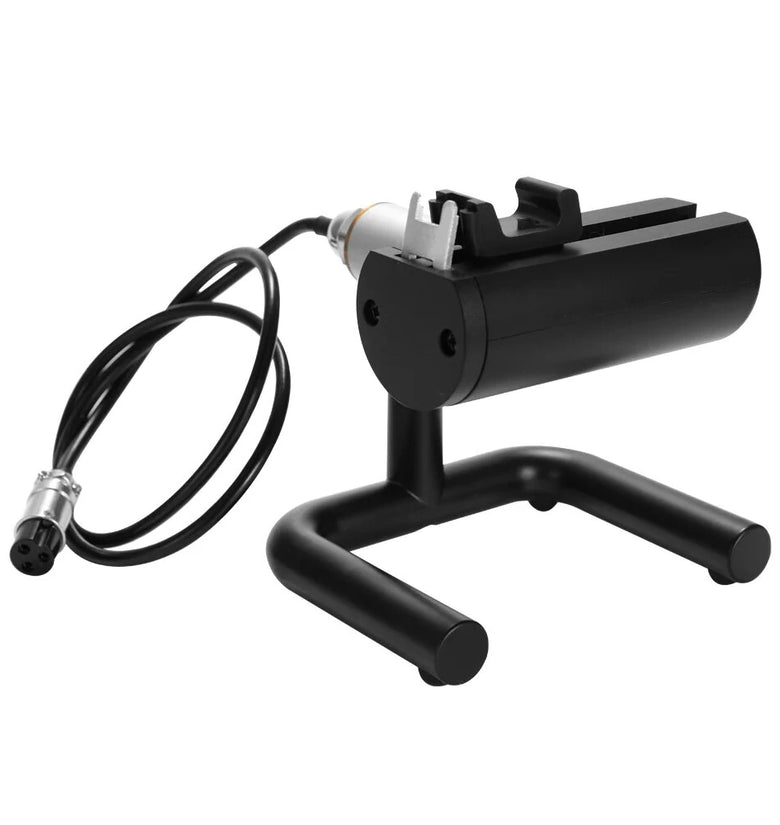

1 x Timegrapher Sensor

1 x Power Cable

1 x User Manual
