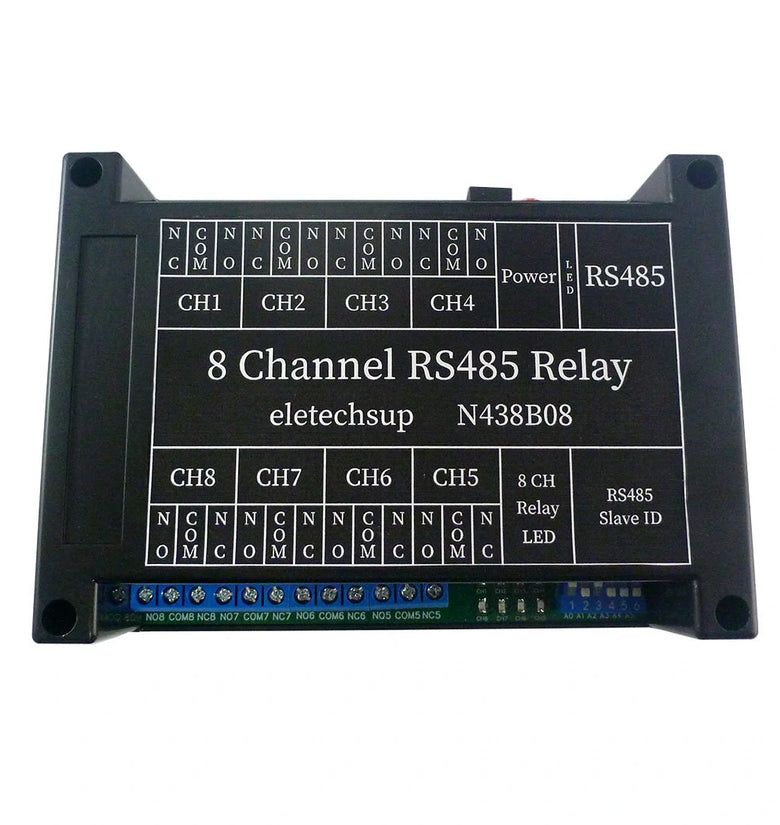

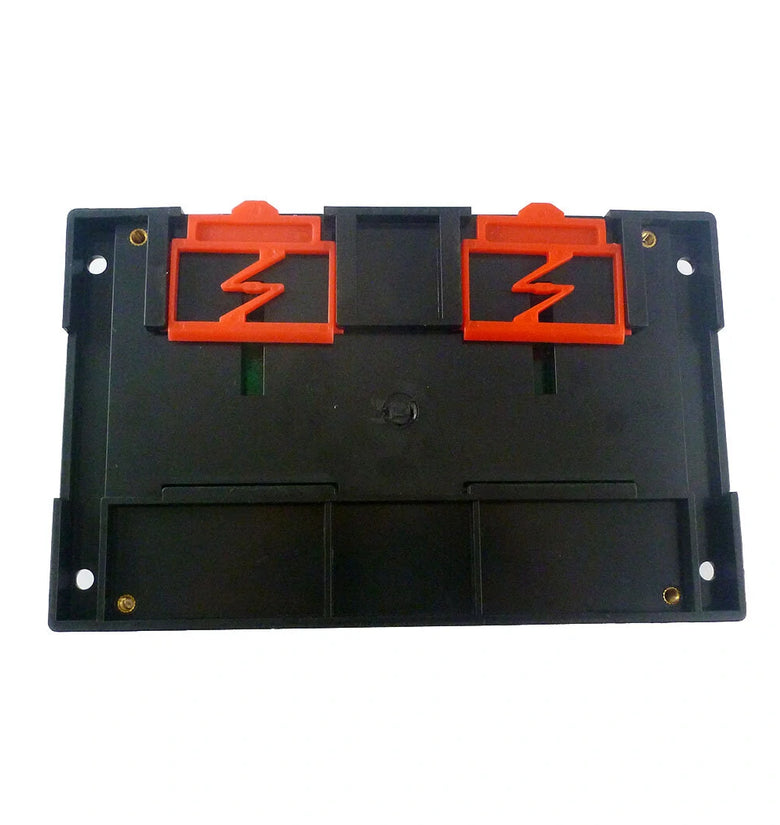

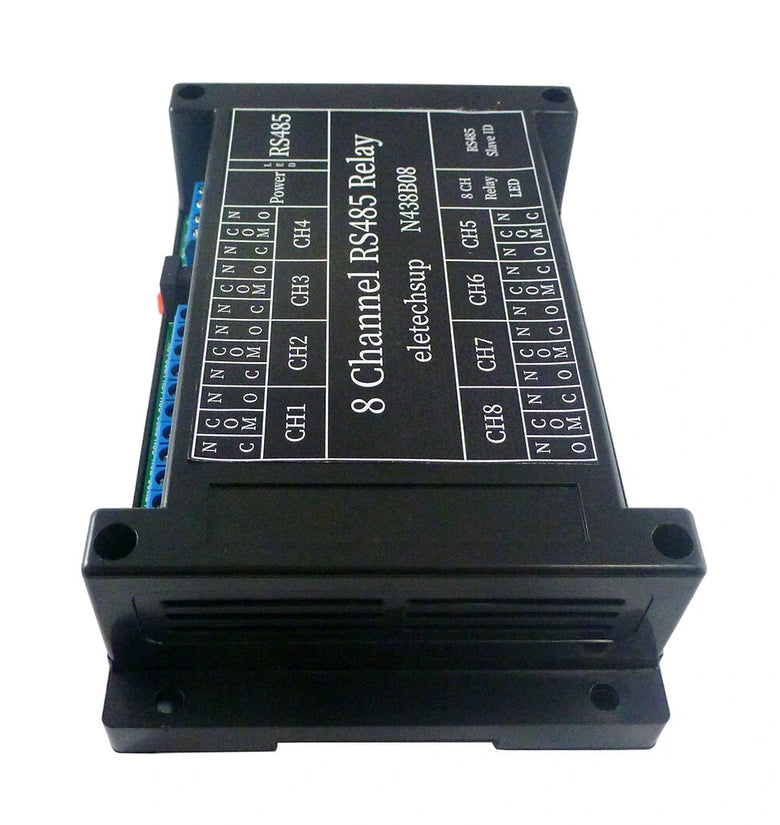

with TVS protected DC 12V 8Ch RS485 Relay Module Modbus RTU 03 06 16 Function Code DIN Shell Switch Board

R 609.69



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Description:

    1. Working voltage DC 12V
    2. Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA
    3. Enhanced RS485 interface protection (TVS)
    4. ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
    5. MODBUS RTU command, Support 03 06 16 function code
    6. Under the ''Delay'' command ,the maximum delay is 255 seconds;
    7. MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
    8. Under the MODBUS command mode, it can support up to 64 devices in parallel
    9. The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
    10. Size: 145*90*40mm
    11. Weight: 218g
    12. Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

    Application:

    PLC Output expansion board
    Smart Home,Home Automation ,Wiser Home;
    PTZ CCTV Camera
    Security Monitoring
    Identification system;
    Motor FW & BW
    Automatic curtain control

    Package inlcuded:

    1 x DC 12V Channel RS485 Relay Switch Module
