Note:
This product is a step-down module and cannot be boosted! The input voltage is 55V, and the output voltage can be adjusted from 0-50V. If the output voltage is 12V, the minimum input voltage should be 14V. The input voltage should not exceed 55V, it must be DC and not AC.
Highlights:

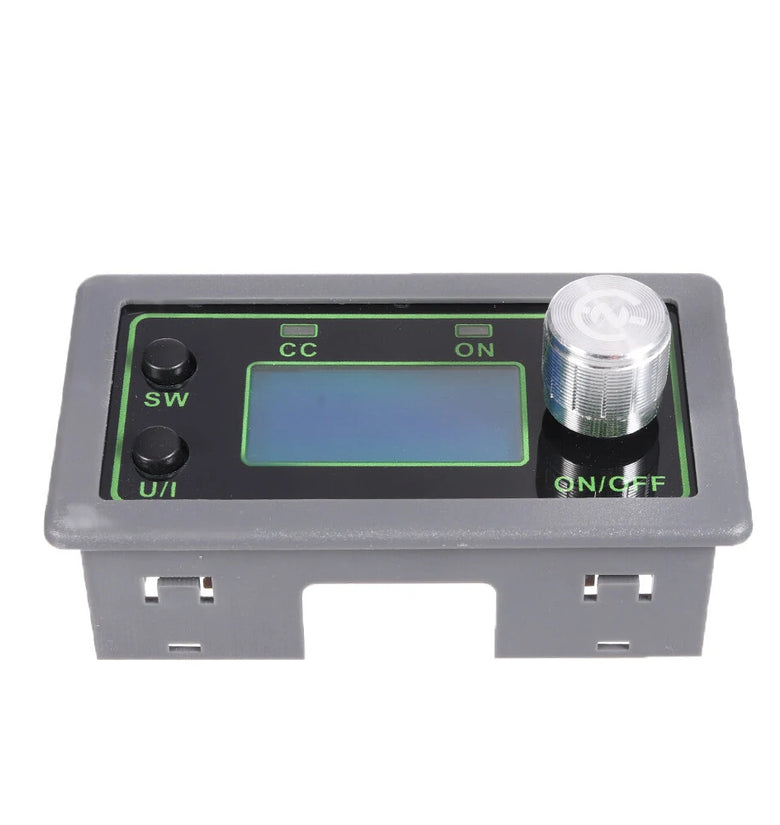

1. The LCD can display input/output voltage, output current/output power/output capacity/output time;
2. Numerical control adjustment, precise and fast, step-down output, arbitrary adjustment of output voltage 0-50.00V, arbitrary adjustment of limited current 0-20.00A;
3. The output terminal will not burn when it is poured backwards;
4. The module can be set to be turned on/off by default;
5. Has a variety of software protection mechanisms, and the protection threshold is adjustable. When the working parameters of the module exceed the protection threshold, the output will be automatically turned off;
6. Using synchronous rectification technology, high conversion efficiency: more than 90% efficiency;
7. Increase the heat sink and install a fan to enhance heat dissipation.
Feature:
| Model: WZ5020L | Display: LCD |
| Input voltage range: 6-55.00V | Input voltage resolution: 0.01V |
| Output voltage range: 0-50.00V | Output voltage resolution: 0.01V |
| Output current range: 0-20.00A | Output current resolution: 0.01A |
| Output power range: 0-1000W | Input voltage accuracy: ±(1%+5) |
| Output voltage accuracy: ±(0.3%+5) | Output current accuracy: ±(0.5%+5) |
| Typical value of output ripple: 150mV Peak value | Normal operating temperature range: -10℃~40℃ |
| Capacity measurement range: 0-999.9AH | Statistical error of capacity energy: ±2% |
| Statistical time range: 0-100hour | Depressurization mode: differential pressure >0.05%+1V |

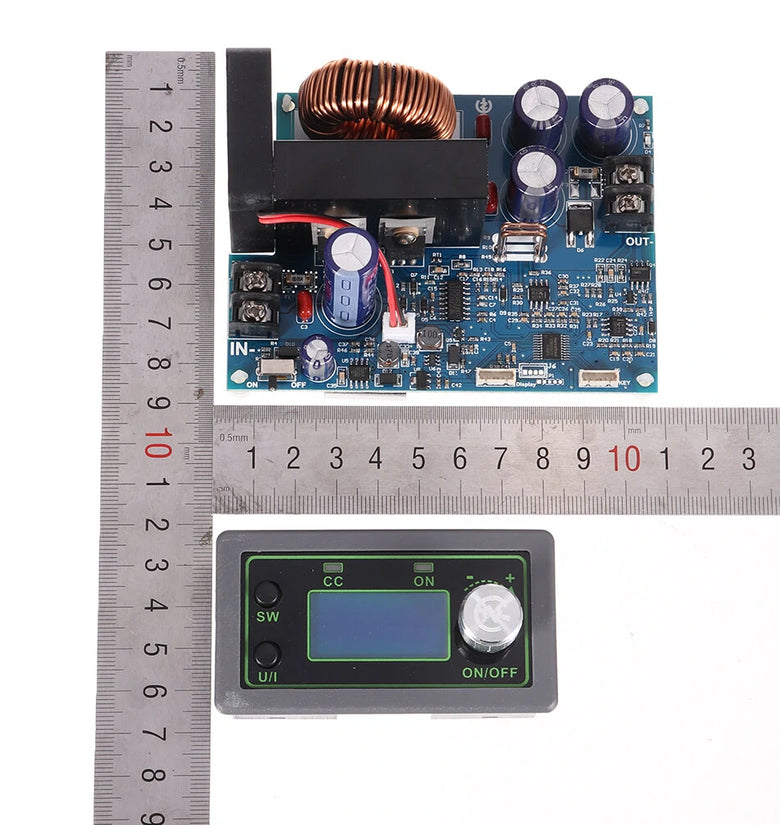

| Product size: panel 79X43X42mm | Product size: Main board 106x76x40mm |
Soft start: Yes
Protection mechanism:
Input undervoltage protection (5.8-50v adjustable, default 5.8v)
Output overvoltage protection (0-51.00v adjustable, default 51V)
Output over-current protection (0-20.10a adjustable, default 20.10a)
Timeout protection (0 - 100h adjustable, off by default)
Over capacity protection (0 – 999.9ah adjustable, off by default)
Package includes:
1 x DIY Desktop CNC Power Supply
