Description:

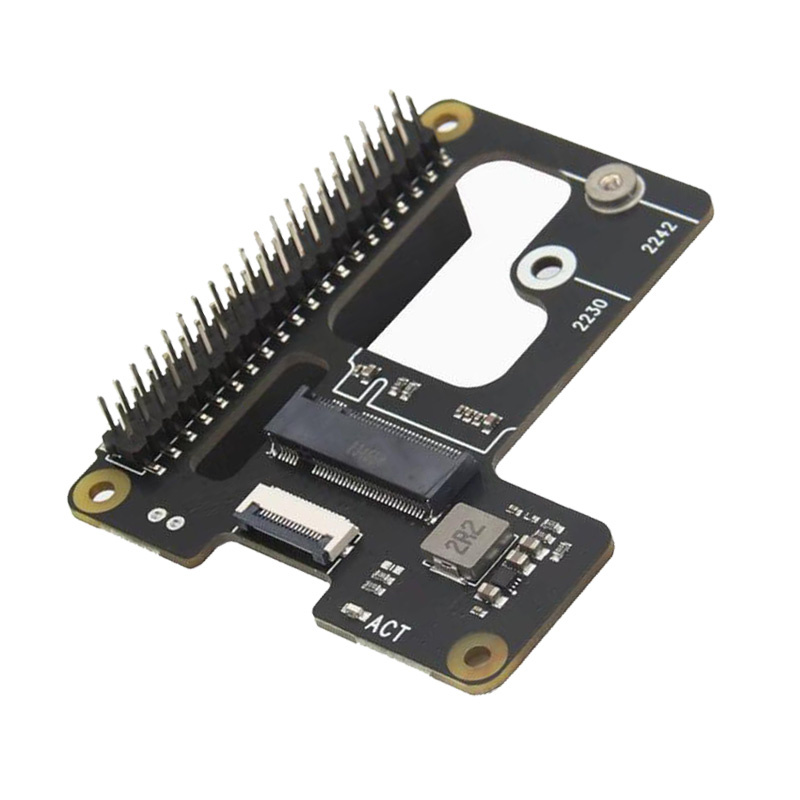

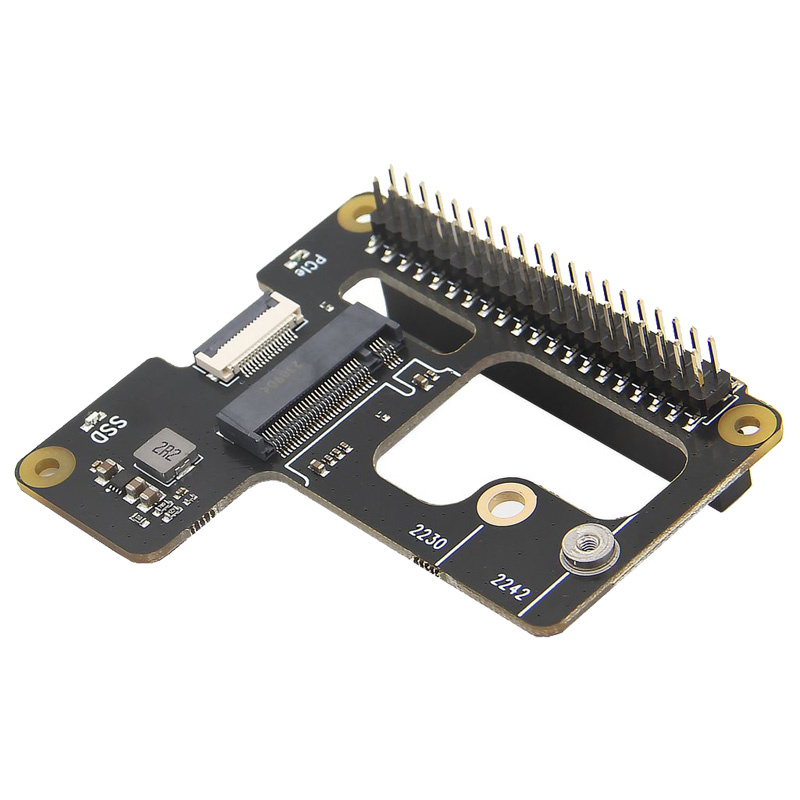

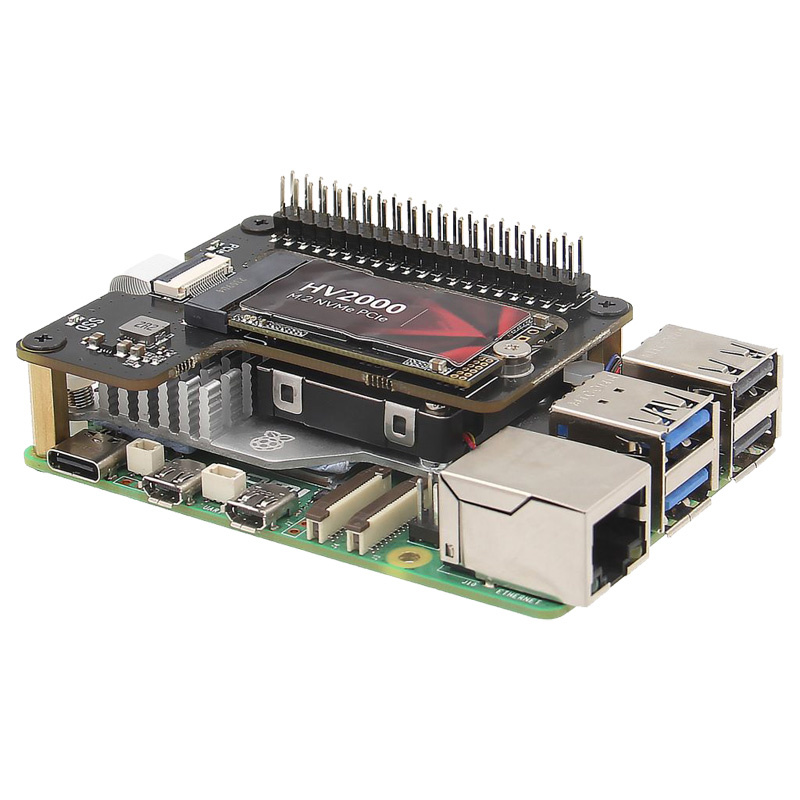

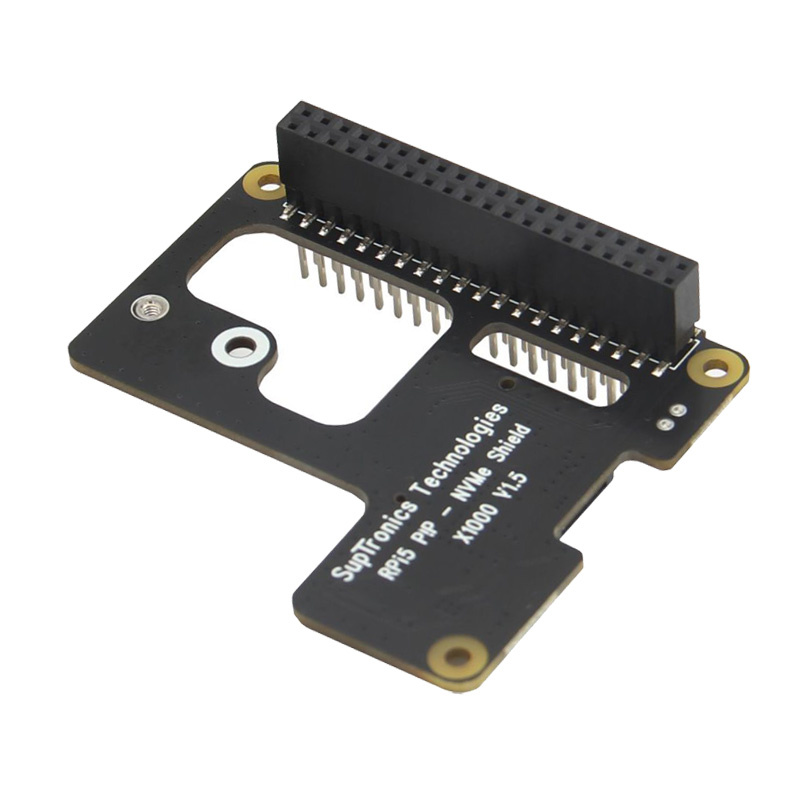

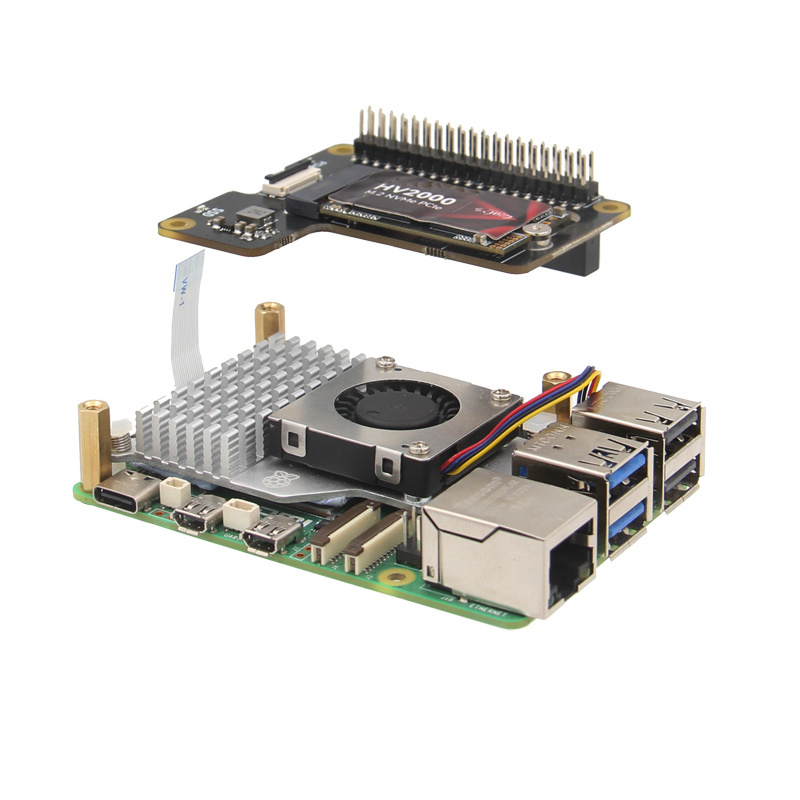

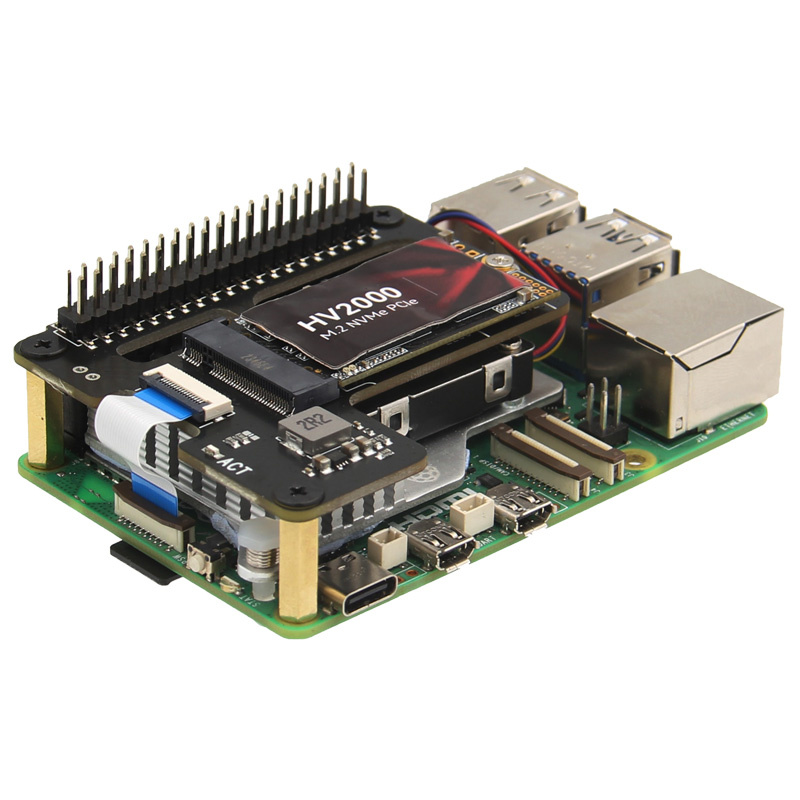

1. X1000 is a PCle M.2 NVMe protocol M.2 solid-state drive expansion board designed specifically for Raspberry Pi 5. It supports NVMe protocol M.2 interface hard drives and provides high-speed reading and writing.
2. X1000 hardware has no limit on NVME SSD capacity, which depends on the Raspberry Pi operating system.

Features:
1. Compatible with other HAT expansion boards;
2. FFC length is only 30mm;
3. Supports the installation of official active radiators and third-party radiators;

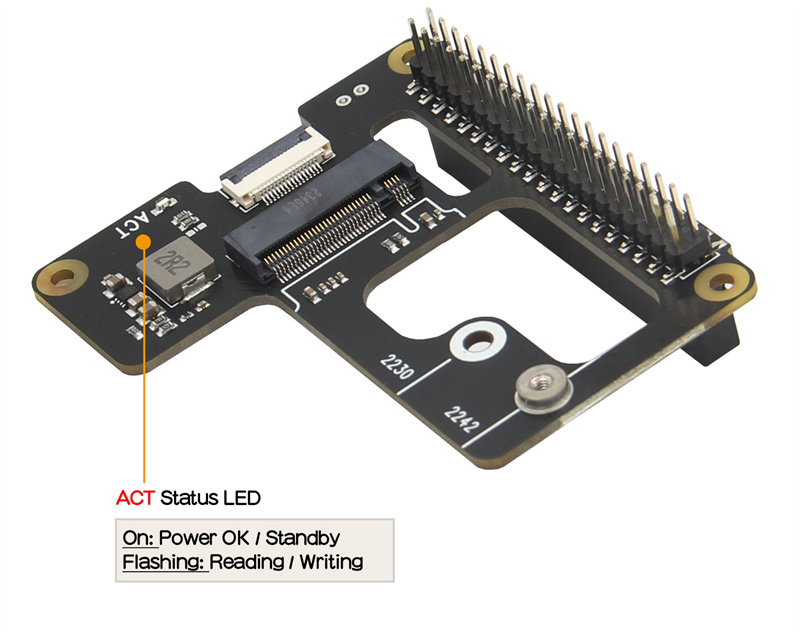

4. With ACT LED indicator light; on: normal power/standby, flashing: read/write;
5. Reserve space for installing the POE module;
6. Only supports 2230/2242NVME M2 SSD disk. You need to bring your own screws to install the 2230 hard drive;
7. The X1000 shield can be powered directly from the FFC PCIe strip (providing maximum 5W continuous power)
8. The 40pin pin header can automatically supply power from GPIO to avoid the problem of insufficient power supply for ultra-large capacity SSDs.

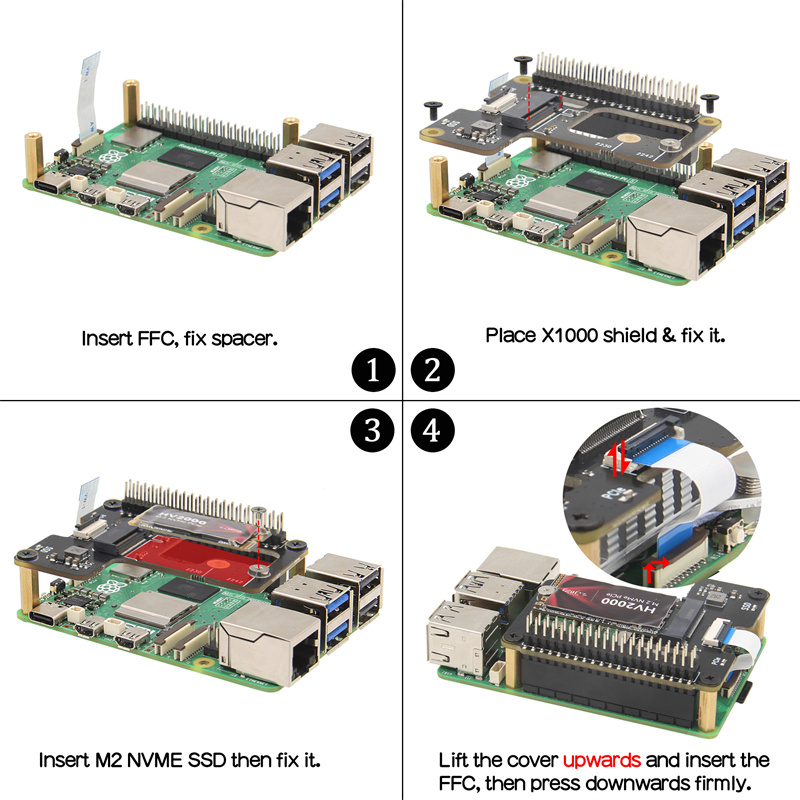

9. PCle interface design based on PI5, which can be connected to PI5 through FFC cable and directly power the X1000 shield from the FFC PCIe strip (providing a maximum continuous power of 5W).

Package Include:

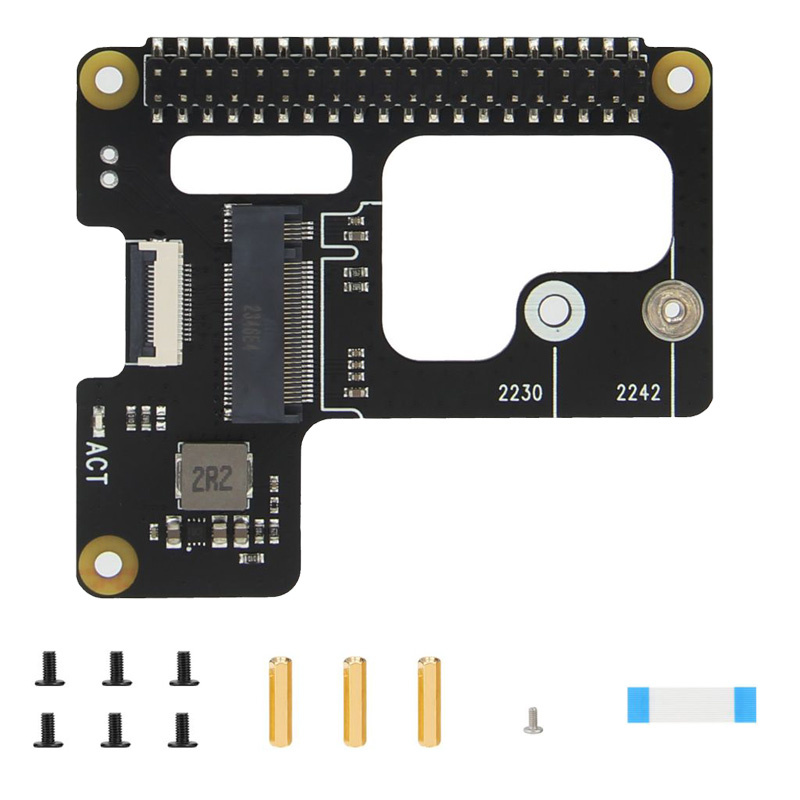

1x X1000 Module Board

1x Mounting Kit

(The Raspberry Pi and other items are not includes)
