Specifications:
Frequency Range: 1.8MHz ~ 30MHz
Supported Modes: A1A (CW), J3E (SSB), A3E (AM), F3E (FM), F7M (C4FM), F1B (FSK)
Power Supply Voltage: DC12V ~ 16V
Standby Current: 0.2A
Transmitting Current: 15A
Input SWR: < 2.0
Input/Output Impedance: 50Ω
Direct Loss: < 0.5dB
Power Gain: 15dB (±2dB)
Maximum Input Power: 10W
Maximum Output Power: 100W at 7/14MHz, 70W at 21/28MHz
Low-Pass Filter Frequency: 33MHz, 18MHz, 9MHz
Harmonic Suppression: > -50dB (even harmonics), > -30dB (odd harmonics)
Spurious Suppression: > 40dB

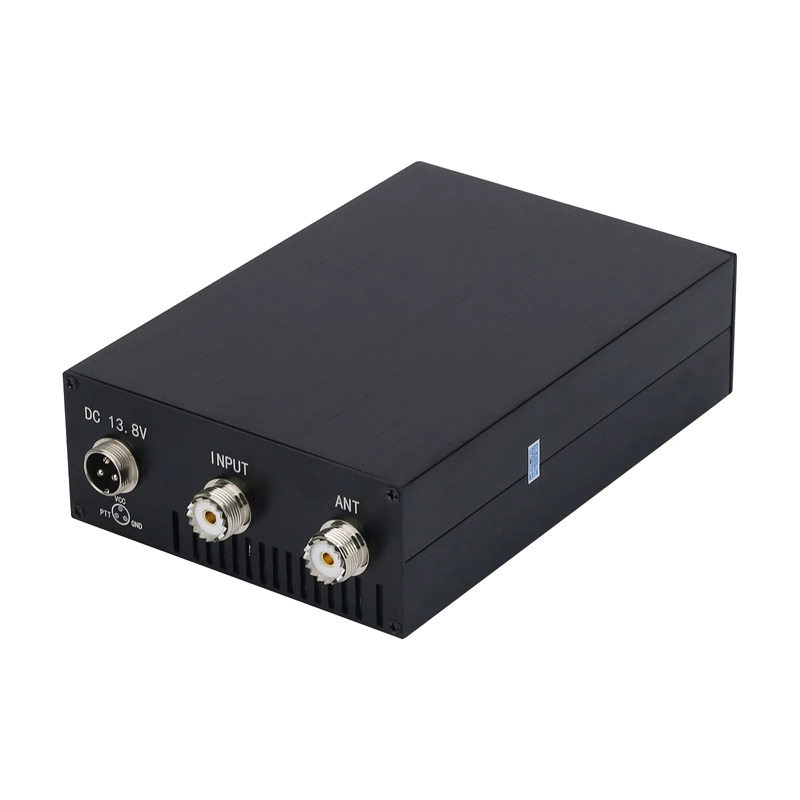

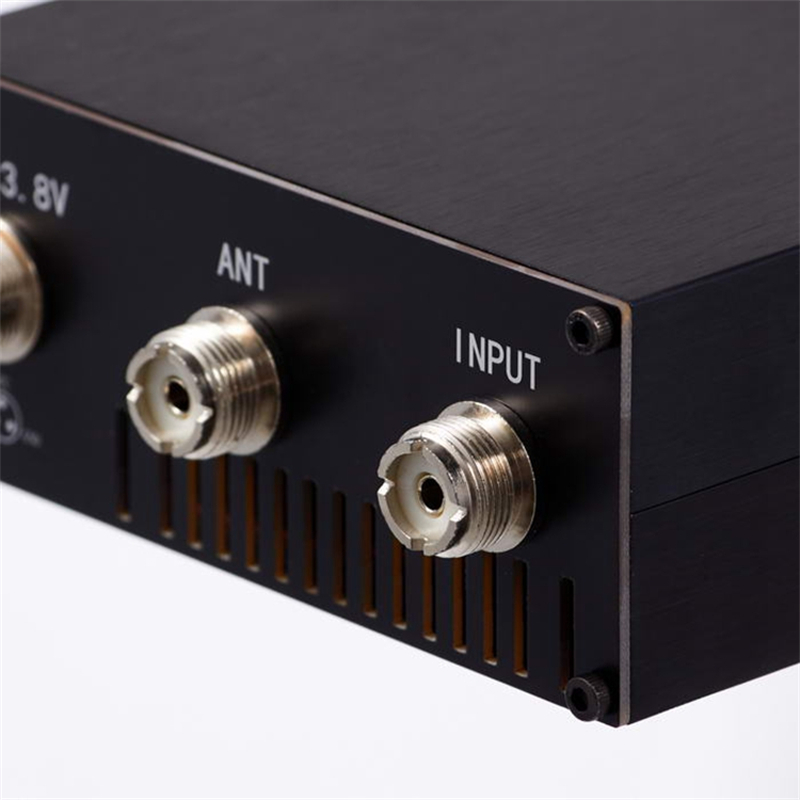

Input/Output Connector: SL16I-K
Dimensions: 200mm x 120mm x 50mm
Weight: 900g
Operating Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Storage Humidity: > 55%
PTT Trigger Level: +VCC-2V (low trigger), GND+5V (high trigger)
PTT Trigger Current: 2mA


Features:
1.Enhanced Power Output for Extended Communication Reach: With up to 100W maximum output power, this amplifier significantly boosts signal strength, enabling reliable transmission over greater distances.
2.Optimized Frequency Range & Versatility: Covers 1.8MHz to 30MHz and supports various modes such as CW, SSB, AM, FM, and FSK for a wide range of operational scenarios.
3.Integrated 7th-Order Low-Pass Filters: Includes three precision filters to effectively suppress harmonics and spurious signals, ensuring cleaner output and reducing interference.
4.Compact and Lightweight Design: Measuring just 200mm x 120mm x 50mm and weighing 900g, the unit is portable and easy to incorporate into your setup without occupying excessive space.
5.Efficient Power Input-to-Output Ratio: Boosts input power from as low as 1W to an output of 30W, while supporting up to 5W input for a full 100W output, delivering dependable amplification for various radios.

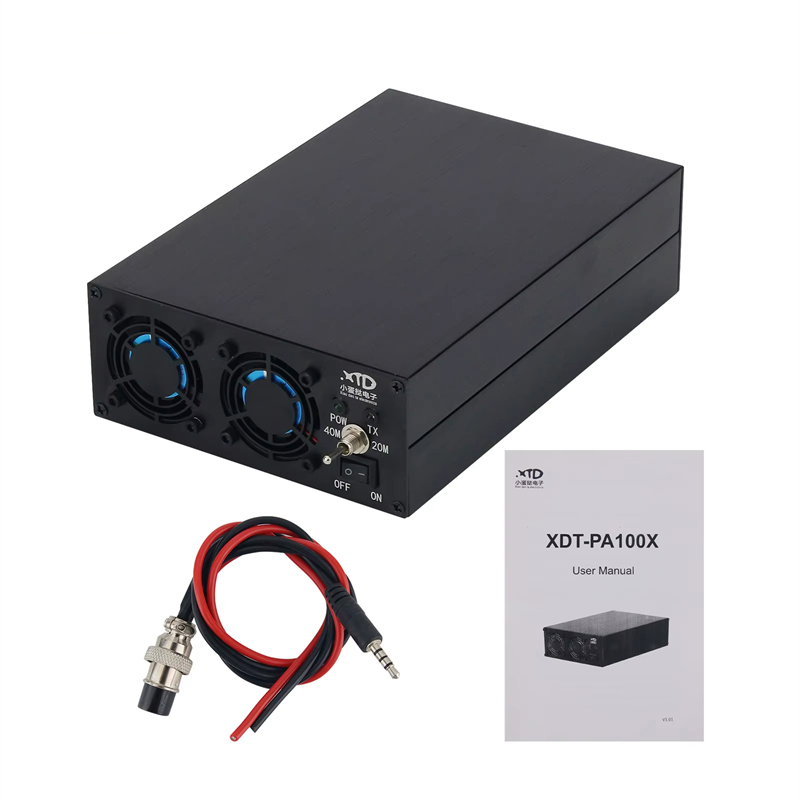

Package Included:
1 x Power Amplifier
1 x User Manual
1 x Power Cord
1 x Sync Trigger Cable
