Specifications:

Model: XH-M139

Chip Selection: TPA3116D2 * 2

Power Supply Voltage: DC 12-24V

Output Power: 200W (50W * 2 + 100W bass * 1)

Signal to Noise Ratio: 100dB

Output Load: 4-8 ohms

Frequency Response Range: 14-100KHZ

Number of Channels: 3 (left channel + right channel + bass)

Switching Frequency: 1.2MHZ

Size: Approximately 100x80x28mm / 3.93x3.14x1.10 inches

Weight: 118g

Features:

1.High-Quality Sound

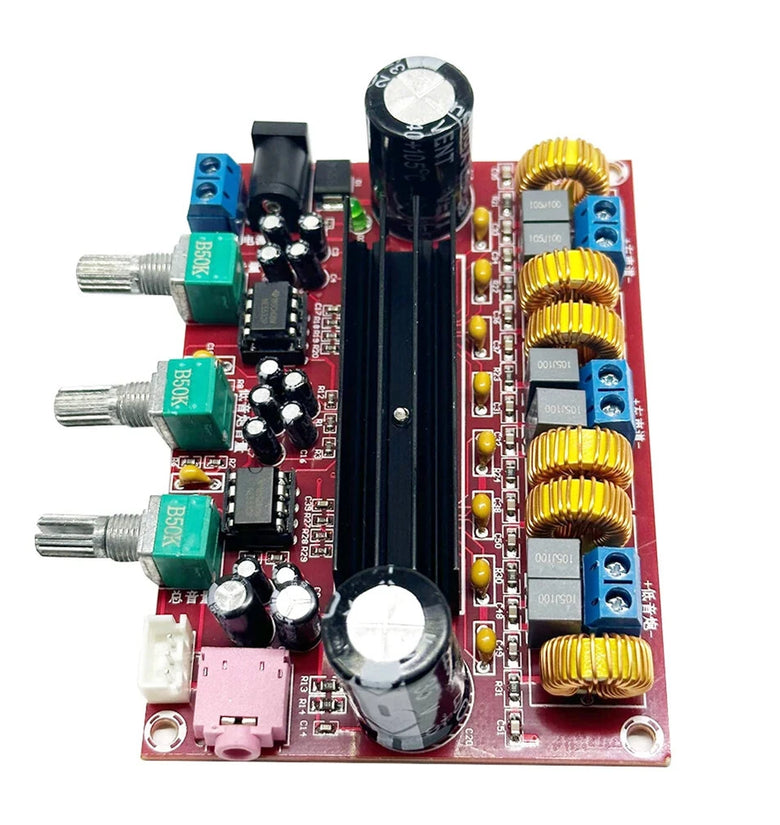

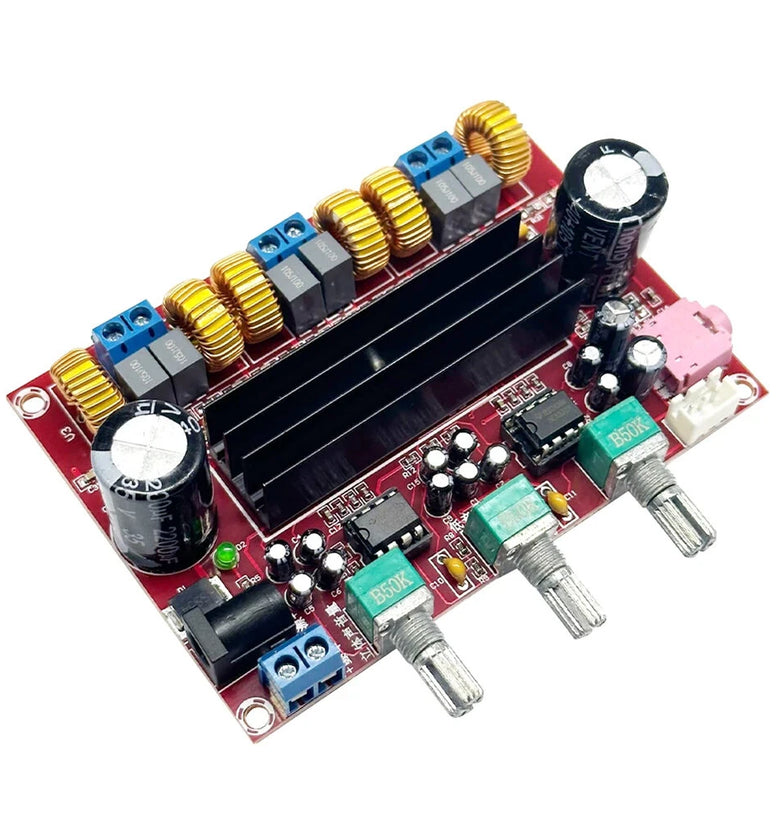

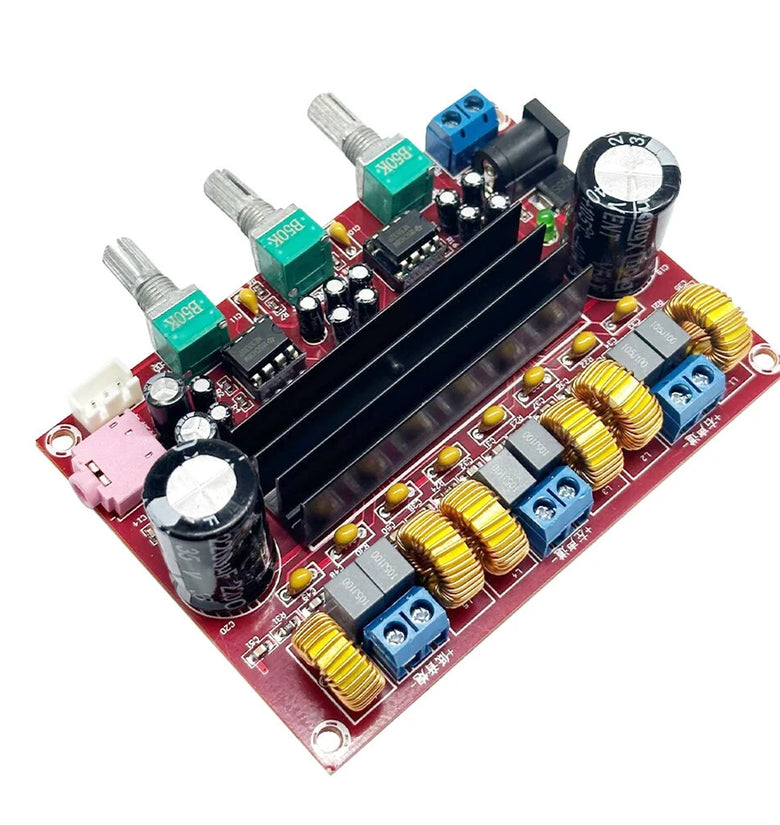

The XH-M139 digital amplifier board is equipped with the TPA3116D2 chip, delivering audiophile-grade HiFi sound and supporting a 2.1 channel output (left/right channel and subwoofer). This ensures a rich and immersive audio experience, perfect for music enthusiasts.

2.Wide Compatibility

Designed to work with DC 12-24V power input, this amplifier board is compatible with most power supplies. Its wide input voltage range makes it an eco-friendly choice, and it can adapt to various power conditions effortlessly.

3.Efficient Power Output

The two TPA3116D2 digital amplifier chips provide high efficiency and can output up to 50W*2 for the left and right channels and 100W for the bass. This robust power output ensures that your audio signals are amplified effectively, providing loud and clear sound.

4.Easy Setup

The
