Parameters:

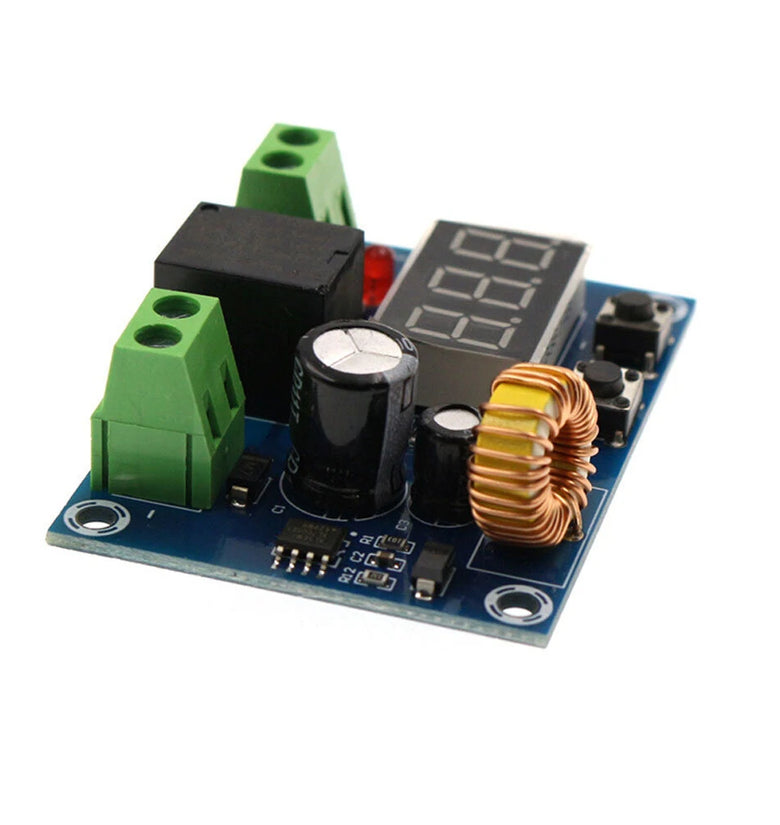

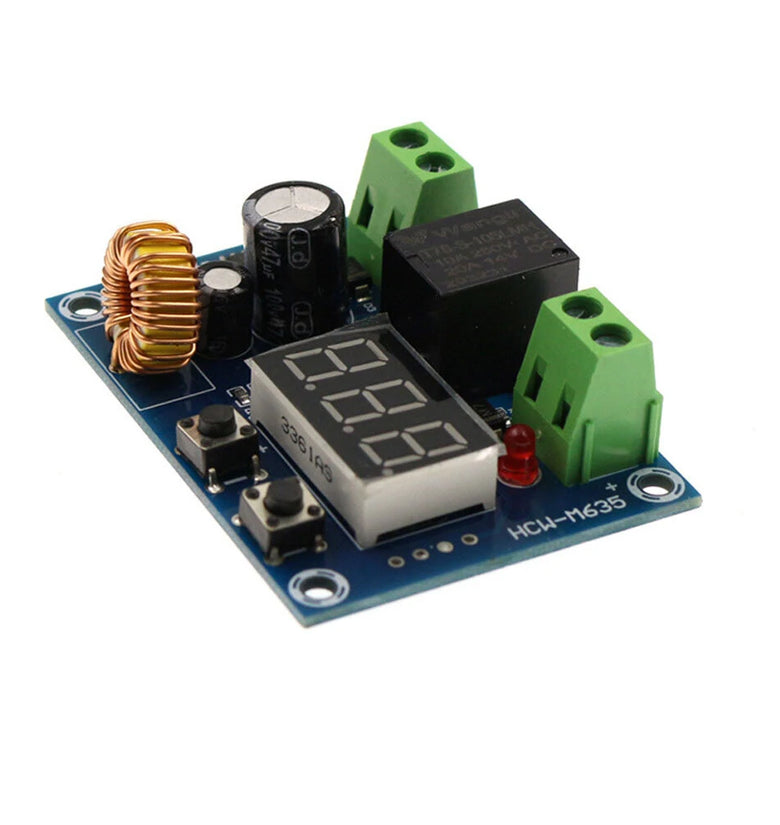

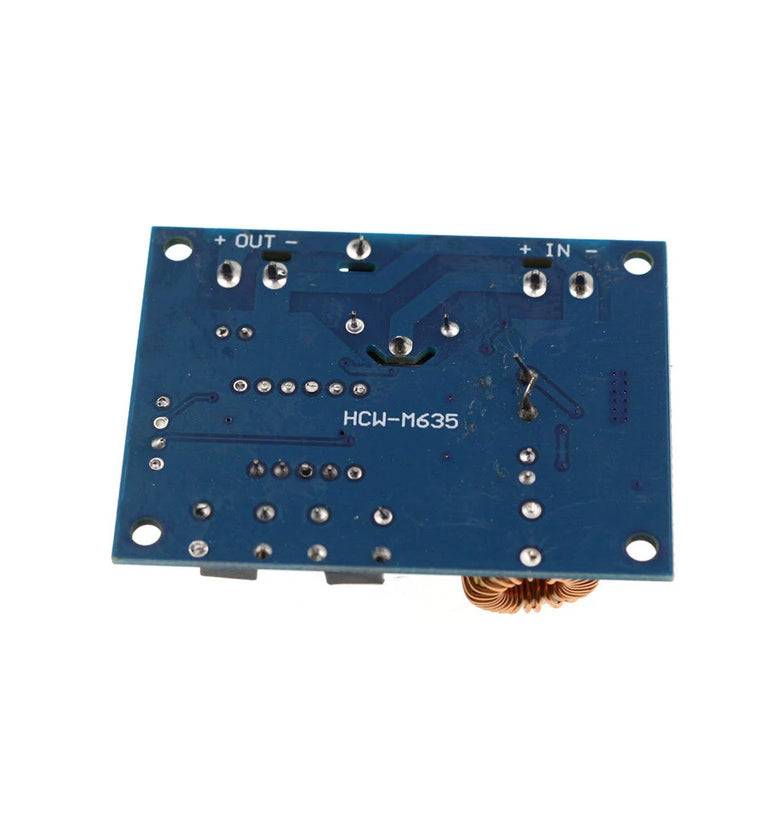

Product name: Battery overdischarge protection module
Model: XH - M609
Power supply voltage: The 12 V- 36 V battery
Output voltage: Equal to power supply voltage
Control precision: 0.1 V
Power consumption: Less than 1.5 W
Scope of application: Various storage batteries, lithium batteries
Net weight: 28 g

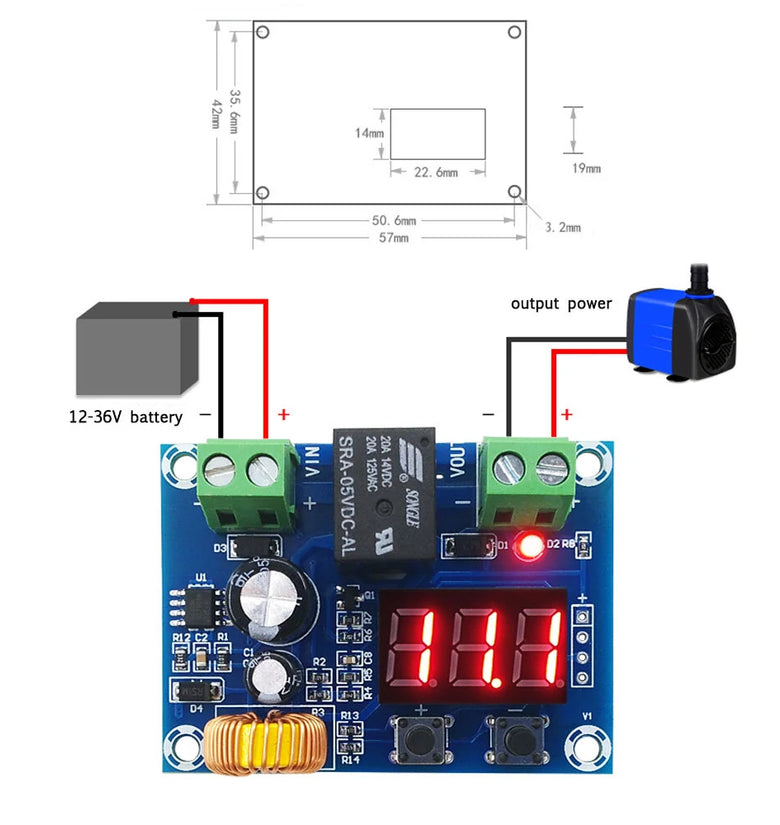

Size: 57 * 42 * 19 mm
Features:
1. Automatic power off.
2. Discharge protection.
3. Prolong battery life.
Instructions for use:
+ key: press once to display the protection value, long press to set the protection value
- key: press once to display the hysteresis value, long press to set the hysteresis value
Setting example:
Below 11V stop voltage above 11.6V start?
Method: long press + screen flicker set to 11, then long press - screen flicker set to 0.6 to 0K.
Disconnect below 12.5V, start up when voltage is above 14.8V?
Method: long press + screen flicker to set the stop value to 12.5, wait for the screen to stop flickering, then long press - screen flicker, set the hysteresis voltage value to 2.3V
Package includes:
1 x Battery overdischarge protection module
