Tutorials link: http://www.yahboom.net/study/CUBE_Pi

Specifications:

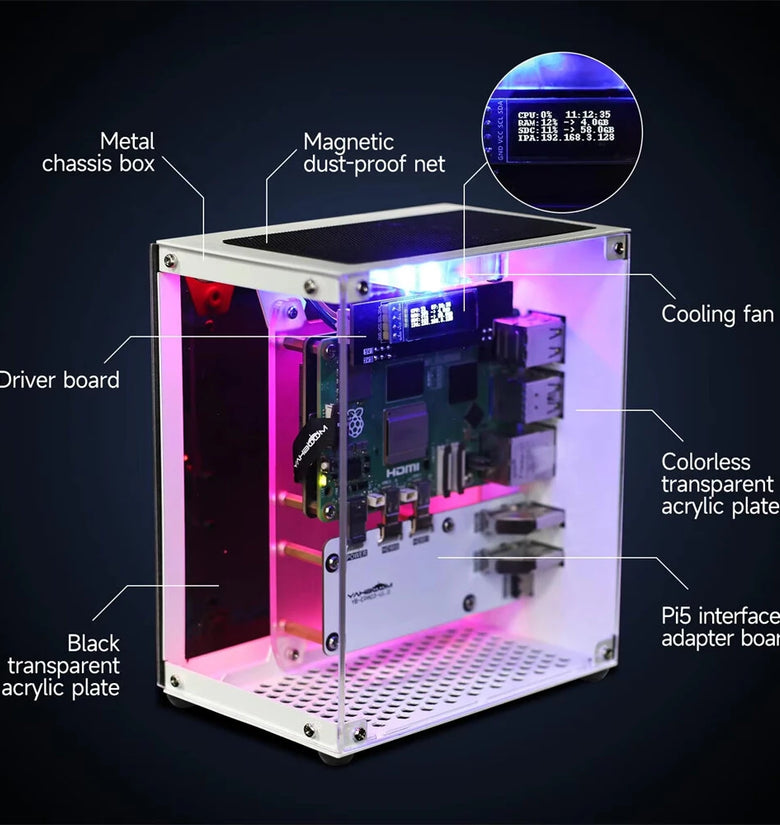

Raspberry Pi 5 CUBE Pi Case:

Material: Metal chassis box, black high-transparent acrylic, colorless high-transparent acrylic

Technology: White glossy paint

Size: 122.9x145x83.8mm

Metal Plate Thickness: 1mm

Acrylic Plate Thickness: 2mm

Supported Motherboards: Raspberry Pi 5 (Package is not includes)

Driver Board:

Chip Model: STMS003F3U6TR

Working Voltage: DC3.3V and DC5V

Communication Method: IIC communication

Size: 67x18x22.1mm

Output Interface: PH2.0-3P (RGB light bar interface), XH2.54-2P (Fan interface)*2

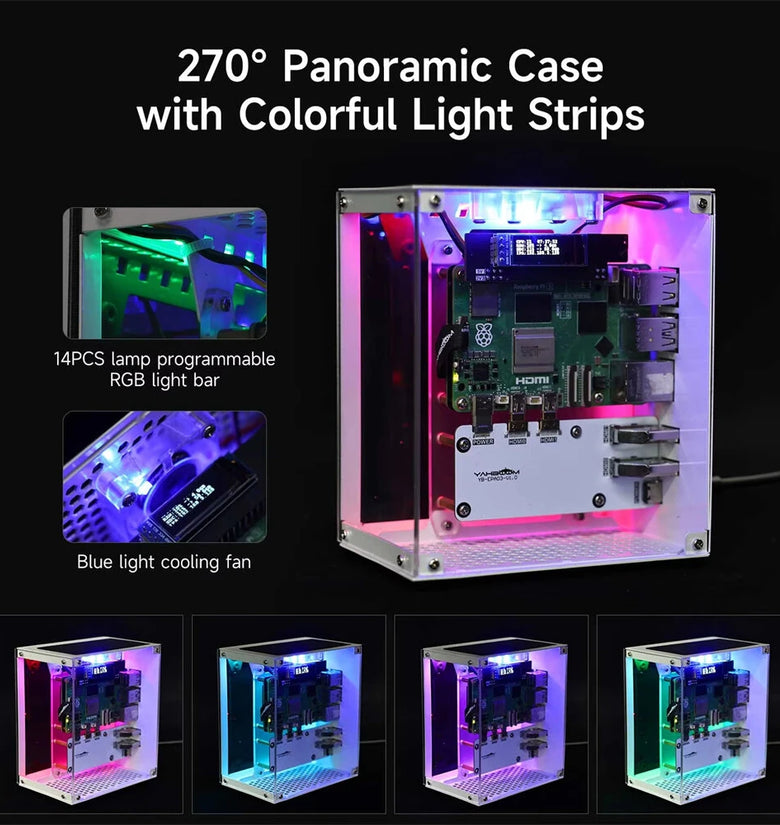

RGB Light Bar:

Lamp Bead Model: WS2812

Number of Lamp Beads: 14PCS

Material: Flexible FPC

LED: Each LED light can control the color and brightness individually

Interface: 3-wire PH2.0 interface (VCC, GND, signal line)

Color: Full color RGB

Working Voltage: 3.5V-7.5V

Data Transmission Speed: 800KHZ

Cascade: Not support cascade

Coo
