YIHAOGD YH 2/3 Axis Grating CNC Milling Digital Readout Display / 5μ 50-1000mm TTL Electronic Linear Scale Lathe Tool
Specification:

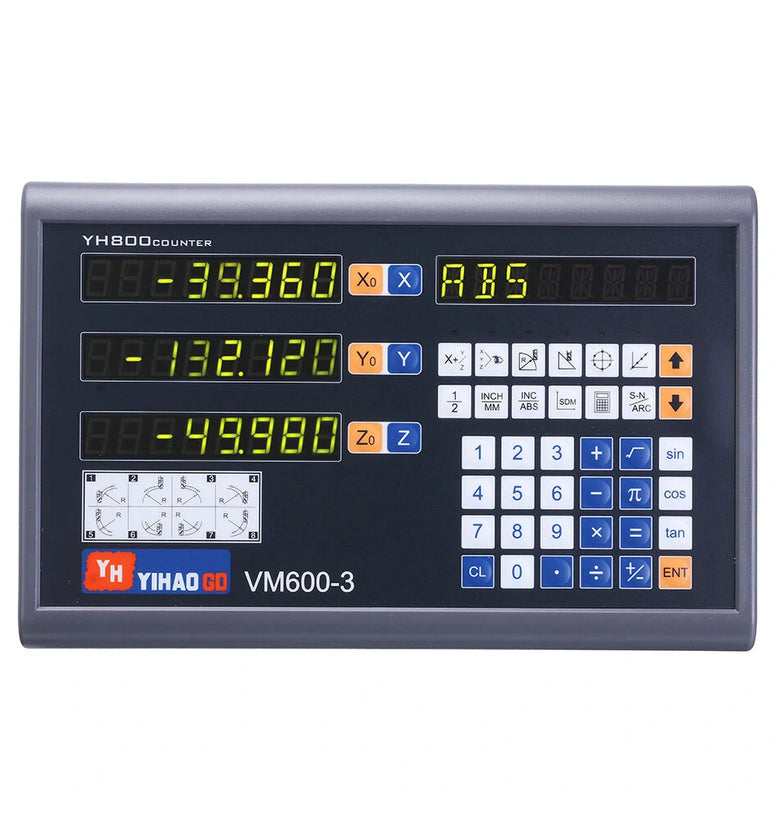

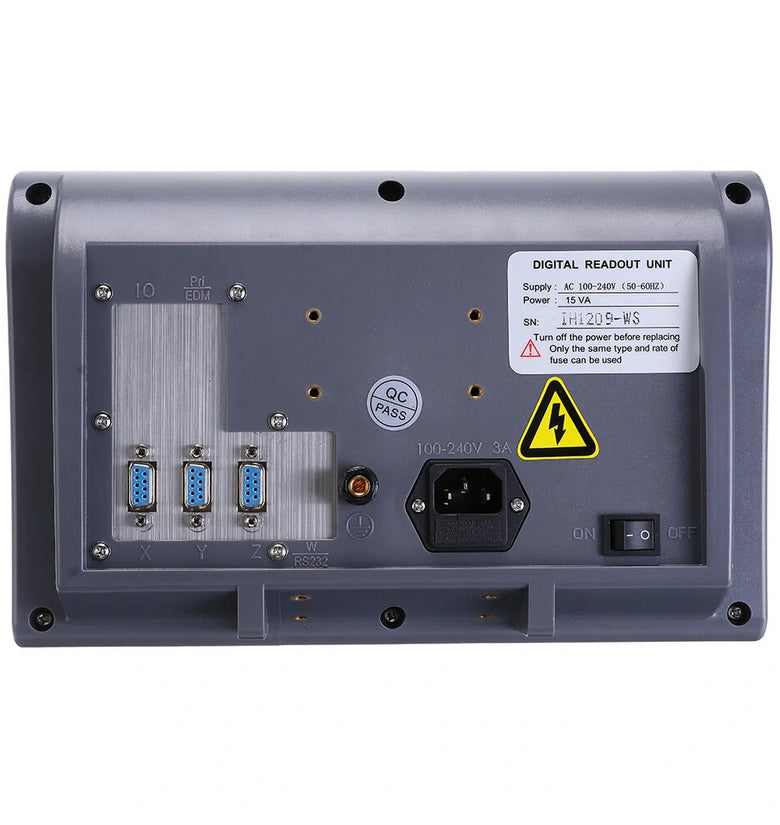

Dro Digital Readout Display System Parameter
Model: 2 Axis/3 Axis
Voltage Range: AC 100V~240V/50HZ~60HZ
Voltage Range: AC 100V~240V/50HZ~60HZ
Digital Readout Display Acceptable Signal: TTL
Plug: DB9
Acceptable resolution: 10μm, 5μm, 2μm, 1μm, 0.5μm.
Size:
Size:
The optional length is measuring effective length
Total length = measuring effective length+142mm
1:Zero clearing
2:Reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:Power off Memory;
7:Center of 1/2
8:Liner error compensation
9:Sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:Calculator
13:Drilling of circumference
14:Drilling of oblique line
15:Machining of inclined plane
16:Machining of circular arc
17:Lathe function(match)
18:Rectangular lumen gradual processing
19:Digital filtering
20:Vibration filtering
21:R /Diameter fucntion
22: Lathe function

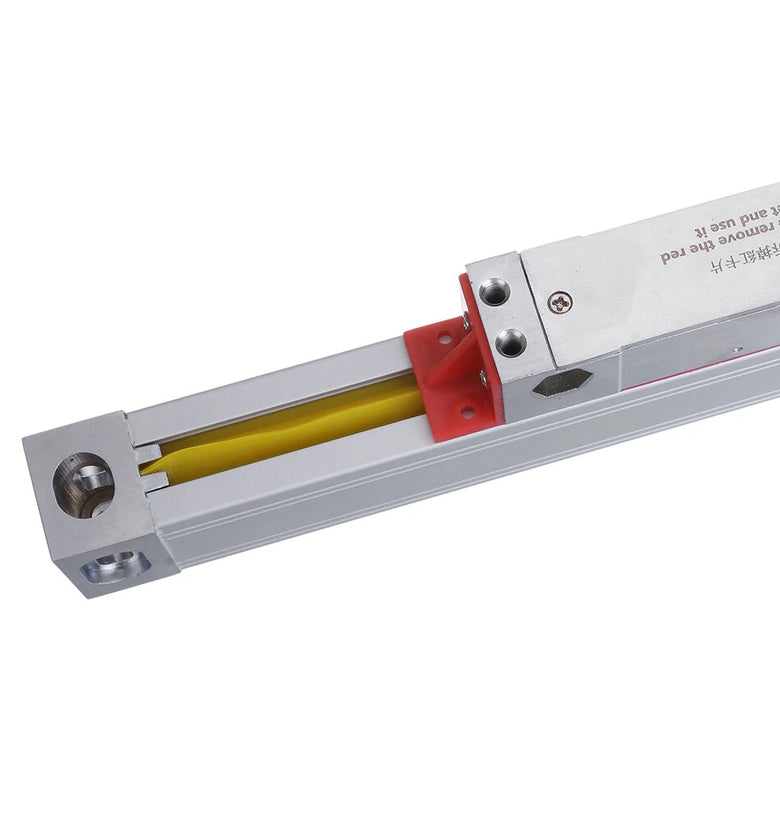

5U TTL Linear Scals/Linear Encoder/Linear Sensor/Linear Ruler Parameters
1. Travel (measuring) length: 0-1000mm / 0-40inch
2. Total (overall) length: Travel length + 142mm (0-1142mm)
3. Plug: DB9
4. Resolution: 0.005mm(5μ)
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)7. Cable length: 3 Meter8. Normal size: About 22*349. Protection class: IP5410. Signal: TTL
The Signal of 5μ Linear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor

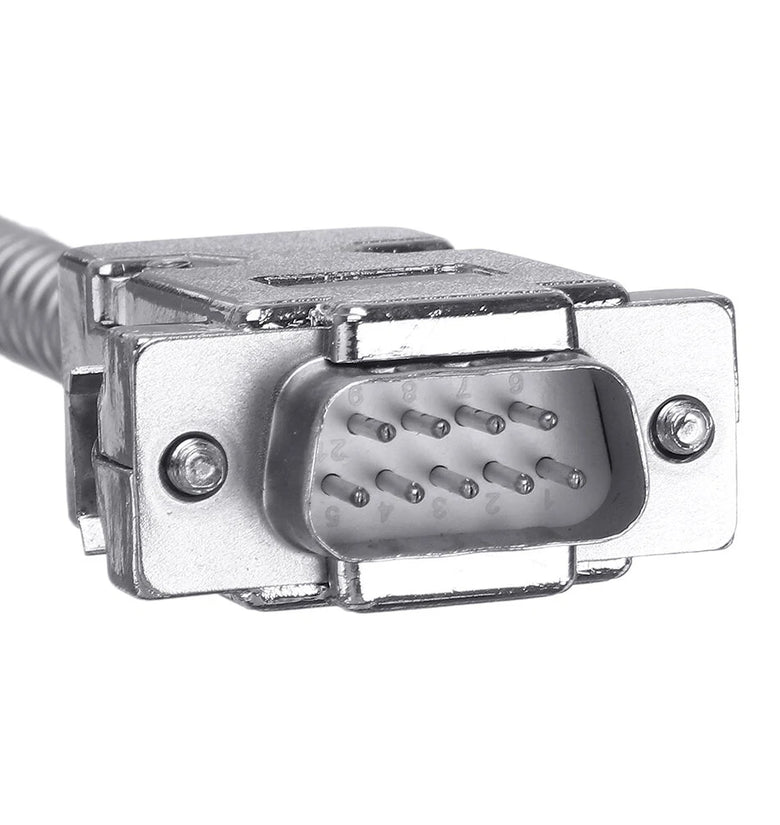

Pin 2 Black 0VPin 6 Green APin 7 Red 5VPin 8 White BPin 9 Orange Z
Features:
Why buy YH digital readout systems?
1.Systems increase productivity, save time and provide higher precision by translating the values measured by linear encoders, length gauges, rotary encoders or angle encoders into an easy-to-read format.
2.They can be installed on new equipment or retrofitted to machines already in operation.
3.Systems work with any machine where axis slides are traversed manually.
4.Data interface allows for additional processing or printouts of the measured values (most models).
Why buy 5u YH Linear Encoders?(Dust-proof, IP54 waterproof design,High quality bearing and reliable)
1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.
2.High long-term speed stability.
3.Sturdy construction and high resistance to vibration.
4.Finer signal periods offer highest interpolation accuracy.
5.Compact, lightweight and easy to install.
6. Dependable—functions properly even after many years of operation.7.Sealed or enclosed linear designs available.

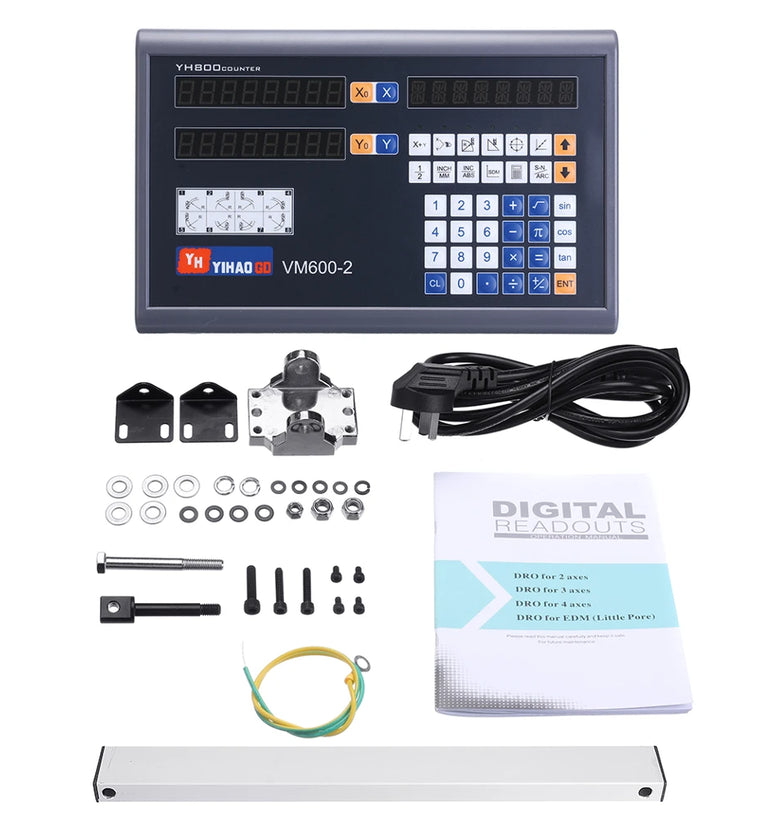

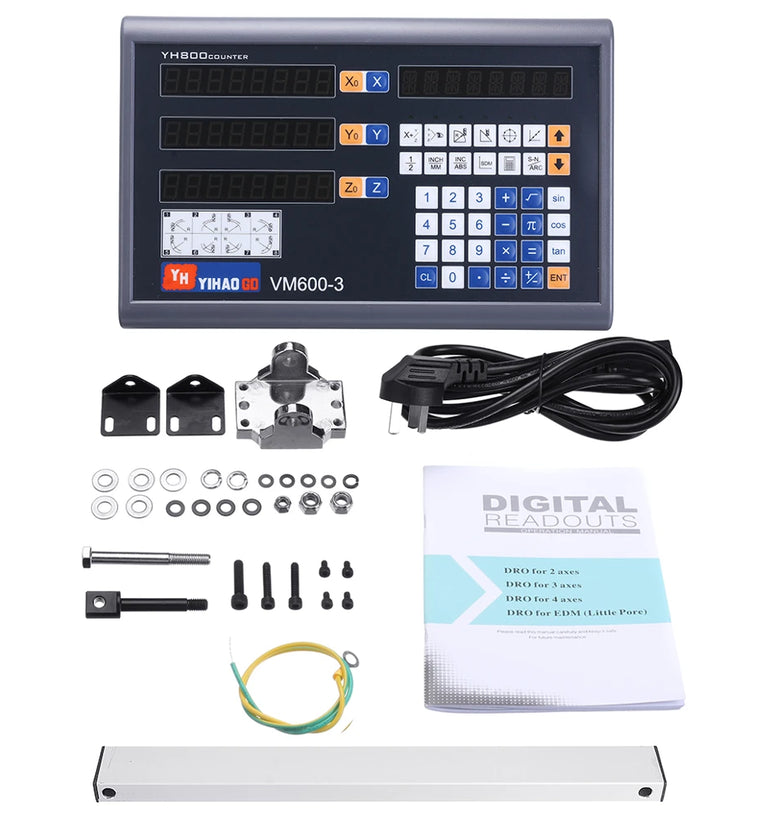

3 Axis Digital Readout Package Included:

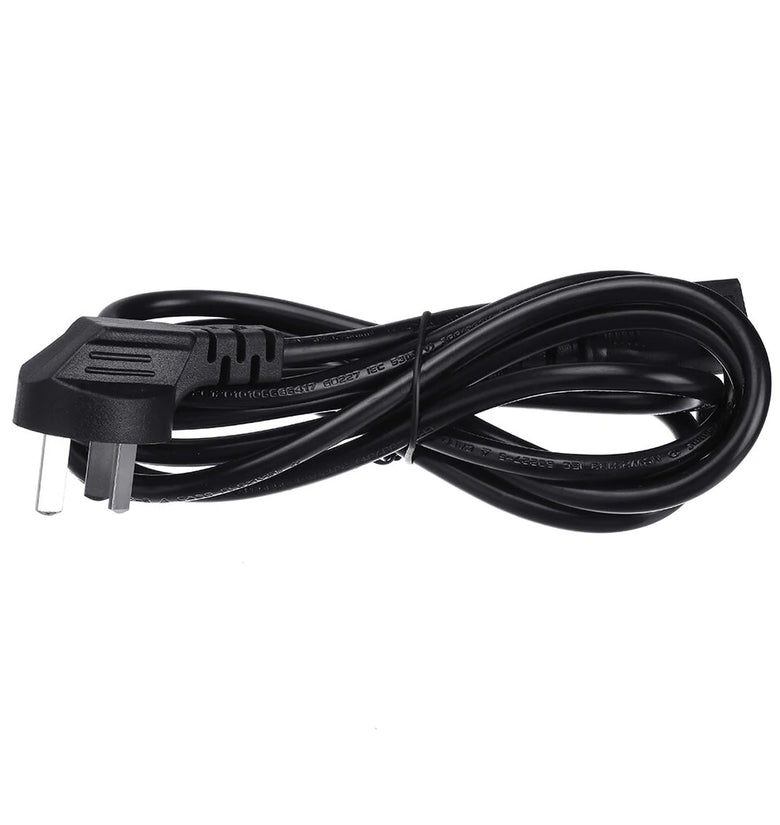

1 Pcs x 3 Axis Digital Readout1 Pcs x Power Cable(We will send you a extra plug adapter depend on your country)1 Set x Bracket and Accessories1 Pcs x Manual
2 Axis Digital Readout Package Included:
1 Pcs x 2 Axis Digital Readout1 Pcs x Power Cable(We will send you a extra plug adapter depend on your country)1 Set x Bracket and Accessories1 Pcs x Manual

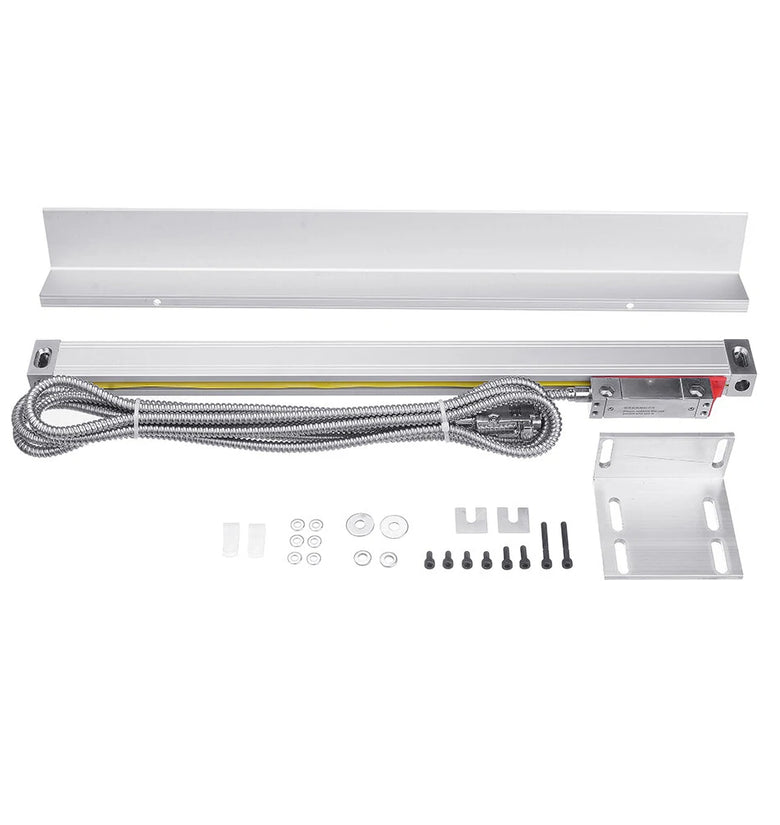

Linear Scale Package Included:

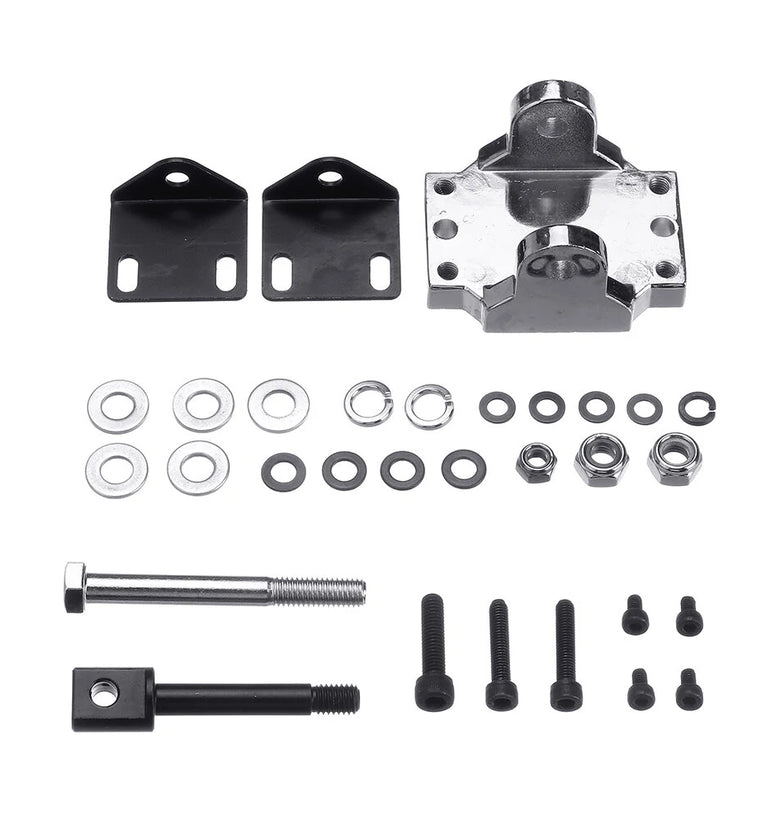

1 Pcs x Linear Sacle1 Pcs x L plate1 Pcs x Bracket1 Pcs x Bag of screw
