Specifications:

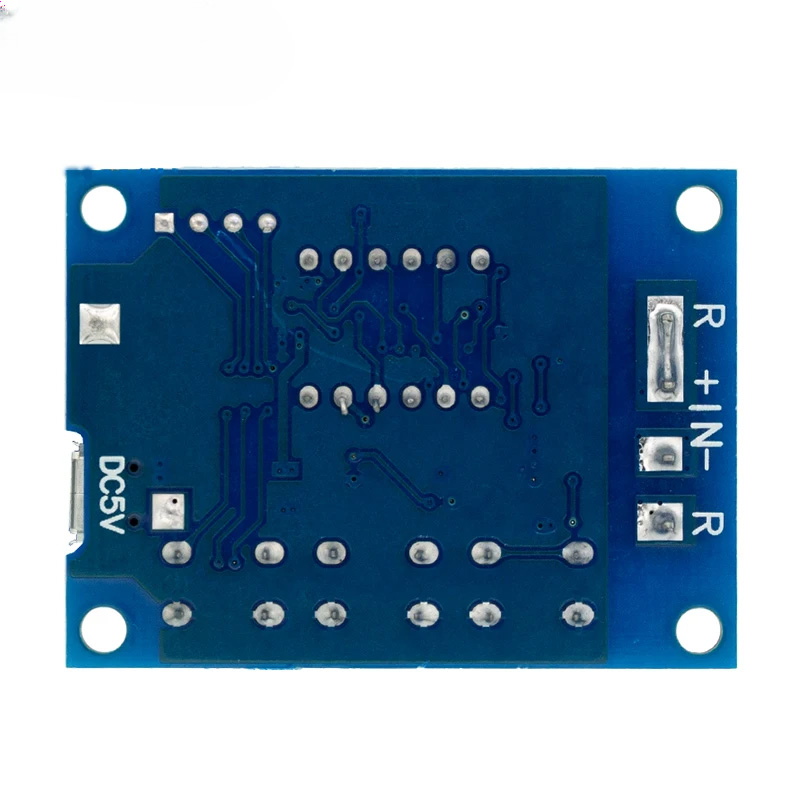

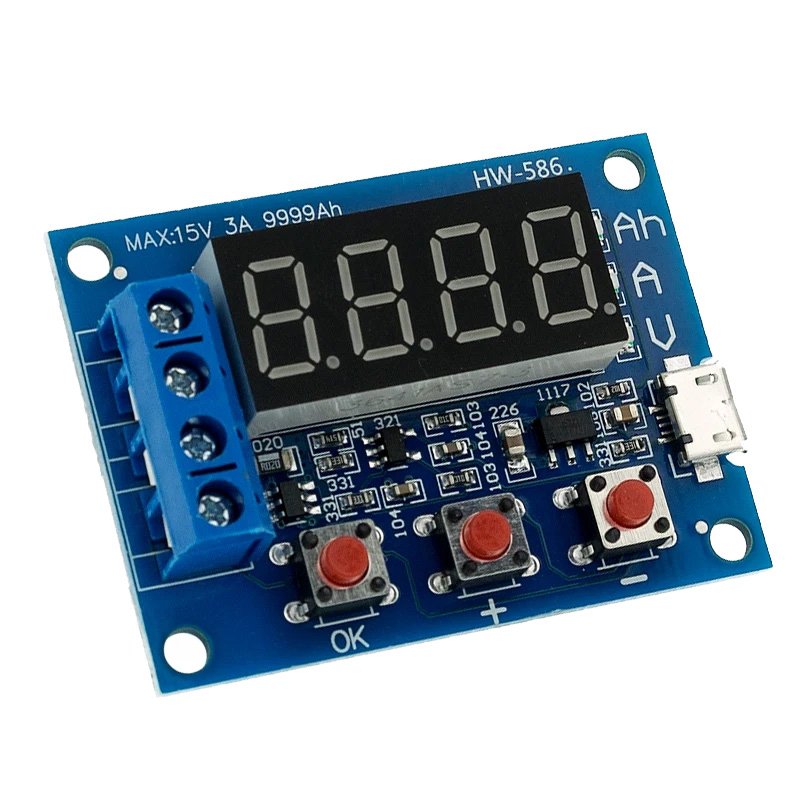

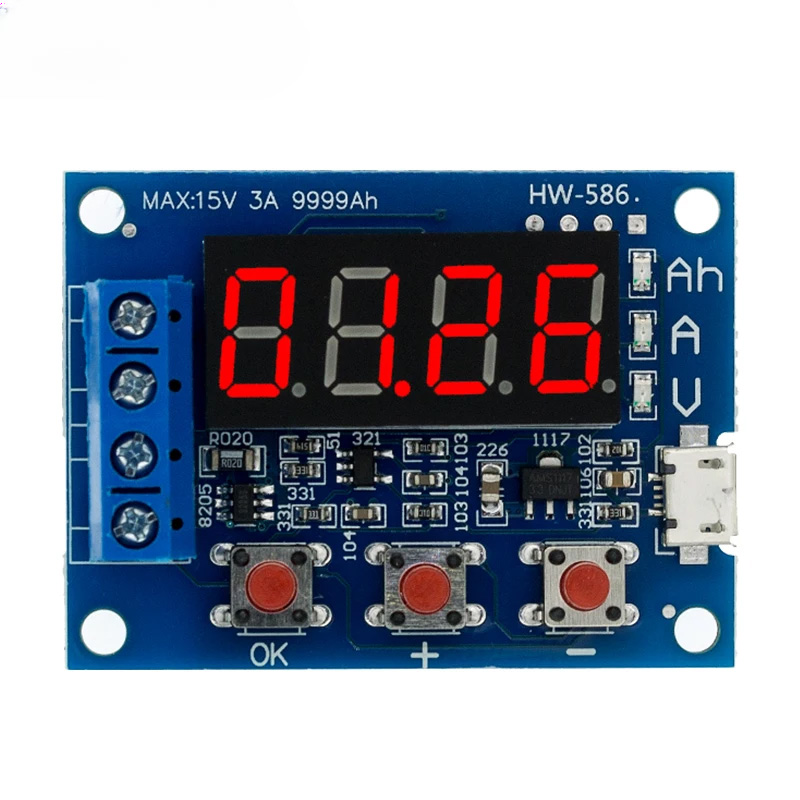

Model: ZB2L3
Compatible Battery Types: 1.2-12V batteries, including 18650 lithium and lead-acid batteries
Power Supply Voltage: DC 4.5-6V (micro USB connector)
Operating Current: Less than 70mA
Discharge Voltage Range: 1.00V-15.00V, 0.01V resolution
Termination Voltage Range: 0.5-11.0V
Maximum Discharge Current: 3.000A, 0.001A resolution
Maximum Voltage Measurement Error: 1% + 0.02V
Maximum Current Measurement Error: 1.5% ± 0.008A
Maximum Battery Capacity Range: 9999Ah (1Ah = 1000mAh)
Dimensions: 50mm x 37mm x 17mm
Weight: 28g

Features:

1. Comprehensive Battery Testing: The ZB2L3 Tester supports a wide range of batteries, including 18650 lithium and lead-acid batteries. It provides extensive testing capabilities for voltages between 1.2V to 12V, making it ideal for various applications.
2. Real-Time Monitoring: Featuring a digital LED display, this tester offers real-time data on discharge current, voltage, and capacity. The high-resolution display (0.01V for voltage and 0.001A for current) ensures precision and accuracy in measurements.
3. Adjustable Termination Voltage: Users can manually adjust the termination voltage within a range of 0.5V to 11.0V, allowing for customized testing parameters. This flexibility makes it suitable for different types of batteries and various testing needs.
4. Error Code Indicator: The ZB2L3 is equipped with error codes to indicate issues such as overvoltage, undervoltage, excessive current, and improper use. This feature ensures safe and accurate testing by alerting users to potential problems promptly.
5. Compact and Lightweight: Measuring just 50mm x 37mm x 17mm and weighing 28g, this tester is compact and easy to carry. Its small size does not compromise functionality, making it a convenient tool for both DIY enthusiasts and professionals.

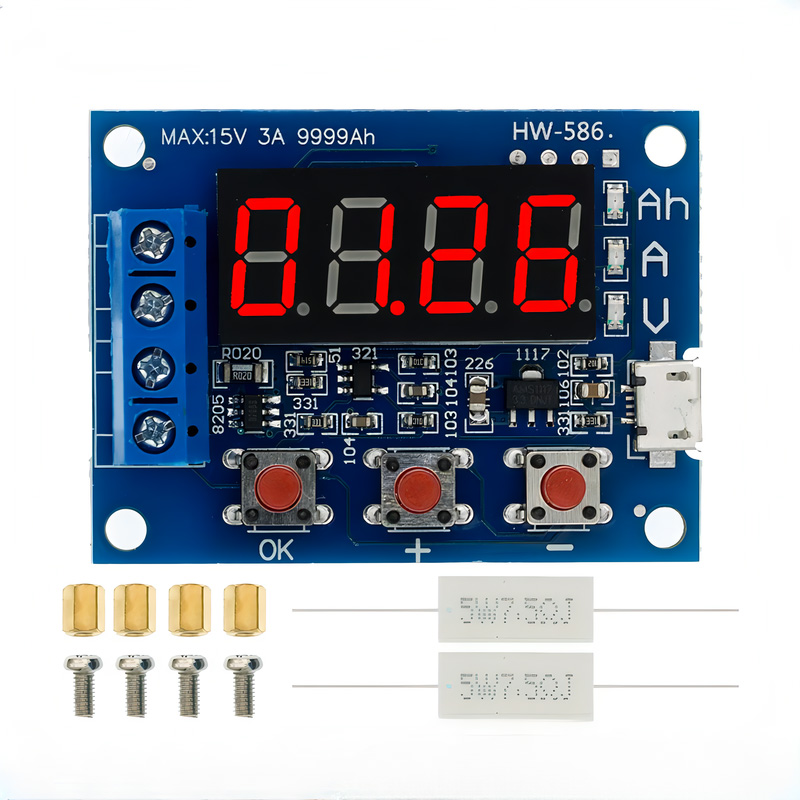

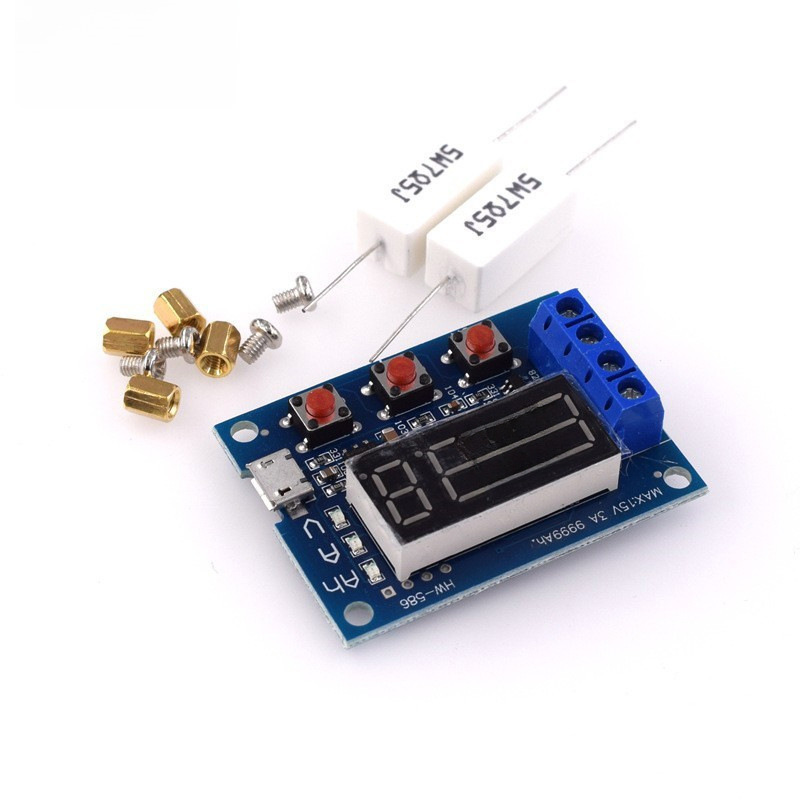

Package Included:

1 x ZB2L3 Battery Tester
