Specification:
At ZOHD we take very seriously the feedback from our fans and friends around the world. Dart XL Extreme was the answer from the company to all of those pilots who loved their ZOHD Dart but wanted something bigger.
Instead of going the easy way and just scale up our highly acclaimed Dart, we raised the bar for ourselves even higher: Let’s create the best swept-forward FPV wing ever made, and let’s do it right now!
Featuring and incredible set of high quality and ORIGINAL innovations, we intended to give you the ultimate FPV wing for mid and long range. Performance and portability where always on the table, but we didn’t stop there: without cutting any corners we went straight on for environmentally friendly materials 100% biodegradable, metal gear servos, high quality power plant, protection for leading edges and skids, v0rtex generators, revolutionary multi-cam hard nose and much, much more. Check below the full list of features and specs. This is it! ZOHD Dart XL Extreme is ready to hit the skies around the world, and this is just the beginning… join us in this incredible adventure.
The ZOHD Team
The ZOHD Team
Description:
Brand Name: ZOHD

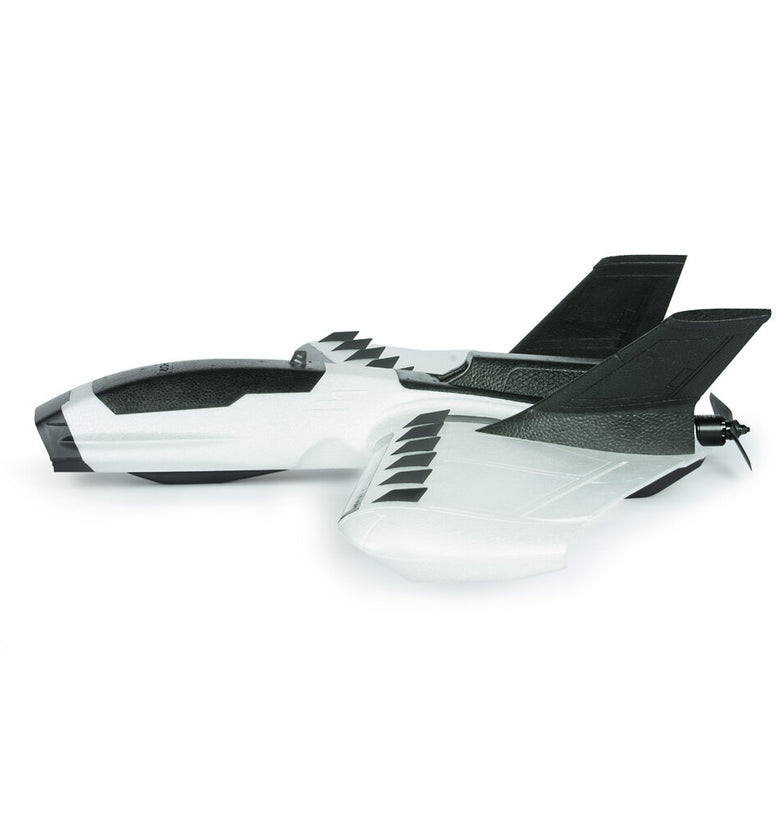

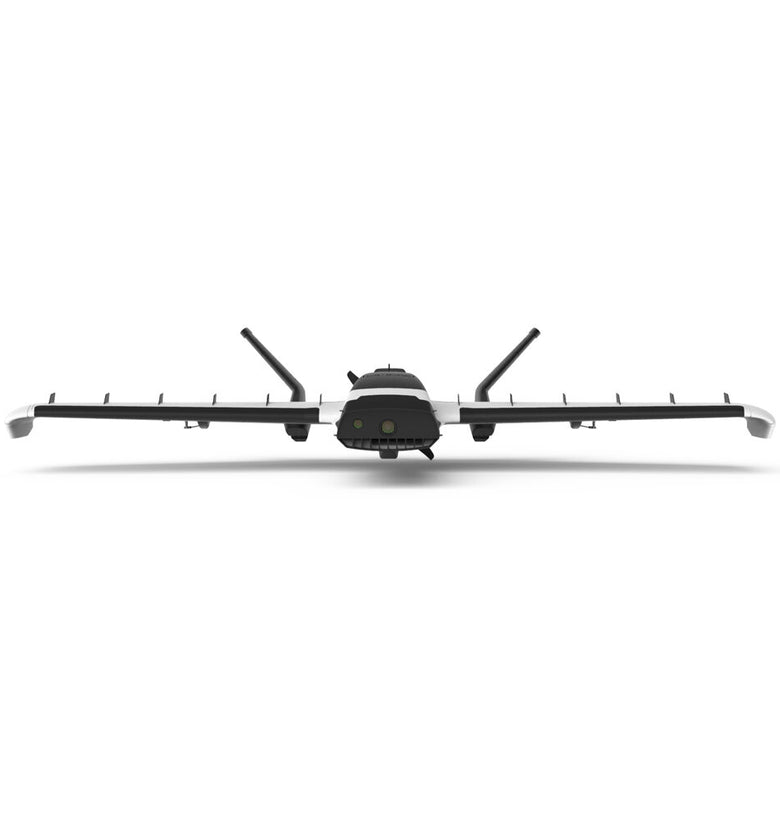

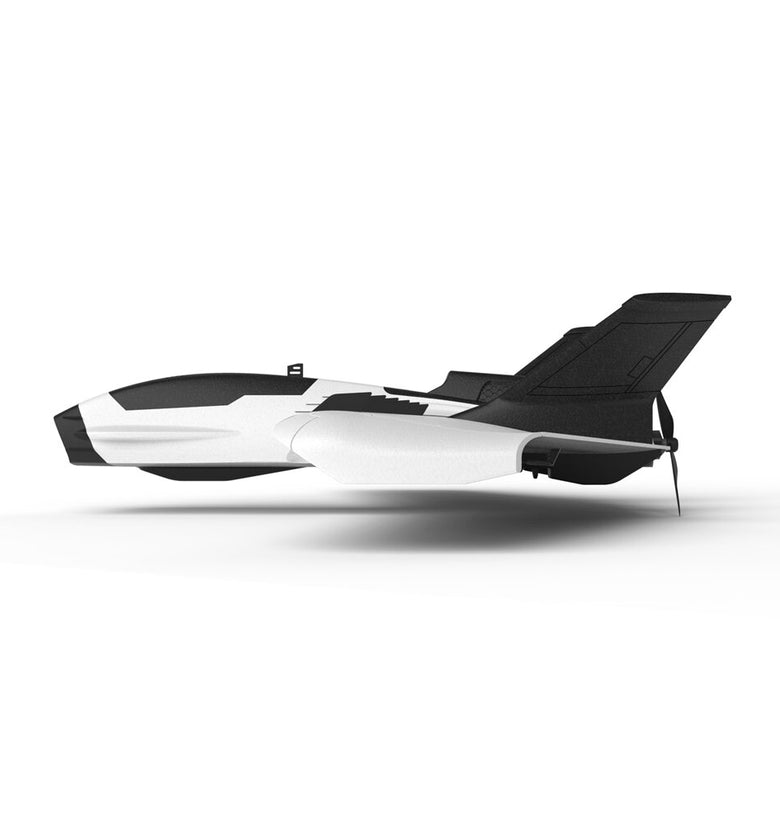

Item Name: ZOHD Dart XL “Extreme”
Material: Biodegradable BEPP
Wingspan: 1000mm (39.37”)
Length: 596mm (23.46”)
Flying speed: 25-100+km/h
Wing area: 19.8dm²
Wing load: 60.6g/dm² (Max.)
Recommended Max. Flying weight: 1200g
Max. Flying time: 40 minutes (with recommended battery)
Recommended Parts (Not Included):
Motor: 2216-1300KV
ESC: 30A w/5V 3A BEC
Servos: 9g Metal Gear Digital
Prop: 9X4.5
Battery: 4S 3300mAh
Features:
* Thanks to its revolutionary and careful design, the plane performs and looks like no other wing in the market.
* Small size airframe optimized for long range and portability… not to mention the COOL factor!
* Carefully chosen airfoil gives the aircraft an incredible lift power and excellent handling
* Detachable wing and vertical fins make it portable for an easy transport and deploy
* Keeping the tradition: Dart means swept-forward wing and swept-forward wing means stylish design and natural stability in turns and low speeds
* Fly Green: New ZOHD’s exclusive BEPP material isn’t only crash resistance, but even more important: 100% biodegradable. Future generations will thank you for that.
* Light-weight composite hard nose for better protection of your expensive camera gear
* Multi-camera nose: Compatible with 99% of the FPV and HD cameras in the market: Runcam HD, 2, 3S, Swift, Split, G0Pro H4-5-6-7, Session and much more!
* Reversed wingtips, provide more lift force and ensure a super efficient wing surface
* V0rtex generators for improving lift efficiency and gain higher control at low speeds. Use them straight and you will have even better Yaw stability!
* Load it as much you want with a huge equipment bay!
* Computer designed optimized air flow pod, that maximizes cooling, reducing the risk of crashes for overheated electronics
* Impact resistant protection cover for main wings leading edge and landing skids
* Built-in carbon fiber tube inside main wings for enhanced performance and rigidity
* Exclusive VTX / RX bays with excellent air flow and away from interferences
* Full spare parts supply, worry free fun. Fly it like you stole it!
English Manual, Click Here
Package Included:
1x ZOHD Dart XL Extreme 1000mm Wingspan BEPP FPV Aircraft RC Airplane Unassembled KIT Enhanced Version
