Description:

Brand Name: ZOHD

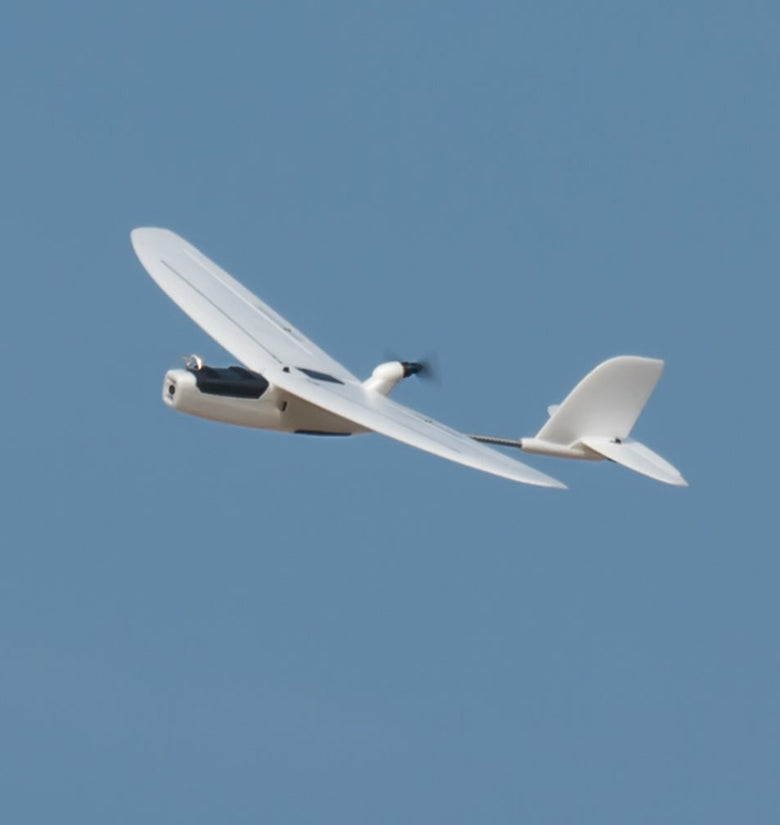

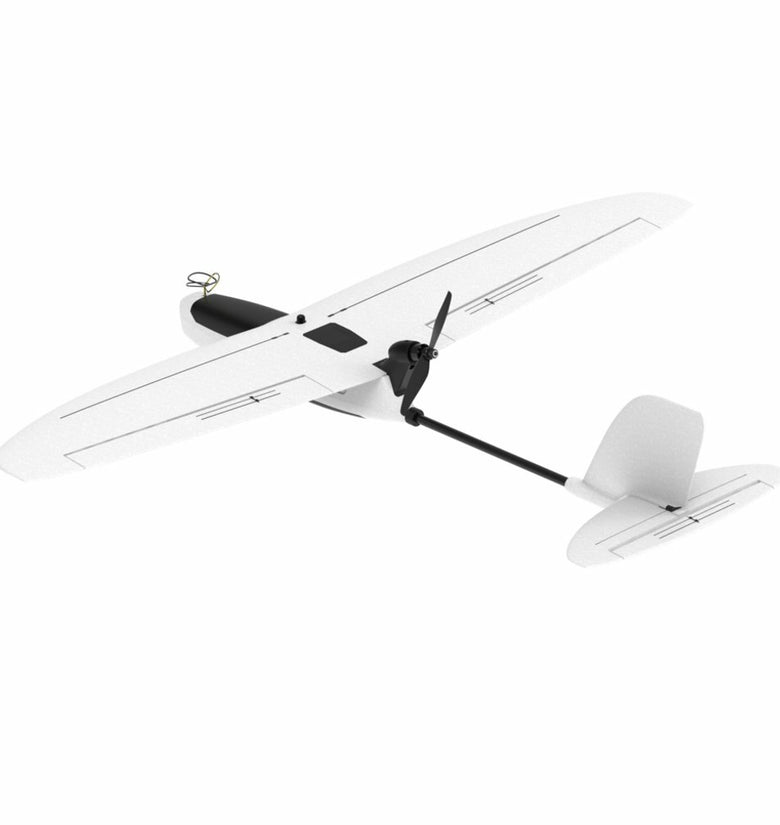

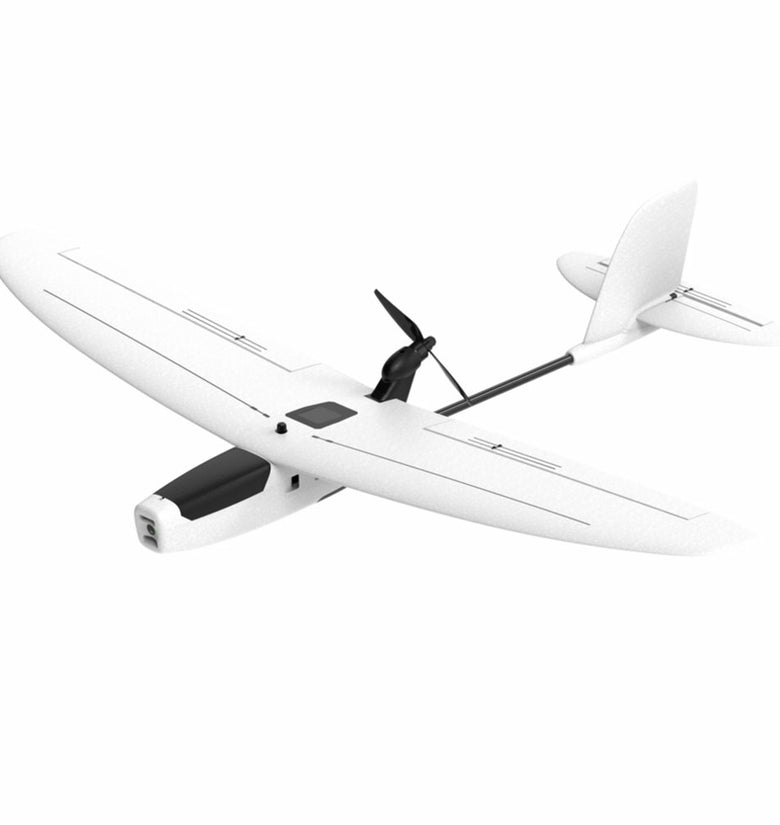

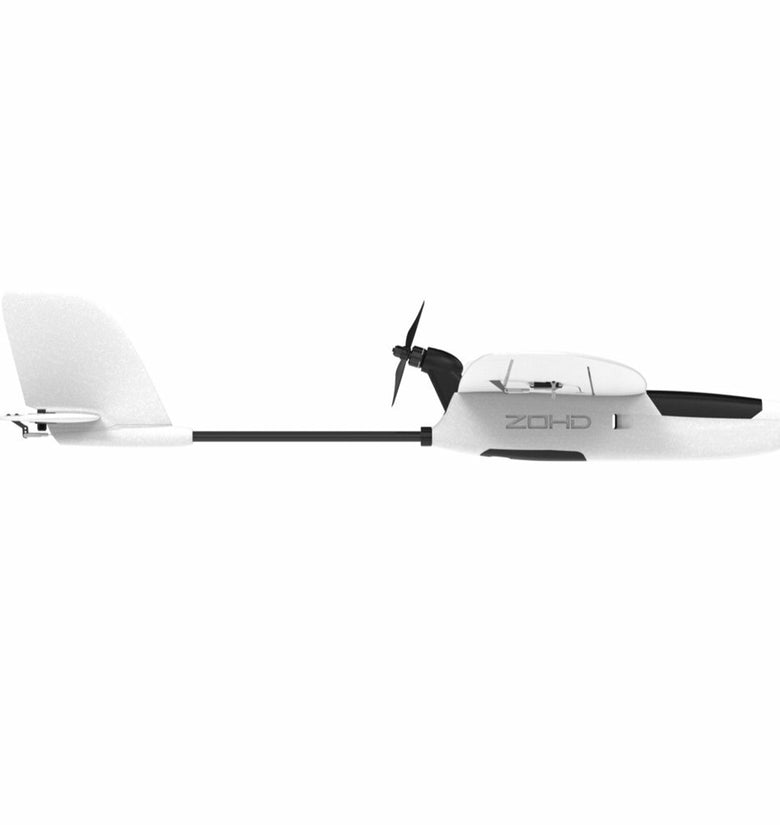

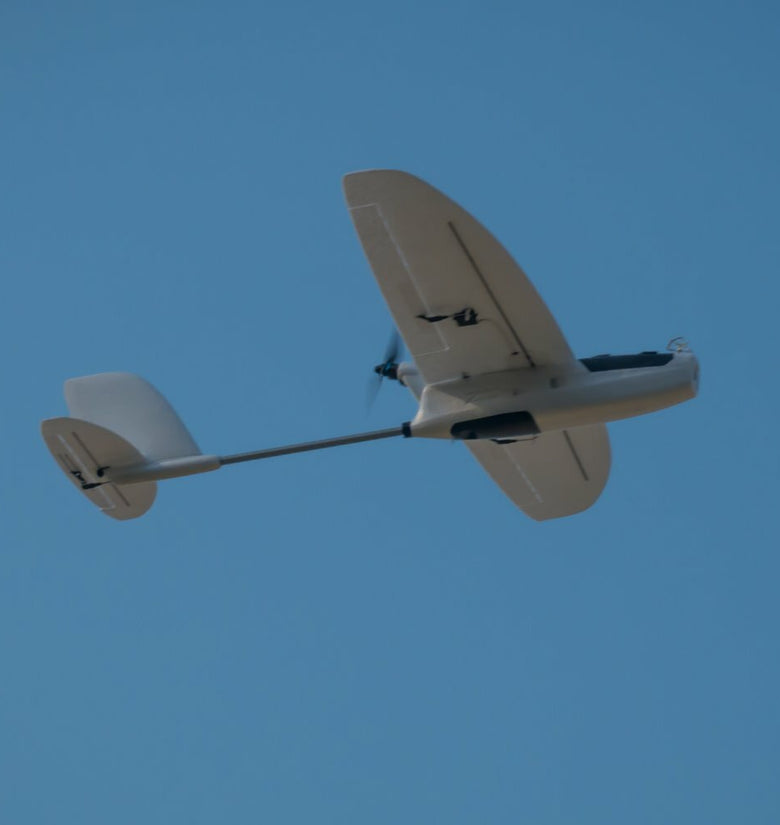

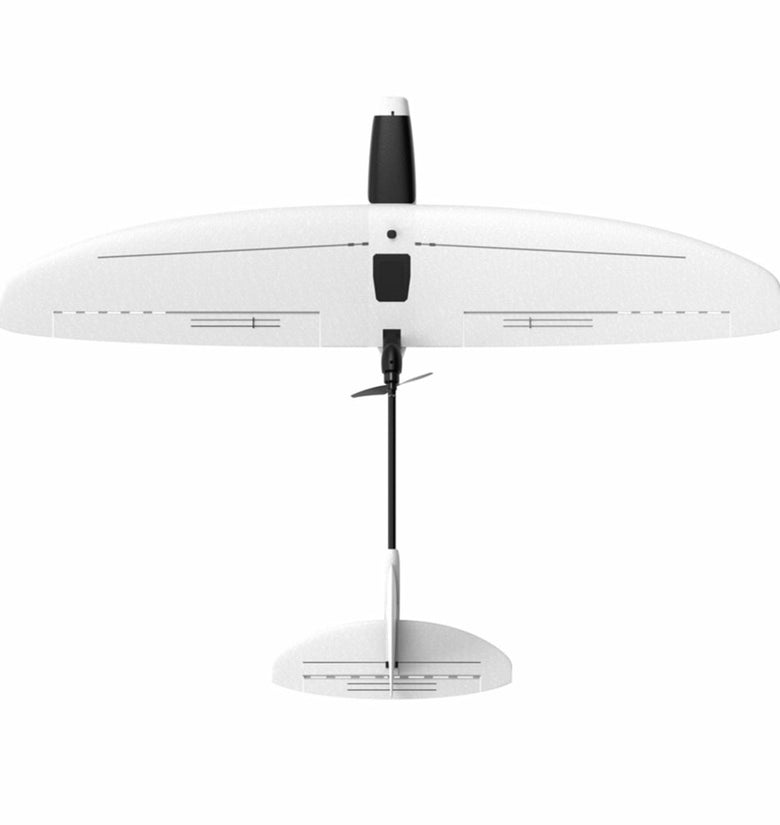

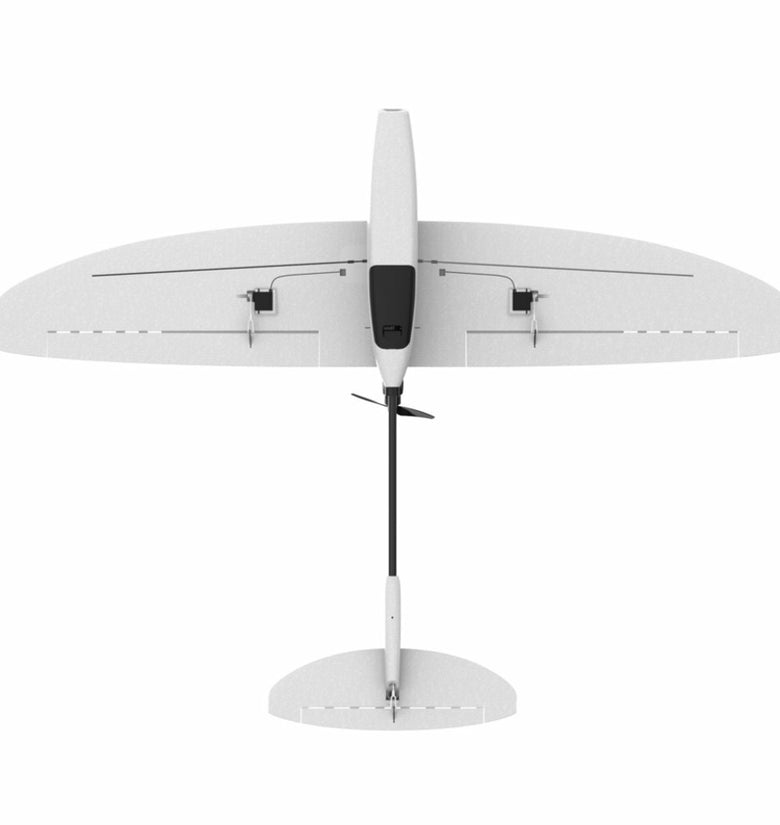

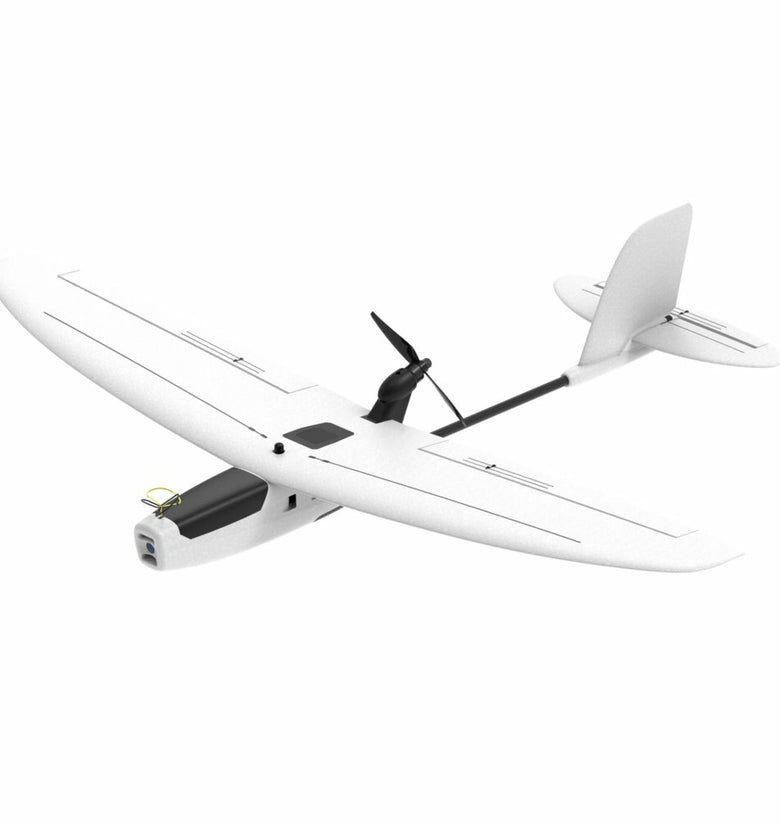

Item Name: DRIFT

Material: High Quality EPP

Wingspan: 877mm (34.52'')

Length: 688mm (27.08'')

Version: KIT, PNP, FPV Version (optional)

KIT Empty Weight: 113g

PNP Empty Weight: 162g

FPV READY Empty Weight: 185g

Recommended 2S Configuration:

Motor: 1406-2600KV

ESC: 30A w/5V 2A BEC

Servos: 4.3g*2, 8g*1

Propeller: 2 blade 5x5

Recommended Battery: Lipo 2S 900-1500mAh

ZOHD Lionpack 18650 2S1P 3500mAh

For Sub250g Configuration: PNP+Lipo 2S 900mAh battery+Kopilot Lite+VC400 Camera

Recommended 3S Configuration:

Motor: 1406-2600KV

ESC: 30A w/5V 2A BEC

Servos: 4.3g*2, 8g*1

Propeller: 3 blade 3x5x3

Battery: Lipo 3S 800-1100mAh

For Sub250g Configuration: PNP+Lipo 3S 800mAh battery+Kopilot Lite+VC400 Camera

Features:

- Super easy to hand launch and slow fly, agile and accurate in control.

- Detachable main wing and tail boom, glue-free assembly, portable for outdoor flying.

- Durable EPP material, built-in CF spar for enhancement, crash resistant.

- Being light-weight will be safe to fly anywhere, anytime. You’re avoiding the hassle of an FPV registration.

- Large battery bay for extended flight time.

- Nose camera bay compatible with all FPV and AIO cameras in the market.

- Special designed H-girder for main wing, makes it super solid and tough.

- Built-in CF strip inside fuselage for extra enhancement.

- Built-in CF rod in the ailerons will give precision and sharp action to your inputs.

- Dedicated equipment bay for FPV Camera, Flight Controller (ZOHD Kopilot Lite) and GPS.

- Optimized air-cooling design will keep your gear safe from overheating

Spare Parts, Click Here

English Manual, Click Here

PNP Includes:

ZOHD DRIFT plane PNP with pre-installed motor, esc, servos, propeller, hardware.

PNP package size: 465*175*110mm

PNP package weight: 510g

FPV READY Includes:

ZOHD DRIFT plane FPV with pre-installed motor, esc, servos, propeller, hardware, ZOHD Kopilot Lite, ZOHD VC400 All-in-One Video Camera.

FPV READY package size: 465*175*110mm

FPV READY package weight: 620g
