Description:
Brand: ZOHD
Brand: ZOHD
Item Name: Kopilot Lite And VC400 FPV Combo
Quantity: 1set
Package Size: 113*84*29mm
Package Weight: 119g
Usage: For FPV RC Airplanes Fixed Wing Model
VC400 Specification:

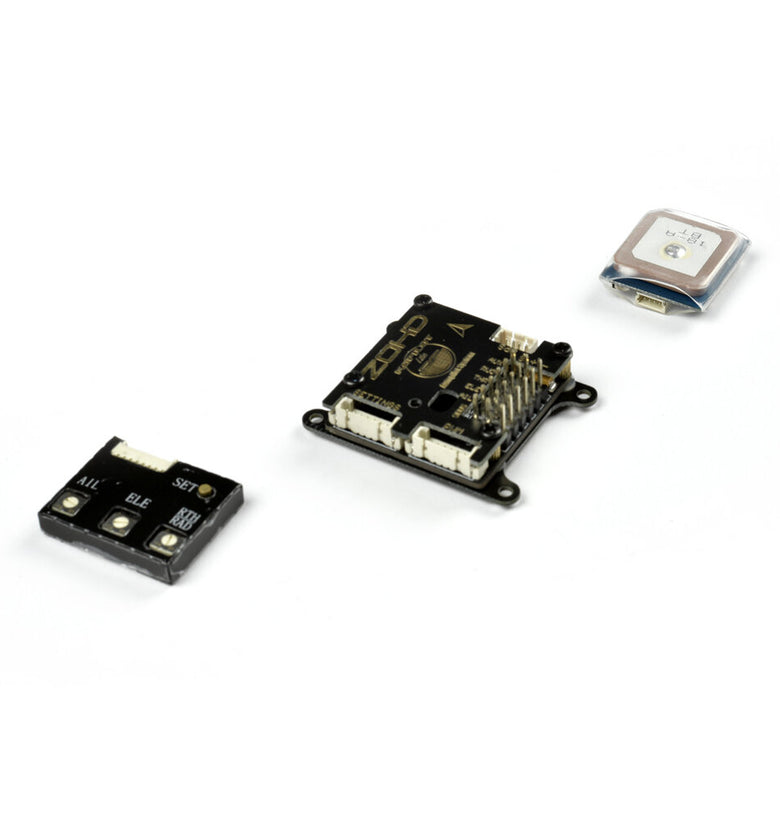

Kopilot Lite Autopilot System Specification:
Package Size: 113 X 84 X 29mm
Package Weight: 83g
Usage: For FPV RC Airplanes Fixed Wing Model
VC400 Specification:
Input voltage: 7-28V
Frequency band: 5.8GHZ
Video format: NTSC
Camera resolution: 600TVL
Antenna connector: Clover / Dipole
Field of View: 120 degrees
Size: 24*15*10mm
Weight: 8g
Output power: 0.1mW / 25mW / 200mW / 400mW
Operating current: 90mA (0.1mW) 150mA (25mW) 270mA (200mW) 360mA (400mW)
Kopilot Lite Autopilot System Highlights
* Easy Installation, minimal wiring. Super easy setup.
* Fast SAT lock.
* Return to Home (RTH) Fence (RAD) and Stabilization modes on a 3 position switch.
* Completely transparent. Switch it off and use it as a mixing board only.
* Supports T-Tail, V-tail and Flying Wing / Delta configurations.
* Launch assistant and motor blocking for no SAT fix.
* Adjustment board removable for a light-weight setup.
* Mini-size GPS unit for ultra-light setups.
* AIL, ELE, THR, RUD + AUX to control your servos. Landing gear and flaps go straight to RX.
* Computer-free programming.
* Easy to transfer between planes.
* Powerful stabilization and RTH algorithm.
* Easy Installation, minimal wiring. Super easy setup.
* Fast SAT lock.
* Return to Home (RTH) Fence (RAD) and Stabilization modes on a 3 position switch.
* Completely transparent. Switch it off and use it as a mixing board only.
* Supports T-Tail, V-tail and Flying Wing / Delta configurations.
* Launch assistant and motor blocking for no SAT fix.
* Adjustment board removable for a light-weight setup.
* Mini-size GPS unit for ultra-light setups.
* AIL, ELE, THR, RUD + AUX to control your servos. Landing gear and flaps go straight to RX.
* Computer-free programming.
* Easy to transfer between planes.
* Powerful stabilization and RTH algorithm.
VC400 Highlights
* 3-in-1 AIO integrated design, with camera, VTx and antenna, ultra-light weight and small size, best solution for light-weight airplanes.
* With OSD to show Power-on time and Input Voltage, so you can know how long you can keep flying.
* Default JST plug and up to 25cm power cable, longer enough for most small size airplanes.
* Up to 2.5km video transmission ra nge on 400mW.
* Wide voltage input from 7-28V, safe for all kinds of battery or BEC input.
* With customized ve1cro strap to hold the camera and EVA foam for anti-vibration.
* Switchable between 0.1mW / 25mW / 200mW / 400mW.
* Optional Clover / Dipole antenna for different airframes and flight mode (for straight line flights or flying around).
* 5.8Ghz VTx with 40 racing channels.
* Allows you to display customized Call Signs.
* Power cable were soldering and fixed by silica glue, solid even in a crash.
Package Included:

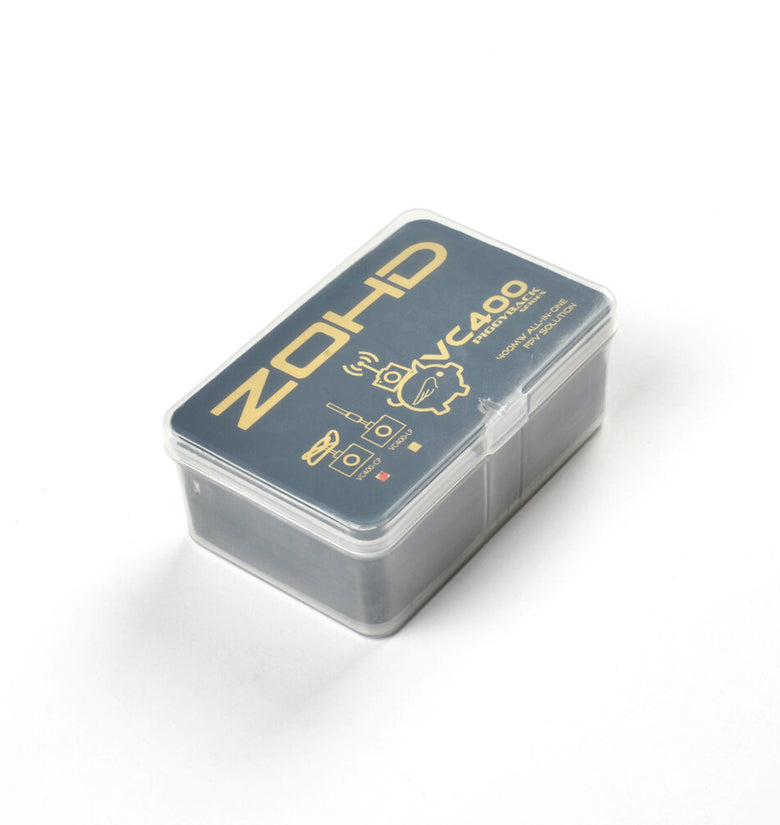

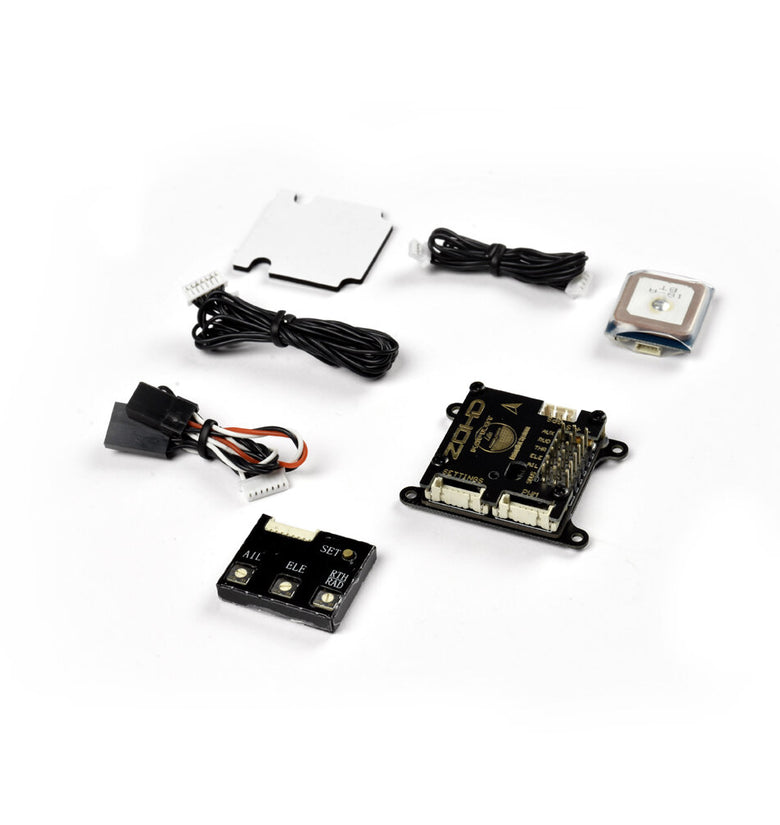

1 X Kopilot Lite Set

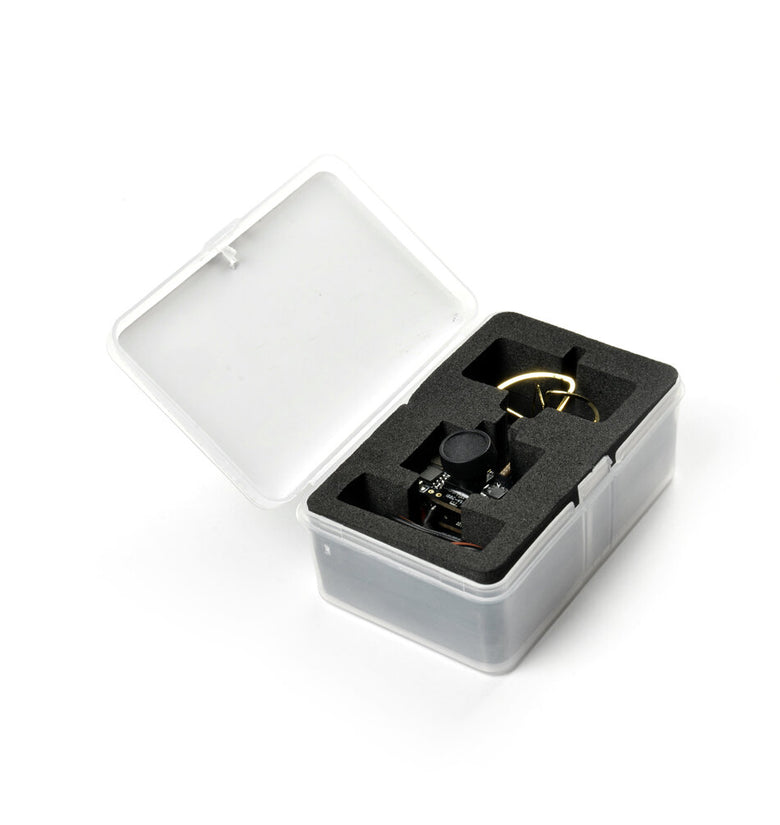

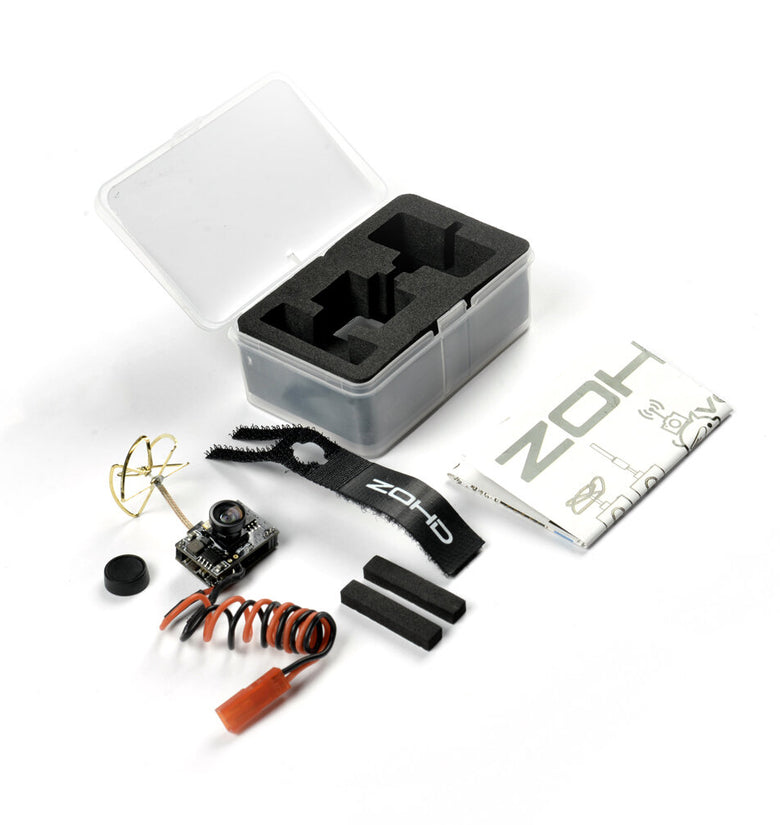

1 X VC400 FPV Set
