Specifications:
Brand: ZOYI
Model: ZT-706S
Product Type: Oscilloscope Multimeter
Display: IPS, 66,000 counts
Range: Automatic/Manual
Charge: TYPE-C (5V/2A)
Battery Capacity: 3400mAh lithium battery
Support Functions: Multimeter, Oscilloscope, Signal Generator
Material: ABS+TPE

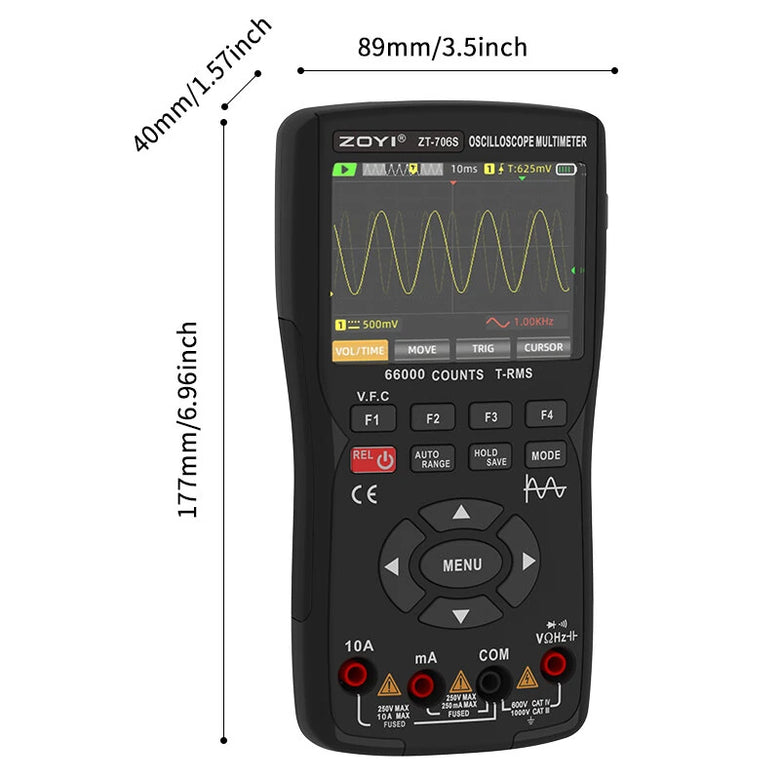

Dimensions: 177x89x40mm
Weight: 380g
Oscilloscope
Bandwidth: 50MHz dual channel
Sampling Method: Real-time sampling
Sampling Rate: 200M/280MSa/s
Input Coupling: DC, AC
Input Impedance: 1MΩ, @16pf
Attenuation: X1, X10
Persistence Mode: Minimum, 500ms, 1S, 10S, Infinite
Rate Range: 1.5Sa/s-280MSa/s
Interpolation: (sinx)x
Sweep Range: 10ns/div - 20s/div
Time Base: Accuracy 20ppm
Record Length: Up to 128Kbyte
Sensitivity: 20mV/div - 10V/div
Range: 4 grids
Analog Bandwidth: 50MHz
Low-Frequency: More than 10Hz
Rise Time: Less than 10ns
DC Gain Accuracy: ±3%
Auto Measurement: Period, frequency, peak-to-peak value, maximum value, minimum value, RMS, duty cycle, pulse count
Trigger Modes: Auto, normal, single
Trigger Edges: Rising edge, falling edge
Signal Generator Output: Sine wave, , sawtooth wave, half wave, full wave
Operating Modes: Normal mode 200MSa/s, High-speed mode 280MSa/s
Display Modes: YT, XY, Roll

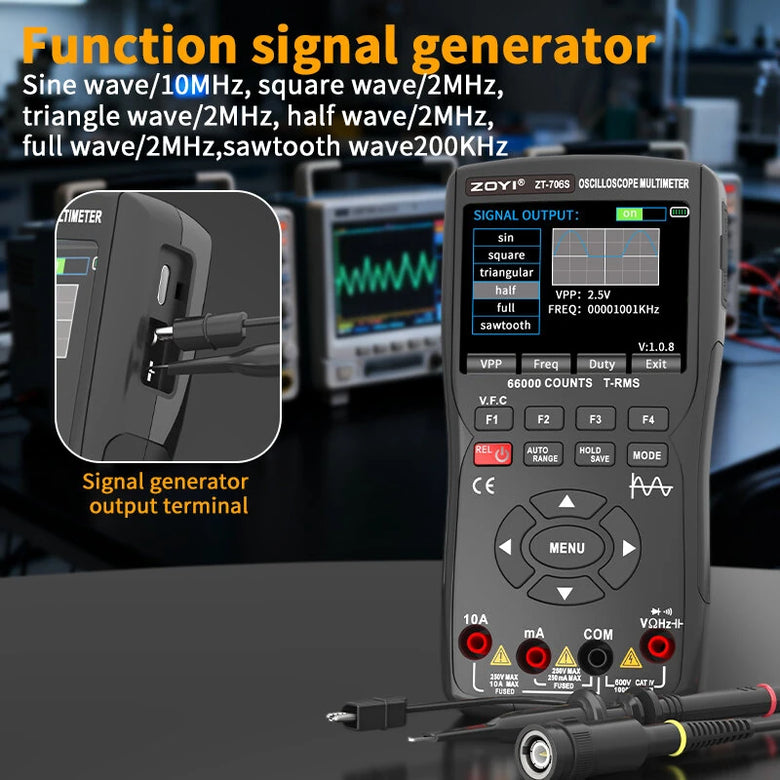

Signal Generator Frequency Output: Sine wave/10MHz, /2MHz, triangle wave/2MHz, half wave/2MHz, full wave/2MHz, sawtooth wave/200KHz
Multimeter:
DC Voltage: 1000.0V/660.00V/66.000V/6.6000V, ±(0.05%+3)
DC Voltage(mV): 660.00mV/66.000mV, ±(0.5%+3)
AC Voltage: 750.0V/660.00V/66.000V/6.6000V, ±(0.5%+3)
AC Voltage(mV): 660.00mV/66.000mV, ±(0.8%+3)
DC Current: 10.000A/6.6000A, ±(0.5%+3)
DC Current(mA): 660.00mA/66.000mA, ±(0.5%+3)
AC Current: 10.000A/6.6000A, ±(0.8%+3)
AC Current(mA): 660.00mA/66.000mA, ±(0.8%+3)
Resistance: 660.00Ω ±(0.5%+3), 660.00KΩ/66.000KΩ/6.6000KΩ ±(0.2%+3), 66.00MΩ/6.6000MΩ ±(2%+3)
Capacitance: 9.999nF ±(5.0%+20), 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF ±(2.0%+5), 99.99mF/9.999mF ±(5.0%+5)
Frequency: 99.99KHz/9.99KHz/999.9Hz/99.99Hz/9.99Hz, +(0.1%+2)
Diode: Yes
Continuity: Yes
Features:

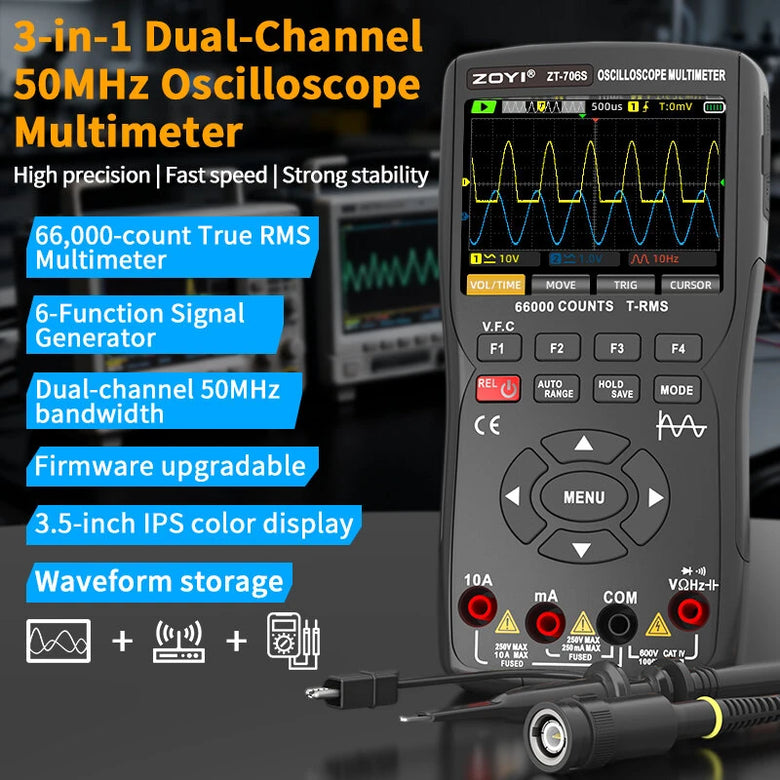

1. 3-in-1 design combines oscilloscope, multimeter, and signal generator in one handheld unit for convenient operation.

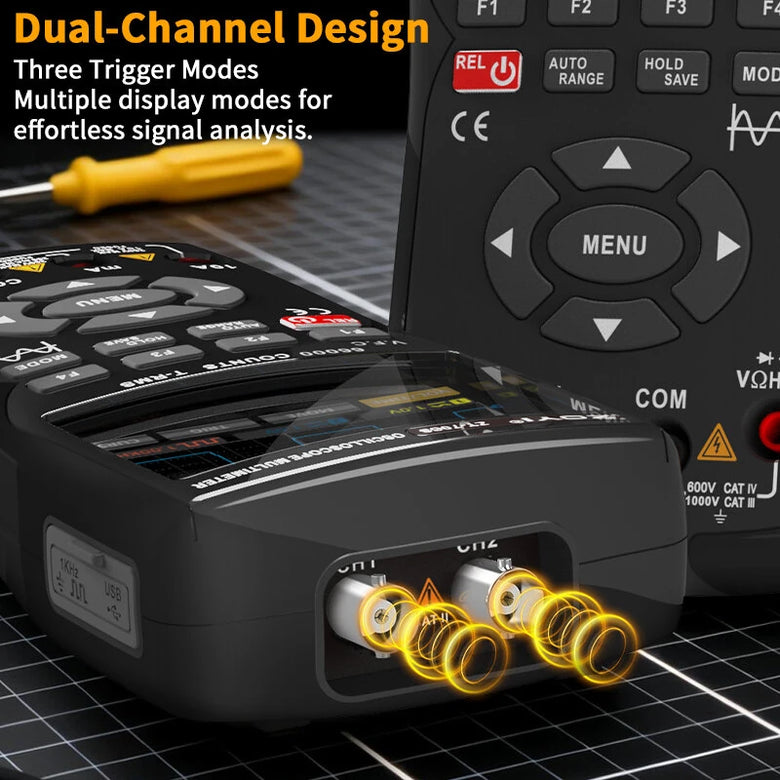

2. 50MHz dual-channel oscilloscope supports real-time sampling with up to 280MSa/s in high-speed mode.

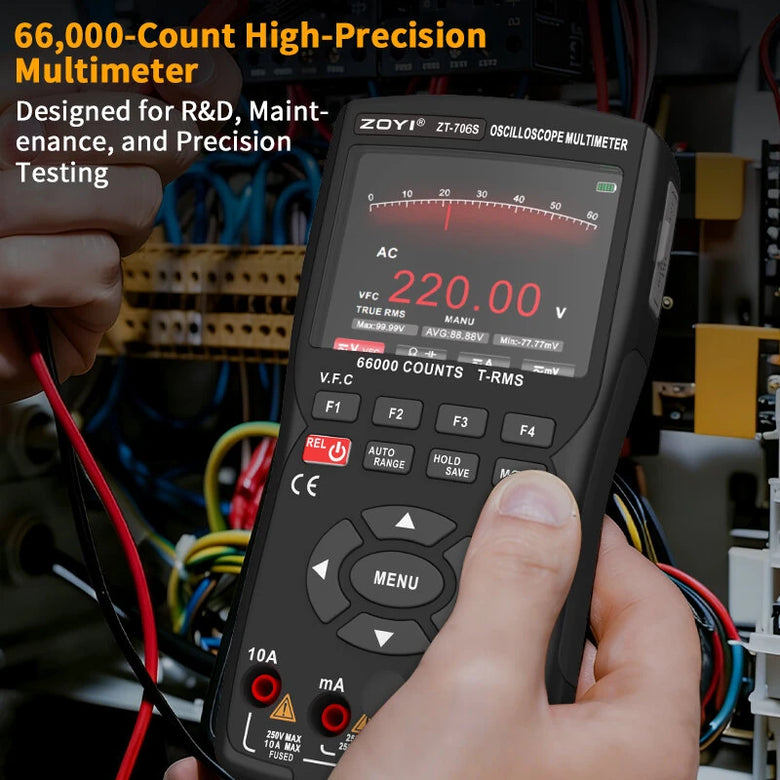

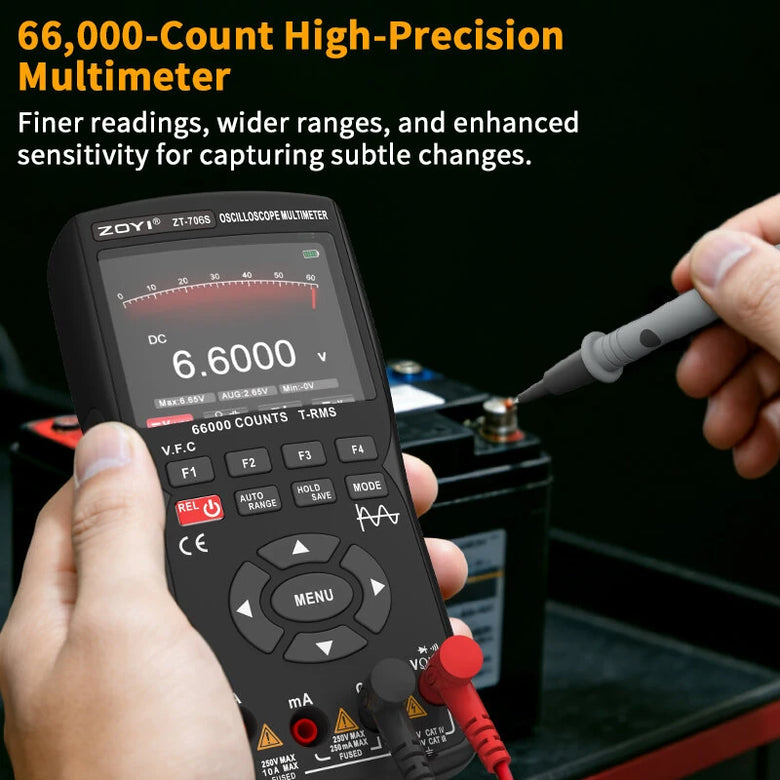

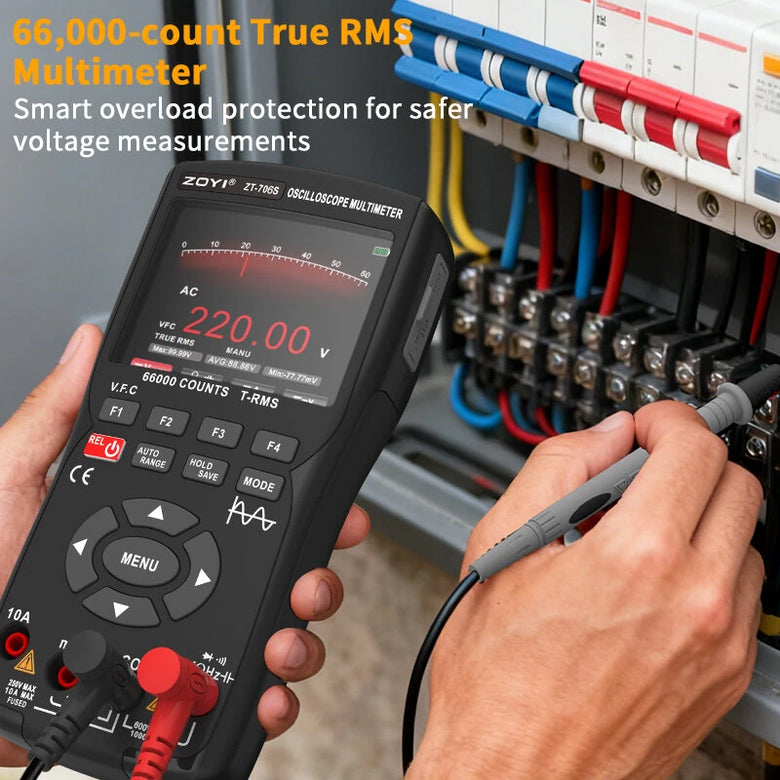

3. IPS color screen with 66,000 counts provides clear waveform and measurement display.
4. Supports auto measurement of period, frequency, peak-to-peak value, maximum value, minimum value, RMS, duty cycle, and pulse count.
5. Built-in 3400mAh lithium battery with TYPE-C 5V/2A charging for portable use.
