Description:
It is an Auto-ranging digital multimeter using double-integral style A/D transform as the core,
Can be used to measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity testing, temperature, Frequency etc.
The product is battery powered. It is characterized by stable function and high reliability, with the features of overload protection and Large LCD display for clear reading. It is an ideal tools for lav, factory, radio fans and family use.
Features:
True RMS measurement
Resistance capacitance frequency file high voltage 550V protection
Large screen display, the maximum of 6000 words
LCD display
Max display:6000 counts
Polarity identification
Measurement mode:double-integral style A/D transform
Sample rate:3 times per second
Over range indication:OL
Low voltage indication
Working Environment:0-40 degrees,relative humidity <80%
Size:65x130x32 mm
Auto Range
Sampling rate: about 3 times per second
Backlight display
Data retention
Polarity automatic recognition
Low voltage display
10A large current measurement, mA level small current measurement
Automatic shutdown
Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance,
Diode / off measurement, frequency and duty ratio measurement.
Specifications:
(1) frequency: 5/50/500/5k/50k/500k/5M/10M (+ 0.1+3)
(2) capacitance: 10nF (+ 5.0+20), 100nF/1uF/10uF/100uF (+ 2.0%+5), 1000uF/10000uF (+ 5.0%+5) ()
(3) DC voltage: 600mV (+ 1.0%+10), 6V/60V/600V/1000V (+ 0.5%+3)
(4) AC voltage: 600mV (+ 3.0%+3), 6V/60V/600V/750V (+ 1.0%+3)
(5) DC current 600uA/6000uA (+ 1.5%+3), 60mA/600mA (+ 1.5%+3), 10A (+ 1.5%+3)
(6) AC current 600uA/6000uA (+ 1.5%+3), 60mA/600mA (+ 1.5%+3), 10A (+ 1.5%+3)
(7) resistance: 600 (+ 0.5%+3), 6K/60K/600K/6M (+ 0.5%+2), 60M (+ 1.5%+3)
(8) temperature: < 400 + C (1.0%+5), more than 400 DEG C + (1.5%+15)
< 752 + (1.0%+5), more than 752 degrees Fahrenheit (1.5%+15).
(9) share ratio: 1% to 99% (+ 1%)
(8) measurement methods: double integral A/D converter
(9) ultra range display: OL
(10) working environment: 0~40 C, relative humidity < 80%
(11) power supply voltage: 3V (AAA x2 Pcs 1.5V)(not included)
(12) product size: 130*65*30mm
(13) weight: 190g

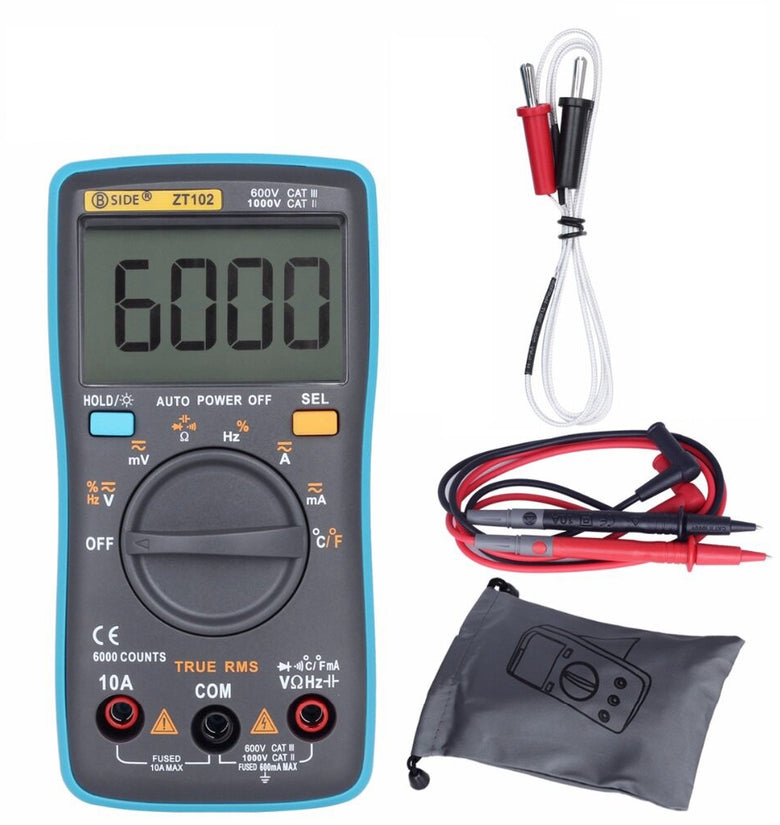

Package Includes:
1 x Multimeter
1 x Test Leads
1 x Thermocouple
1 x Protect Bag

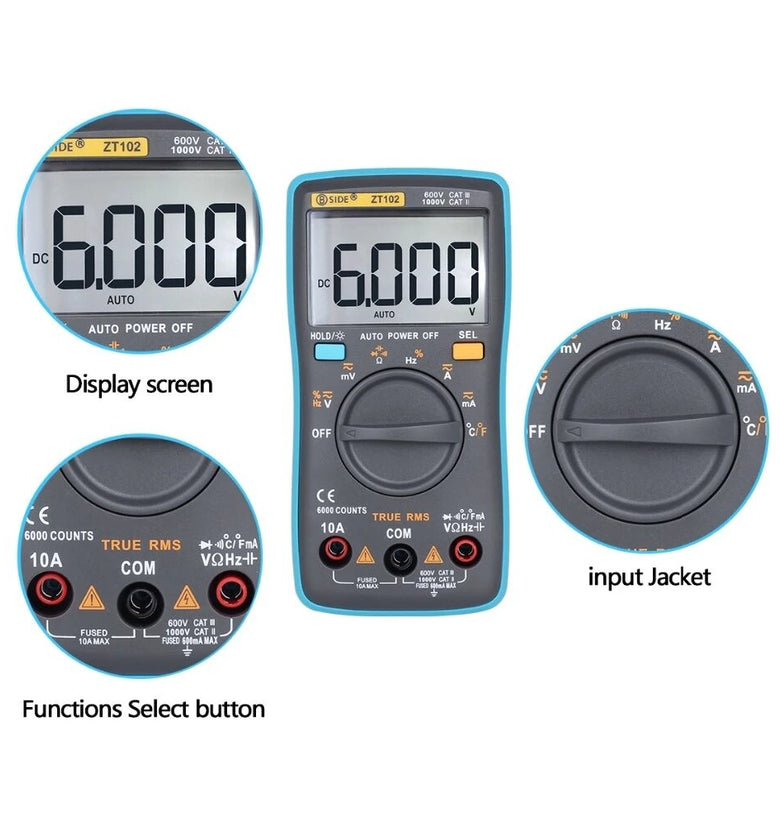

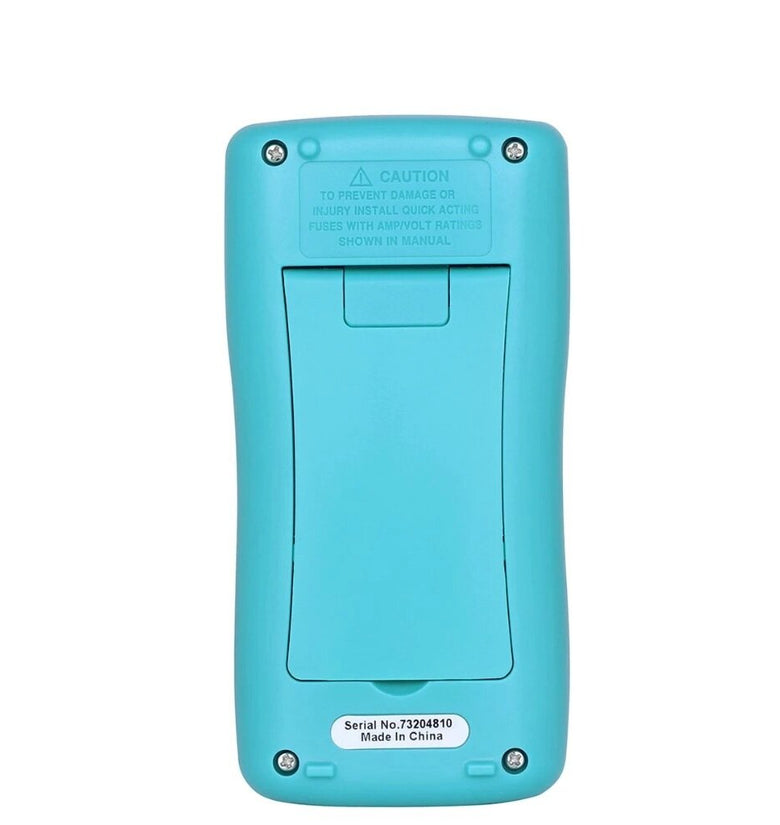

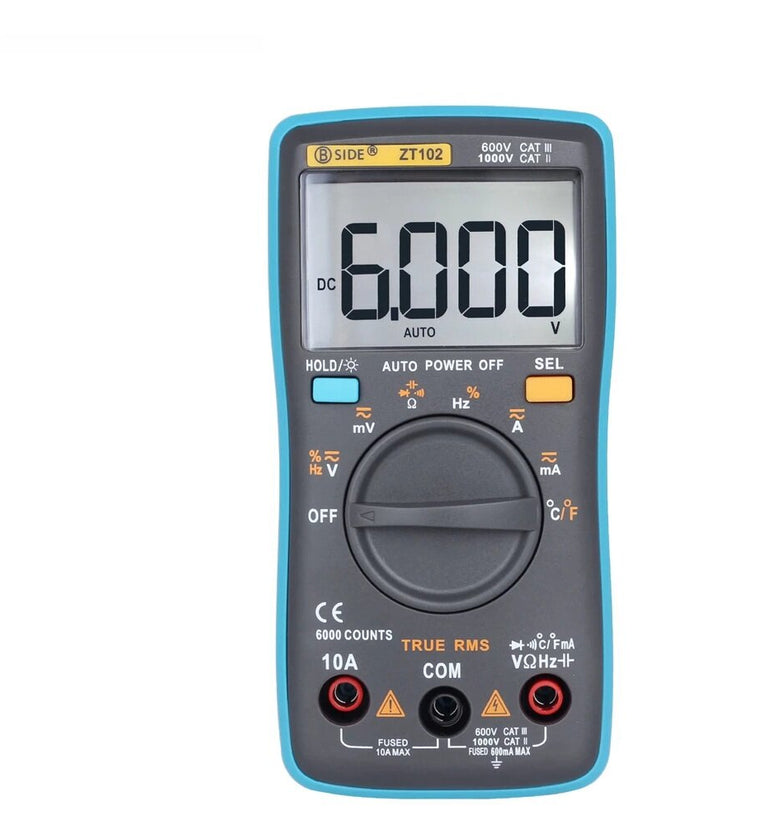

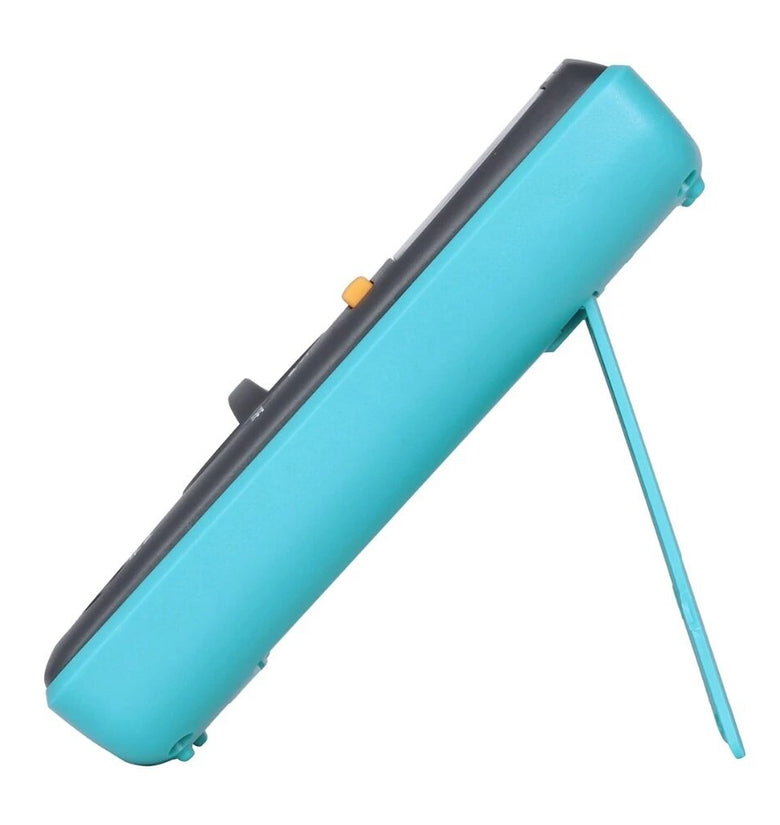

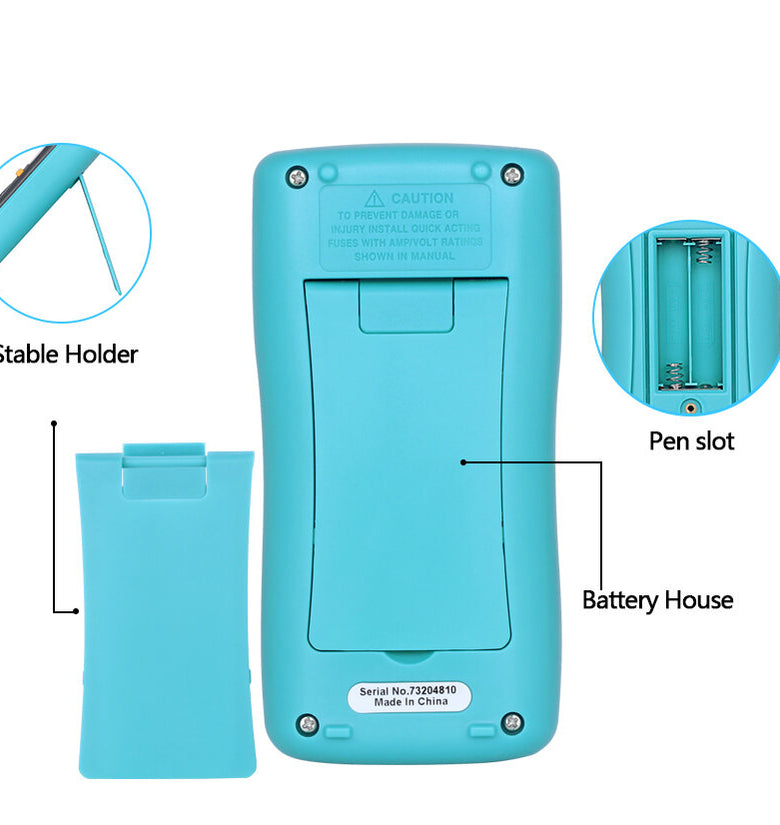

Details Pictures:
