Feature:
>>>Manual: Click here to open<<<
| Model | WZ3605E |
| Input voltage | 6.0~36.00V |
| Output voltage | 0.60~36.00V |
| Output current | 0~5.000A |
| Output power | 0~80.000W |
| Input voltage resolution | 0.1V |
| Output voltage resolution | 0.01V |
| Input voltage accuracy | ± 1%+5 words |
| Output voltage accuracy | ± 0.3%+3 words |
| Output current accuracy | ± 0.5%+5 words |
| Capacity | 0-999999AH |
| Typical value of output ripple | 150mV peak to peak |
| Statistical time range | 10000 hours |
| Screen brightness | 0~6, 7 levels in total |
| Display | 1.44 inch color LCD |
| Output current resolution | 0.001 |
| Temperature range | - 10 ℃~60 ℃ |
| Energy measurement range | 0-99999.999WH |
| Weight | 118g |
| Statistical error of capacity and energy | ± 2% |

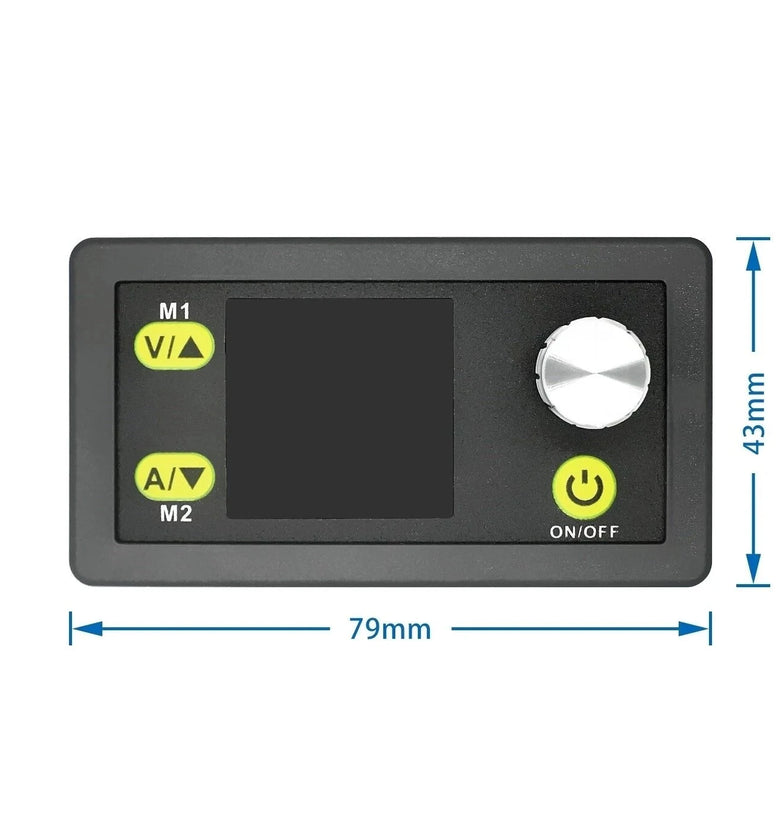

| Size | 79mm * 43mm * 48mm |
Package includes:
1 x WZ3605E meter
