#1：AC301-20A open sensor

#2：AC301L-20A with 485 communication

#3：AC301L-100Aclosed sensor

#4：AC301L-100A with 485 communication.

#5：AC301-20A

#6：AC301L-100Aclosed sensor

Features:

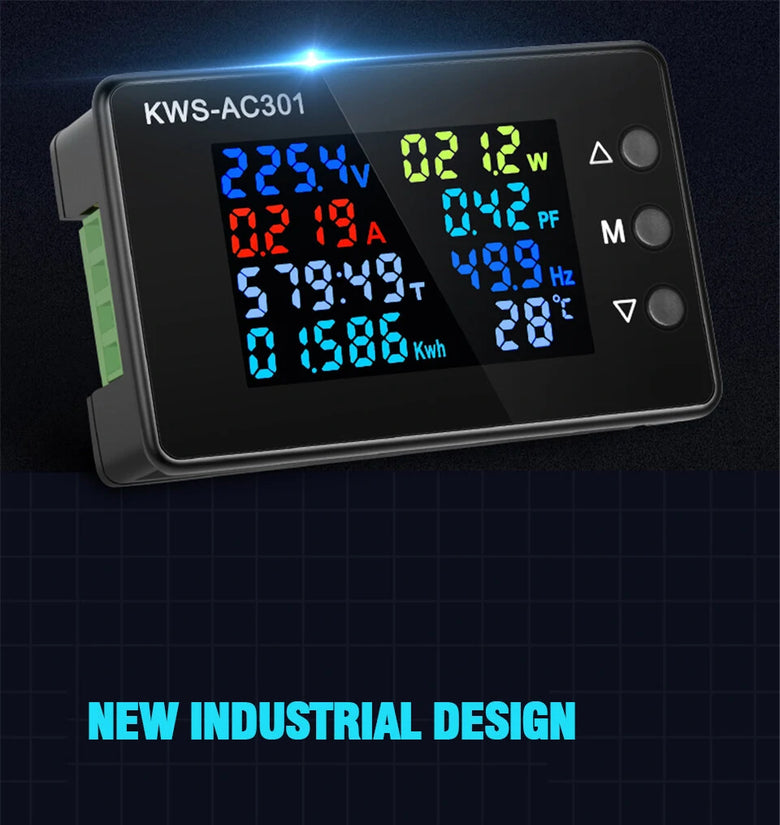

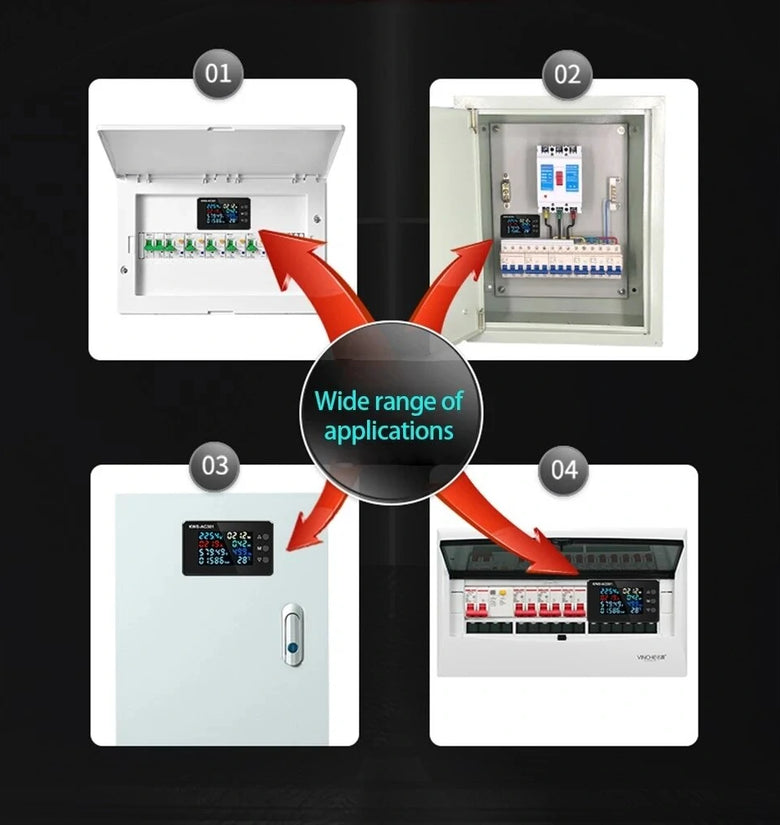

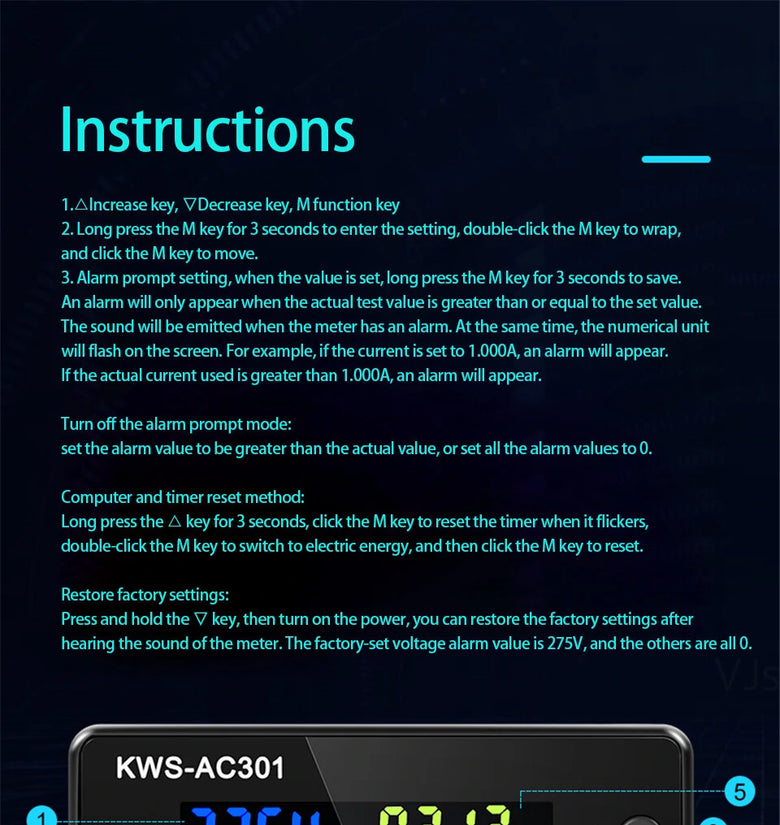

【Digital AC Multimeter】This 8 in 1 energy meter simultaneously measures and displays voltage, current, power, electrical energy, timing, temperature, frequency and power factor, equipped with split current transformer,no need to buy another, can be installed on anywhere flexibly.【Easy to Read】 The LCD HD color display screen, combined with the backlight function, makes it easy to read the displayed data, giving you an excellent visual experience.【Overload Alarm Function】The voltmeter will make a sound and the numerical unit will flash simultaneously to give an alarm when exceeding the preset value.You can preset numerical limits as your need.【Electric Energy and Timing Clearing Method】 press the △ button for 3 seconds and the timing flashes, click the M button to clear the timing, double-click the M button to wrap to the electric energy, and click the M button to clear.【Warranty】 Please rest assured to buy, if you have any questions, please feel free to contact us, we will give you satisfactory service.

AC301-20A/AC301L-20A

Specification:

1.Voltage: AC50-300V2.Shunt way:Built-in3.485 communication: AC301-20A without 485 communication,AC301L-20A with 485 communication.4.Current: 0-20A5.Power: 0-4400W6.Capacity: 0.01-99999Kwh7.Timing: 0-9998.Temperature: -10 ° C to 150 ° C9.Frequency:50-60HZ10.Power Factor:0.01-1PF

Package included:1 x Meter(20A is without shunt/CT Coil),1 x Usuer Manual1 x Temperature Sensor

AC301-100A/AC301L-100A

Specification:1.Voltage: AC50-300V2.Current: 0-100A3.Shunt way:Built-in4.485 communication:AC301-100A no 485 communication,AC301L-100A with 485 communication.5.Power: 0-22KW6.Capacity: 0.01-99999Kwh7.Timing: 0-9998.Temperature: -20 ° C to 150 ° C9.Frequency:50-60HZ10.Power Factor:0.01-1PF

Package included:1 x Meter 100A1 x Close CT / Split CT1 x Usuer Manual1 x Temperature Sensor

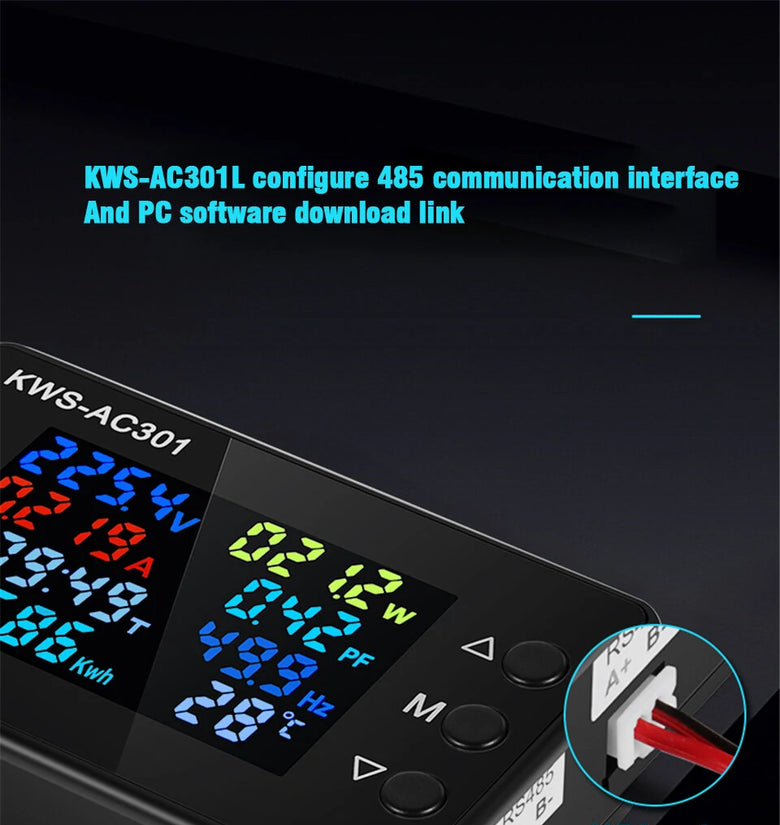

Notes:Customers who purchase AC301L, please note：If you need software, please click this link to download: https://www.jianguoyun.com/p/DY7OklsQ3uqSChjruqUE
