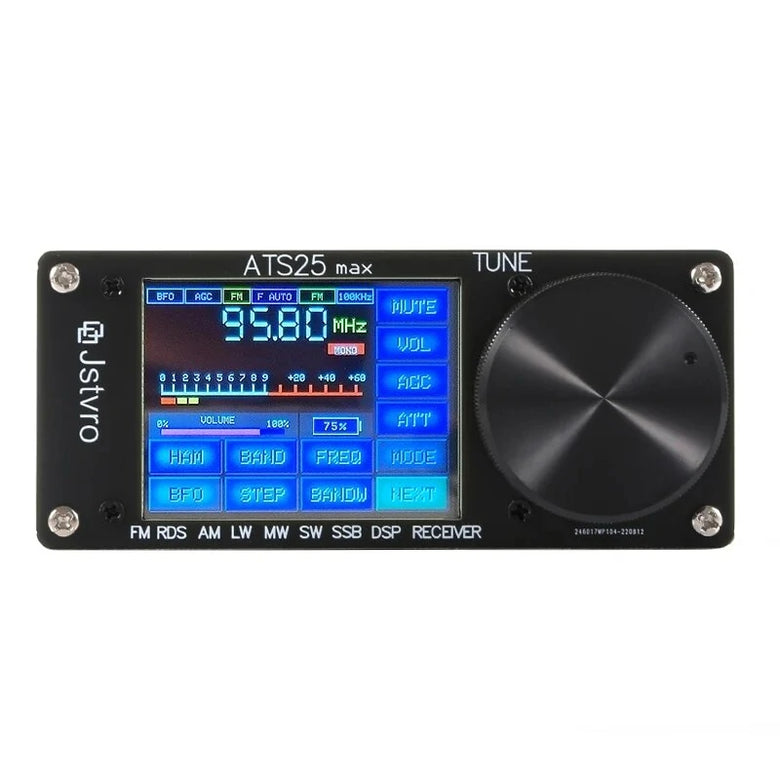

ATS25 Max Si4732 All Band Radio Receiver FM AM LW MW SW SSB DSP Receiver w/ 2.4' Touch Screen

Description:

Si4732 FM LW (MW and SW) and SSB full band radio receiver is designed with a 2.4' color screen. It is added with these functions:

1. Spectral scanning
2. Backlight adjustment
3. Backlight off
4. Battery voltage
5. Battery percentage

Features:
- A 2.4-inch color screen allows you to read data more smoothly and to have a better user experience
- Thanks to its built-in high-capacity lithium battery, there is no need to worry about sudden power failure affecting use
- Can upgrade program via TYPE-C interface; 3.5mm stereo audio output; also support 3.5mm audio FM antenna interface, with a maximum charging current of 1.5A
- Support AM band wide bandwidth: 1 6 6k; support SSB bandwidth band: 0.5 4 4k, audio output power 1.5w; support HAM band fast channel
- Features radio search and direct frequency entry on the number pad; also has a quick ham bar channel
- Small and portable: you can take it with you or share it with family and friends

Frequency:
- FM: 64 functions 108mhz/RDS functions
- LW: 153khz 500khz
- MW: 520khz 1710khz
- SW: 1730khz 30000khz
- SSB: 1730khz 30000khz
- Antenna Interface: BNC

Specifications:
- Shell material: aluminum alloy
- Built-in lithium battery: 3.7V/2000MA
- Shell size: 11.1 x 10.2 x 4.7cm/4.4 x 4 x 1.9' (without the size of protrusions)
- Product weight: 500G/LB

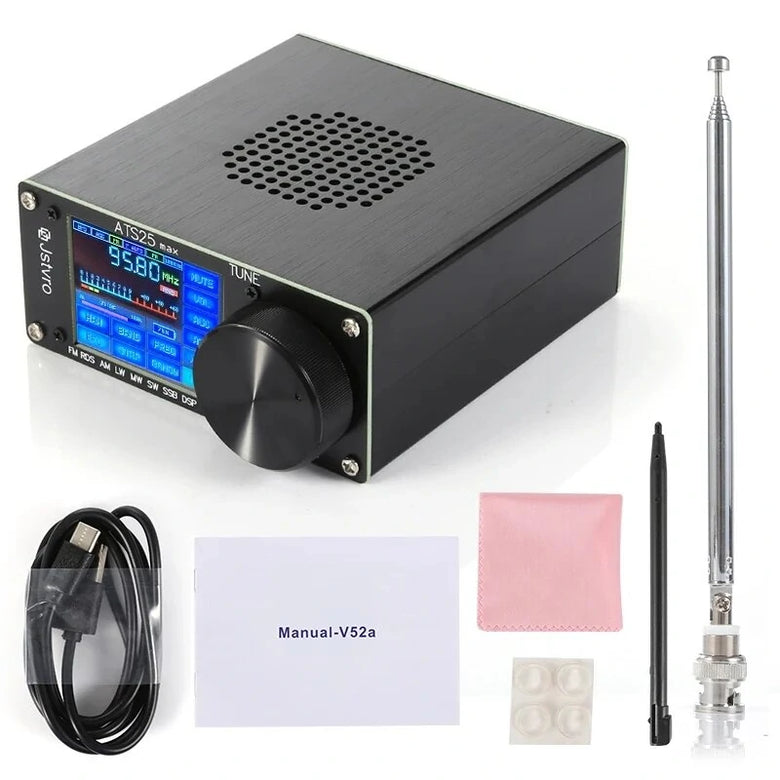

Package Included:
 1 x Main Unit
 1 x Telescopic Antenna
 1 x Type-C Charging Data Cable

 1 x Touch pen


Frequency Range:
Band band[] = {
{ 'FM', FM_BAND_TYPE, FM, 6400, 10800, 9920, 10, 0, 0}, // FM 0
{ 'LW', LW_BAND_TYPE, AM, 100, 514, 198, 9, 0, 0}, // LW 1
{ 'MW', MW_BAND_TYPE, AM, 514, 1800, 1395, 9, 0, 0}, // MW 2
{'BACON', LW_BAND_TYPE, AM, 280, 470, 284, 1, 0, 0}, // Ham 800M 3
{ '630M', SW_BAND_TYPE, LSB, 470, 480, 475, 1, 0, 0}, // Ham 630M 4
{ '160M', SW_BAND_TYPE, LSB, 1800, 2000, 1850, 1, 0, 0}, // Ham 160M 5
{ '120M', SW_BAND_TYPE, AM, 2000, 3200, 2400, 5, 0, 0}, // 120M 6
{ '90M', SW_BAND_TYPE, AM, 3200, 3500, 3300, 5, 0, 0}, // 90M 7
{ '80M', SW_BAND_TYPE, LSB, 3500, 3900, 3630, 1, 0, 0}, // Ham 80M 8
{ '75M', SW_BAND_TYPE, AM, 3900, 5300, 3950, 5, 0, 0}, // 75M 9
{ '60M', SW_BAND_TYPE, USB, 5300, 5900, 5375, 1, 0, 0}, // Ham 60M 10
{ '49M', SW_BAND_TYPE, AM, 5900, 7000, 6000, 5, 0, 0}, // 49M 11
{ '40M', SW_BAND_TYPE, LSB, 7000, 7500, 7074, 1, 0, 0}, // Ham 40M 12
{ '41M', SW_BAND_TYPE, AM, 7200, 9000, 7210, 5, 0, 0}, // 41M 13
{ '31M', SW_BAND_TYPE, AM, 9000, 10000, 9600, 5, 0, 0}, // 31M 14
{ '30M', SW_BAND_TYPE, USB, 10000, 10200, 10099, 1, 0, 0}, // Ham 30M 15
{ '25M', SW_BAND_TYPE, AM, 10200, 13500, 11
