Specifications:
Sensor Type: Vanadium oxide (VO) microcalorimeter
Response Band: 8~14μm
Thermal Image Resolution: 240x320
NETD (Noise Equivalent Temperature Difference): ≤50 mK (@25°C, F#1.0)

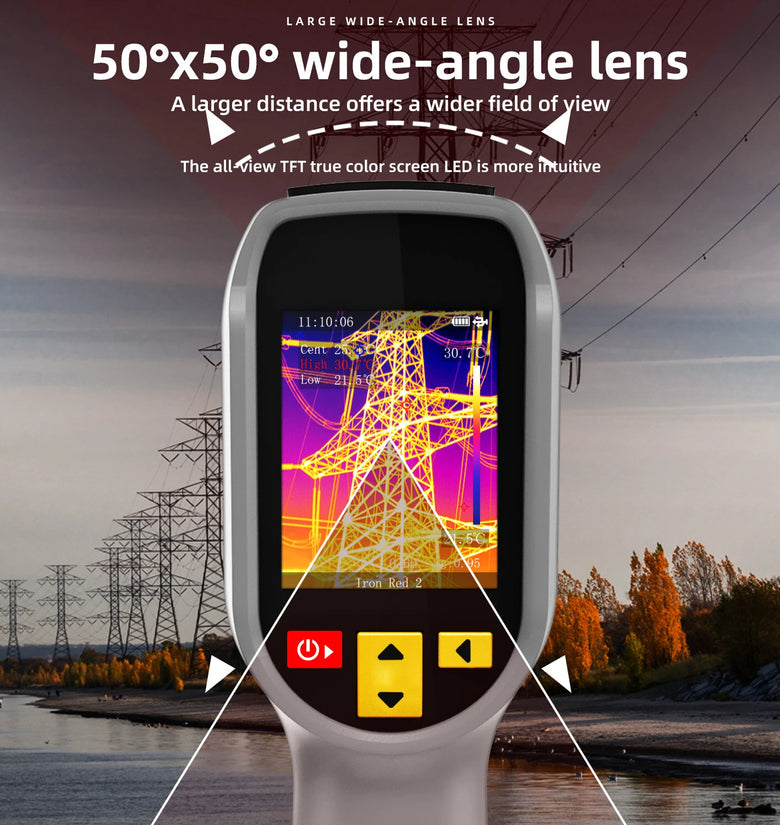

Field of View (FOV): 50.0°(H) x 37.2°(V) / 63.6°(Diagonal)
Spatial Resolution (IFOV): 8.89 mrad
Frame Rate: 25Hz
Focal Length of Imaging Lens: 3.5mm
Temperature Measuring Range: -20°C~550°C
Focal Distance: 0.3m~3m
Accuracy: ±2°C or ±2% of reading
Temperature Resolution: 0.1°C
Measurement Units: Celsius, Fahrenheit, Kelvin
Emissivity: Adjustable (0.01~1.00)
Display Type: 2.4-inch TFT LCD
Display Resolution: 320x240
Color Palette Options: White Hot, Black Hot, Fusion, Rainbow, Iron Red, Bark Brown, Ice Fire, Rain, Green Hot, and more
Temperature Display: Center point measurement, high/low temperature tracking
Built-In Memory Card Capacity: 26000 images
Image Format: BMP
Focus Mode: Auto focusing
Battery Type: Rechargeable lithium battery (3.7V, 2500mAh)
Battery Working Hours: >5h (@25°C)
Charging Time: <3h (@25°C)
Automatic Shutdown: Adjustable (default: 10 min)
Operating Temperature: -10°C~50°C
Storage Temperature: -40°C~70°C
Humidity Range: ≤85%RH (Non-condensing)

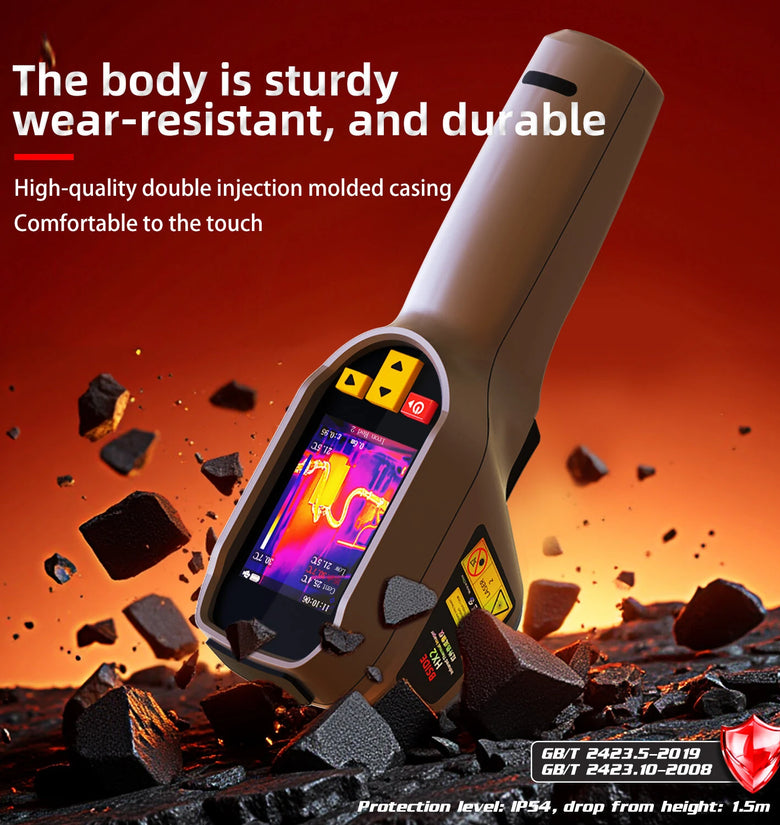

Drop Resistance: 1.5m
Dimensions: 193.4 x 59.4 x 77.4mm
Weight: 292.5g


Features:
1. High-Resolution Imaging
The HX2 thermal imager features a 240x320 thermal image resolution, offering precise details to identify subtle temperature variations, ideal for industrial inspections and diagnosing mechanical components.
2. Wide Temperature Range Compatibility
Operating across a temperature range of -20°C to 550°C with ±2°C accuracy ensures reliable performance for various applications, from electrical systems analysis to HVAC troubleshooting.
3. Adjustable Emissivity Settings
Customizable emissivity (0.01~1.00) allows accurate measurements across different surface types, enhancing versatility in both professional and personal use.
4. User-Friendly TFT Display
A 2.4-inch TFT LCD screen with multiple color palettes provides vibrant visuals and simplified analysis, perfect for capturing detailed thermal readings.
5. Extended Battery Life
Powered by a rechargeable 2500mAh lithium battery, the HX2 can operate for over 5 hours, making it suitable for long-term fieldwork or demanding inspections.


Package Included:
1 x HX2 Thermal Imaging Camera
1 x USB Cable
1 x User Manual
1 x Box
1 x Storage Bag
