Main Features:

  ● 3 In 1 Function: This product integrates digital oscilloscope, transistor tester and signal generator functions into one machine.

  ● Digital Oscilloscope Function: With the real-time sampling rate of 10MS/s and bandwidth of 500Khz. Support maximum measurement of 400V voltage signal. With complete trigger function (automatic, single, regular). Equipped with an efficient button AUTO.

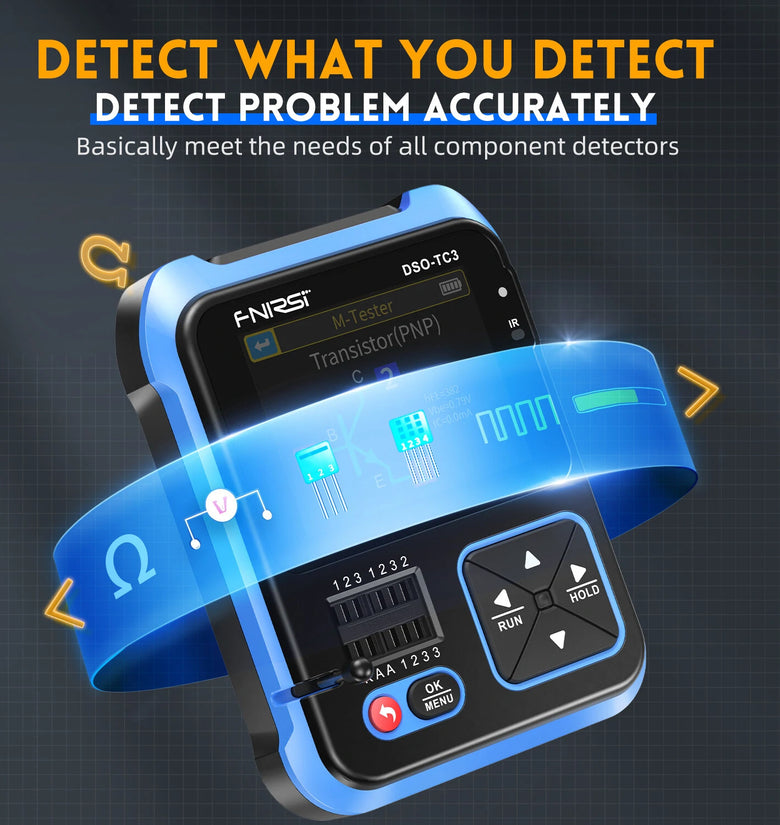

  ● Transistor Tester Function: Automatically identify and measure various transistors, including NPN and PNP triode, N-channel and P-channel metal oxide-semiconductor field effect transistor, JFET, diodes, double diodes, thyristors,as well as resistors, inductors, capacitors, field-effect transistor, etc. passive component. Auto-detect pin definitions.

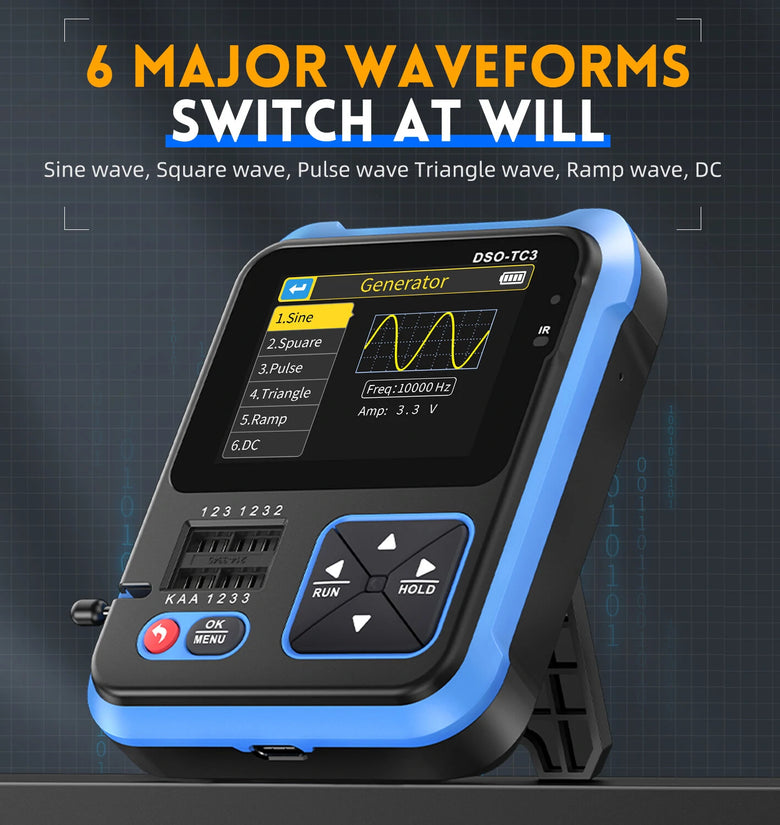

  ● Signal Generator Function: 6 kinds of signal waveforms: sinewave, pulsewave, trianglewave, rampwave, direct current. 1-100KHz adjustable output frequency. 3.3V adjustable output voltage. 0-100% adjustable output duty ratio.

  ● Tool Box Function: Automatically analyze specific Protocol infrared code. Other function modes: including circuit continuity test, 0-40V input voltage measurement, PWM output, 0-32V diode measurement, temperature and humidity sensors measurement, etc.

  ● 2.4inch Digital TFT Display: TFT color screen, high resolution display with LED backlight, with bright colors and high contrast.

  ● High Accuracy: Infrared decoding design, quick response, accurate capture of highly sensitive response signal, fast and accurate measurement with small error.

 ● Rich and Powerful Features: One button for automatic adjustment, support for free switch, support intelligent fire preventions.

 ●Long Endurance: Built-in 1500mAh high-capacity rechargeable polymer lithium battery, long lasting lifespan, Type-C interface, continuous power supplys without isolation transformer, safer to use.

  ● Folding Bracket: Comes with invisible bracket, integrated folding, stable placement, free your hands, does not occupy too much space.

 ●Wide Applications: Suitable for mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc.

  Specification

Name: 3in1 Digital Oscilloscope

Material: ABS

Display: 2.4 inches TFT color screen

Battery: Built-in 1500mah rechargeable lithium battery (included)

Charging interface: USB Type-C, +5V

Digital Oscilloscope: 10MSa/s

Real-time sample rate: 500Khz

Analog Bandwidth: 1ΜΩ

Input resistance: Alternating Current/Direct Current

Coupling method: 400V

Test voltage ranges: 10mV-10V

Vertical Sensitivity (x1): 1us-10s

Horizontal time base ranges:

Trigger mode: Auto / Normal / Single

Trigger type: Rising edges / Falling edges

Waveform Freeze: Yes

Automatic measurement: Yes

Transistor Tester:

Capacitor: 25pF~100mF

Resistor: 0.01Ω ~ 50ΜΩ

Inductor: 10uH~1000uH

Battery: 0.1~4.5V

Input voltage: 0~40V

DS18B20: 0-85℃

DHT1: 0-60°C/5-95%

Signal Generator:

Sinewave: 1-10KHz/0-3.3V/50%

SQW: 1-100KHz/3.3V/50%

Pulsewave: 1-100KHz/3.3V/0-100%

Trianglewave: 1-10KHz/0-3.3V/50%

Ramp: 1-10KHz/0-3.3V/0-100%

Direct current: 0-3.3V

Item size: 110 * 76 * 30mm / 4.33 * 2.99 * 1.18in

Package size: 140 * 125 * 55mm / 5.51 * 4.92 * 2.17in

Package weight:

Standard configuration: 300g / 10.58ounce

High configuration: 345g / 12.17ounce

  Package Contents

Packing List (Standard):

1 * 3in1 Digital Oscilloscope

3 * Test Hook

1 * Probe

1 * Type-C Cable

1 * Manual

OR

Packing List (Upgraded):

1 * 3in1 Digital Oscilloscope

1 * Adaptor

1 * Probe

1 * High Pressure Probe

3 * Test Hook

1 * Type-C Cable

1 * Manual
