The instruction manual is only for learning the whole set of installation and does not represent the actual product in the package.
Description:

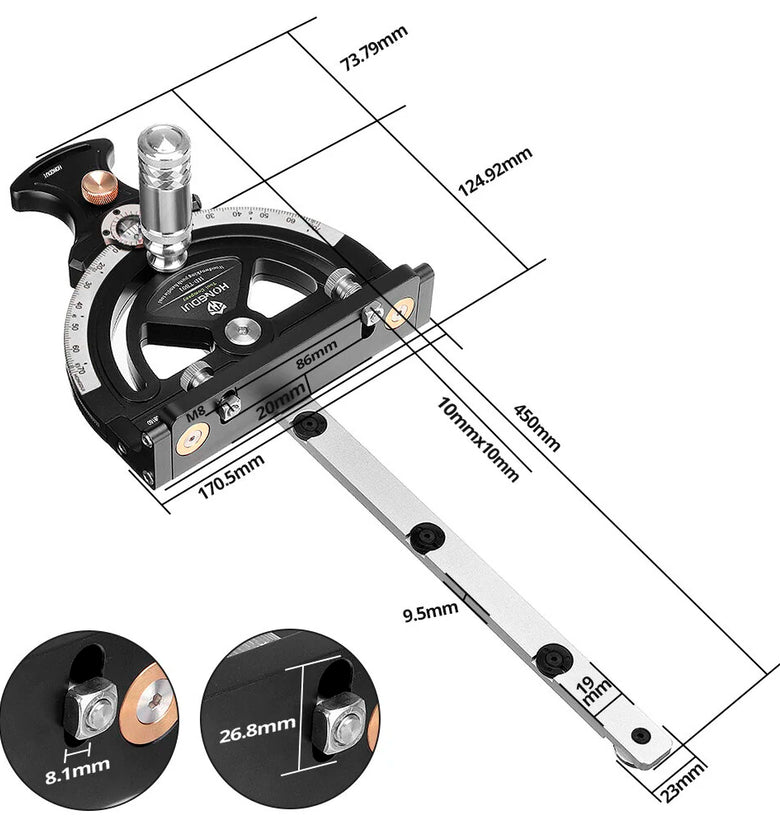

HONGDUI HD-TB01 Precision Miter Gauge 0-70 Degree Woodworking Table Saw Push Handle 70 Angles Assembly Angle Ruler with Quick 0° 22.5° 45° 67.5° Setting
Specifications:
| Product Name | Precision Miter Gauge |
| Material | Aluminum Alloy + Brass + Stainless Steel |
| Angle | 0-70° |
| Angle Quantity | 70 Angles |
| Miter Bar Length |
480mm |
| Color | Black |
| Weight | 1.5kg |
| Application | Wood Working Tool |
| Quantity | 1 Pc × Miter Gauge |
Features:

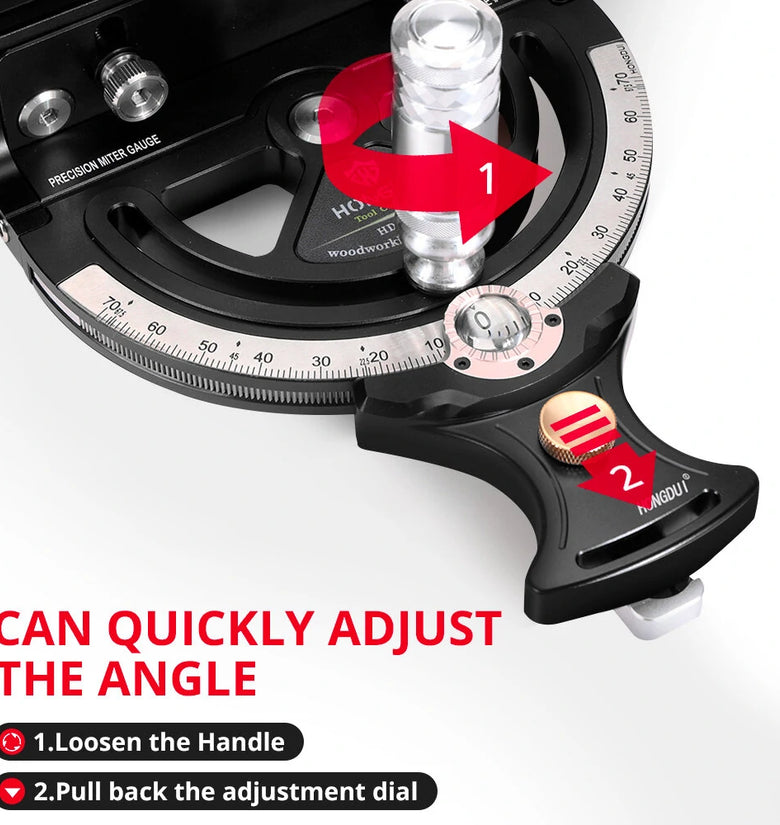

1. Adjust angle can be 0-70°, up to 70 angles, wider using range.

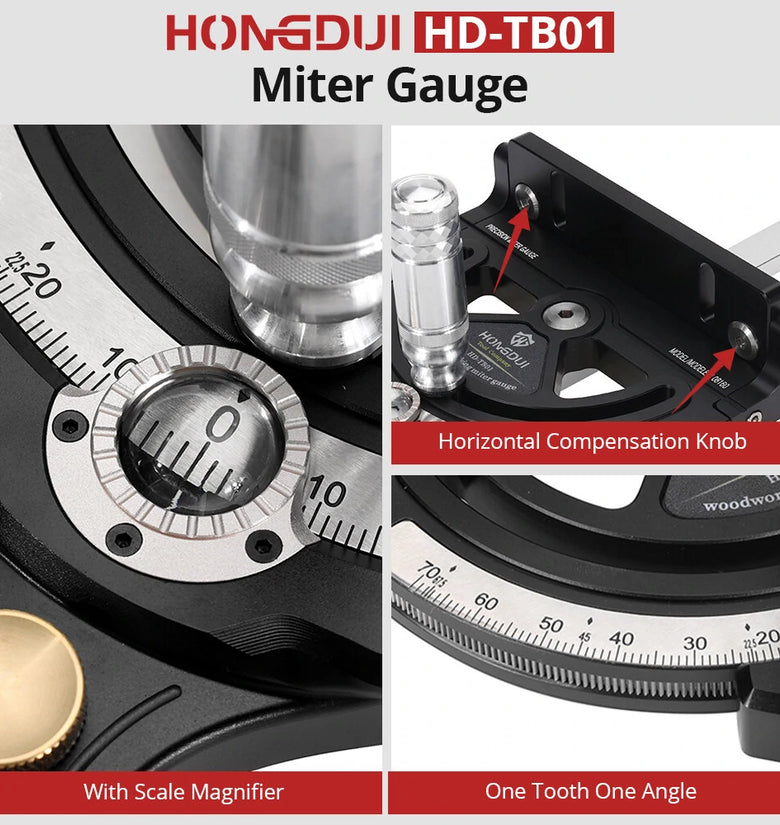

2. CNC wire-cut processing gear rack, one tooth one angle, more precision without shaking.

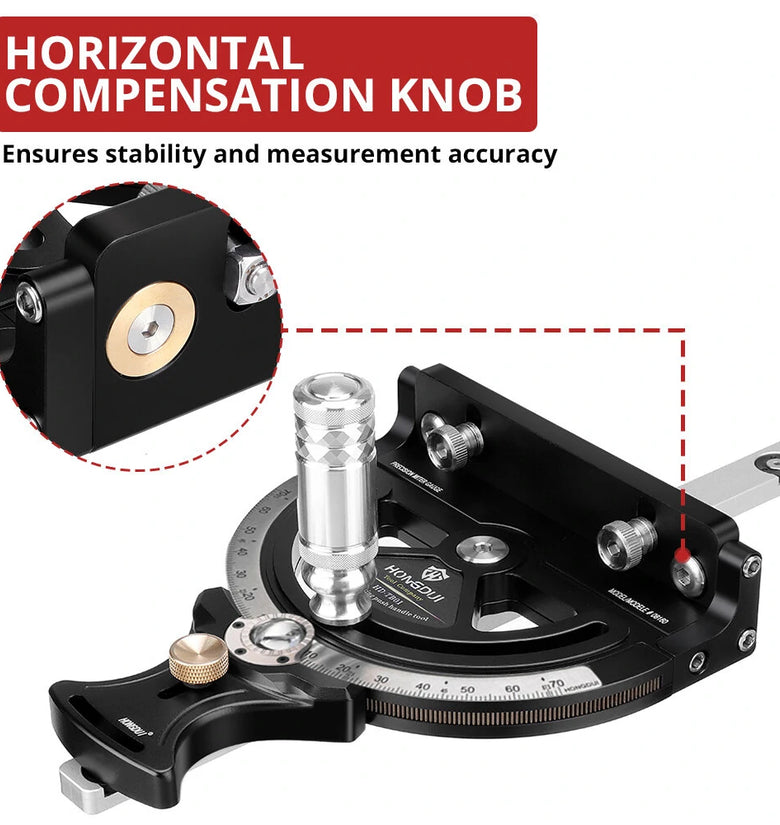

3. With horizontal compensation device.

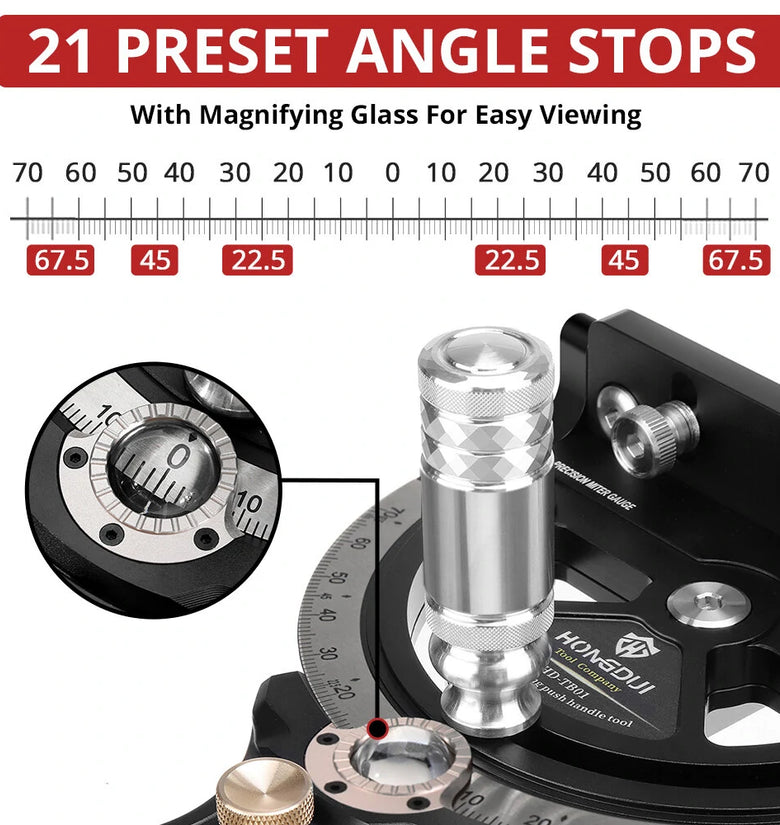

4. Quick positioning at the bottom of common sizes(0°, 22.5°, 45°, 67.5°)
5. With scale magnifier, easy to set and read, can be removable.
6. Craft handle, very comfortable to operate.

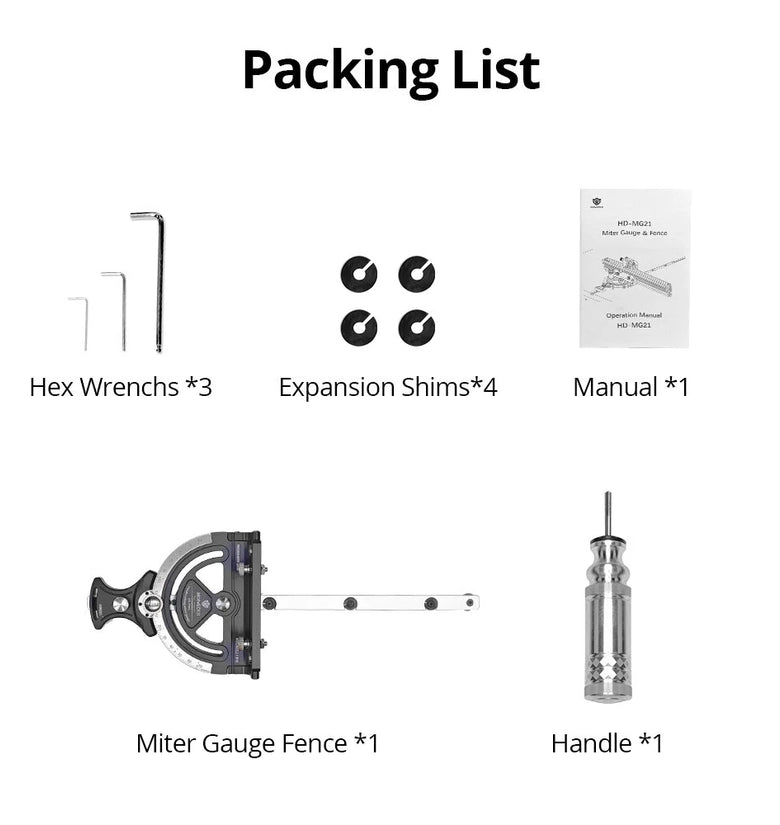

Package Included:
| 1 Pc × | Miter Gauge(Model as your choice) |
Compatible HONGDUI HD-KS22 Miter Gauge Fence ID: 1997052
