Specifications
Thermal Camera:
Detector Type: Uncooled Vanadium Oxide (VOx) Detector
Resolution: 256×192
Wavelength Range: 7.5~13.5µm

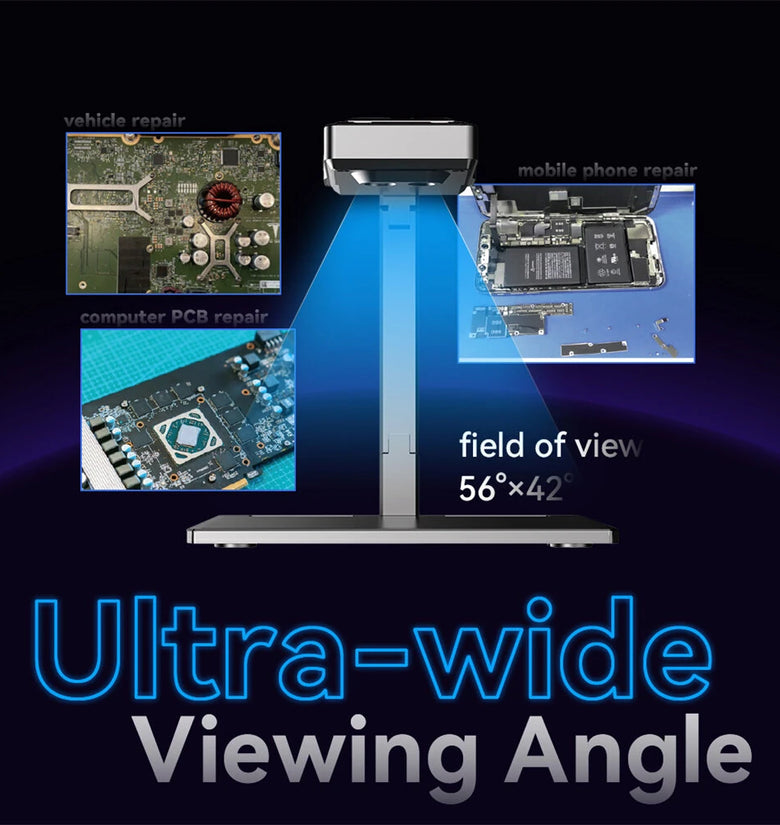

Field of View: 56×42°
Frame Rate: 25Hz
Visual Camera:
Resolution: 3840×2160 (4K 800W)
Interface and Display:
Display Mode: Visual Thermal Imaging Quick Check
Interface: Type-C USB2.0/WiFi/HDMI
Image Display Format: JPG
Input Voltage: 12V DC
Power Consumption: 6W
Storage Temperature: -20°C~60°C
Working Environment: 3°C~45°C
Measurement Distance: 16.5cm
Measurement Accuracy: ±3°C or ±3% (whichever is greater)
Measurement Range: -20°C~550°C
Supported Platforms: Android 6.0, iOS 12.0, Windows 7 and above
Dimensions: 192.2mm x 183.3mm x 203.7mm
Weight: 942.3g
Features:

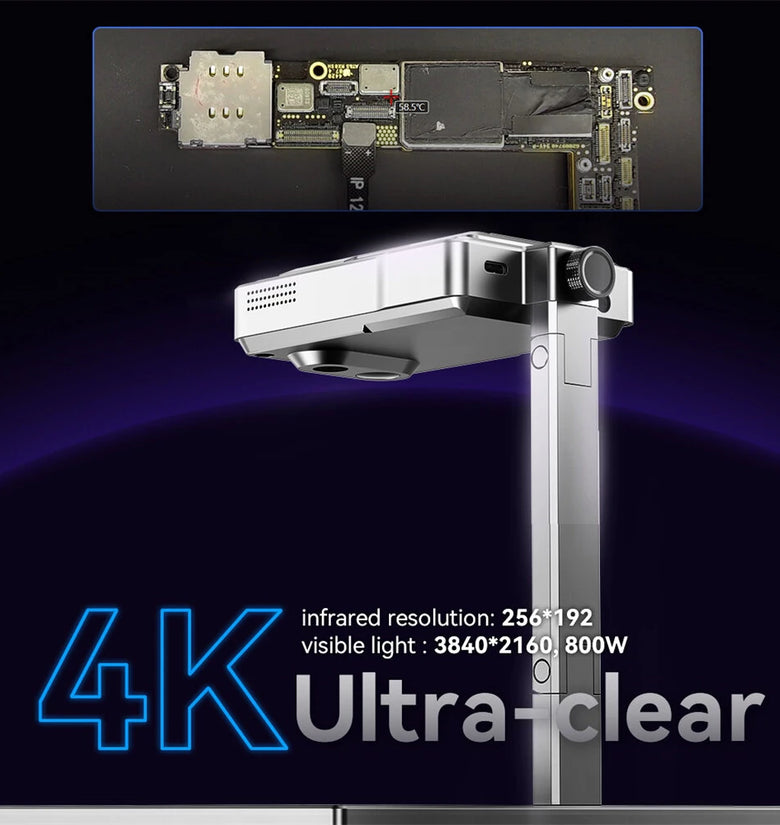

High-Resolution 4K Clarity: Delivers unparalleled 3840×2160 visual quality and 256×192 thermal imaging for precise fault detection and diagnostics.
Dual-Light Imaging: Supports simultaneous infrared and visible light imaging, allowing quick detection of temperature rises due to leakage.
Convenient Storage and Usage: Double folding design and full metal body ensure easy storage, superior heat dissipation, and EMC performance.

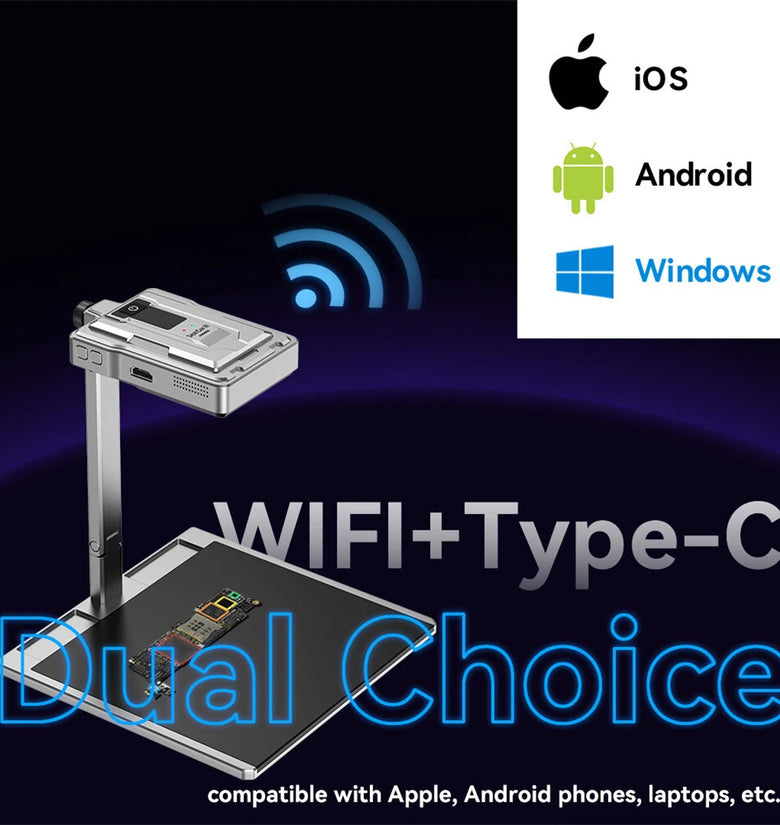

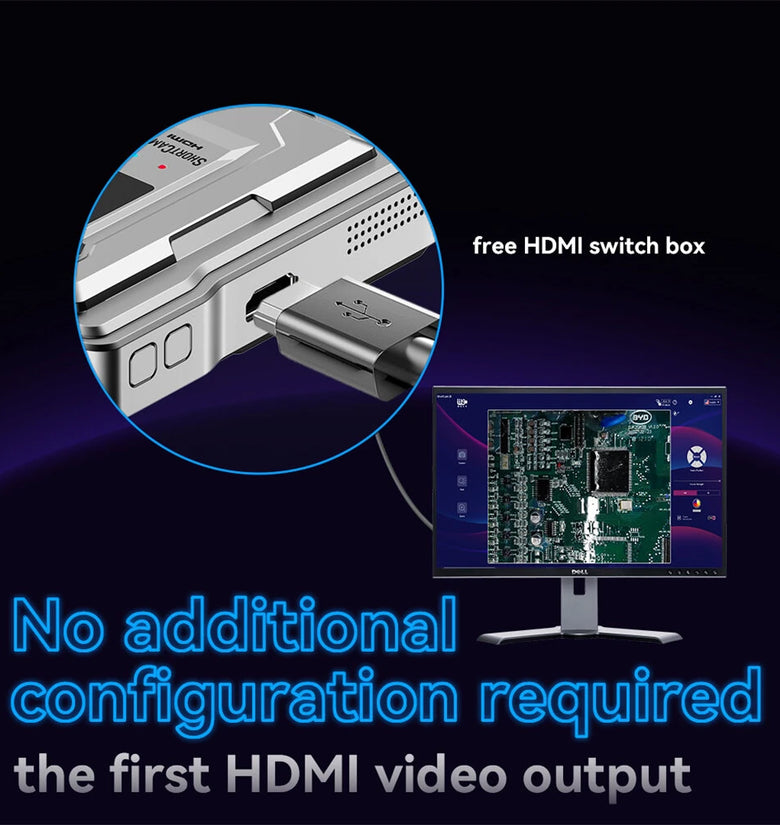

Versatile Connectivity: Equipped with Type-C USB, WiFi, and HDMI interfaces for seamless connection with multiple devices and platforms.

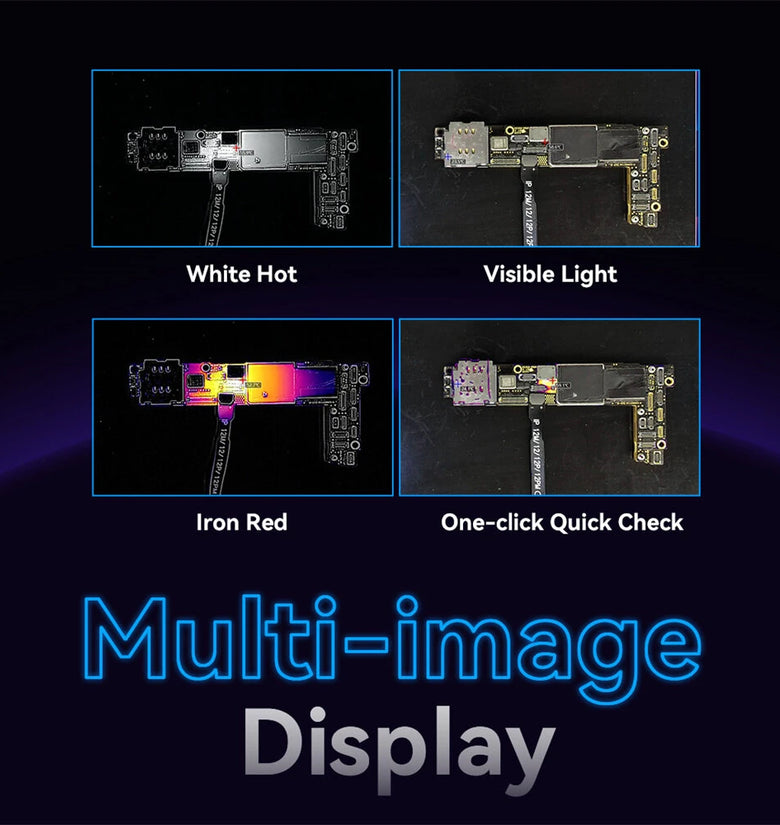

Multiple Image Display Modes: Offers thermal imaging, visible light, dual-light fusion, and quick check modes, providing flexible diagnostic options.
Package Included:
1 x Diagnostic Instrument
1 x Type-C Cable
1 x HDMI Switcher
1 x HDMI Cable
1 x Power Adapter
