Features:

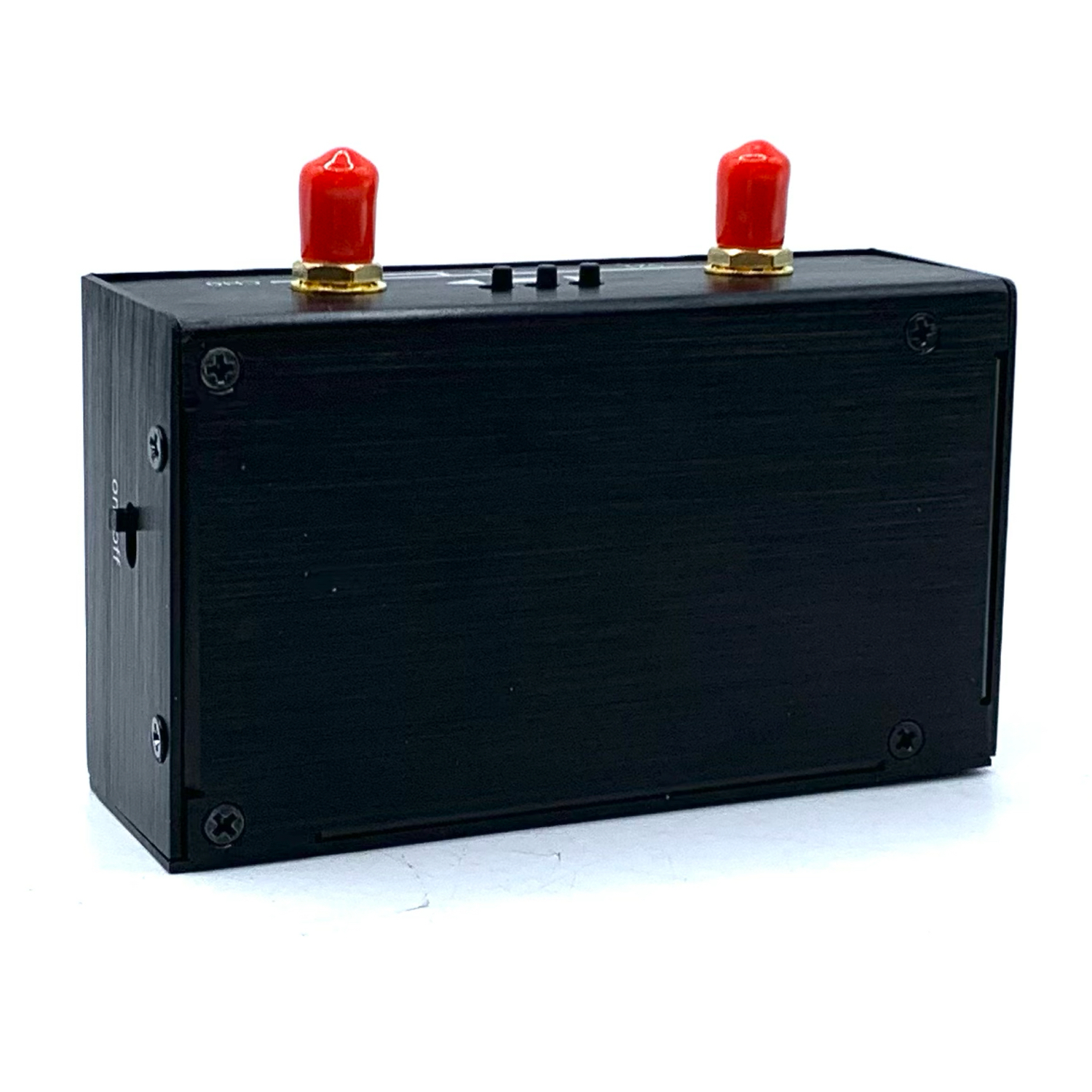

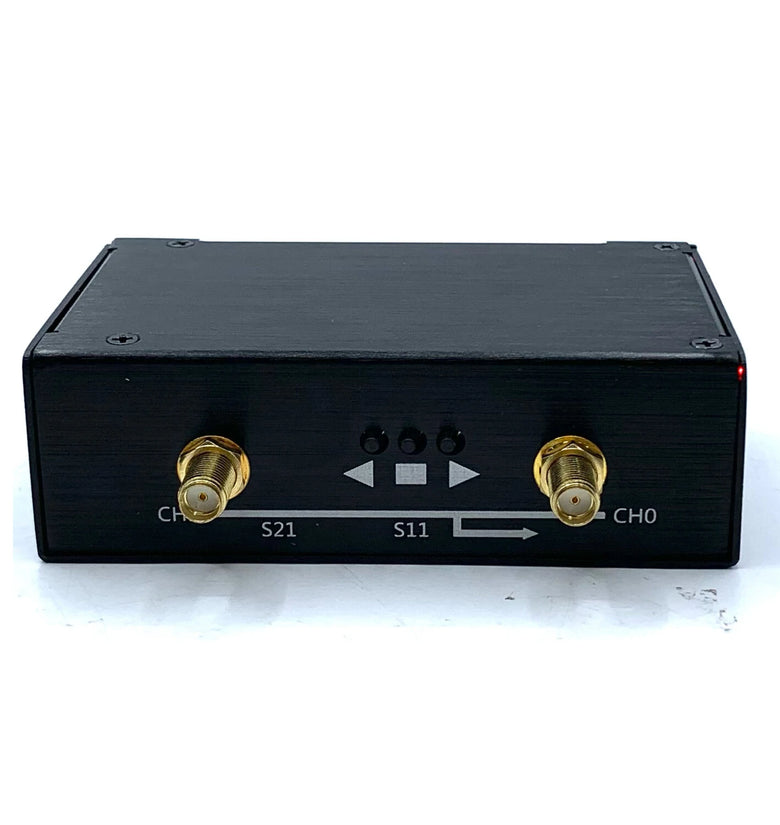

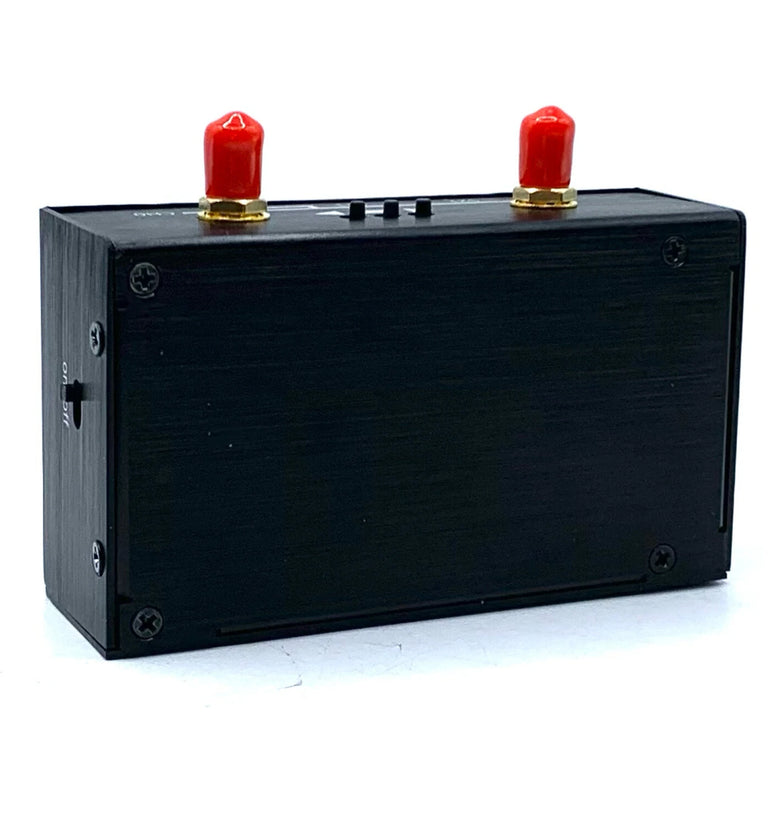

1. The NanoVNA V2 3GHz vector network analyzer is a highly-functional and portable tool, designed based on the LGPL license agreement for OwOComm. This makes it an ideal choice for measuring higher frequencies.
2. This device uses a user interface similar to NanoVNA but employs a different technical architecture; thus providing a unique blend of familiarity and innovative
3. Its system offers a dynamic range (calibration) of up to 70dB until 1.5 GHz and 60dB until 3GHz, ensuring accurate and reliable measurements.

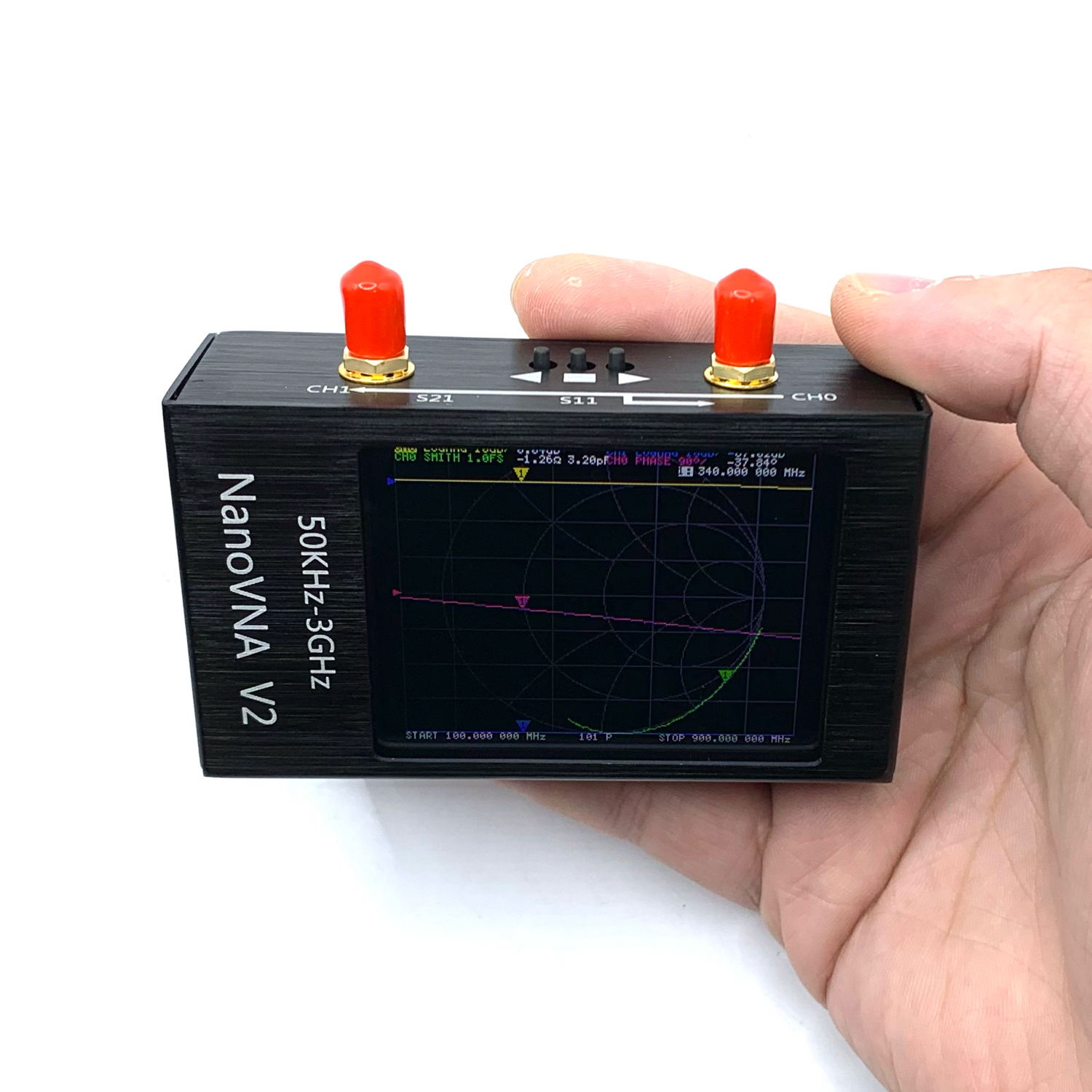

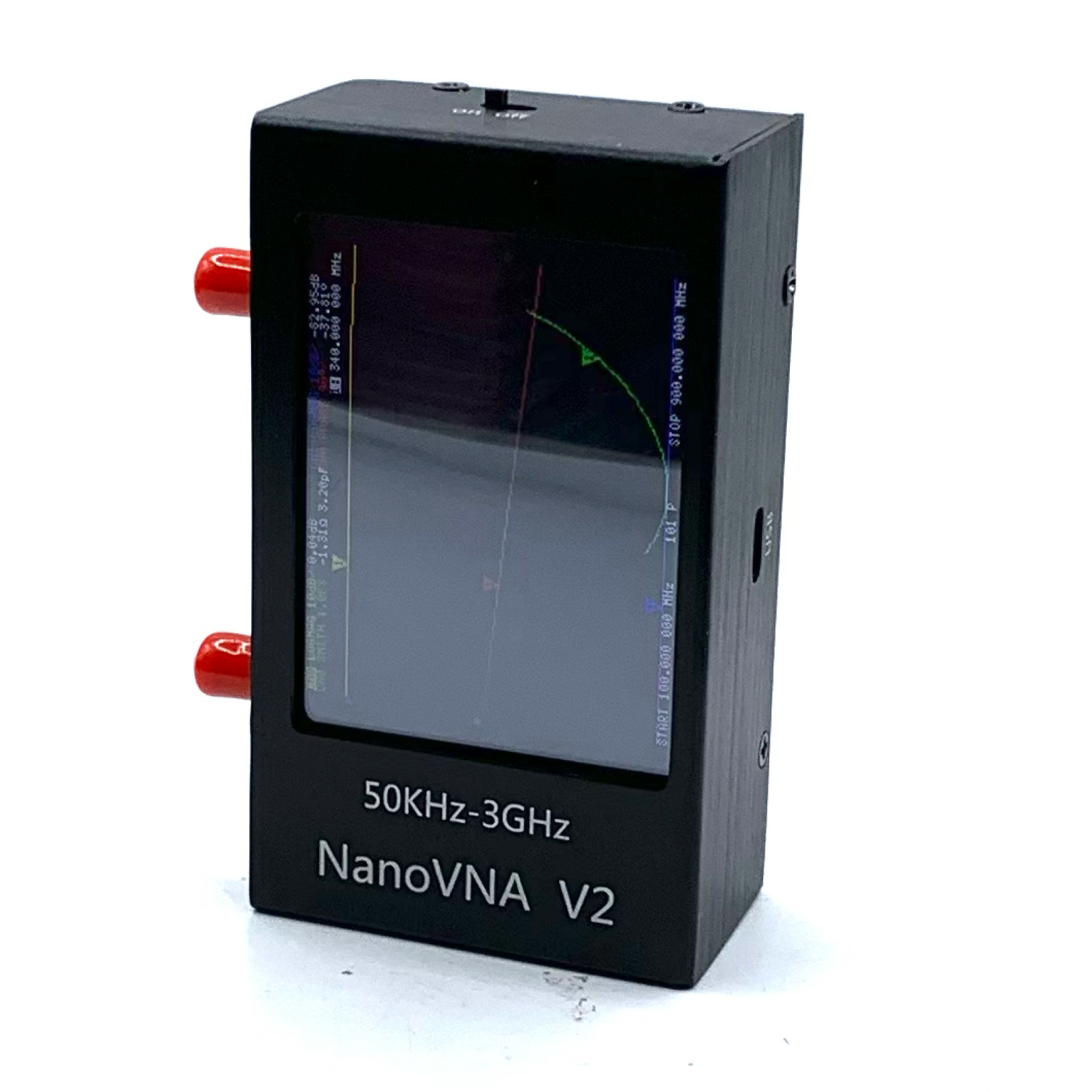

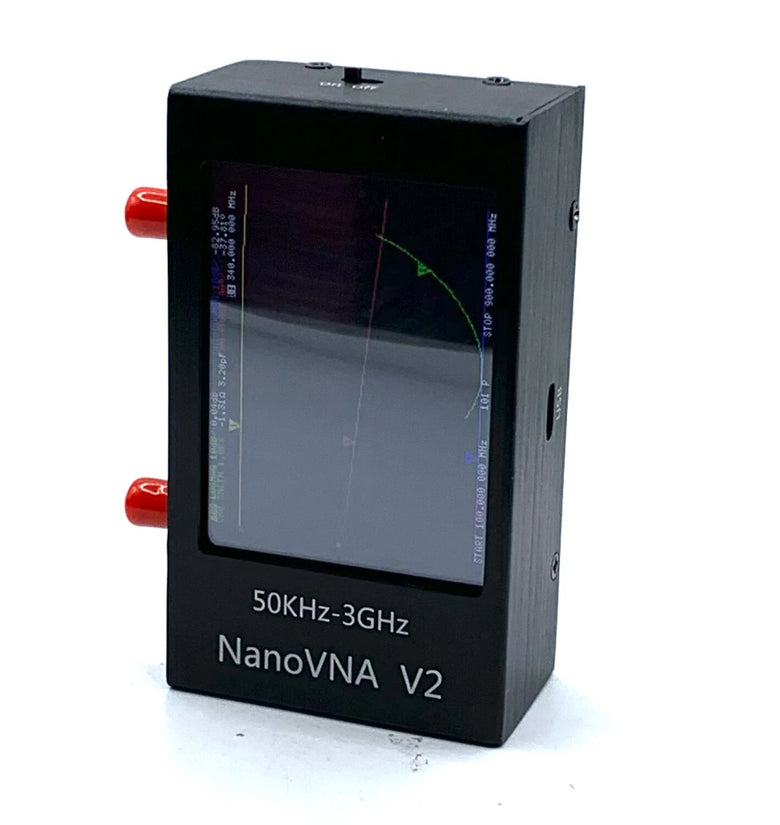

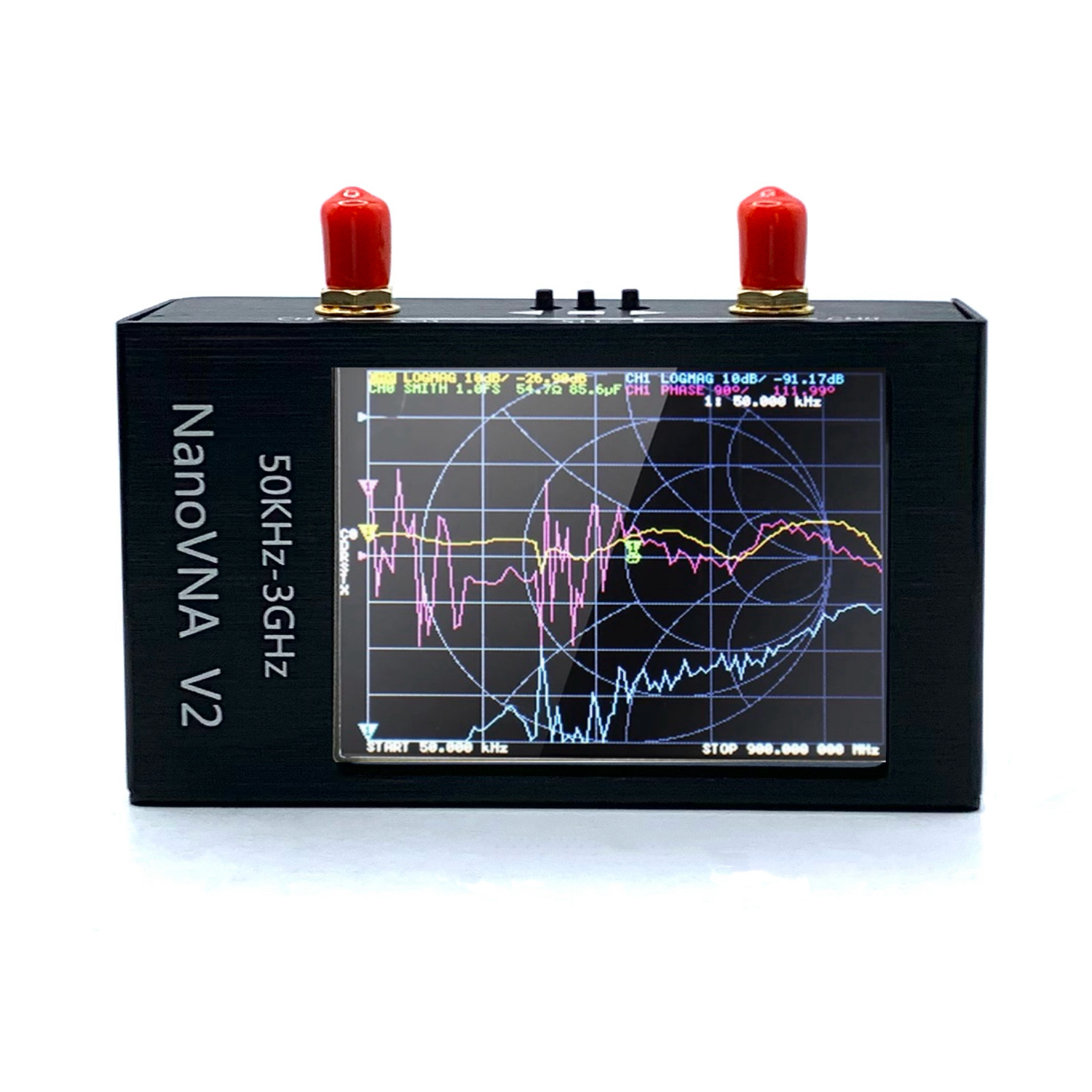

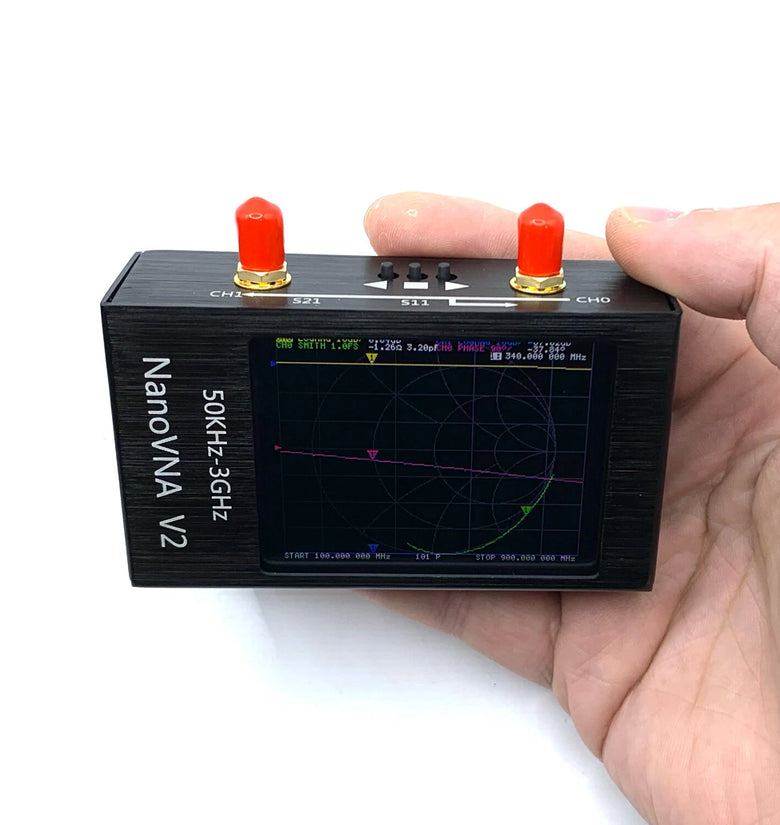

4. This vector network analyzer comes with an impressive 2.8-inch display with a resolution of 320x240, providing clear and easy-to-read results.
5. With a scan speed of 100 points per second, this device presents rapid and efficient operations, saving valuable time and enhancing productivity.
Specifications:
- Frequency Range: 50KHz-3GHz
- System Dynamic Range (calibration): 70dB (up to 1.5 GHz), 60dB (up to 3GHz)
- S11 Noise Floor (calibration): -50dB (up to 1.5 GHz), -40dB (up to 3GHz)
- Scan Speed: 100 points/second
- Display: 2.8 inch, 320x240

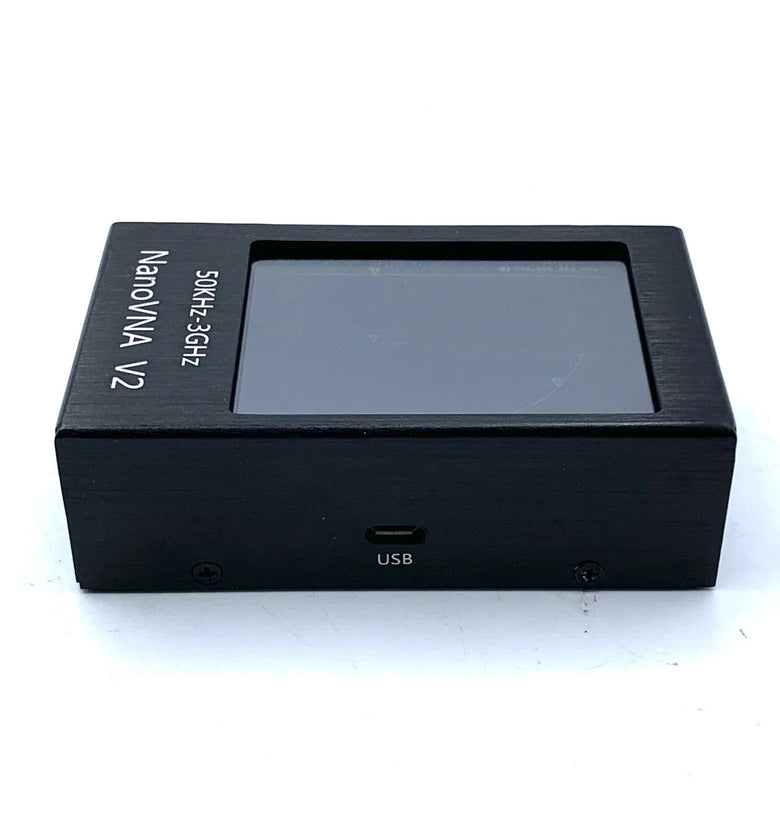

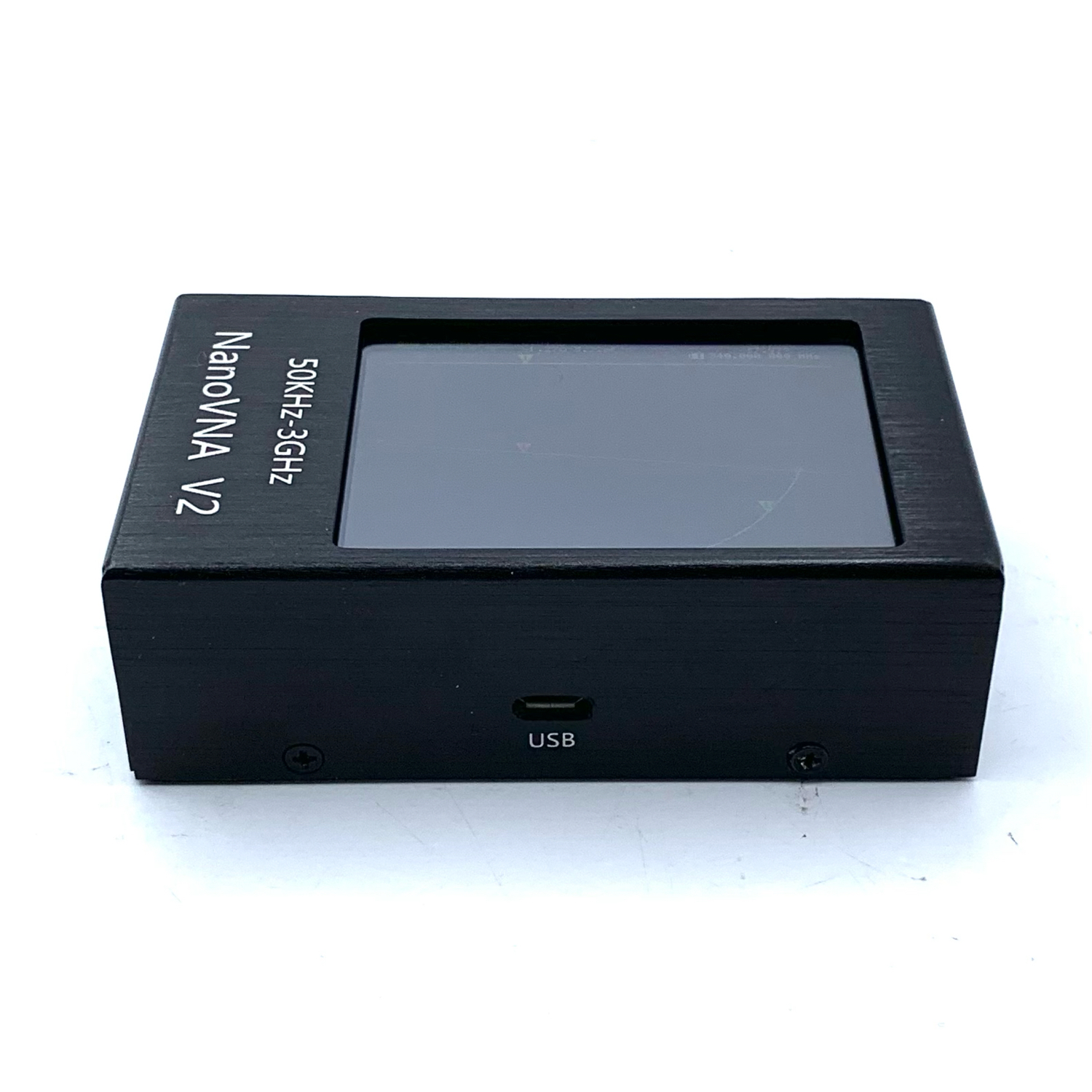

- USB Interface: Micro-USB
- Power Supply: USB, maximum charging current 1A
- Maximum Scan Point (device screen): 201
- Maximum Scan Point (USB): 1024
- Port 2 Return Loss (1.5 GHz): 20dB typical
- Port 2 Return Loss (3GHz): 13dB MIN
- VNA-QT Software Compatible System: For Linux, Windows (7+)

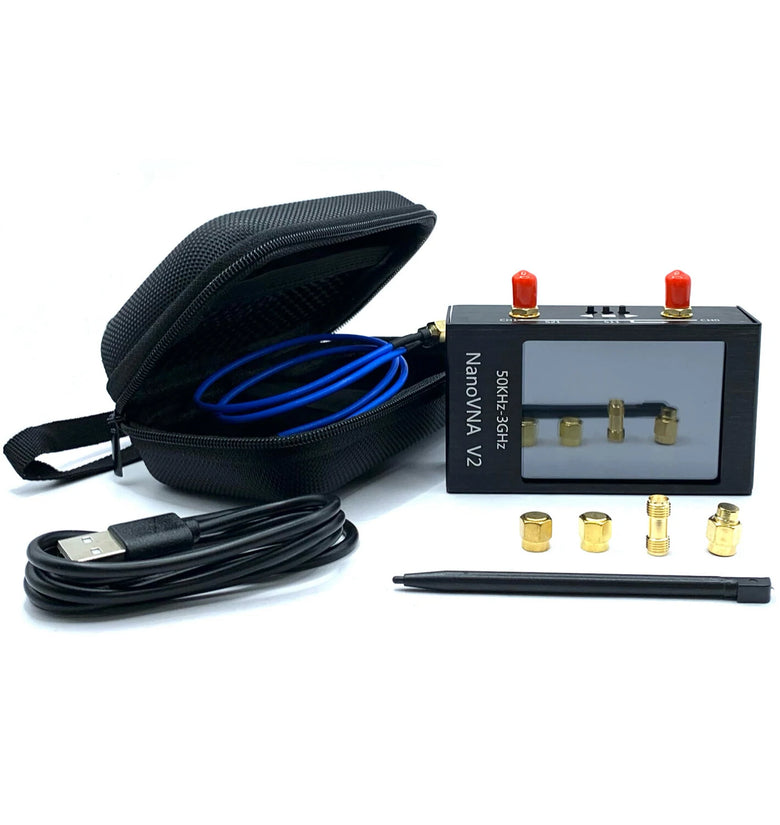

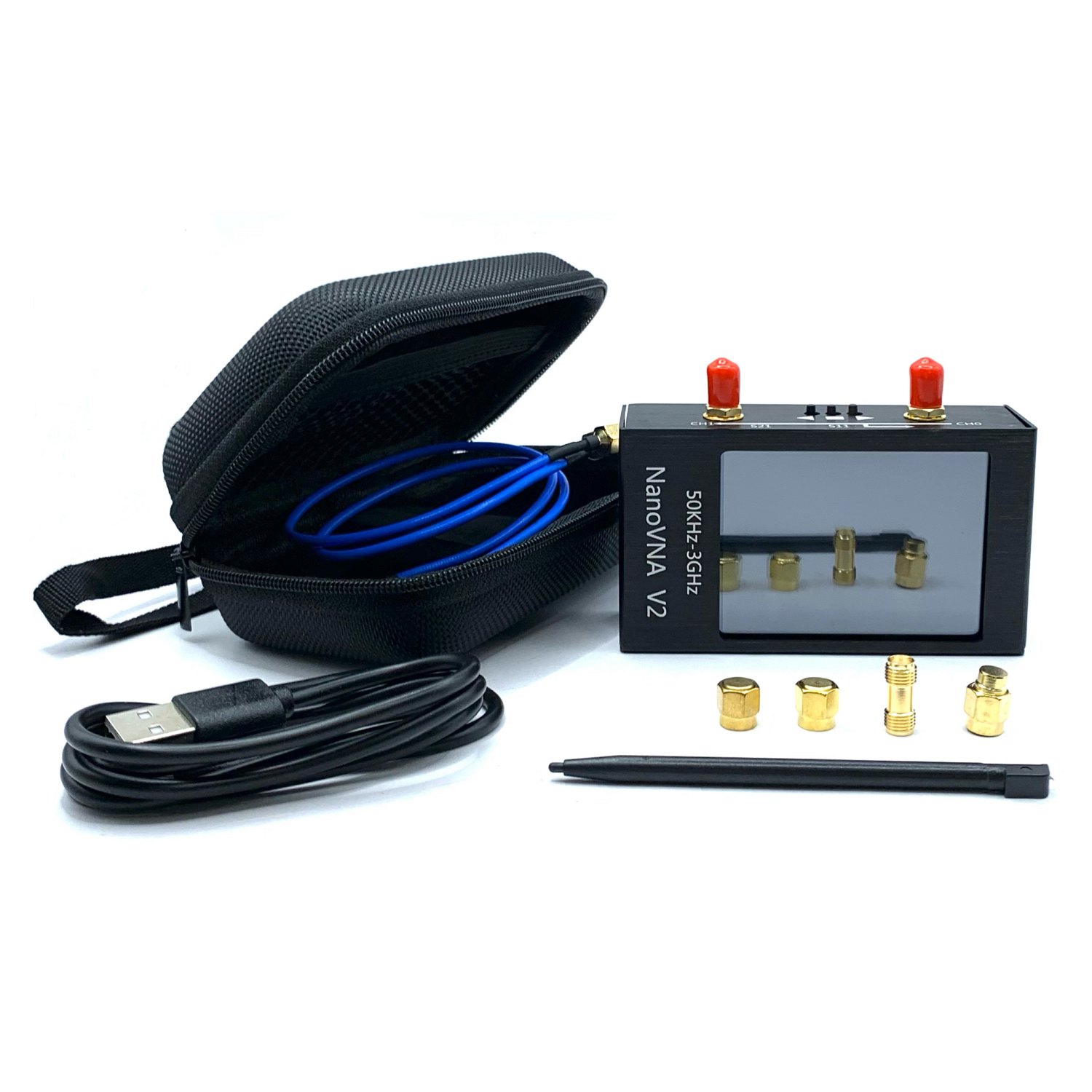

Package Included:
1 x Vector Network Analyzer Main Unit
1 x USB Data Cable
2 x RG405 RF Cables SMA Male to Male Over 30cm
1 x SMA Simple Calibration Kit OPEN
1 x SMA Simple Calibration Kit SHORT
1 x SMA Simple Calibration Kit LOAD
1 x SMA-Female to Female Connector
