>>Please click here to download the English manual and software<<

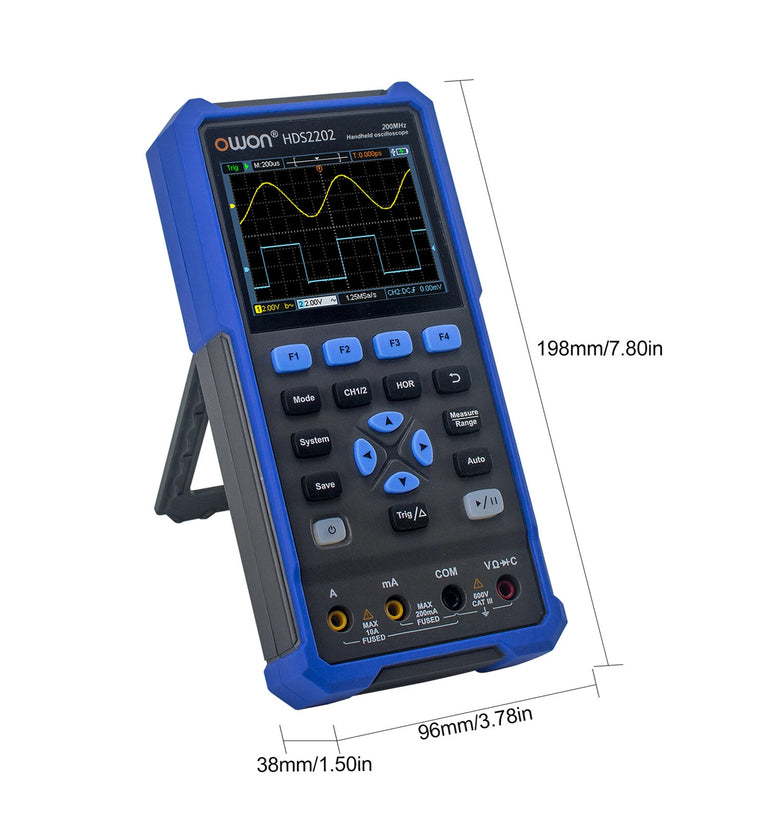

Model |
HDS2202 |
|
Bandwidth |
200MHz |
200MHz |
Channels |
2- CH Oscilloscope |

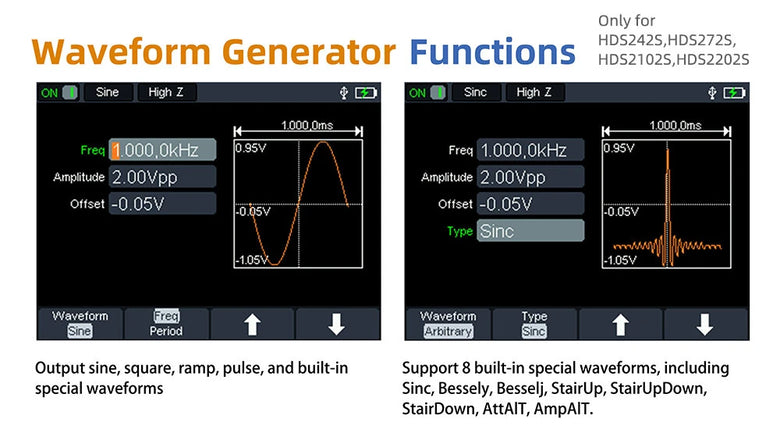

2-CH Oscilloscope +1-CH Generator |
Sample Rate |
1GSa/s |
|

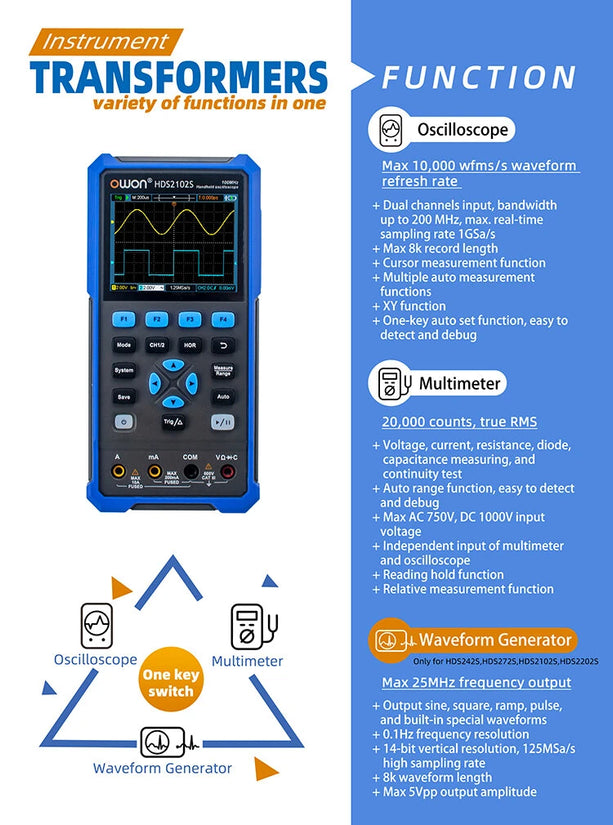

Specifications:
「Oscilloscope」
Model |
HDS2202 |
HDS2202S |
Bandwidth |
200MHz |
200MHz |
Channels |
2- CH Oscilloscope |
2-CH Oscilloscope +1-CH Generator |
Sample Rate |
1GSa/s |
|
Acquisition Model |
Normal, Peak Test |
|
Record Length |
8K |
|
Display |
3.5 -inch LCD |
|
Waveform Refresh Rate |
10,000 wfrms/s |
|
Input Coupling |
DC, AC, and Ground |
|
Input Impedance |
1 MΩ+2%, in parallel with 1 6pF+10pF |
|
Probe Attenuation Factors |
1X,10X,100X,1000X,10000X |
|
Max. input Voltage |
400V (DC+AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation) |
|
Bandwidth Limit (typical) |
20MHz |
|
Horizontal Scale |
2ns/div - 1000s/div, step by 1-2- 5 |
|
Vertical Sensitivity |
10mV/div - 10V/div |
|
Vertical Resolution |
8 bits |
|
