Specifications:
- Sensor Type: Uncooled Sensor
- Resolution: 96 x 96
- Spectral Range: 7.5~14 µm
- NETD: < 50 mK (@25°C, F#=1.0)
- Focal Length: 1.35mm
- Minimum Focus Distance: 0.1m
- Field of View: 50° x 50°
- Frame Rate: 25 Hz
- Pixel Size: 12 µm
- Aperture: F1.0
- Temperature Units: Celsius, Fahrenheit, Kelvin
- Temperature Range: -20°C to 400°C
- Accuracy: ±2°C or ±2%
- Spatial Resolution (IFOV): 8.89 mrad
- Image Super Resolution: 192 x 192
- Power Interface: TYPE-C, supports adapter for lightnig devices

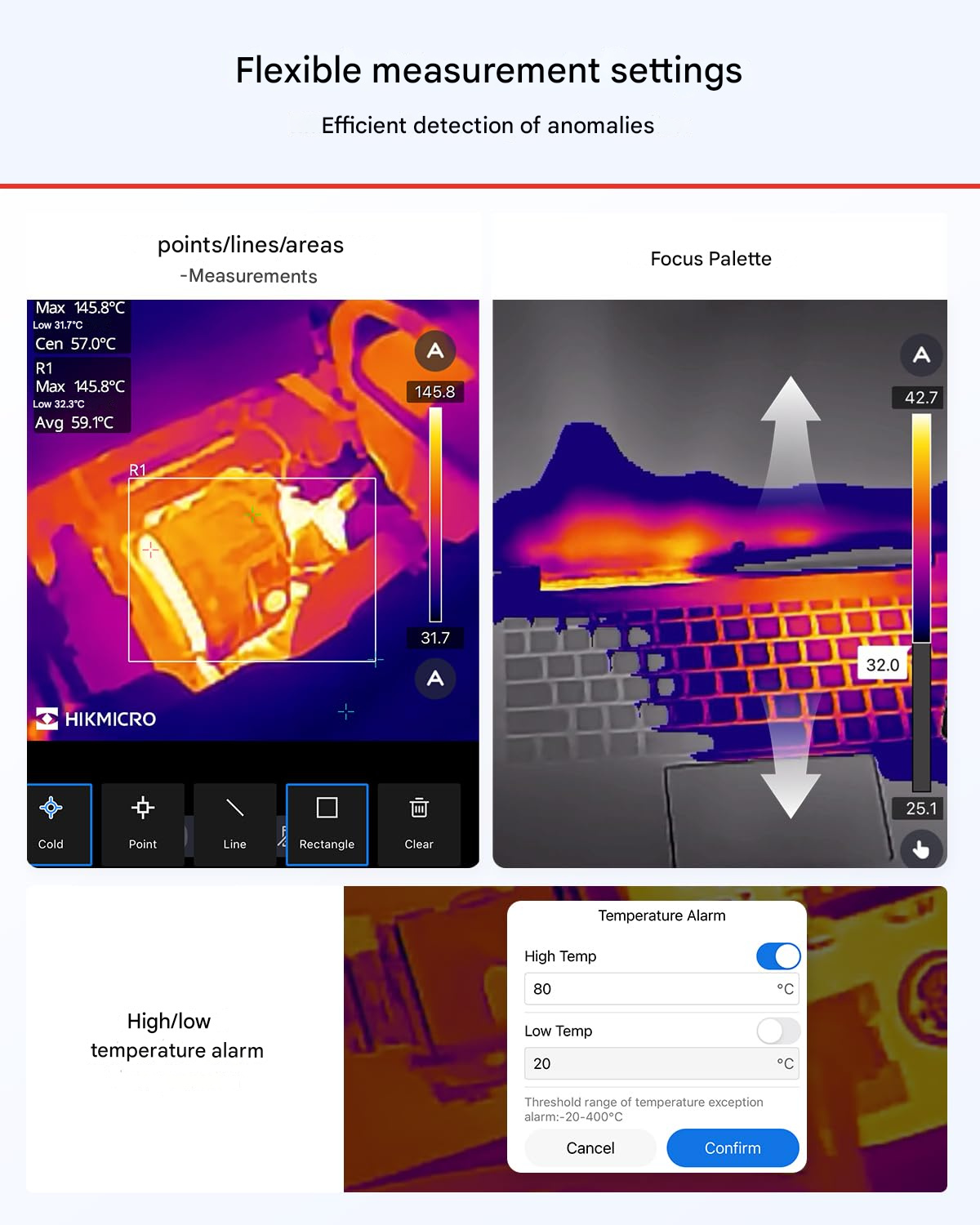

- Measurement Modes: 3 points, 1 line, 3 areas
- High Image Super Resolution: Supported

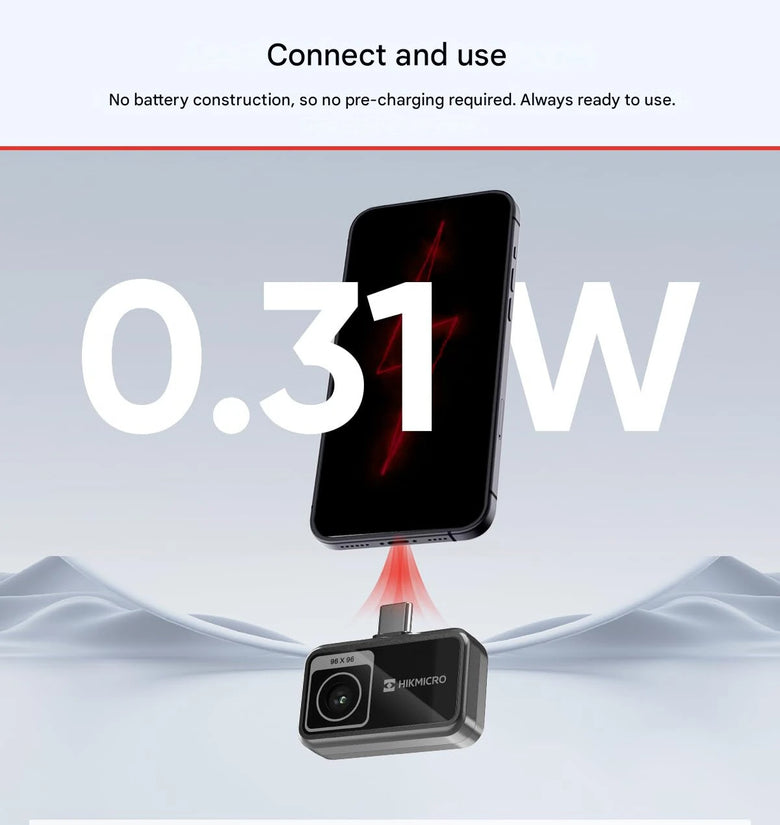

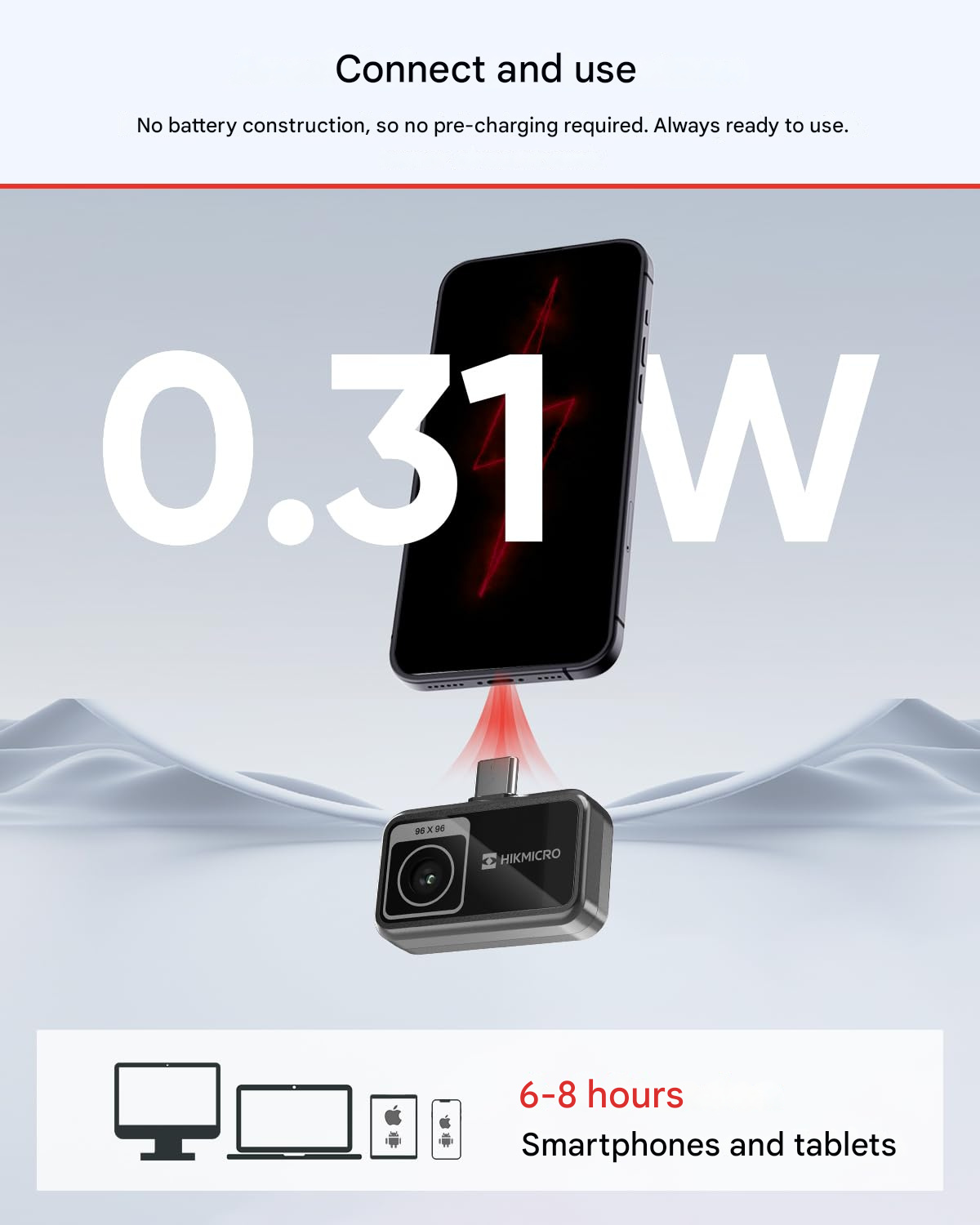

- Power Consumption: 310mW
- Operating Temperature & Humidity: -10°C to 50°C
- Storage Temperature & Humidity: -20°C to 60°C
- Protection Grade: IP40
- Weight: 20g
- Dimensions: 41.56mm x 34.03mm x 10.79mm
Features:
1. Wide Temperature Range:
This infrared thermal camera can measure temperatures from -20°C to 400°C, making it ideal for diverse applications from HVAC maintenance to industrial inspections.
2. High Precision Measurement:
With an accuracy of ±2°C or ±2%, this device ensures precise thermal readings, essential for detecting subtle temperature variations.
3. Superb Image Quality:

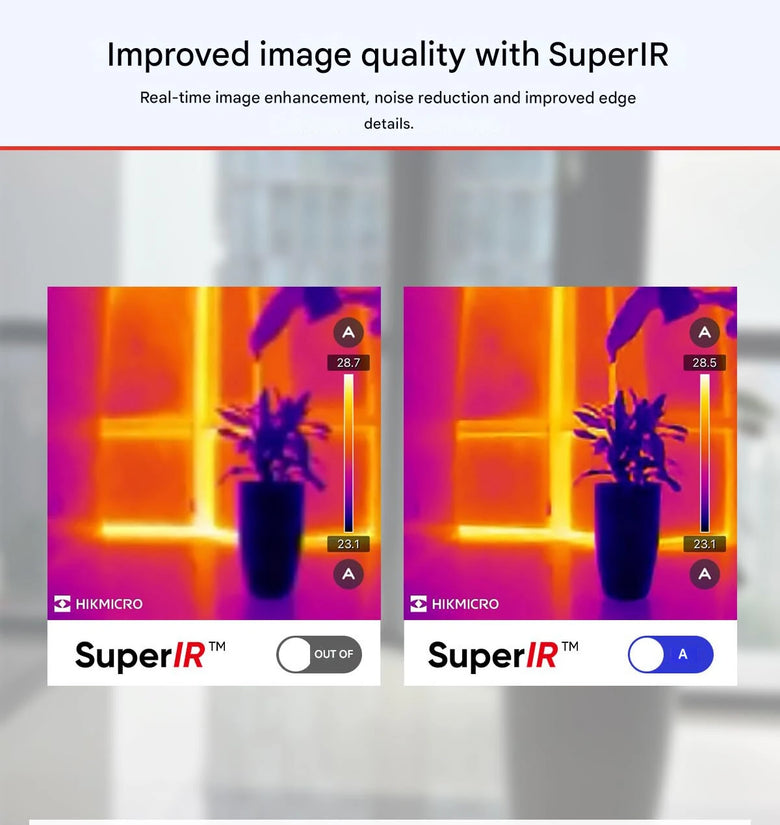

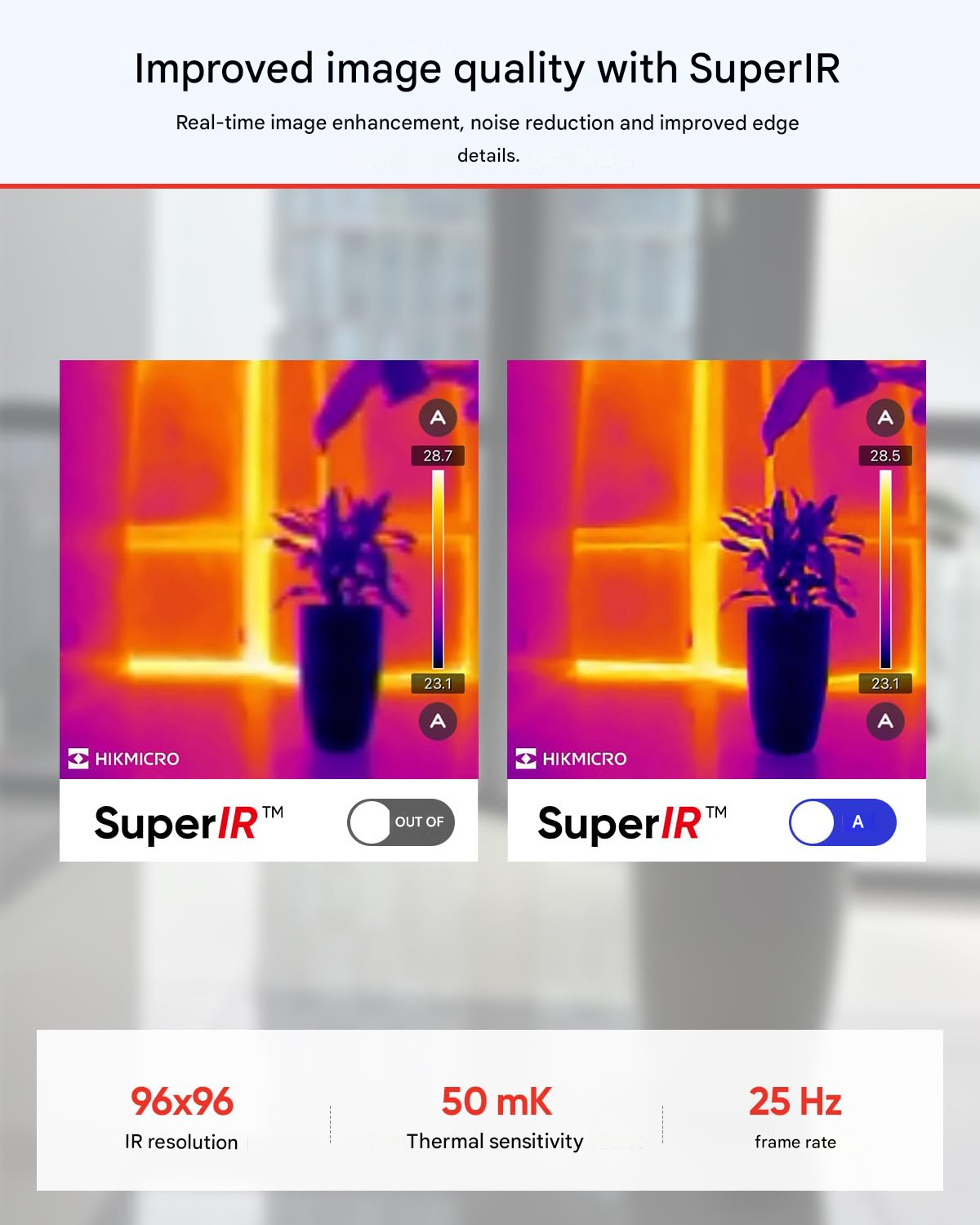

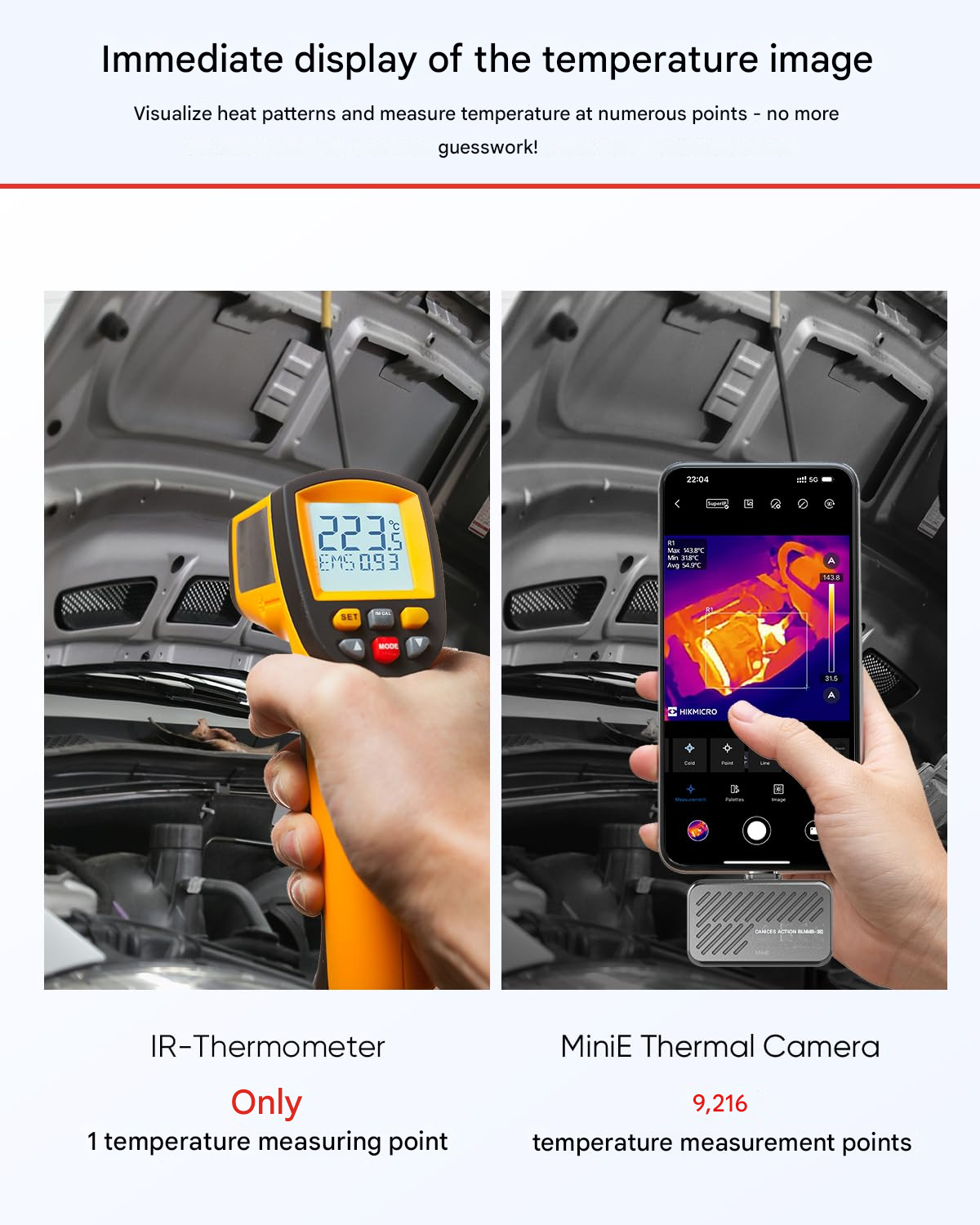

Equipped with Ultra-high Image Super Resolution of 192 x 192 and frame rate of 25 Hz, it provides clear and detailed thermal images for accurate assessments.
4. Compact and Lightweight:
Weighing only 20g and with dimensions of 41.56mm x 34.03mm x 10.79mm, this portable device can be easily carried and used in various field applications.

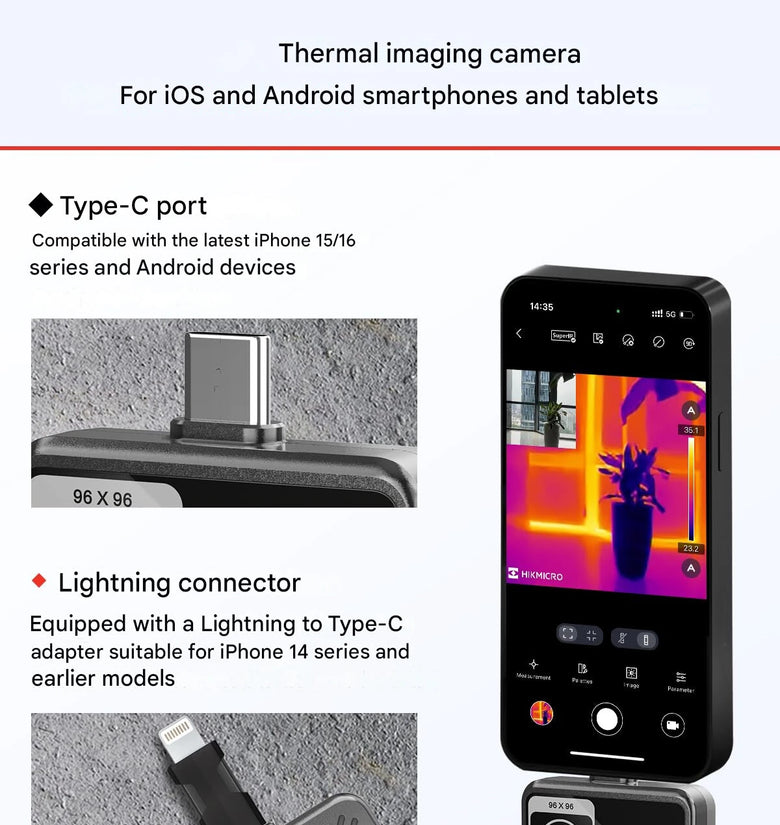

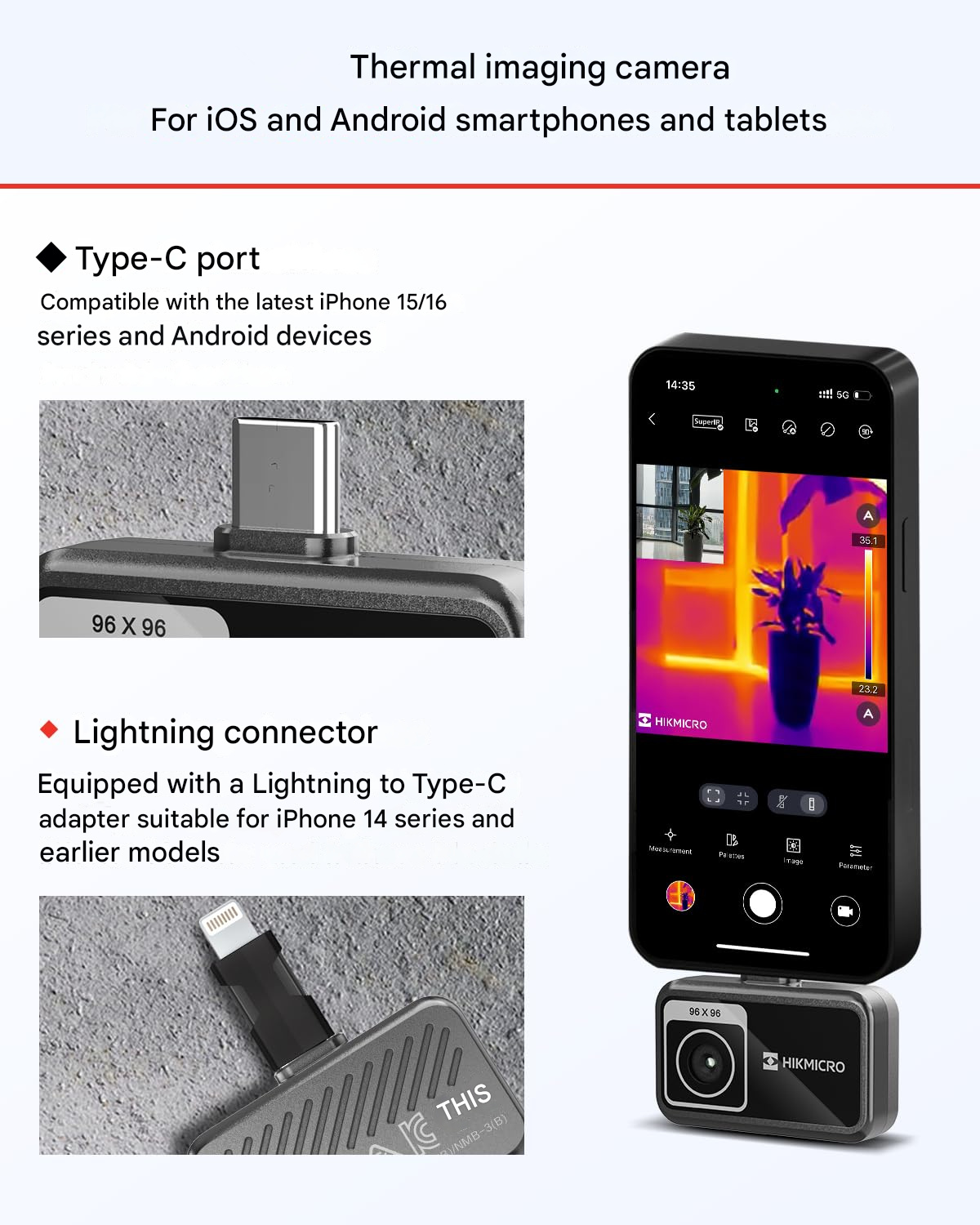

5. Versatile Connectivity:
The Type-C power interface allows compatibility with various devices, including support for adapter connections to lightnig interfaces, ensuring broader usability.

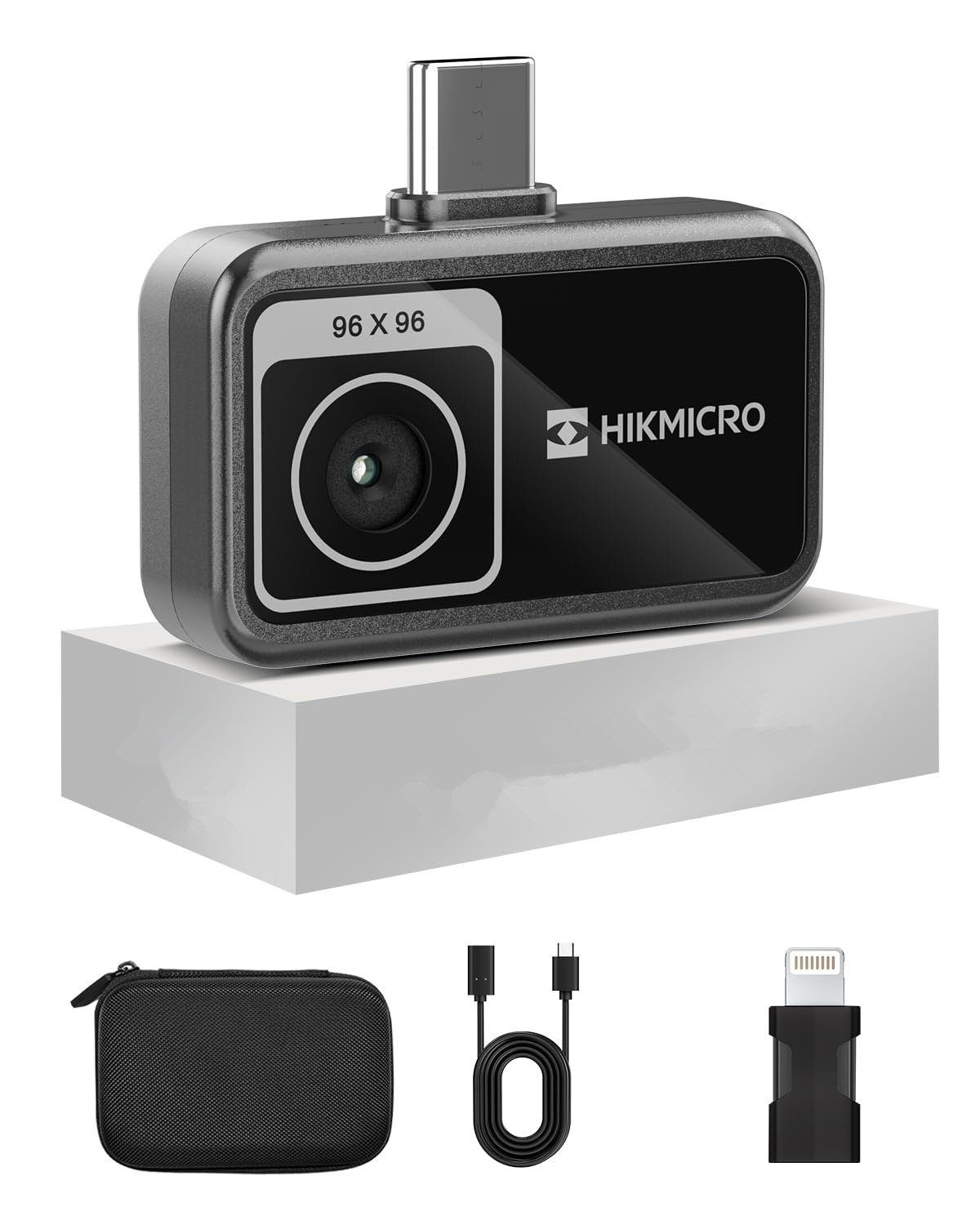

Package Included:
1 x Main Unit
1 x Cloth Bag
1 x Extension Cable
1 x Adapter
