Specifications:

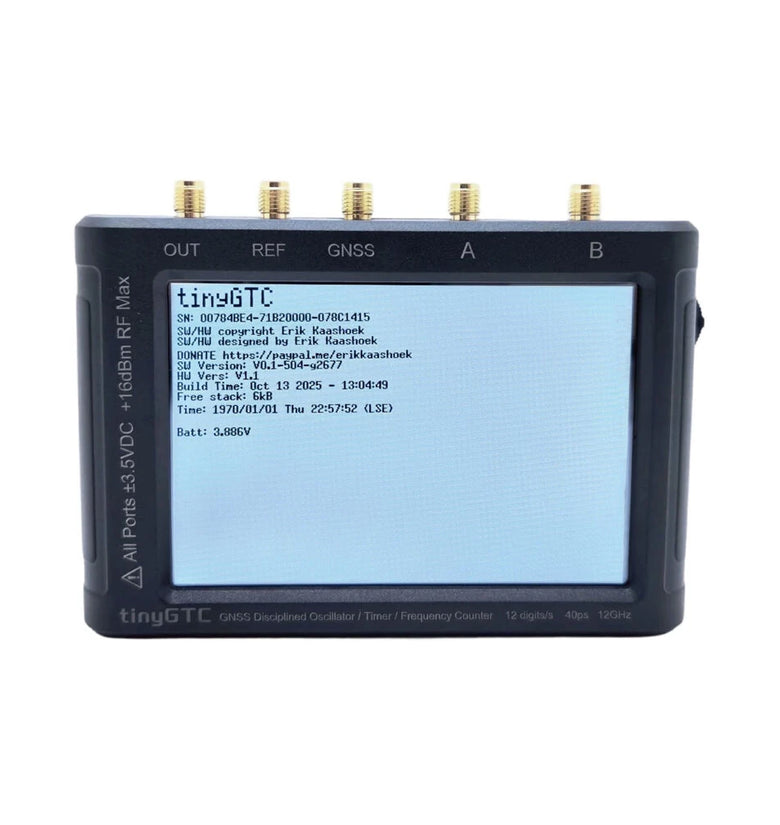

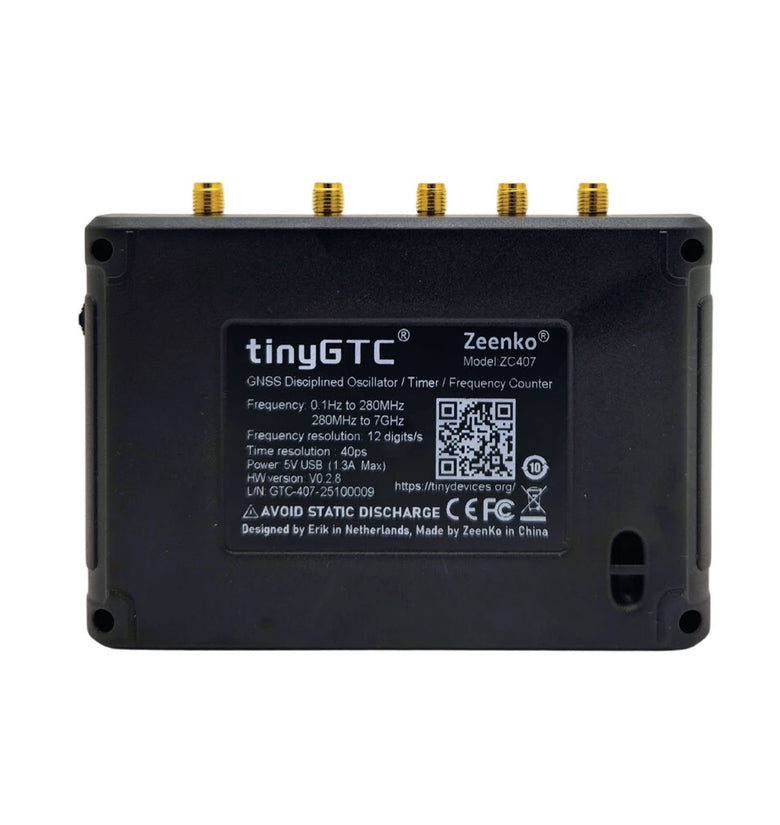

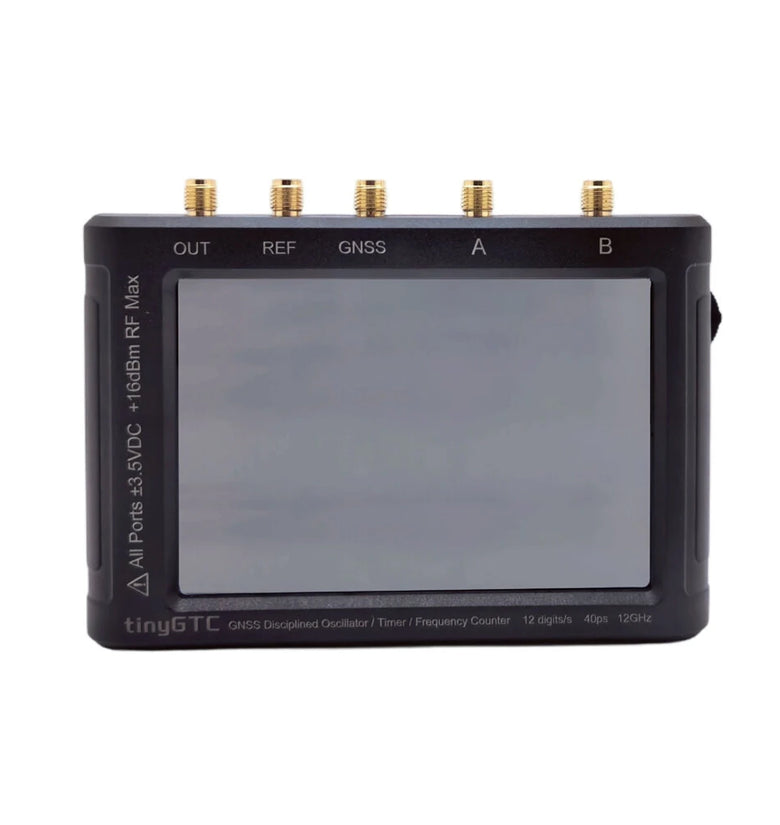

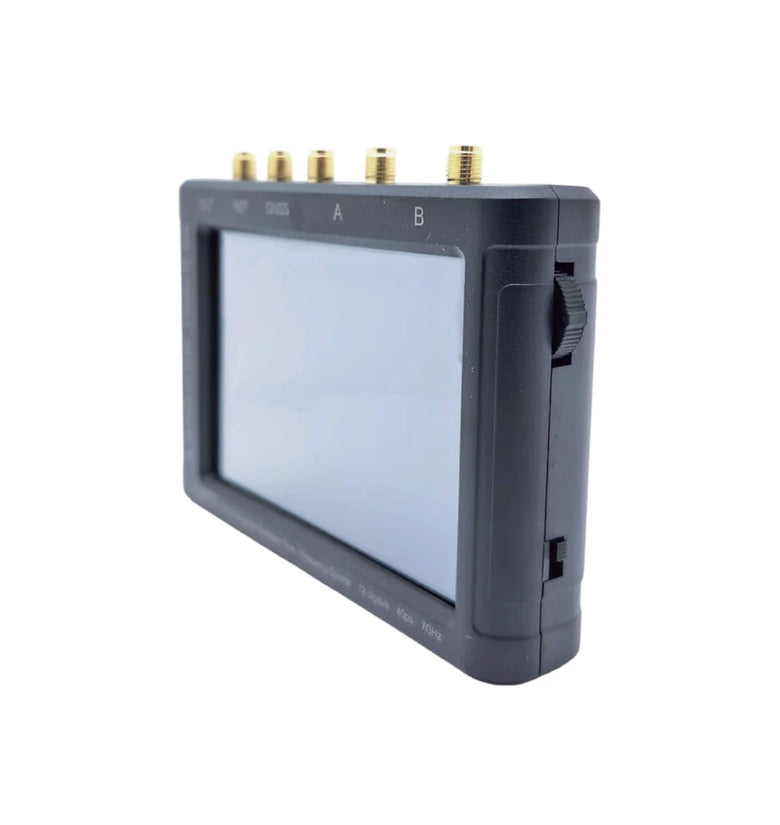

Model: tinyGTC ZC407, tinyGTC ZC412
Input Coupling: Input A and B: DC, REF input: AC
SMA Connections:
SMA A: 0.1Hz – 7 GHz (ZC407) / 12.8 GHz (ZC412), 1 MΩ / 25 pF or 50 Ω
SMA B: 0 – 300 MHz (DC), 1 MΩ / 2 pF or 50 Ω
SMA OUT: 0.1 Hz – 100 MHz, 3 Vpp AC coupled square or pulse, 50 Ω
SMA REF: 10 MHz +5 dBm to +15 dBm or output 8 kHz – 150 MHz, 3 Vpp AC coupled square, 50 Ω
SMA GPS: Active GNSS antenna input, permanent +3 V bias
Input Impedance: 0 – 100 kHz: 1 MΩ / 2 pF; 50 Ω optional
Resolution: 40 ps
Trigger Level: 0 – 3.5 V
Display: 4' touchscreen
Functions: Frequency, time, phase, count
Power Supply: Built-in Li-ion battery 4000mAh, USB 5V 1.3A Max
Max. Input Voltage: ± 3.5 Vdc; 3.5 Vpp or 16 dBm in 50 Ω
Interfaces: USB, OUT pulse or square, EXT Ref in/output, active GPS antenna, A and B measurement inputs
Features:
1.High Precision Measurement:
With a resolution of 40 ps, the device offers exceptional measurement accuracy in frequency, time, and phase monitoring, ensuring reliable performance for high-standard applications.
2.GNSS Disciplined Oscillator Embedded:
The built-in GNSS oscillator provides long-term measurement stability, while supporting frequency outputs ranging from 8 kHz to 150 MHz, ideal as a high-precision clock source.
3.Compact and User-Friendly Design:
The 4-inch touchscreen provides intuitive controls and displays essential operational data, making configuration and monitoring simpler than standard alternatives.
4.Flexible External Signal Compatibility:
Equipped with SMA REF and SMA GPS inputs, the frequency counter supports external reference signals, enabling integration with atomic clocks or high-accuracy GNSS systems.
5.Data Recording and Connectivity Options:
Built-in USB interface allows remote operation and data retrieval, while the micro SD card slot (up to 32GB) ensures adequate storage for collected measurements and analysis.
Package Included:
1 x tinyGTC Frequency Counter
