  • TOOLTOP M7 256X192 Thermal Imager Monocular Imaging 1-8x zoom & Manual focus Outdoor Test Night Vision Adjustable focus Laser Infrared Thermal Camera 10mm focal length monocular For Phone

SKU:

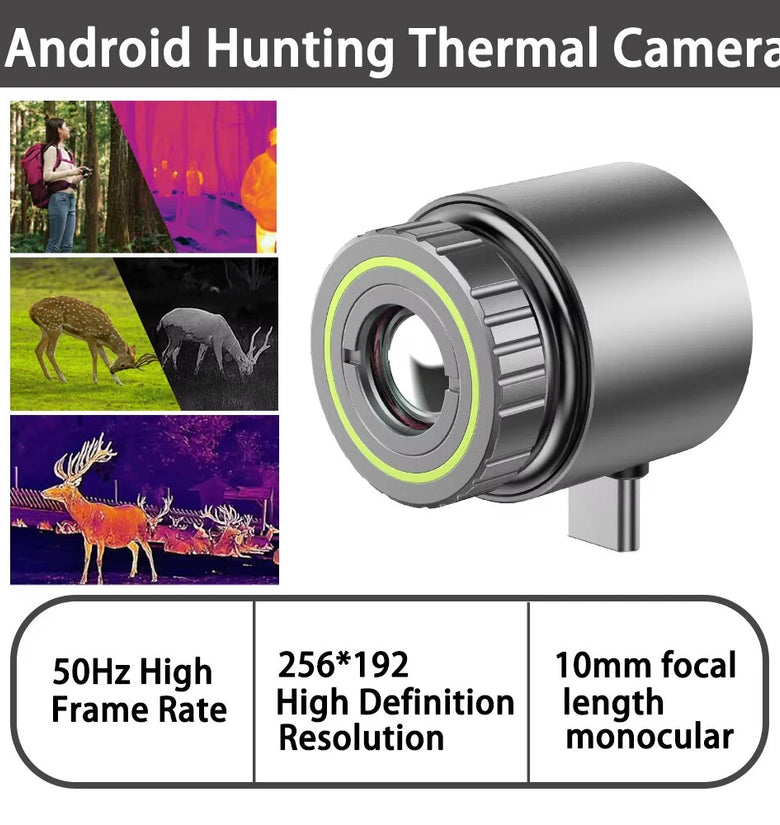

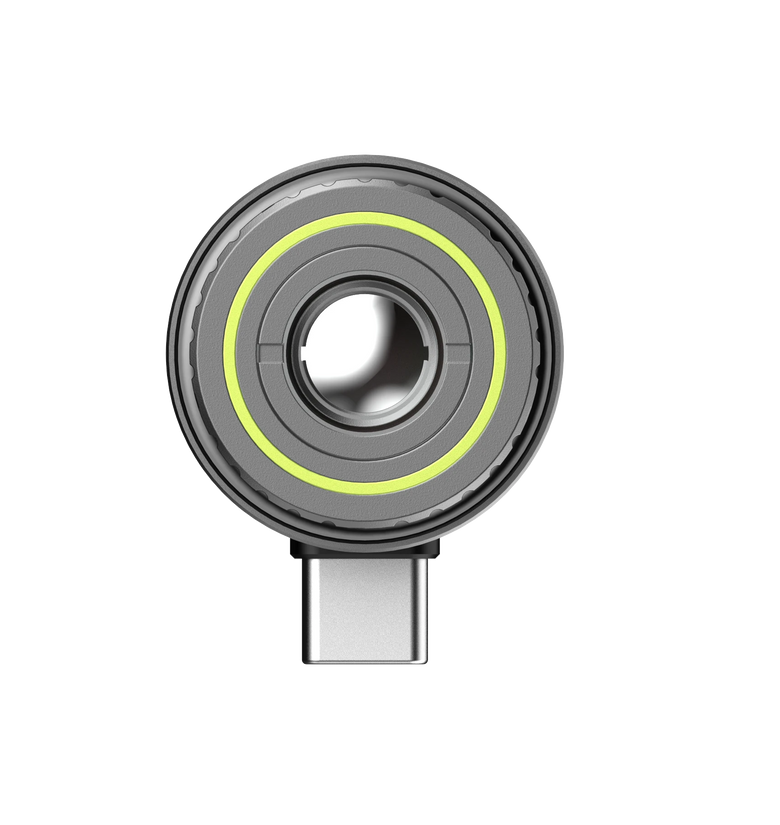

TOOLTOP M7 256X192 Thermal Imager Monocular Imaging 1-8x zoom & Manual focus Outdoor Test Night Vision Adjustable focus Laser Infrared Thermal Camera 10mm focal length monocular For Phone

R 5,408.73



Product type: Tools

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Descriptions:







    Mini thermal imager, Android ultra-far night vision thermal imaging, with the mobile phone APP can realize real-time thermal imaging picture viewing, photo and video recording, image super-resolution, pseudo-color switching, picture-in-picture overlay and other functions, widely used in outdoor observation, exploration and other fields.









    Features:

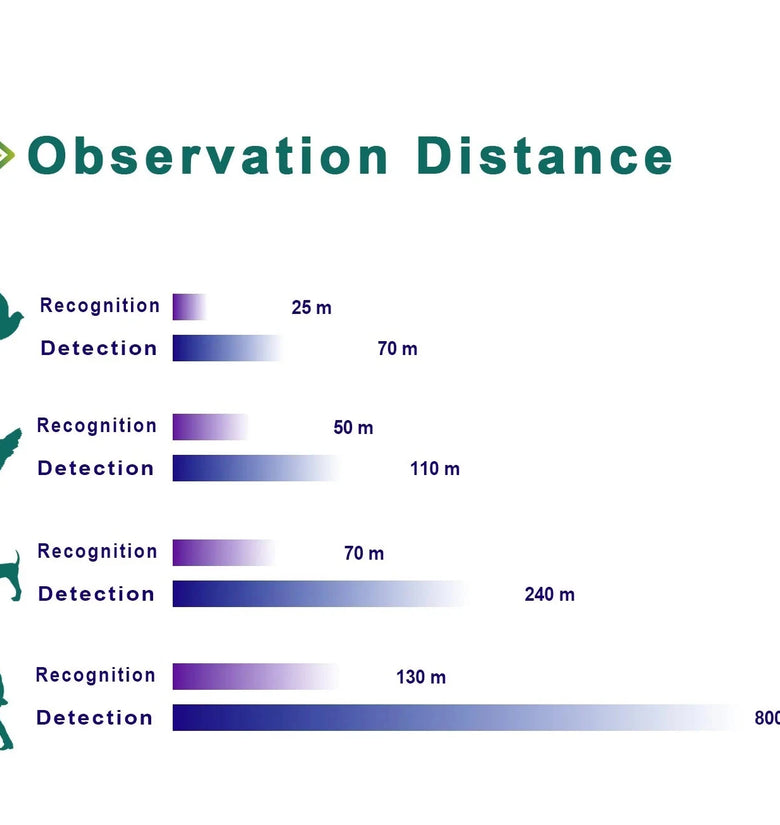

    With 10mm focal length thermal imaging monocular, capable of testing Animal at up to 800 meters.



    256x192 high-resolution infrared sensor for easy target test at night. Equipped with ISR function—when activated, it doubles image clarity.

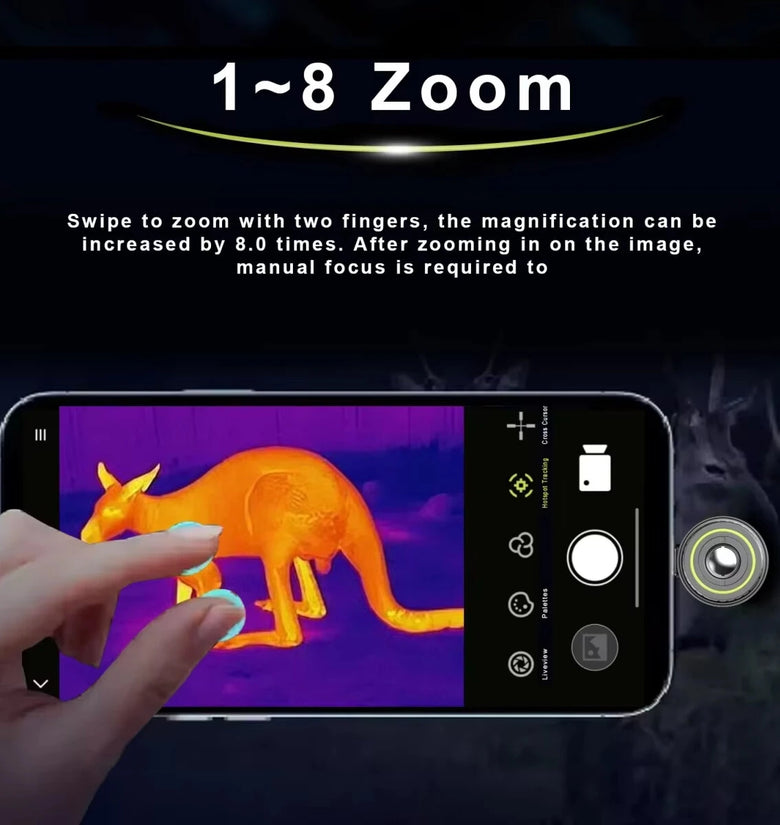

    1-8x continuous zoom and manual focus, ensuring clear images even at maximum magnification.


    Jungle Mode is a proprietary image processing algorithm designed for forest and jungle environments, delivering high-quality rendering of both target objects and backgrounds to effectively highlight heat sources



    Moveable cross cursor, easy to identify and accurately locate targets







    Specifications:







    Model: M7



    Test Type: Vanadium oxide uncooled focal plane test



    Effective Pixels: 256x192



    Pixel Pitch:12um



    Spectral Range:8um~14um



    Sensitivity (NETD): ≤40mK@f/1.0



    Focal Length: 10mm



    Field of View: H: 17.5°,V: 13.1°



    Focus Control: Manual Focus



    Color Palettes:6 (white hot/black hot/iron red/alarm/emerald/amber)



    lmage Mode: General Mode/Raw Mode/Jungle Mode/Sketch Mode



    Cross Cursor: Color & Style Switching Support



    Thermal lmage Flip: Support



    USB Port: TYPE-C



    System Requirements: Android 6.0 or later



    Power Supply: DC 5V



    Power Consumption: 0.35W



    Operating Temperature: -20°C~+50°C



    Product Dimensions: Ф26 mm x 29.5mm



    Net Weight: 26g











    Package List:



    1x Thermal Imager



    1x English User Manual
