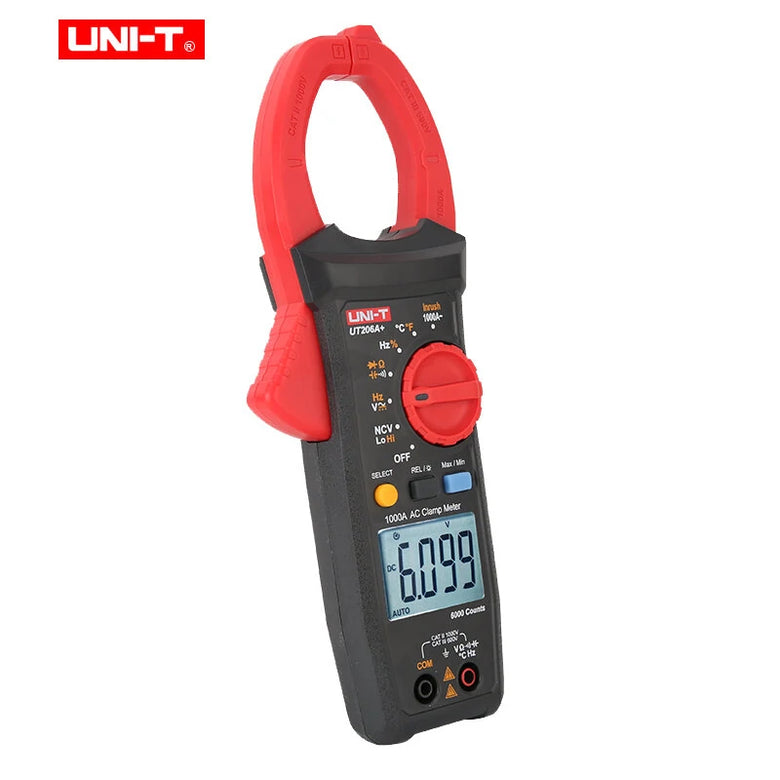

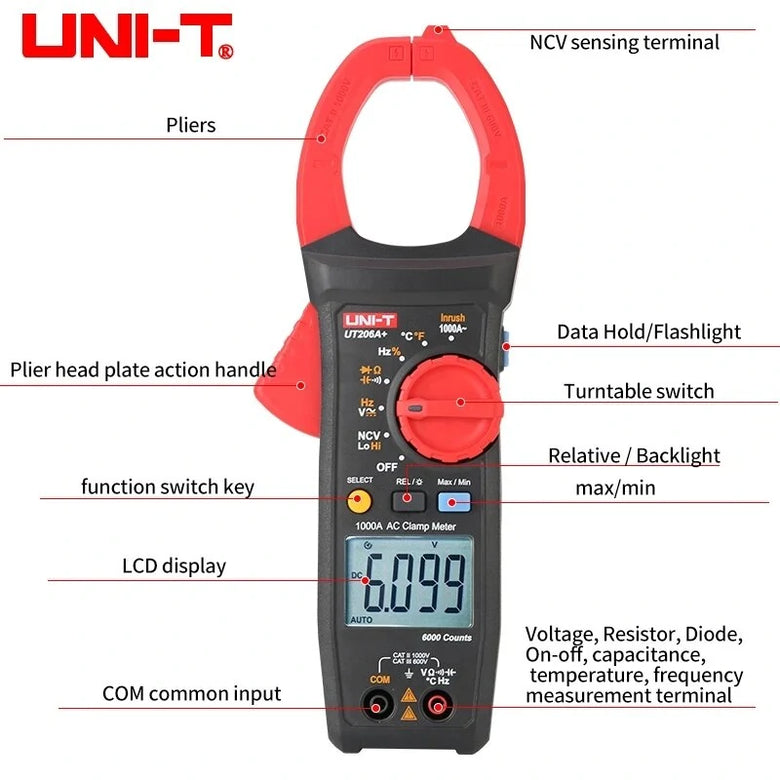

UT206A+ is a handheld automatic range AC clamp meter, designed according to safety standard EN61010-2010 CAT III 600V/CAT II 1000V class, with full-featured anti-burnout protection, to meet the high reliability and safety operation requirements; the product includes the basic functions of electrical measurement, current grade with high accuracy measurement, and UT206A+ has the function of inrush current and temperature, NCV measurement. The UT206A+ has both inrush current and temperature, NCV measurement functions, and is the preferred electrical measurement tool for electronic electricians.
| Specifications | Range | UT206A+ |
| AC current (A) | 1000A | ±(1.5%+5) |
| Inrush current (A) | 600A | ±(5%+10) |
| AC voltage (V) | 1000V | ±(1.0%＋2) |
| ACV frequency (Hz) | 10Hz～10kHz | ±(1.0%＋5) |
| DC voltage (V) | 1000V | ±(0.7%＋3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Frequency (Hz) | 10.00Hz～10.00MHz | ±(0.1%+4) |
| Temperature (℃/℉) | –40℃～1000℃/–40℉～1832℉ | ±4℃/±5℉ |
| Display count | 6099 | |
| Jaw opening | 45mm | |
| Auto range | √ | |
| Duty cycle | √ | |
| NCV | √ | |
| Diode test | √ | |
| Continuity | √ | |
| Low battery | ＜2.5V approximately | √ |
| Indication | √ | |
| Data hold | √ | |
| Auto power off | Approximately 15 minutes | √ |
| Max/Min | √ | |
| Flashlight | √ | |
| Backlight | √ | |
| Safety rating | CAT II 1000V/CAT III 600V | √ |
Features:
1.1000A AC current measurement
2.1000V AC/DC voltage measurement
3.600A inrush current measurement
4.Temperature
5.NCV
6.ACV frequency 10Hz～10kHz
7.Jaw opening: 45mm
8.Resistance/capacitance/frequency measurement
9.Auto range/backlight/low battery indication
10.ACV frequency 10Hz～10kHz
11.Jaw opening: 45mm
12.Resistance/capacitance/frequency measurement
13.Auto range/backlight/low battery indication
14.Continuity/diode/duty cycle
15.MAX/MIN
16.Data hold/flashlight/relative mode
17.Auto power off
18.CAT II 1000V/CAT III 600V
Package included:1 x UT206A+1 x Test Pen1 x Temperature Probe UT-T10K1 x Carring Bag
