Features:
The frequency diagram of the watch can be displayed on the LCD screen.
According to different watches, the instrument will automatically adjust the optimal signal level during the test.
The instrument will automatically calculate the rate deviation, amplitude, be-at error, and display them by the data in real time.
For the conventional be-at, the instrument can automatically respond; for the special be-at, can manually select.
The sampling period can be selected by 2 seconds, 4 seconds, 6 seconds, 8 seconds, 12 seconds, 20 seconds, 30 seconds, 60 seconds, and the average value of corresponding period will be regarded as the exact value of the watch.
Six kinds of testing positions can be adjusted, and ana-log sound can be played in the speaker or mute.
Specifications:
Plug: EU-plug, US-plug (optional)
Main material: metal
Color: grey+black
Measuring possibilities: rate deviation, amplitude, be-at error
Rate deviation measurement: the ranges of deviation is ±999 sec/day, accuracy is 1.0 sec/day
Amplitude measurement: numerical display in degrees, resolution is 1°, measuring ranges is 100° to 360°
Measuring for the be-at error (frequency error): numerical display in milliseconds. Resolution is 0.1 milliseconds; the measuring ranges is 0-9.9 ms
Measuring position: 1 to 6 positions
Sampling periods: 2/4/6/8/12/20/30/60 seconds
Lift angle: 30° to 70°, default is 52°
Line length: 196 points
Language: Chinese, English, Japanese
Display dimensions: 98 * 34mm / 3.9 * 1.3in

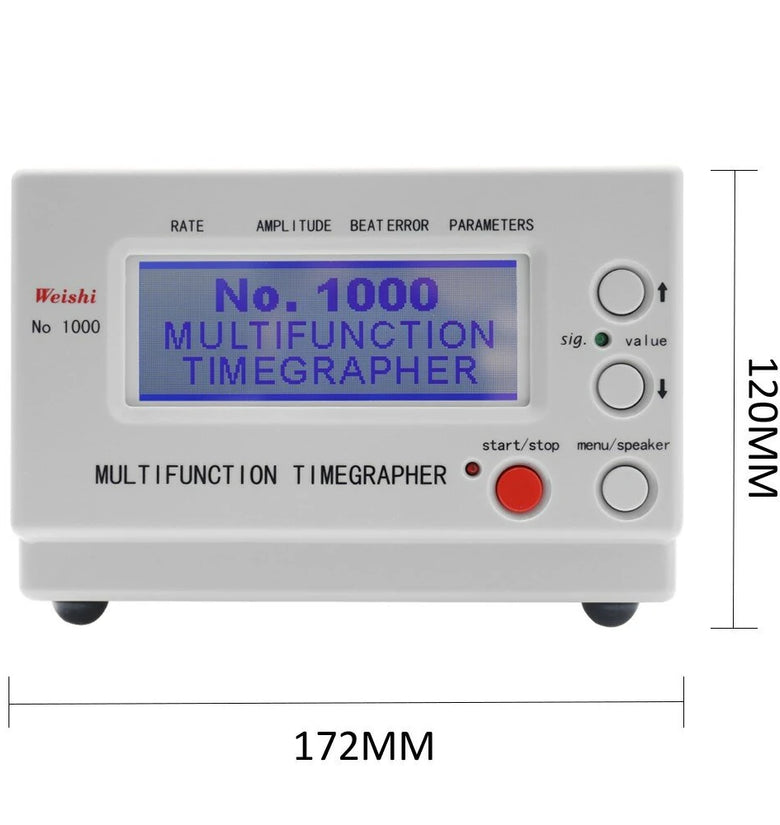

Item size: 172 * 114 * 40mm / 6.8 * 4.5 * 1.6in
Item weight: 1400g / 3.1lb
Package size: 200 * 150 * 80mm / 7.9 * 5.9 * 3.1in
Package weight: 1483g / 3.3lb
Package included:

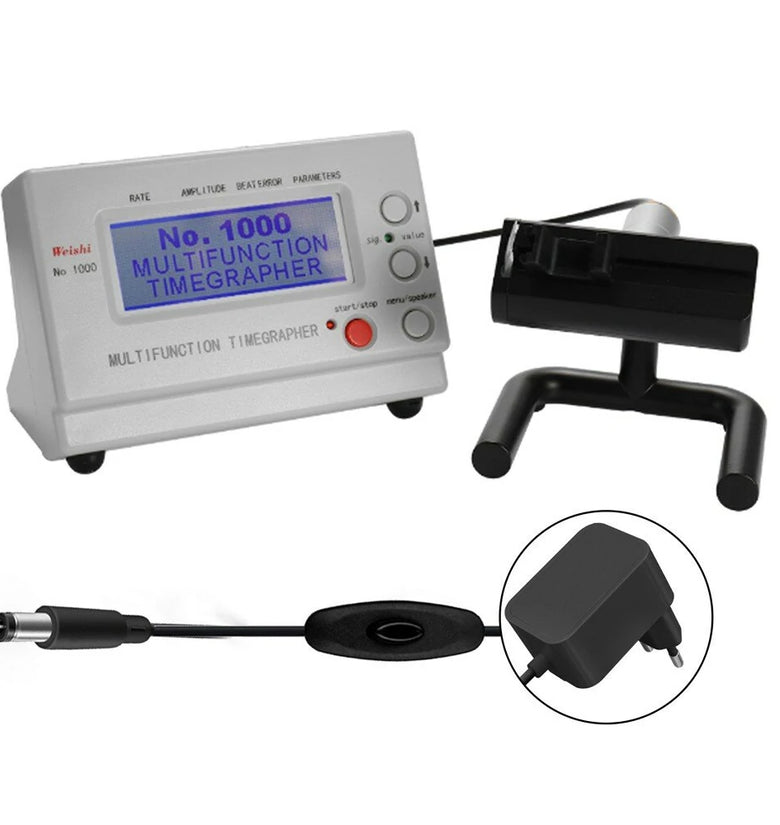

1 x Timegrapher (Plug as your choice)

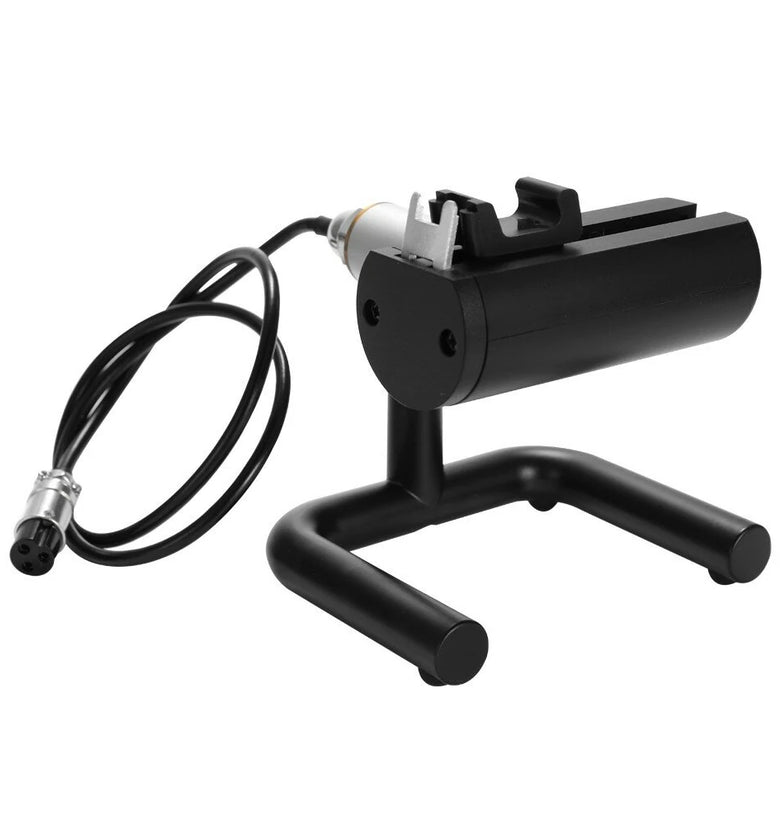

1 x Microphone
1 x Power Cable
1 x User Manual
