Specification:

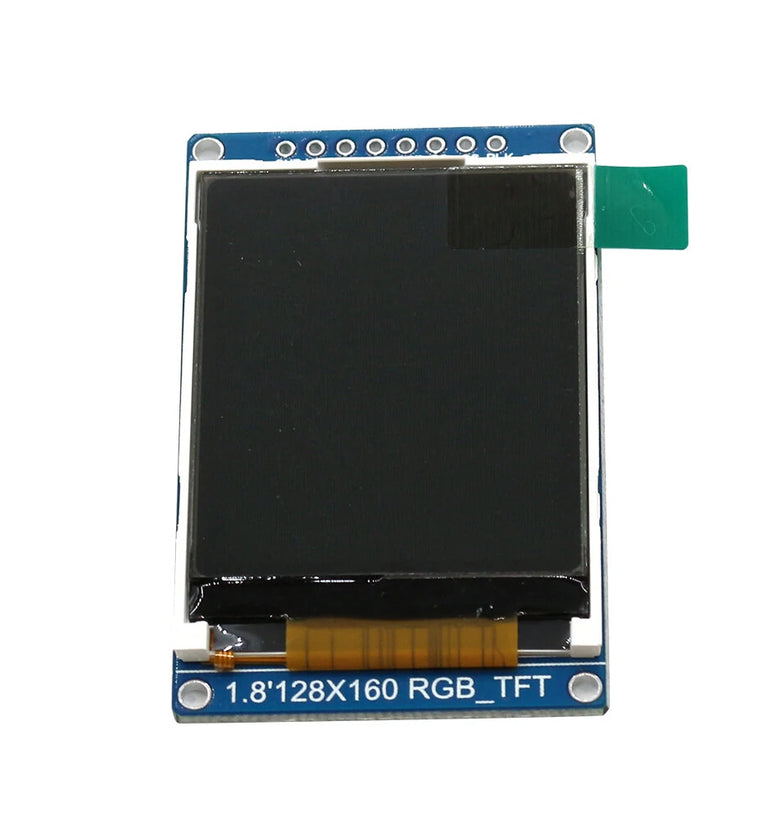

Size: 1.8 inch
Display Mode: a-TFT
Display Format Graphic: 128RGB*160 Dot-matrix
Input Data: SPI interface
Drive IC: ST7735S
Dimensional outline: 35(W)*56 (H)*3.45+/-0.1(T)mm
Resolution: 128RGB*160 Dots
LCD Active area: 28.03 (W)*35.04 (H)
Pixel size: 0.219(W)*0.219(H)
Viewing Direction: 12 o'clock
Operating Temperature: -20～70°C

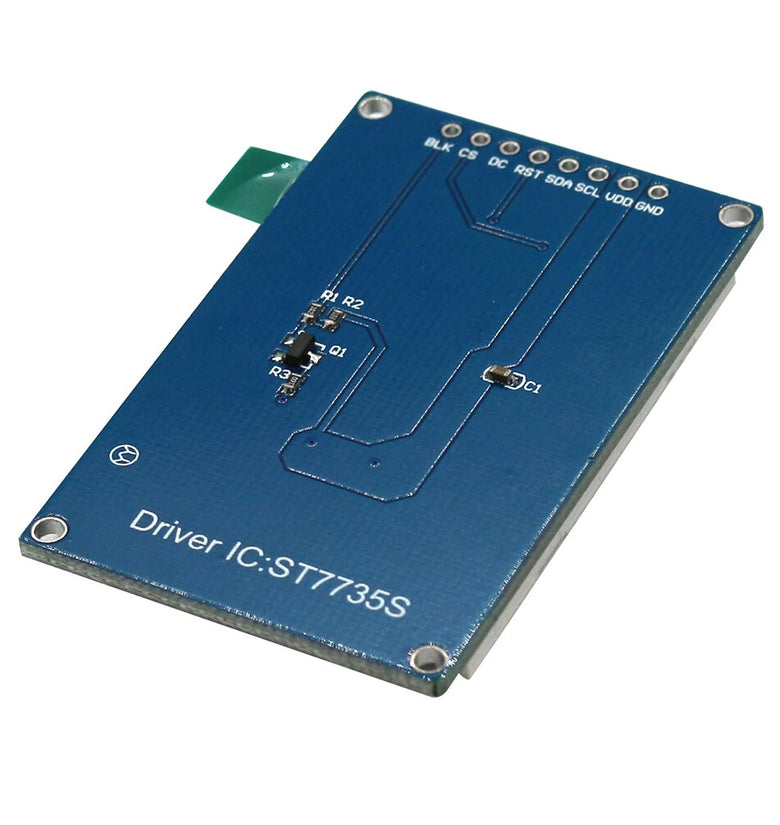

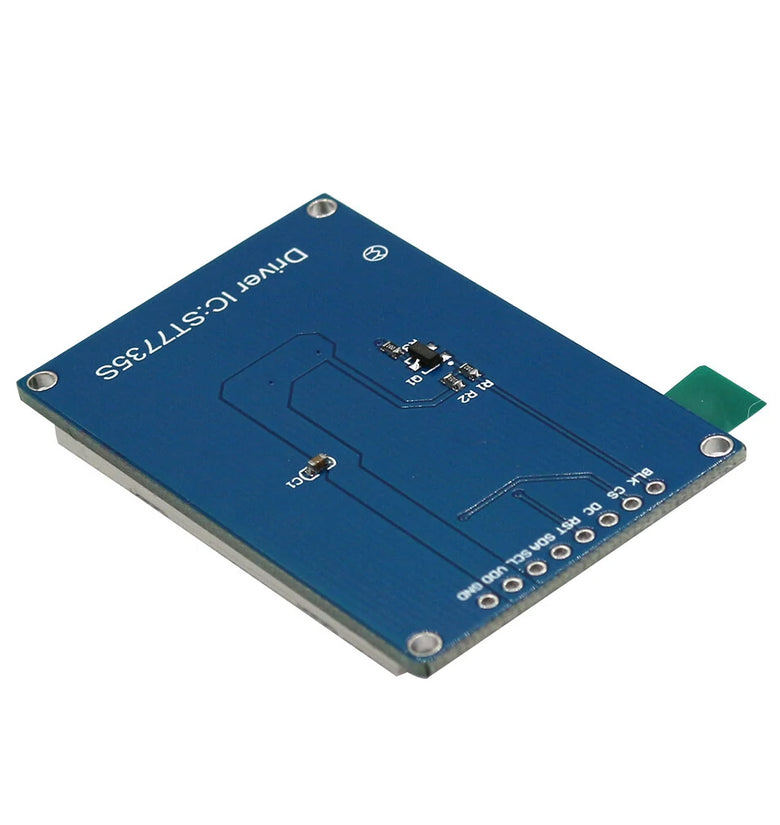

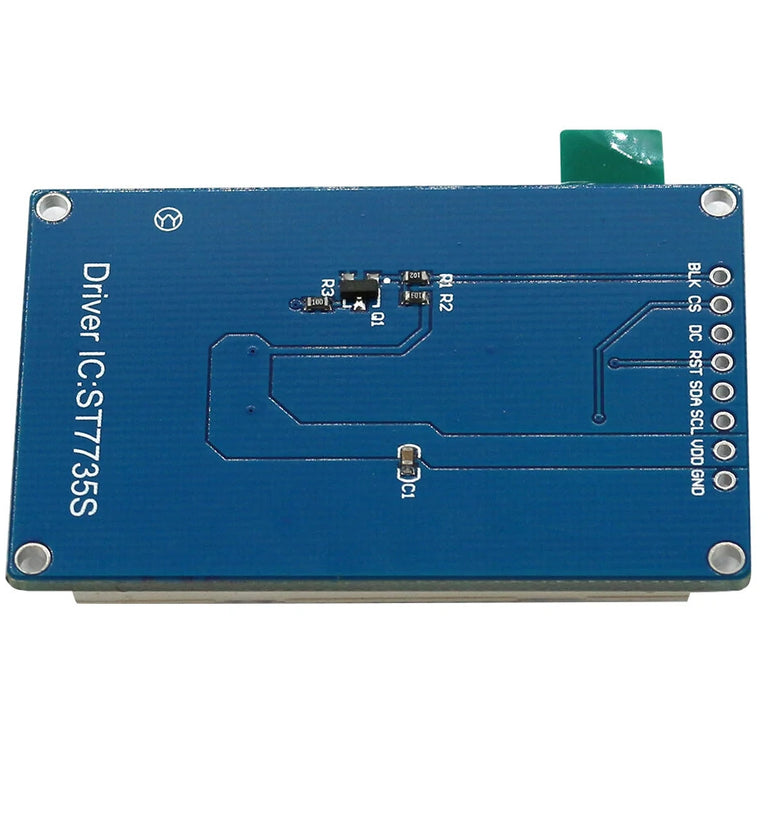

Pin Descriptions:
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
Package Include:
1/3/5/10 (optional) × OLED Display Screen Module
