Specifications:
Voltage range: 3.3V/5V
Interface: 4-wire SPI
Screen type: IPS
Controller chip: ST7789V2
Resolution: 240 x 280 pixels
Visible area: 27.97 x 32.63mm
Pixel size: 0.11655 x 0.11655mm
Module size: 31.50 x 39.00mm
Features:
1. High-resolution 240 x 280mm display showcasing 262K vibrant colors, makes for stunning visual representation of your images.
2. Equipped with a 4-wire SPI communications interface, which ensures minimal pin resources are used, can be paired with Raspberry Pi / ArduinoSTM32 control boards.
3. Features an IPS screen, ensuring excellent viewing angles and color representation.
4. Utilizes the robust and efficient ST7789V2 controller chip for smooth and reliable operations.
5. Adaptable to 3.3V and 5V voltage, offering flexibility for various applications.
Package Include:

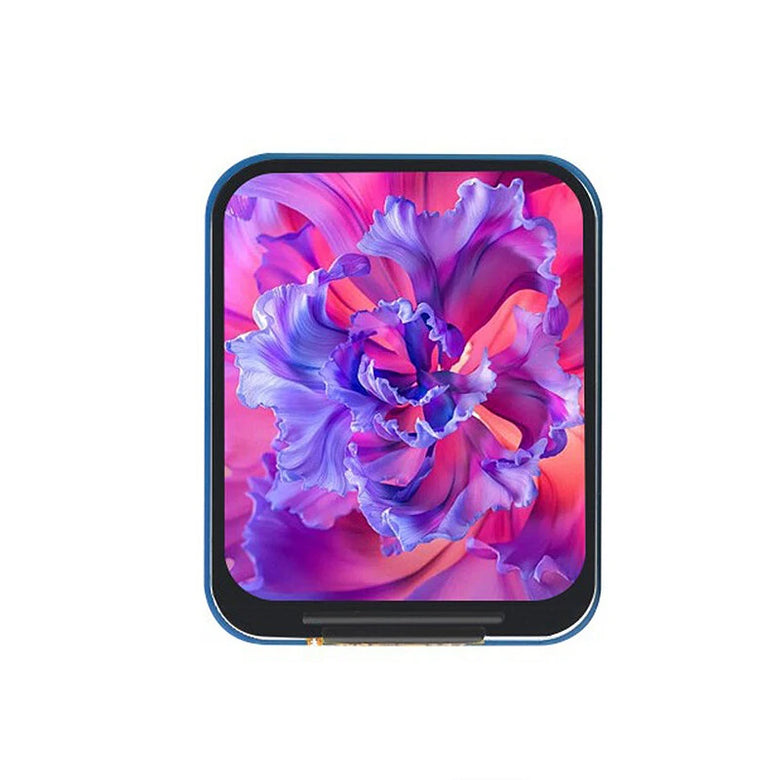

1x 1.69 Inch LCD Module

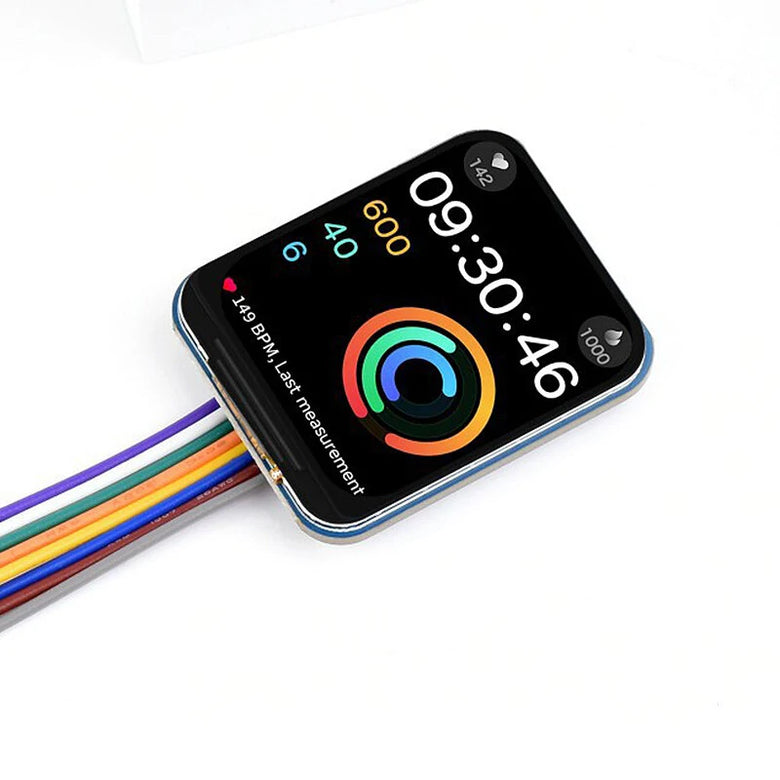

1x GH1.25 8PIN Connector Cable 20cm
Control Interface:
VCC: Positive power supply (3.3V 1 5V power supply input)
GND: Power ground
DIN: SPI data input
CLK: SPI clock signal input
CS: Chip selection, active low.
DC: Data/command, low level means command, and high level means data.
RST: Reset, active low.
BL: Backlight
VCC: Positive power supply (3.3V 1 5V power supply input)
GND: Power ground
DIN: SPI data input
CLK: SPI clock signal input
CS: Chip selection, active low.
DC: Data/command, low level means command, and high level means data.
RST: Reset, active low.
BL: Backlight
