100K-6GHz Full Band Low Noise Amplifier 20dB High Gain Power Preamplifier LNA Module for RF & Software Defined Radio SDR
;
;
;
;
;

SKU:

100K-6GHz Full Band Low Noise Amplifier 20dB High Gain Power Preamplifier LNA Module for RF & Software Defined Radio SDR

R 548.19



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
  •
  • In Stock
  •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Description:

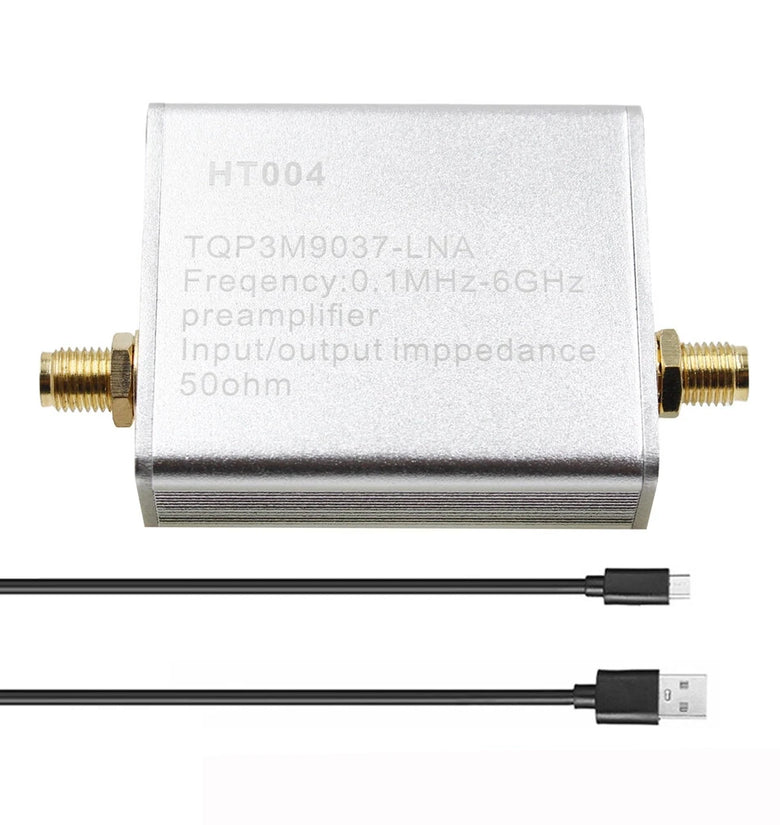

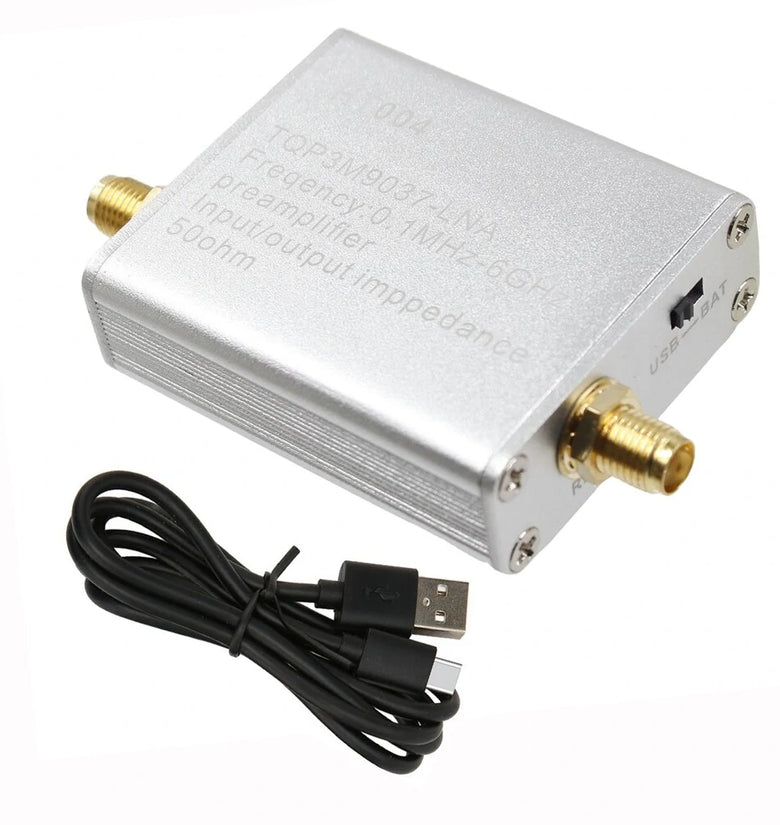

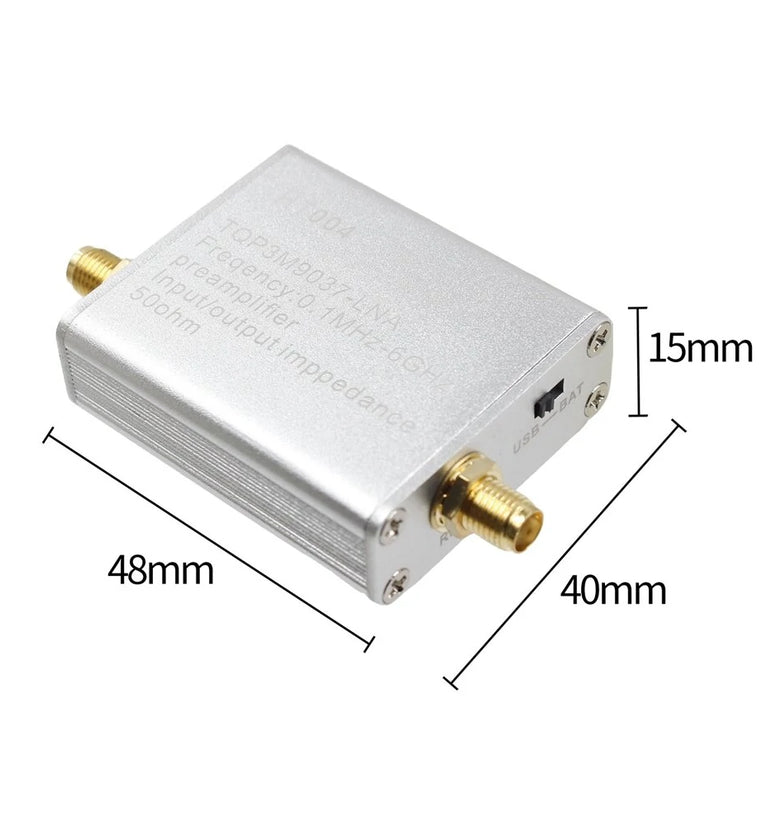

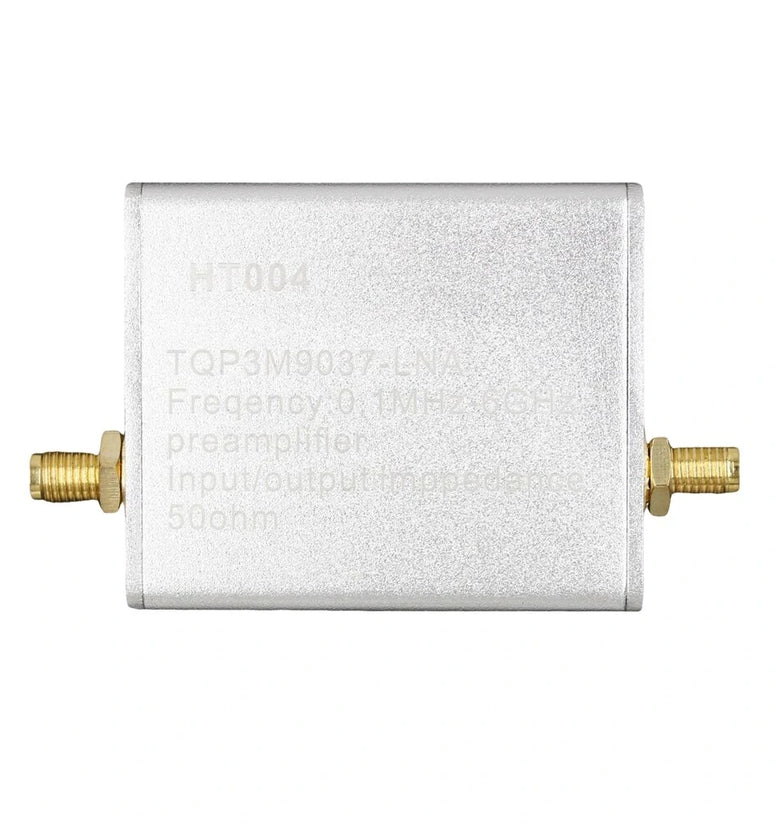

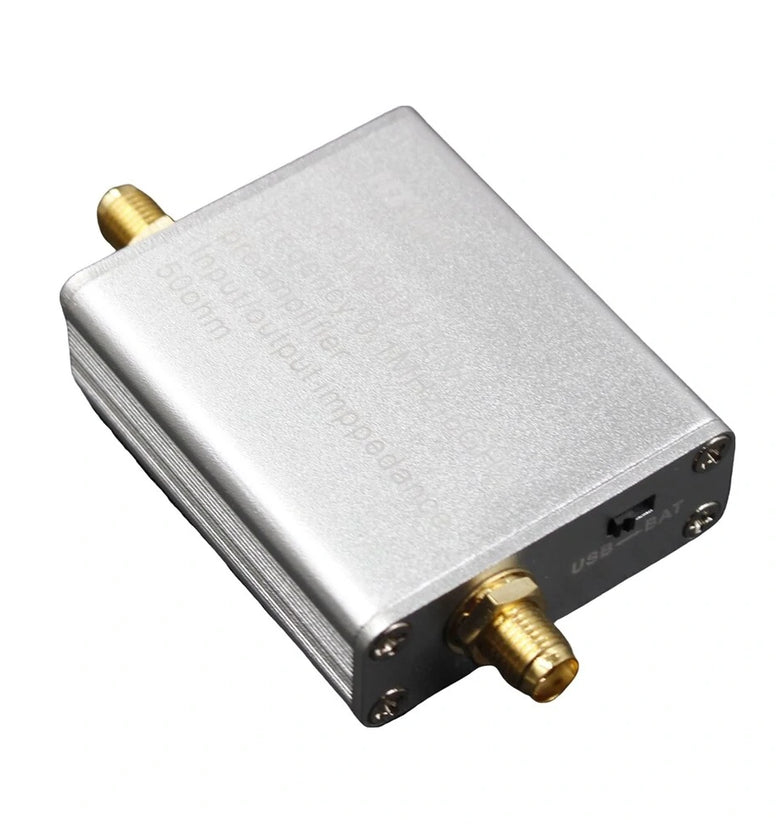

    The HT004 Low Noise Amplifier is an electronic device that is primarily used to amplify signals and minimize the effects of noise. It operates in the frequency range of 0.1MHz-6GHz.

    Features:
    - Wide bandwidth: The amplifier can work in the frequency range of 0.1MHz-6GHz. Thus, it can be widely used.
    - High gain: With 20dB gain, it makes the output signal more powerful.
    - Low noise: It can amplify the signal while maintaining a low noise level to avoid interference and distortion.

    Application Scenarios:
    1. Beidou/GPS receiver
    2. Receiver system (FM radio receiving, radar receiving, etc.)
    3. EMC receiving system
    4. SDR receiver

    Specifications:
    - Model: HT004
    - Feature: Built-in TQP3M9037-LNA
    - Frequency: 0.1MHz-6GHz
    - Gain: 20DB
    - Input/output impedance: 50Ω


    Q&A:


    1. Does HT004 LNA include battery?
    No, this is the battery-free version.

    2. How to supply power to HT004 LNA?

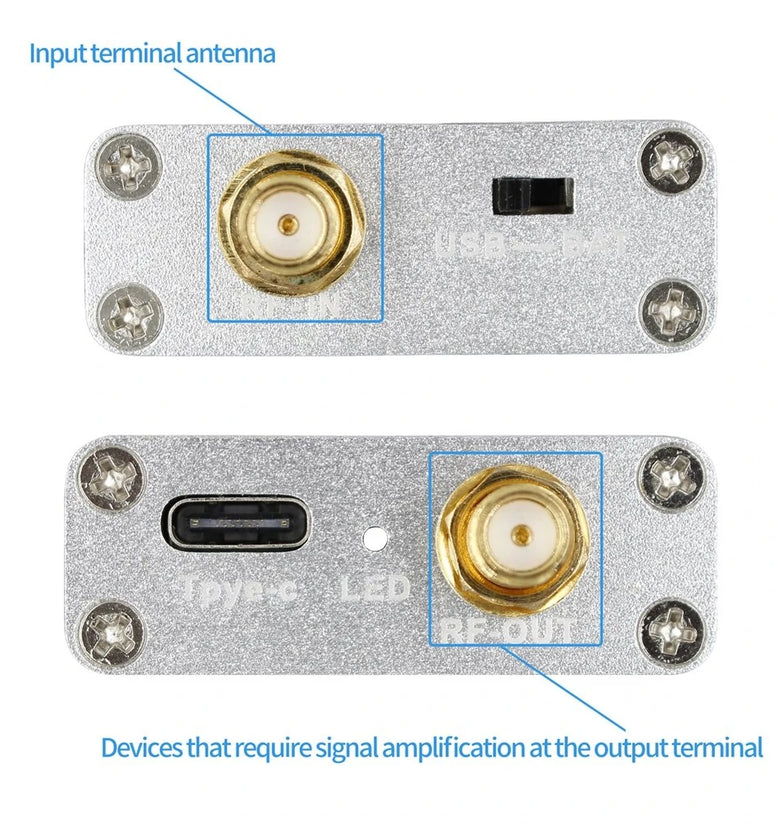

    ①Move the black button to the Tag'USB'
    ②Connect the USB cable with a power supply of no more than 5V 1A
    ③Please note that using more than 5V 1A power supply will cause damage to the HT004 LNA, which is not covered by the warranty!!!
    ④Cannot use 5V2.4A power bank to charge this device!

    3. Can I install a battery inside the HT004 LNA? How do I pick the right battery?

    -Yes,We have reserved space for battery installation., and we have uploaded an instructional video for installing the battery on the product detail page.
    -Recommended battery specifications:
    ①Compatible with 3.7V300mAh/3.7v500mAh battery
    ②Battery size
     ≤ Length*Width*Thickness(30*30*6mm)
    You can search keyword '3.7V 500mAh 603030 ' on the platform.

    4. How to charge the battery after installing it?


    ①Move the black button to the Tag'BAT'
    ②Connect the USB cable with a power supply of no more than 5V 1A
    ③Please note that using more than 5V 1A power supply will cause damage to the HT004 LNA, which is not covered by the warranty!!!

    Package Included:
    - 1 x LNA Amplifier
    - 1 x USB Cable
