Specifications:

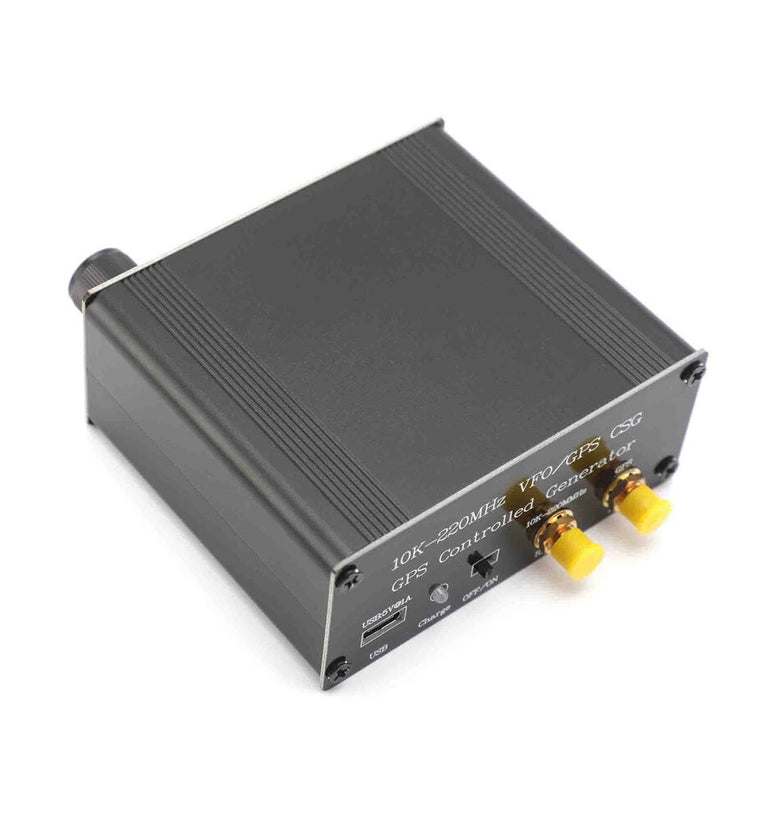

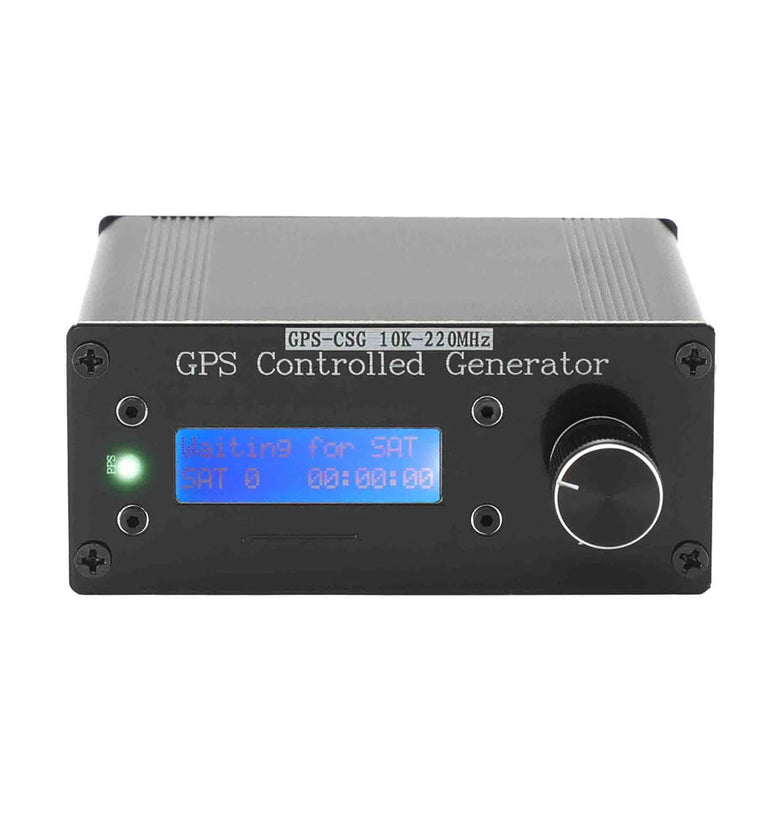

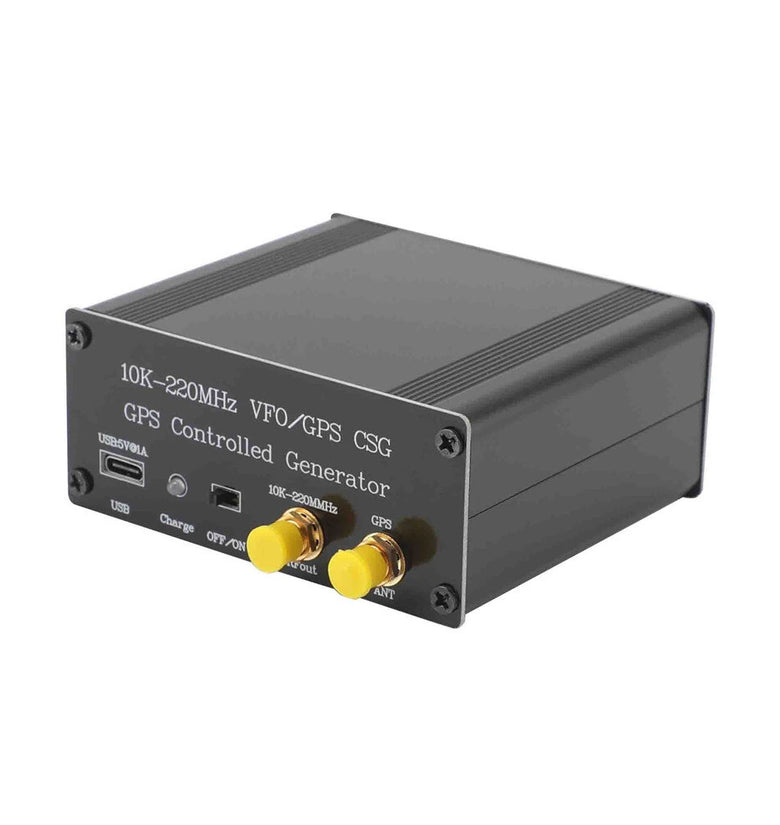

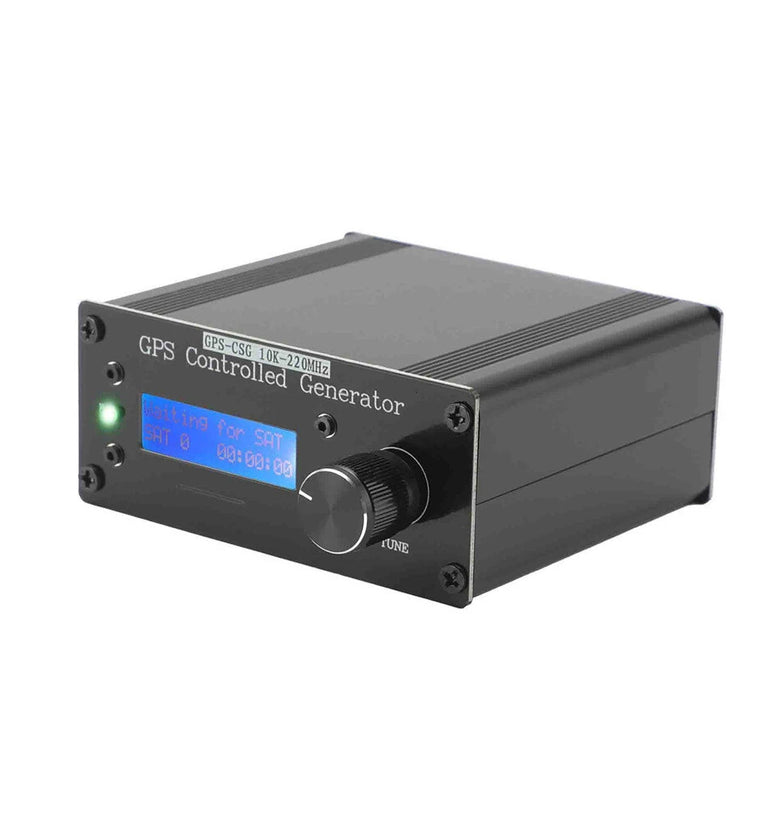

Part Name: Controlled Generator
Material: Aluminum
Size: 13.5*13*5cm
Color: Black
Power supply voltage: DC8-13V
Power consumption: <150mA
Adjustable frequency: 10KHz-220MHz
Frequency accuracy: ±0.2Hz
Output level: 12dBm±2dB (can be adjusted to any value from -10dBm to 10dBm; amplitude can be calibrated)
Frequency synthesizer crystal oscillator: TCXO
Phase noise: -132dBc at 10KHz
Output type: square waving
Harmonic rejection: even harmonics are better than -50dBc and odd harmonics are better than -10dBc
Features:
1. Global Positioning System disciplined oscillator with a 10KHz-220MHz frequency standard supports Beidou and Global Positioning System satellites for precise frequency calibration and generation.
2. Dual-channel adjustable frequency allows separate adjustment of frequencies for each channel, with the ability to save 5 frequencies per channel.
3. Available in green backlight and white backlight LCD screens (randomly shipped) for easy visibility and control.
4. Features a power supply voltage of DC8-13V with low power consumption (<150mA) for efficient operation.
5. Includes main unit, power supply, and Global Positioning System antenna (3m9.8ft feeder) for convenient setup and usage.
Package Include:
1x Main Unit
1x Power Supply
1x Global Positioning System Antenna (3m/9.8ft feeder)
