Specification:
Operating Voltage: DC 6-80V
Peak Current: 50A
Continuous Current: 20A
Maximum Power Output: 1600W
Control Mode: PWM / Serial Port
Board Dimensions: 78mm x 57mm
Features:
1. Hall Sensor-Free Design: Compatible with brushless motors without requiring Hall sensors.
2. Anti-Reverse Protection: Prevents damage caused by incorrect power line connection.
3. Speed Regulation: Adjustable via onboard potentiometer (frequency range: 1-20 kHz).
4. Overcurrent and Lock-Turn Protection: Integrated safety features to ensure system stability.
5. Direction Control: CW/CCW steering support for flexible motor operation.
6. Heat Dissipation: Additional cooling fin provided for better thermal management during high-power operation.

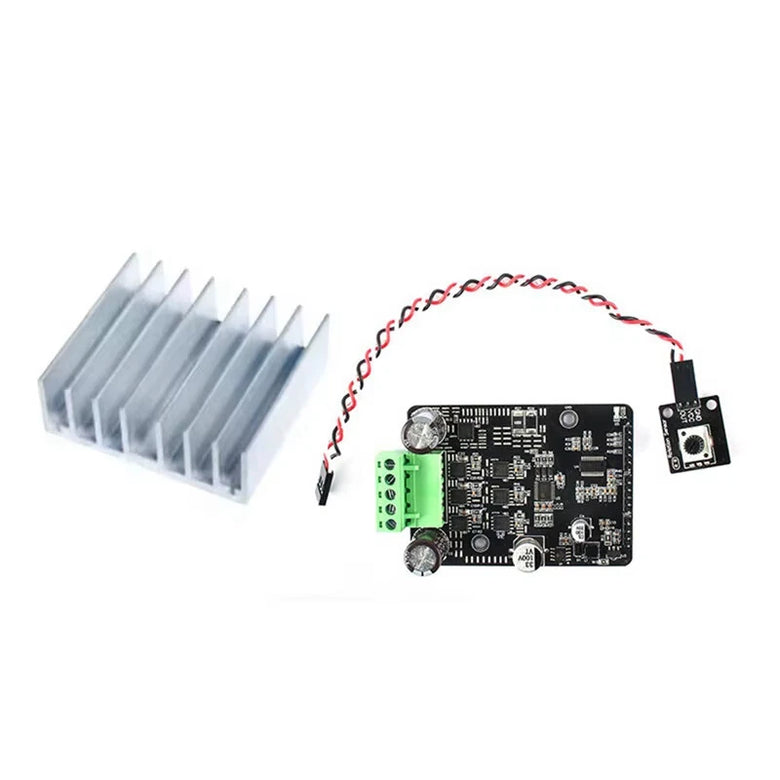

Package Inclusions:

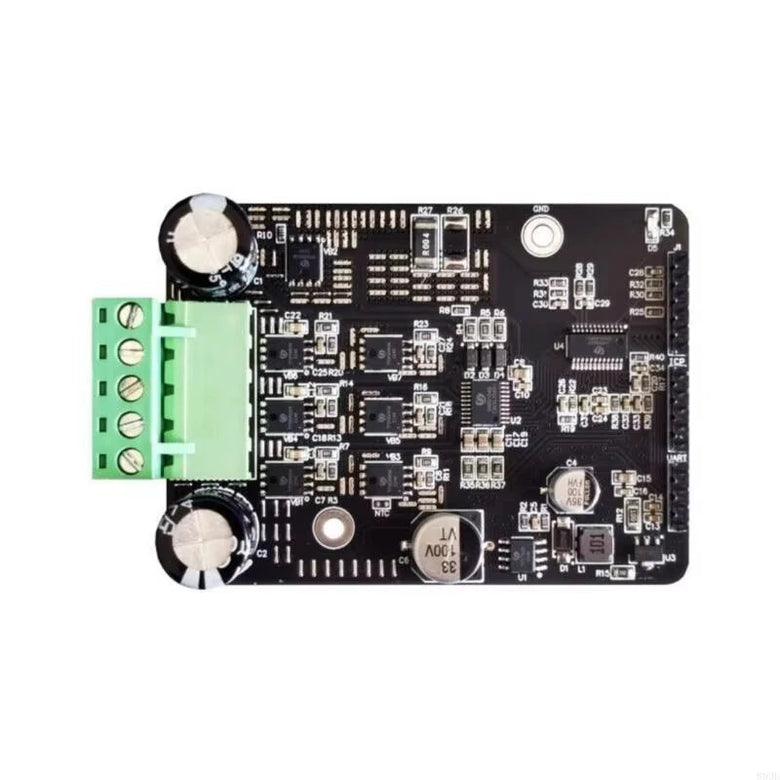

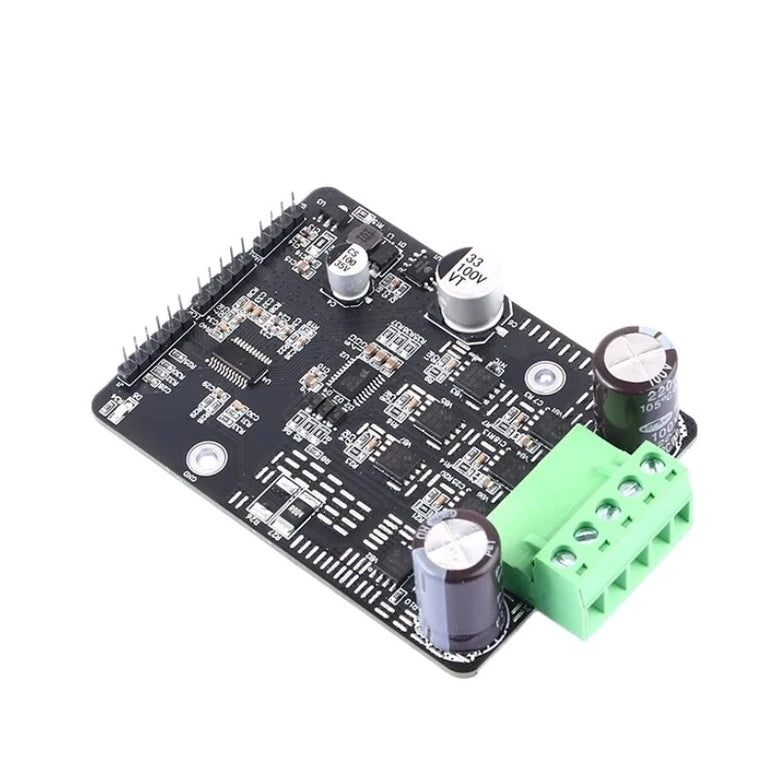

1 x BLDC Motor Control Board
1 x Potentiometer
1 x Cooling Fan
