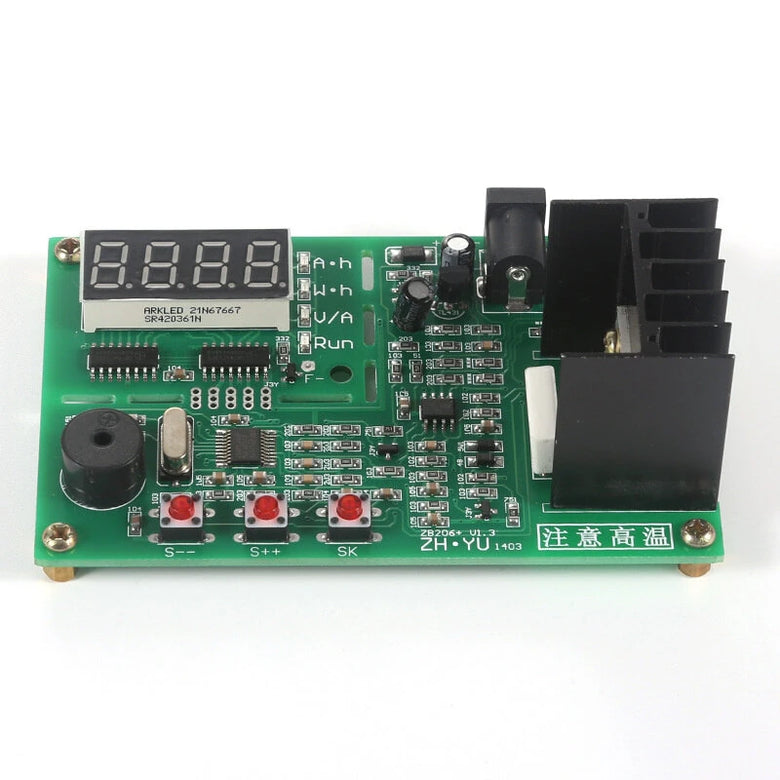

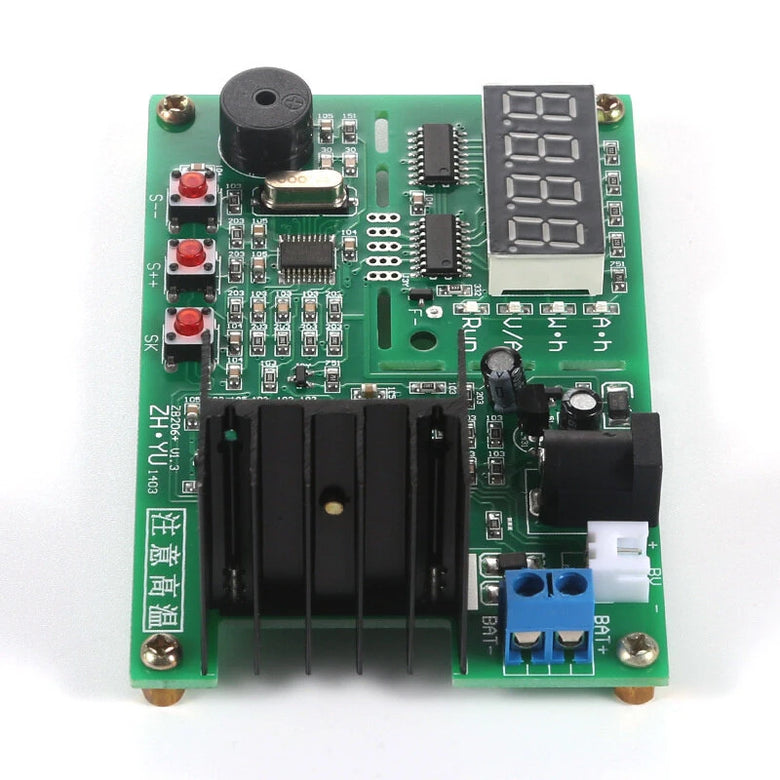

Specifications:
Power Supply Voltage: DC12V (DC11-14V)
Operating Current: not exceeding 35mA
Battery Input Terminal Voltage: not exceeding 8.5V
Discharge Current Error: less than 1% + 2mA
Voltage Measurement Error: less than 1% - 3D
Overall Measurement Result Error: 0.1-0.2A 2.5%, 0.3-0.5A 1.6%, 0.6-1.0A 1.2%, 1.1A-2.6A 1%
Ah Statistical Range: 80.00Ah
Circuit Board Size (excluding copper feet): 97mm x 62mm x 38mm
Positioning Holes: 90mm x 55mm, diameter 3.2mm
Features:
1.Advanced Calculation Capabilities: Integrated with advanced computation functions, this device does not require computer assistance to directly obtain battery energy (Wh) and battery discharge platform voltage (V). This optimization simplifies the testing process and ensures efficient measurement.
2.Multiple Protection Mechanisms: The product comes with multiple built-in protection features such as reverse battery connection, over-power, over-voltage, and abnormal power voltage. These safety measures ensure reliable and secure operation under various conditions.
3.Adjustable Discharge Current: The discharge current can be adjusted from 0.1-2.6A with 0.1A increments, ensuring precise and flexible testing. The smooth current high-cost MOS heat dissipation solution, coupled with an independent MOS linear region monitoring circuit, guarantees absolute accura
Related product
HappyFish.co.za

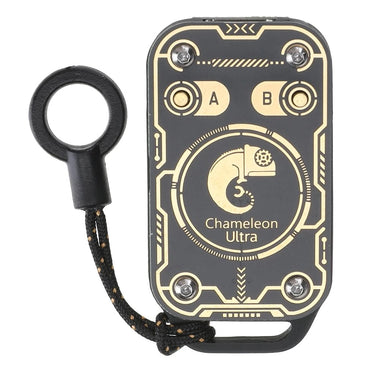

Chameleon 3.0 Smart Card Emulato...
Features:1. Supports multiple NFC/RFID functions, in...
R 1,059.54 R 699.69
Features:1. Supports multiple NFC/RFID functions, including MIFARE Classic, Ultralight, DESFire, Plus, NTAG 21x, EM410x, and T5577 card types.2. Simultaneously emulates up to 16...
HappyFish.co.za

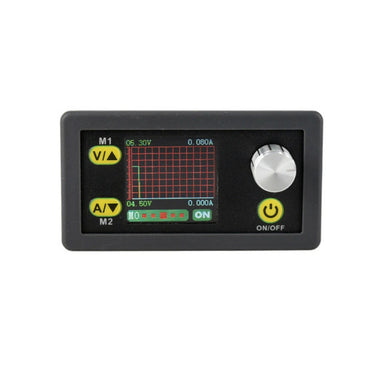

WZ3605E CNC DC Buck-Boost Conver...
Feature:>>>Manual: Click here to open<&l...
R 1,277.63 R 975.10
Feature:>>>Manual: Click here to open<<< Model WZ3605E Input voltage 6.0~36.00V Output voltage 0.60~36.00V Output current 0~5.000A Output po...
HappyFish.co.za
ESP32-S3 A7670E 4G Development B...
Specification:Model: ESP32-S3 A7670EDimensions: 125m...
R 2,325.64 R 1,929.70
Specification:Model: ESP32-S3 A7670EDimensions: 125mm x 34mm x 31.6mm (Acrylic Case), 110mm x 58.76mm (PCB Board).Processor: ESP32-S3 with Xtensa® 32-bit LX7 dual-core processor...
HappyFish.co.za

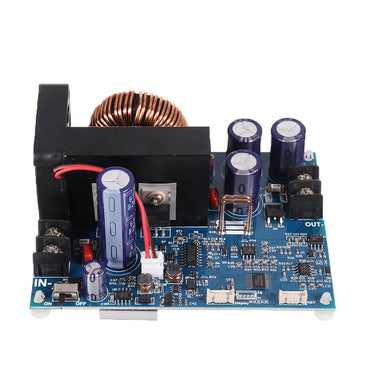

WZ5020L DC-DC 50V 20A 1000W Buck...
>>>Manual: Click here to open<<<No...
R 885.64 R 729.70
>>>Manual: Click here to open<<<Note:This product is a step-down module and cannot be boosted! The input voltage is 55V, and the output voltage can be adjusted...
HappyFish.co.za
ESP32-Aduio-Kit ESP32-A1S ESP32 ...
Specifications:Product Name: ESP32-Audio-KitDevelope...
R 996.54 R 657.69
Specifications:Product Name: ESP32-Audio-KitDeveloped by: Ai-ThinkerModule: ESP32-A1SAudio Codec Chip: ES8388Audio Peripherals: TF card, headphone output, two microphone inputs,...
HappyFish.co.za

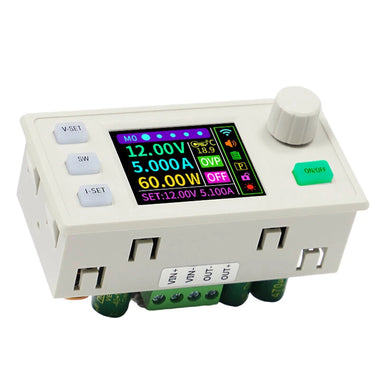

Sinilink XY-SK150S DC Buck-Boost...
