Specifications:
Color: red
Material: plastic
Specification:

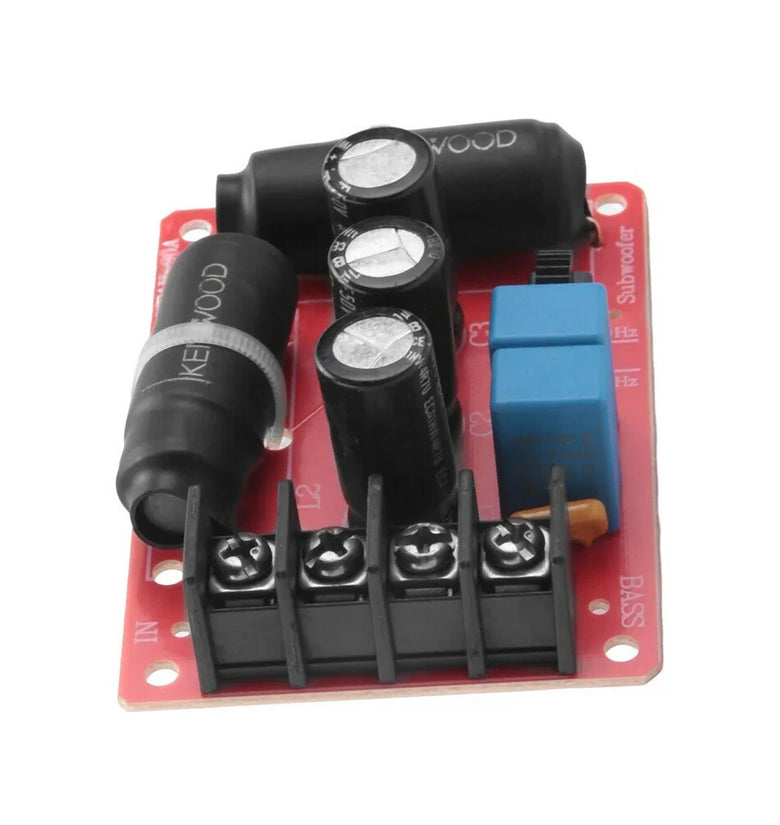

Name: Subwoofer Crossover
Filtering characteristics: Independent bass/deep bass
Frequency response: 40Hz-400Hz
Capping power: 200W
Applicable speakers: 2.5-8 inches
Applicable impedance: 4-8 ohm
Size: 80x58x28mm/3.15x2.28x1.1in
Weight: 130g
Application speakers: Home audio and car audio bass/subwoofer speakers

Features:
1. Powerful bass effect. After the speakers are replaced with the bass/subwoofer splitter, it can bring you thunderous and powerful sound effects, and feel the shock of a theater at any time at home. Suitable for 2.5-8 inch speakers below 100W.

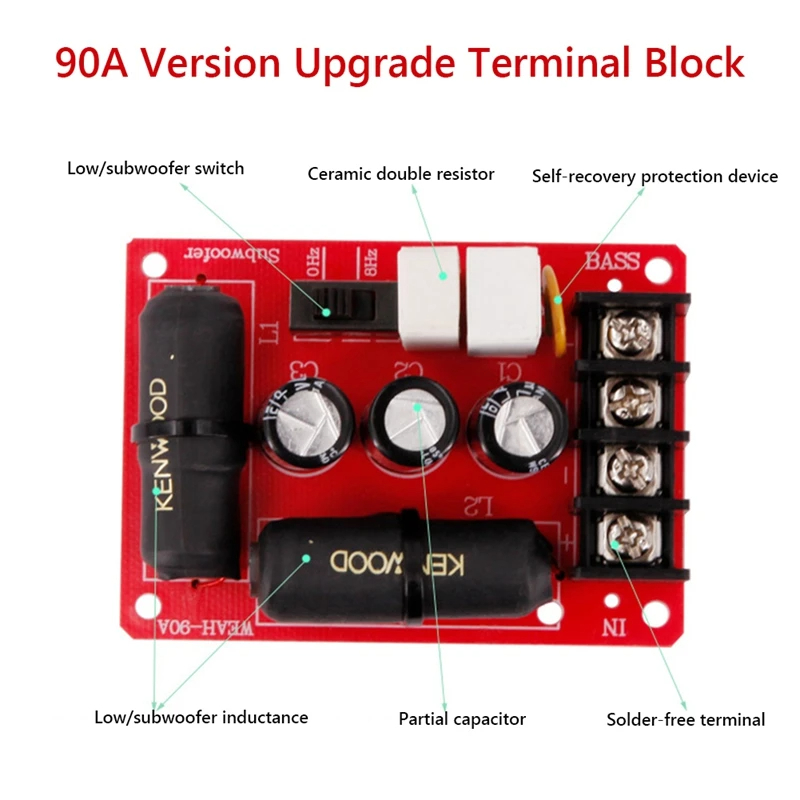

2. Self-recovery insurance, audio switch. Equipped with a self-resetting safety device, through the 2A high current switch to freely switch between 1.5mH bass and 3.0mH heavy bass, allowing free control of the sound source.

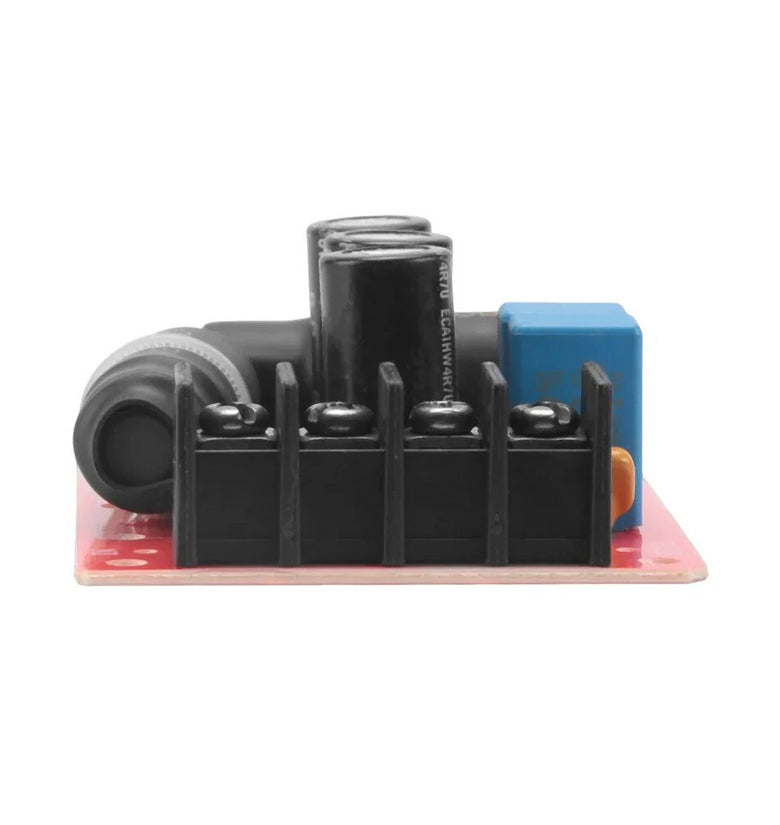

3. It uses very high-end and easy-to-use wiring terminals. Press the black/white button to insert the wire and release it to clamp the bare wire on the wiring terminal. Press again to pull out the wire. It can also be welded on a copper plate with reasonable design.
4. The inductance is made of oxygen-free copper enameled wire, and dual inductances dedicated for audio are connected in series and staggered by 90 degrees. Since the frequency divider is composed of multiple inductors, the inductors will induce each other, and the coupling effect like a transformer will cause intermodulation interference, which will seriously affect the sound quality. Stagger the two inductors by 90 degrees to cut off the coupling path.
5. Change the frequency to apply more speakers. The old crossovers are rigid. If they are not suitable for users, they cannot be changed after they are installed. Sometimes the treble is too harsh and the bass performance is poor, which is difficult for beginners to solve; even if the crossover is replaced, it may not be appropriate. And the cost is higher. The frequency divider has added frequency adjustment function, which can adapt to a variety of speakers.

Package Include:
1x Audio Woofer Crossover
