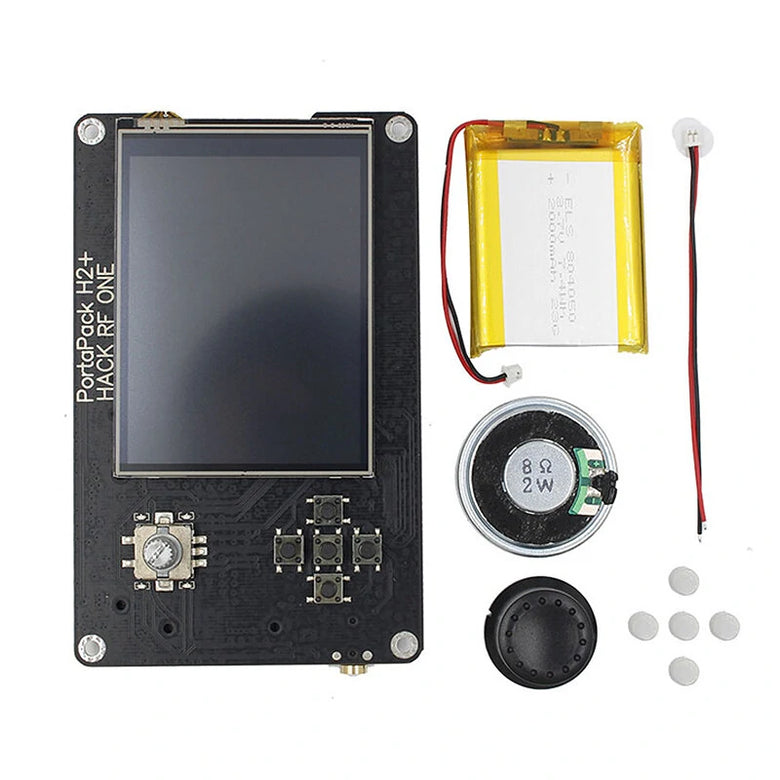

Description:PortaPack H2 enables HackRF to become a software-defined radio portable device. It adds an LCD touch screen, user interface navigation controls, audio output and input, micro SD card slot, 10 PPM crystal oscillator with battery backup for real-time clock, speakers, lithium battery charger and middle button on/off function (long press 3 -4 seconds). PortaPack firmware provides the user interface and necessary signal processing functions to perform many useful operations without a computer. Newly designed aluminum shell, which can protect portapack and hackrf well.This list is not Hackrf's, one option is the Portapack H2 only and the other is the Shell only.
Please note that the picture shows the assembled product and is for reference only. The shell needs to be purchased separately and assembled by yourself.
Specifications:
Main Chip Model: 8731
Audio Chip: 5M40Z
Crystal Oscillator: 3225, 10MHz
Screen Size: 3.2 inches
Battery Type: CR1220 (internal), 2100mAh lithium battery
Features:
1. Touchscreen with Voice Input/Output: The 3.2-inch touchscreen allows for intuitive navigation and features voice input and output capabilities. This enhances user interaction and convenience.
2. Expandable Storage: Equipped with a TF card slot, it provides the flexibility to store and play data while also managing frequencies efficiently.
3. Precision Timing: The built-in TCXO high-precision clock ensures accuracy to 0.5ppm, guaranteeing precise frequency control comparable to professional two-way radios. It can also automatically switch to an external TCXO if desired.
4. RTC Clock Function: The internal CR1220 battery preserves the real-time clock (RTC) function, ensuring that the device records the current time when saving baseband files.
Package Include:

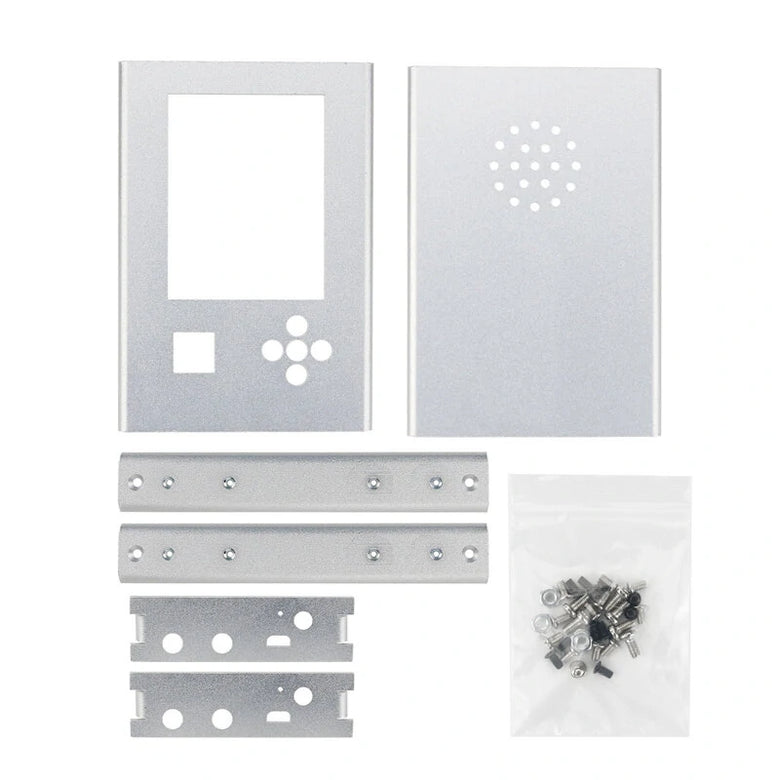

1.【Aluminum Alloy Protective Shell】:
1x Aluminum Alloy Shell Kit
1x Screws Pack
2. 【Control Board】:
1x Module Board
5x Switch Cover
1x 2000mAh Battery
1x Speaker
