Specification:

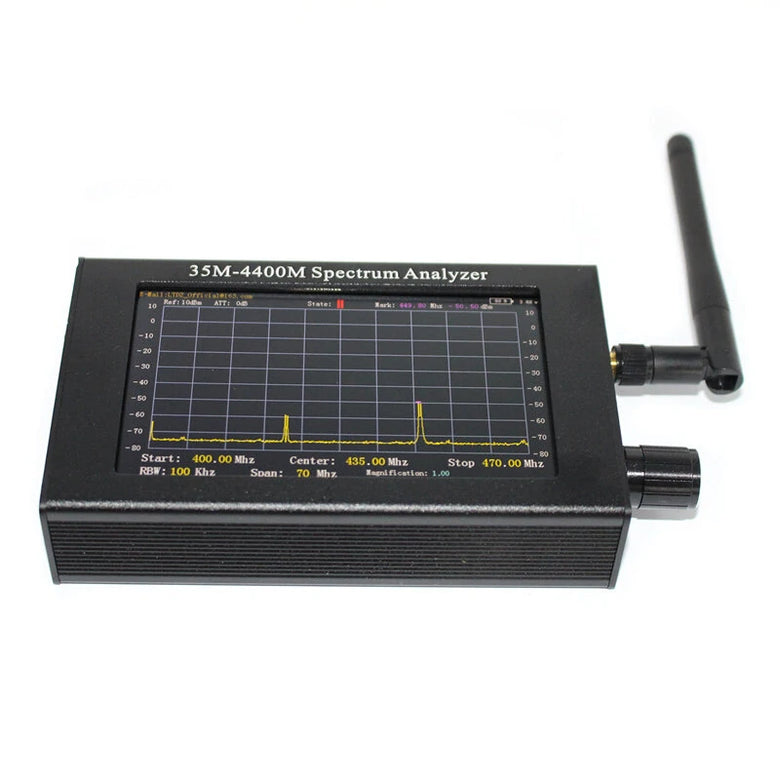

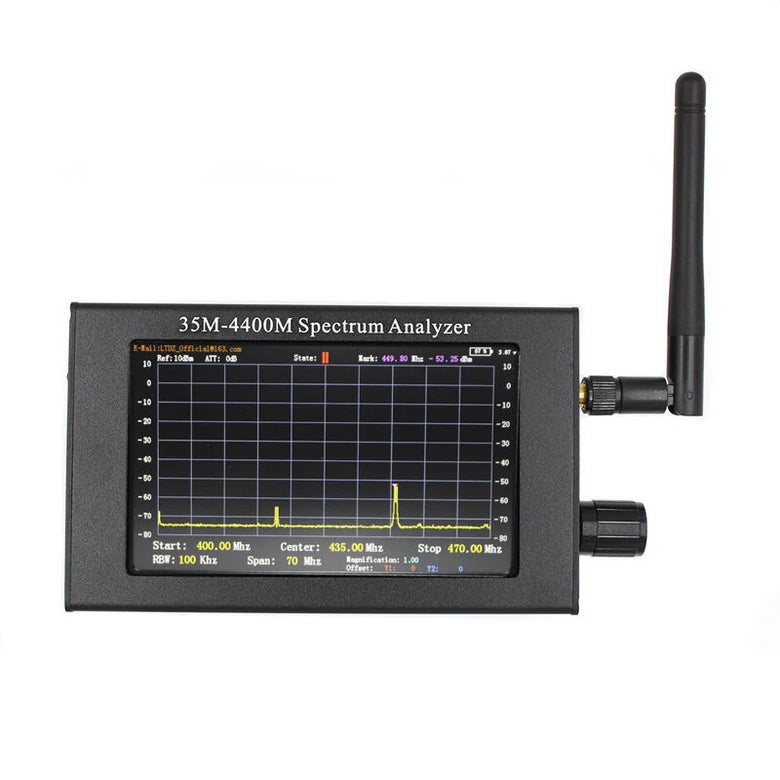

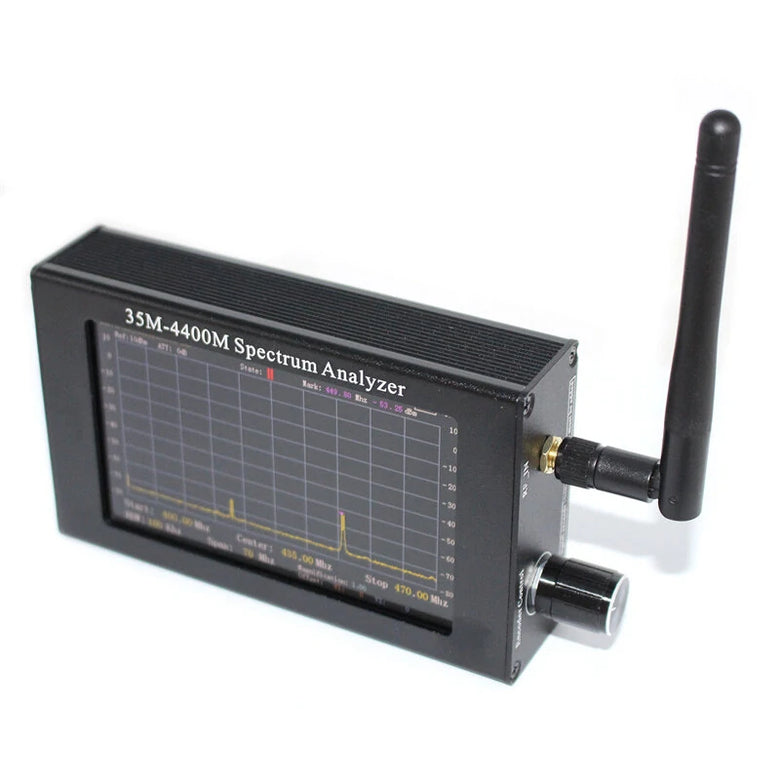

Product Name: 4.3-Inch TFT Color LCD Spectrum Analyzer
Frequency Range: 35MHz-4400MHz
Impedance: 50 ohms
RBW (Resolution Bandwidth): Adjustable between 10kHz, 50kHz, 100kHz, 200kHz, and 500kHz
Display Screen: 4.3-Inch TFT Color LCD (480 x 800 resolution)
Battery: 1 x Lithium Battery (Approximately 2500mAh)
Battery Life: 4-6 hours
Product Dimensions: 145mm x 70mm x 30mm
Weight: 255g (Including battery)
Material: Aluminum Alloy + Metal
Color: Black

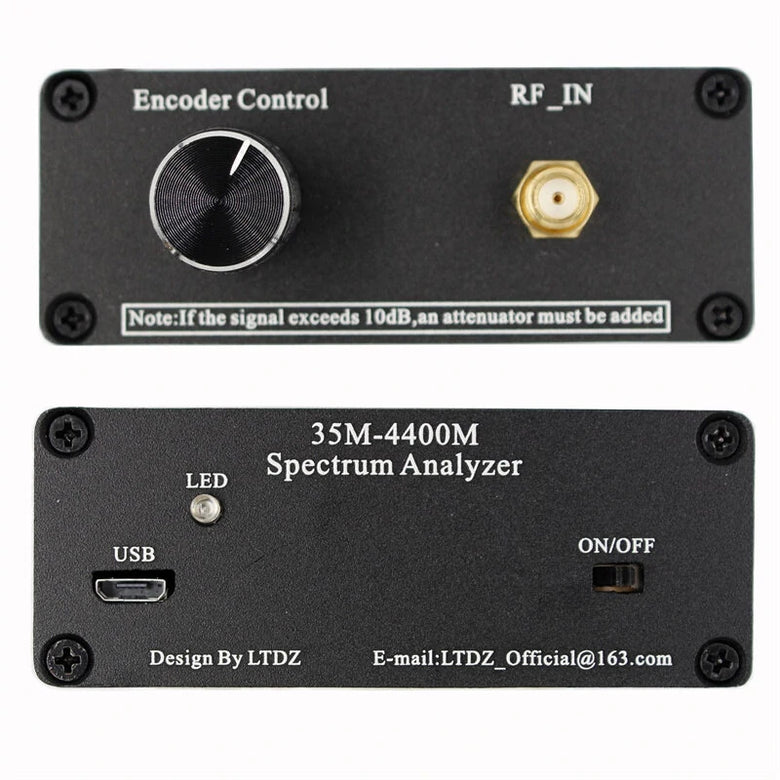

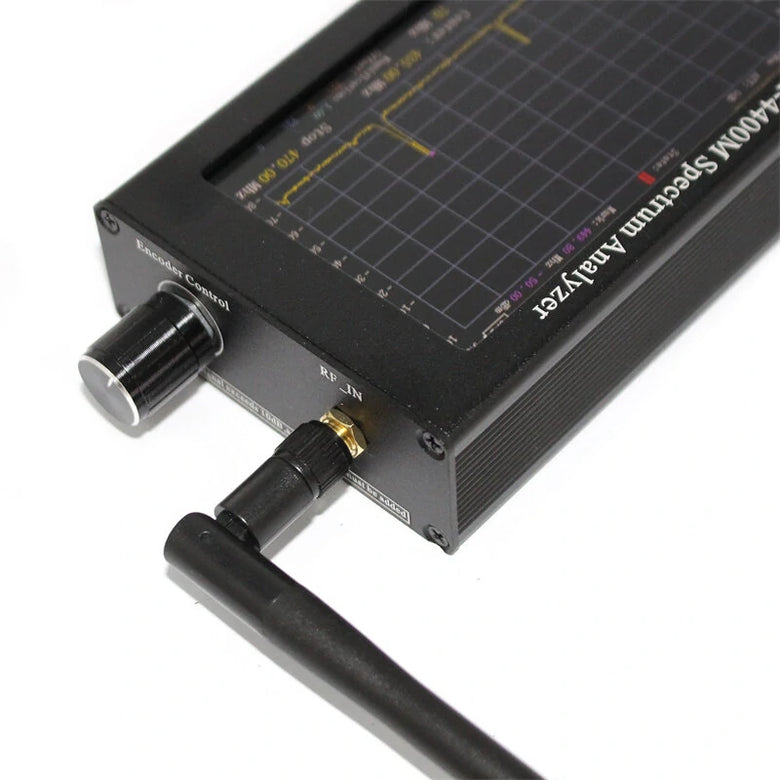

Control: Rotary Encoder with Full English Display Interface

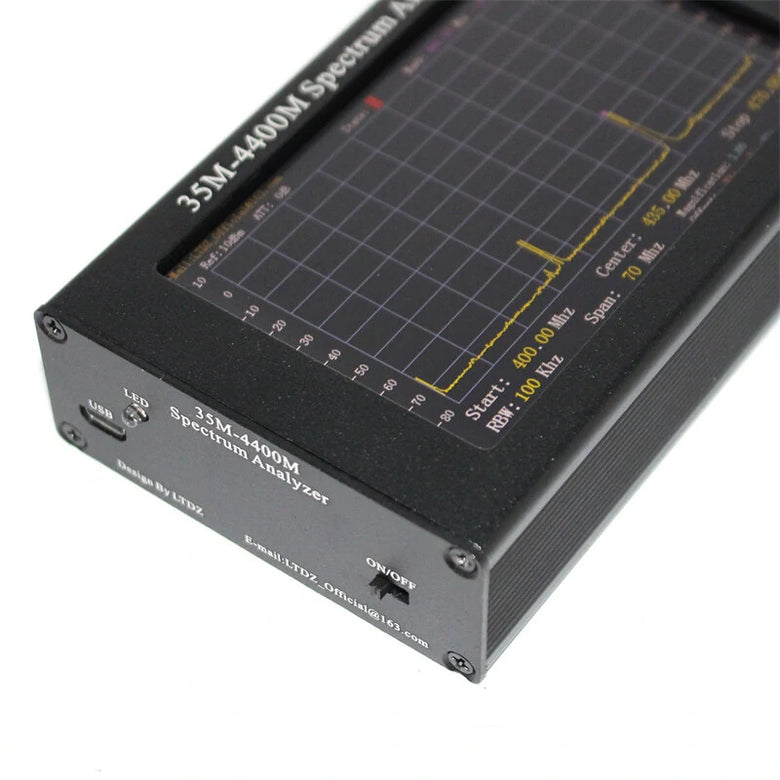

Power Source: USB Power
Features:
1. High Performance and Cost-Effective: This spectrum analyzer is designed to provide high-quality spectrum analysis while maintaining affordability. It features the ADF4351 chip as a reference signal source for accurate frequency measurement and high-performance mixers and detectors.

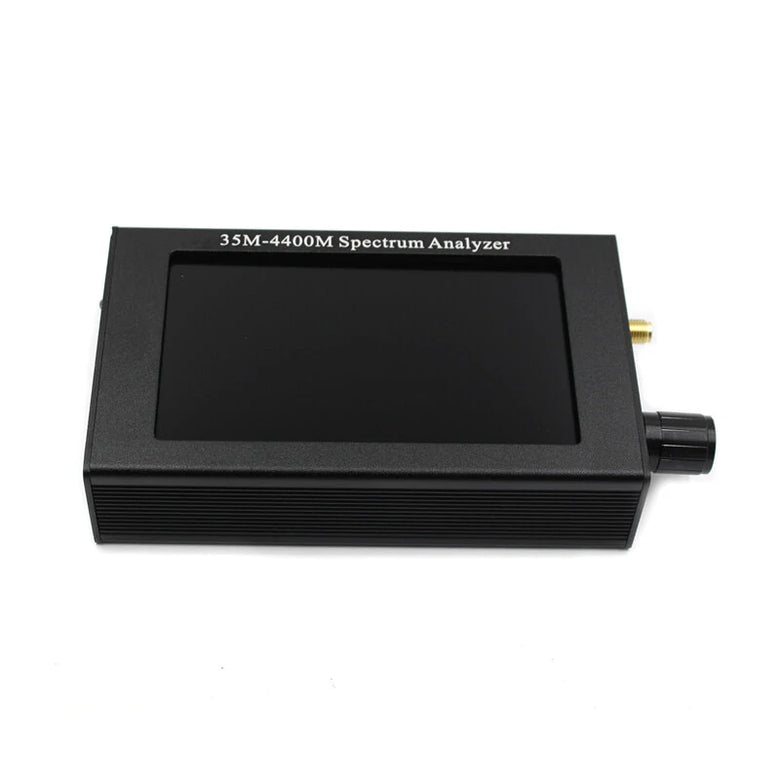

2. Portable Handheld Design: With a compact form factor and a 4.3-inch TFT color LCD screen, this spectrum analyzer is highly portable and suitable for on-the-go use.
3. Wide Frequency Range: It covers a wide frequency range from 35MHz to 4400MHz, making it suitable for analyzing various signals, including interphone signals, 2.4GHz Wi-Fi, and more.
4. Adjustable Resolution Bandwidth: The user can select from multiple RBW options (10kHz, 50kHz, 100kHz, 200kHz, 500kHz) for flexible spectrum analysis based on the specific application.
5. Durable Construction: Housed in a black aluminum alloy casing, this spectrum analyzer is not only rugged but also visually appealing. It comes with a lithium battery for portable usage, and its control interface is user-friendly with a full English display.
Package Include:
1x Spectrum analyzer
1x Glue stick antenna
1x Telescopic antenna
1x Type-C charging data cable
1x Machine corner pad
