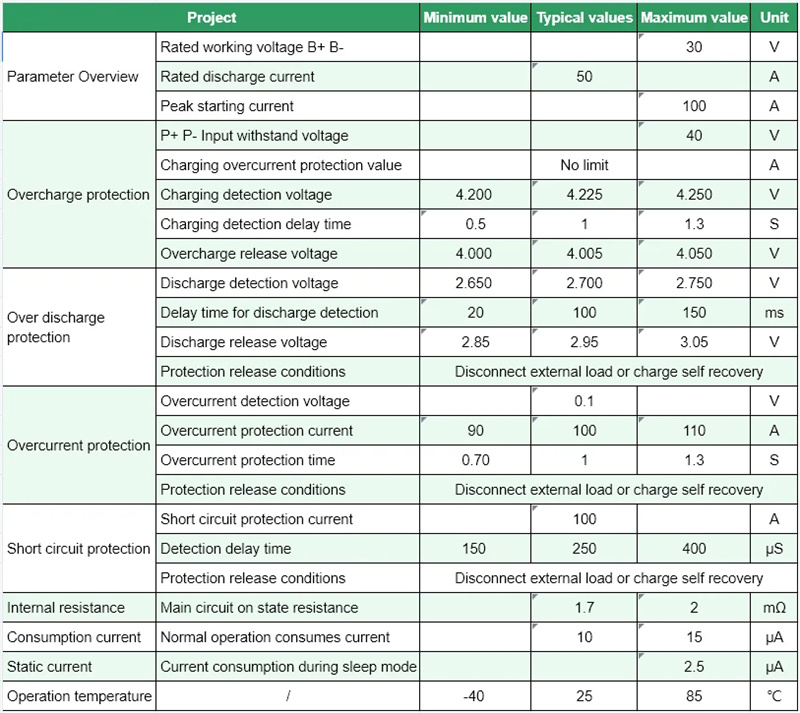

Specifications:
1. Rated working voltage: 30V
2. Rated discharge current: 50A
3. Peak starting current: 100A
4. Input withstand voltage: 40V
5. Charging overcurrent protection value: No limit
6. Charging detection voltage: 4.200 - 4.250V
7. Charging detection delay time: 0.5 - 1.3S
8. Overcharge release voltage: 4.000 - 4.050V
9. Discharge detection voltage: 2.650 - 2.750V
10. Delay time for discharge detection: 20 - 150ms
11. Discharge release voltage: 2.85 - 3.05V
12. Overcurrent detection voltage: 0.1V
13. Overcurrent protection current: 90 - 110A
14. Overcurrent protection time: 0.70 - 1.3S
15. Short circuit protection current: 100A
16. Detection delay time: 150 - 400µS
17. Resistance: Main circuit on state resistance: 1.7 - 2mΩ
18. Current consumption: Normal operation consumes current: 10 - 15µA
19. Static current during sleep mode: 2.5µA
20. Operation temperature range: -40°C to 85°C
Features:

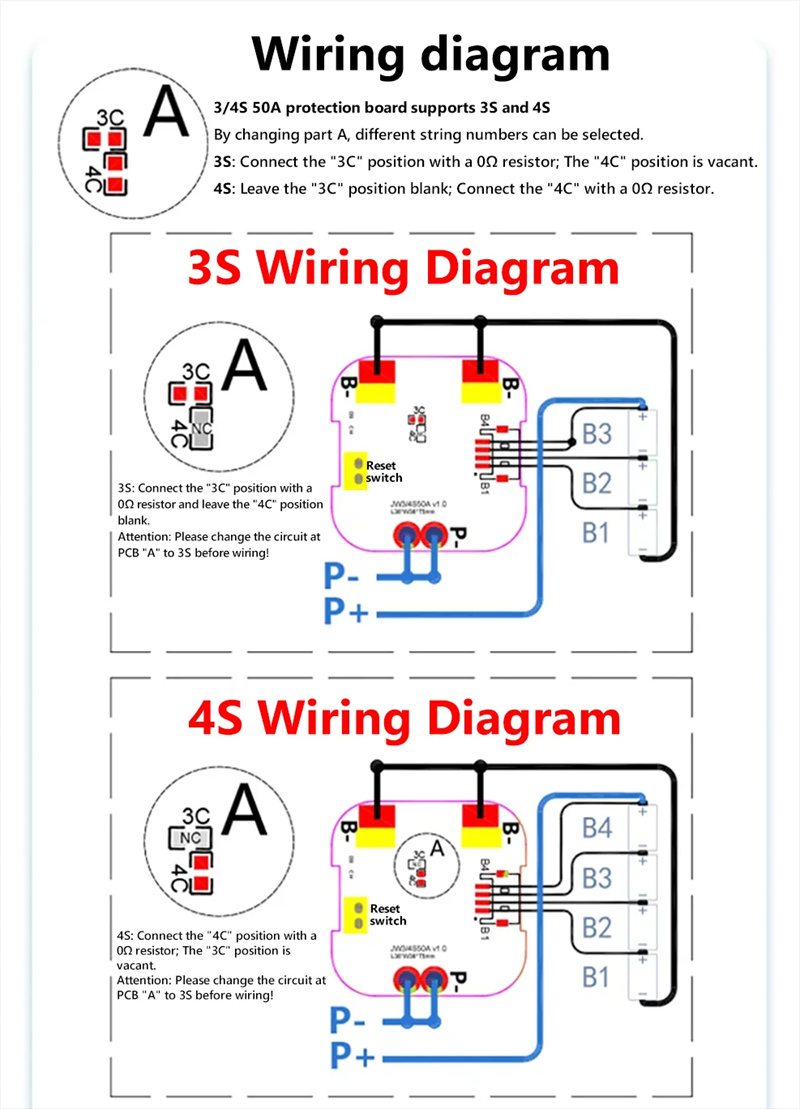

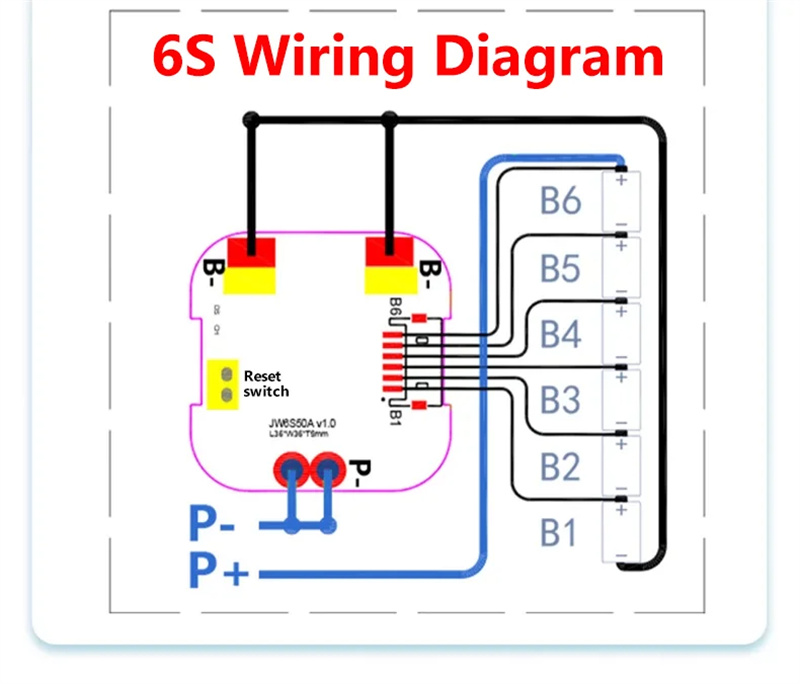

1. Versatile Compatibility: Suitable for various configurations including 3S, 4S, and 6S, ensuring broad application across different devices and electric systems for scooters and other electronic tools.
2. Enhanced Safety Mechanisms: Comprehensive overcharge, over-discharge, overcurrent, and short circuit protection guarantees optimal battery safety, preventing damage and extending battery life.
3. High-Rated Current Capacity: Supports continuous discharge currents up to 50A and peak currents up to 100A, enabling high-performance for demanding applications.
4. Low Power Consumption: Efficient power management with minimal operational and static current consumption ensures prolonged battery usage and reduced energy waste.
5. Robust Temperature Resiliences: Operable in extreme conditions ranging from -40°C to 85°C, offering reliable performance across various environmental settings and temperature extremess.
Package Included:

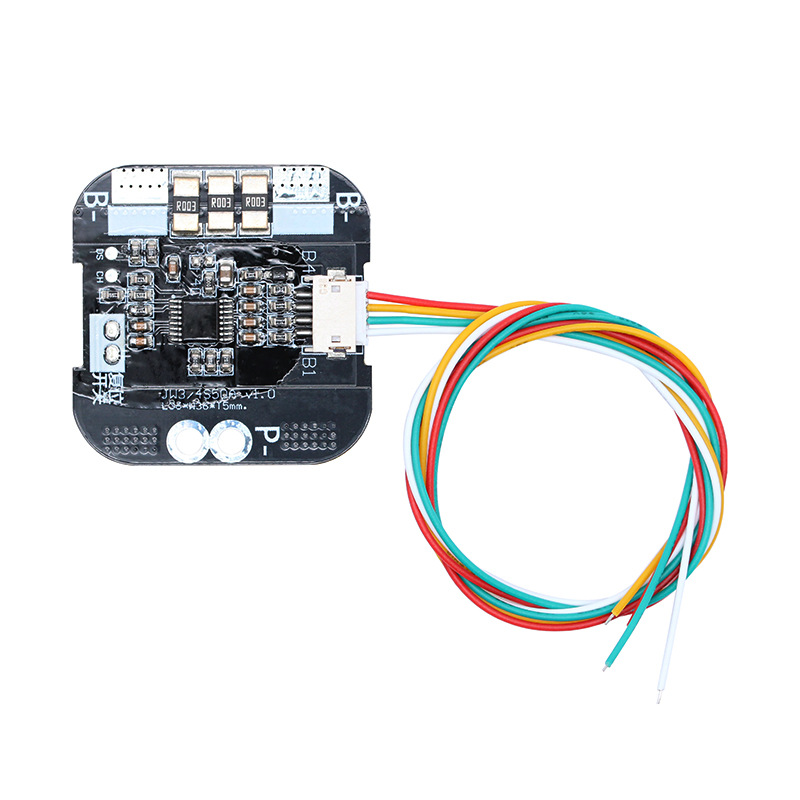

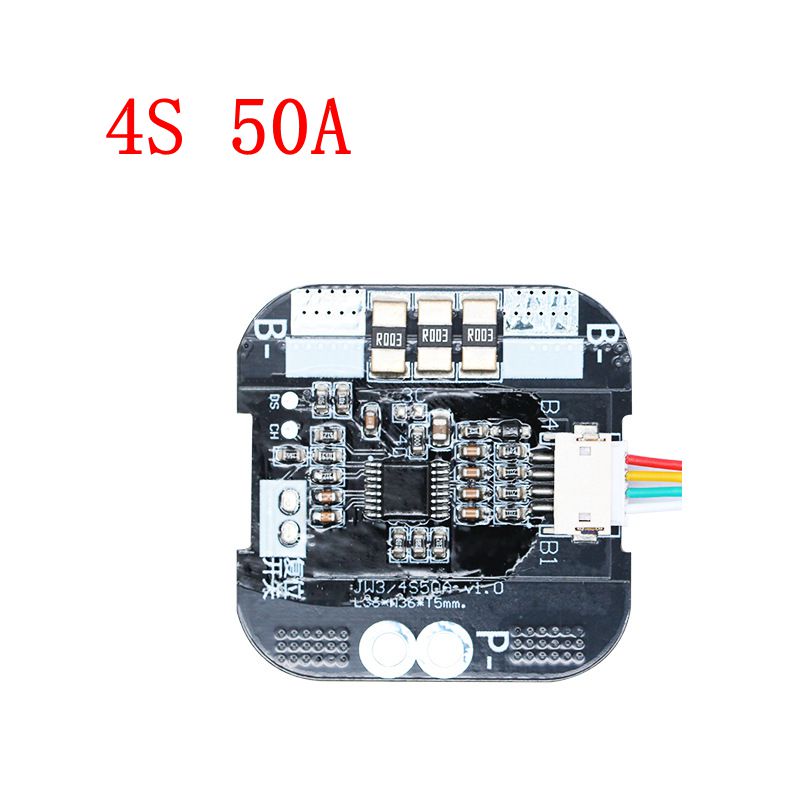

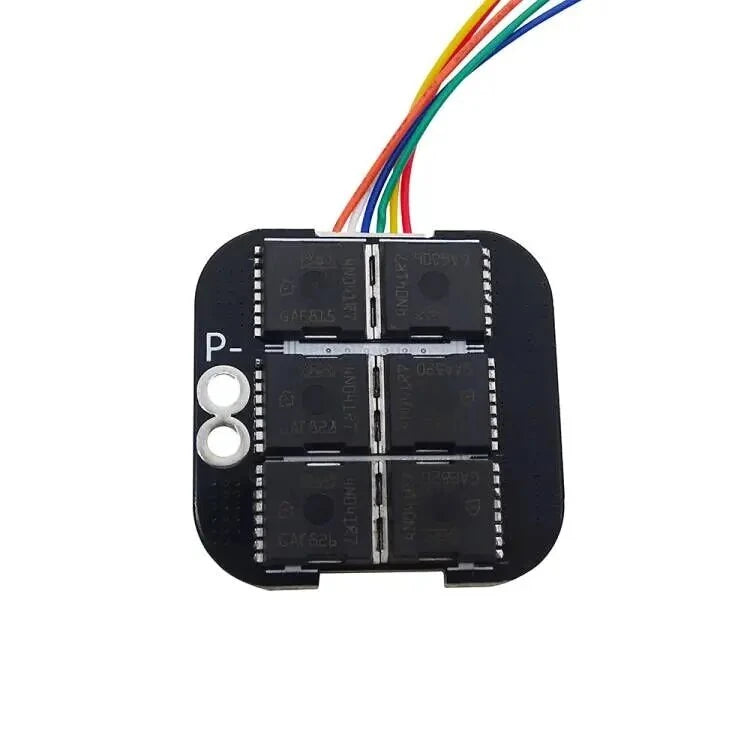

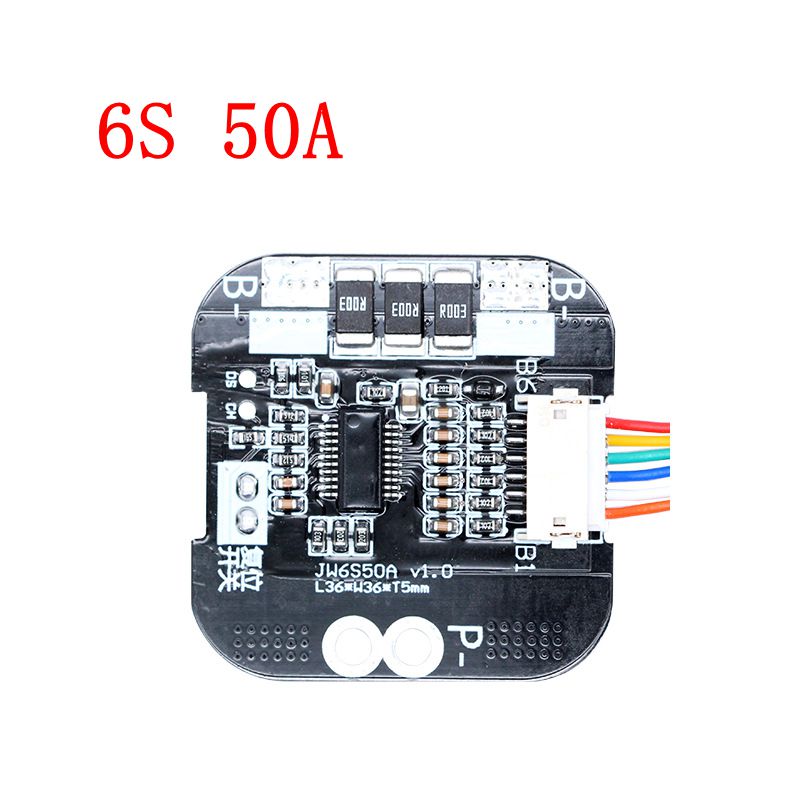

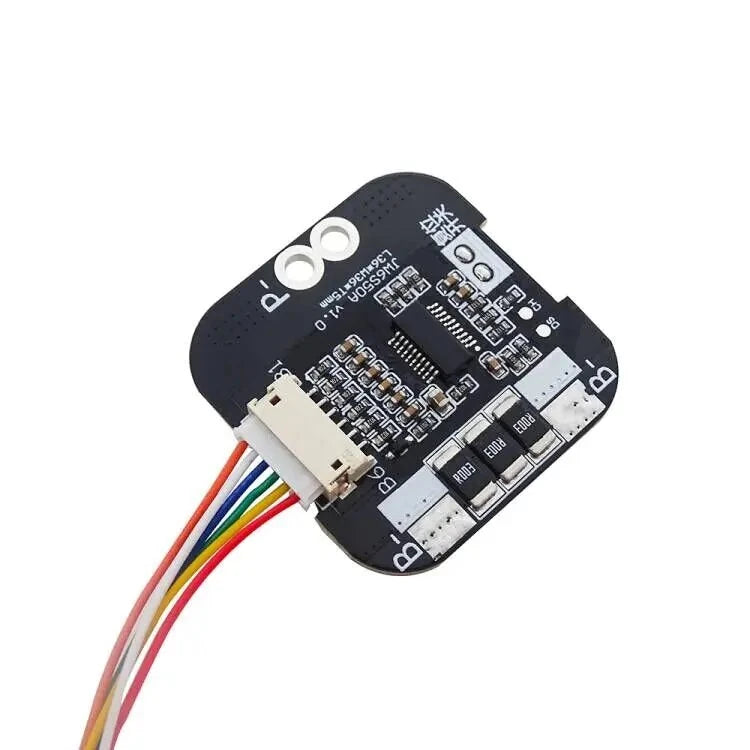

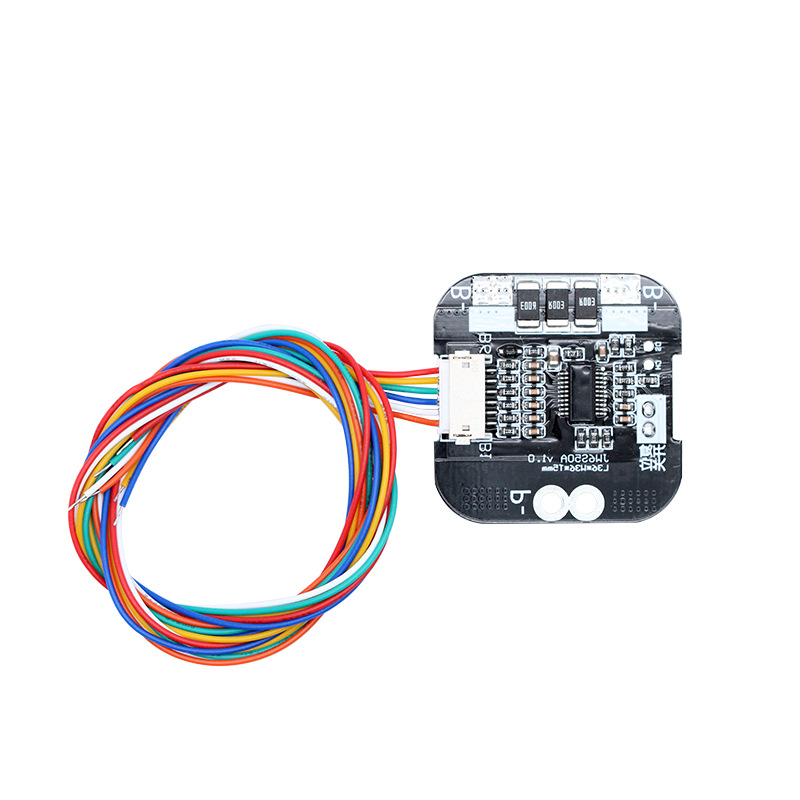

1 x BMS Li-ion Ternary Lithium Battery 3.7V PCB Protection Board
