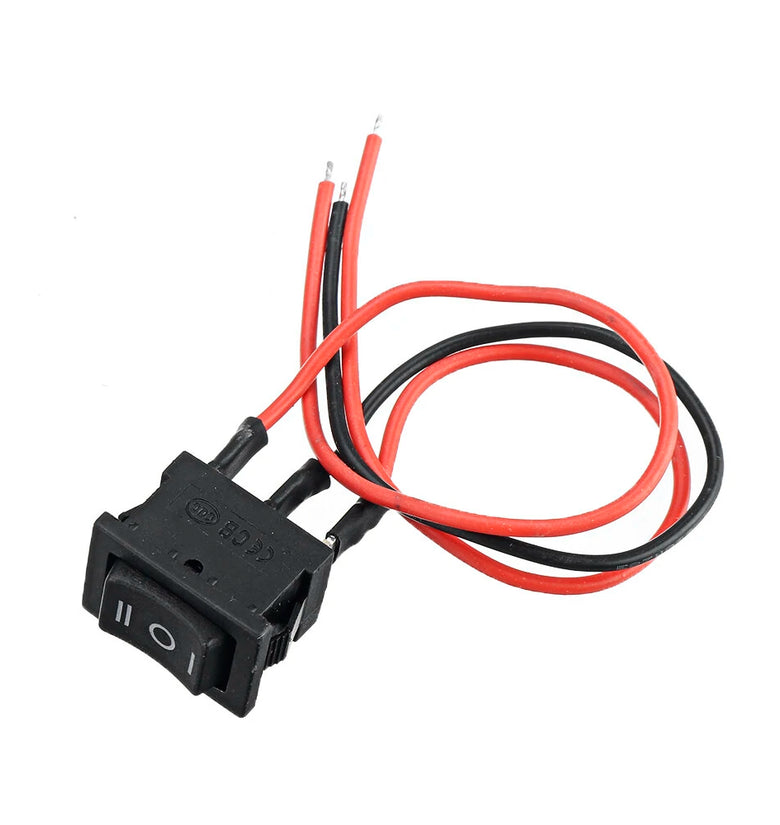

With positive and negative switch, potentiometer knob with switch, you can use PLC to control positive and negative.
Specifications:
Input voltage: DC10-50V
Output voltage: linear under load
Output limit current: 40A (use 20A for a long time, pay attention to keep the module smooth and heat dissipation conditions)
Ultimate power: 2000W
Speed regulation type: flow regulation

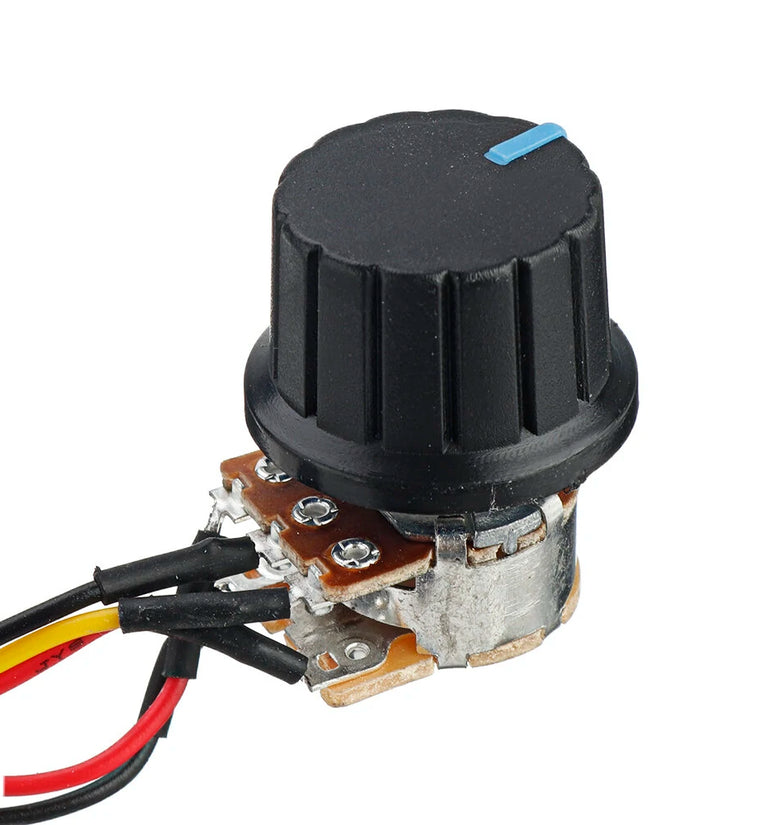

Speed regulation method: potentiometer (linear)
Speed control duty cycle range: 0-100%
Control frequency: 25KHZ
Wiring type: Barrier terminal block
Knob cord length: 20CM

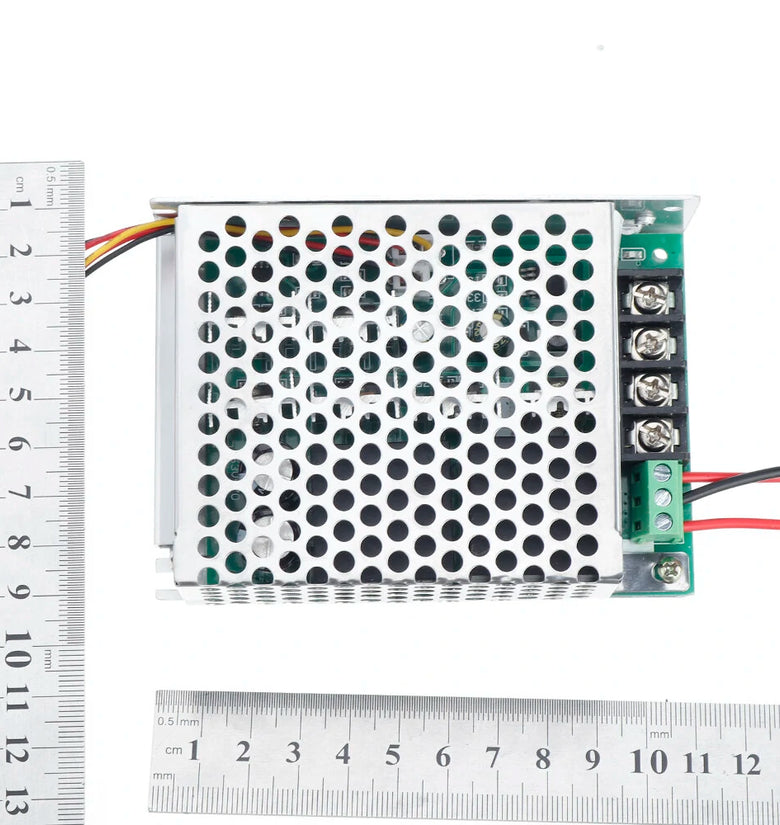

Module size: 110*78*38mm
Net product: 245g
Motherboard installation size: 100*76*28mm
Potentiometer opening according to installation: 7MM
Note:
Before powering on, make sure that the positive and negative connections are correct. Do not touch the heat sink with the wiring, which may burn the circuit board. Note that this is not a power supply module, it must be connected to the motor to adjust the speed, the output of the multimeter will not change without the motor, and it cannot be connected to AC power.
Package Included:

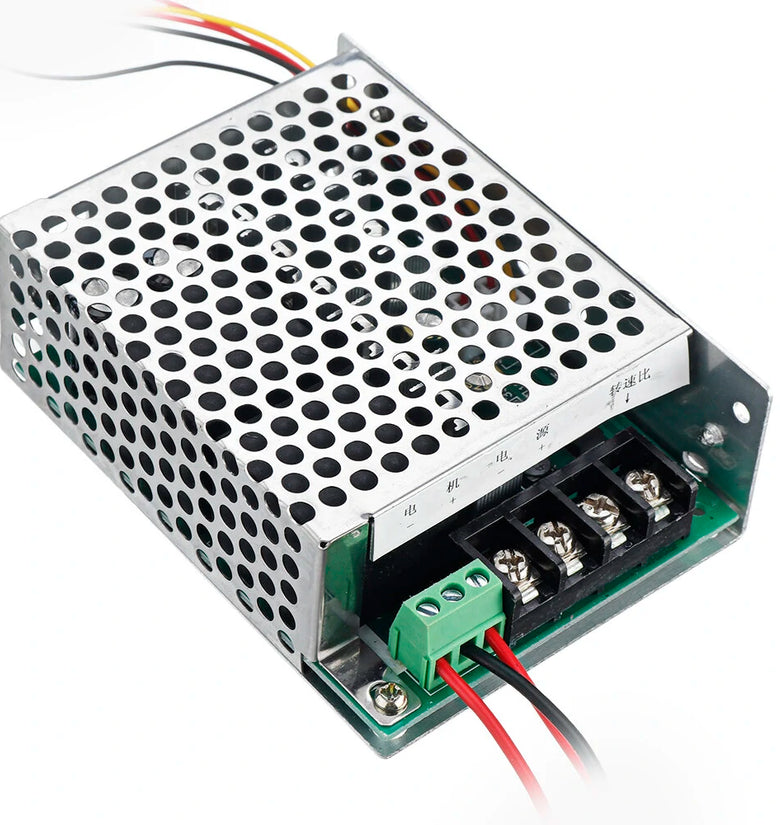

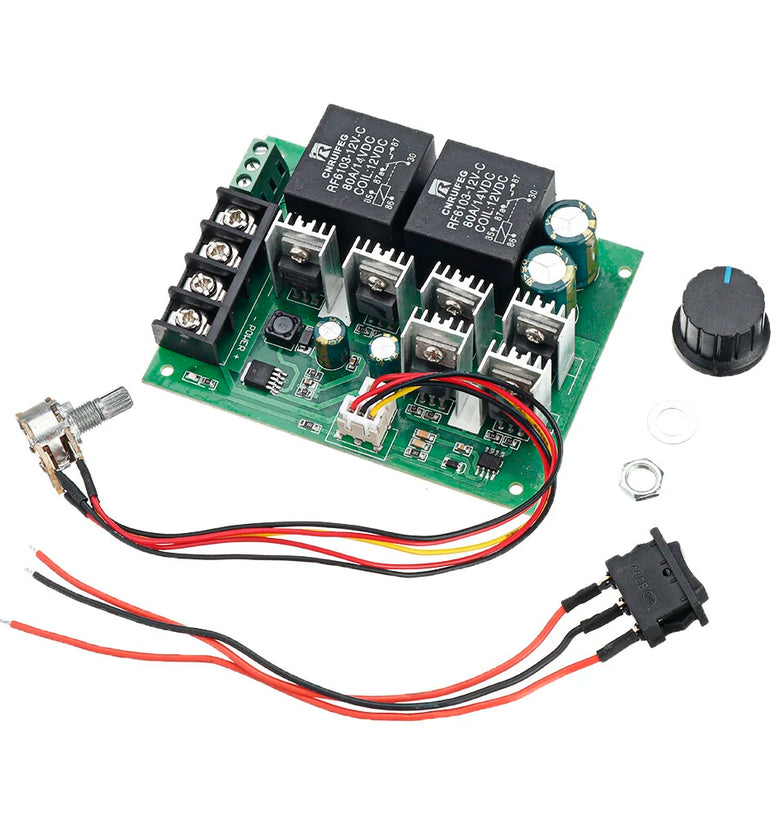

1 x 40A 2000W PWM DC Motor Controller(you can choose with case or not)
