Specification:
| Product name | Dial the code switch |
| Spacing | 2.54MM |
| Operating force | 8N(limited) |
| Push the button trip | 2.00mm |
| Use of temperature | -20℃~+70℃ |
| Storage of temperature | -40℃~+85℃ |
| Contact impedance | Initial value is 50mΩ, and the maximum value after the test is 100mΩ |
| Insulation impedance | Maximum value is 100 megohm and 500VDC |
| Compressive srength | 500VAC/1 minute |
| Event a capacitance | Five pf limit |
| Loop | Single contact selection |
| Electrical life | When tested under voltage 24VDC and current 25mA, it can be toggle back and forth for about 2000 times |
| Rated current for infrequent switching of switches | 10mA, 50VDC |
| The switch frequently switches the rated current | 25mA, 24VDC |

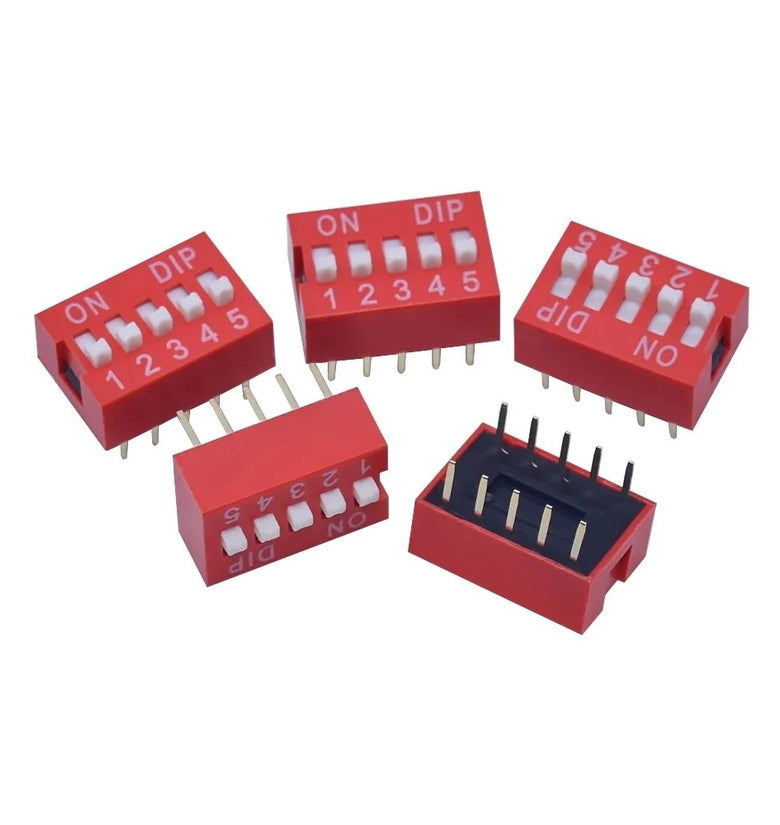

Product introduction:
Shell color: red: (Gold plated pin with high reliability and high temperature resistance)
Contact resistance: <50 mM 2.54mm pin spacing chip dip switch
Widely used in data processing, communication, remote control and anti-theft automatic alarm system, air shower, train model and other manual programming products
Cover: PBT plastic(red)
Base: PBT plastic(black)Operating lever: PBT plastic(white)Pottin adhesive: epoxy resinTerminal: tin plated phosphor bronze, contact gold platedSealing tape: polyimide KAPTONMatters needing attention:1. Ensure that the switch is in the 'OFF' position during all operations;2.Hand welding: use 30W soldering iron control, the temperature is 320°welding time is about 2 seconds;3. Wave welding: solder temperature is recommended at 250+5℃;4. Cleaning process: the use of ultrasonic cleaning. can give better effect the use of steam cleaning the temperature can not exceed 51℃.
Package Included:

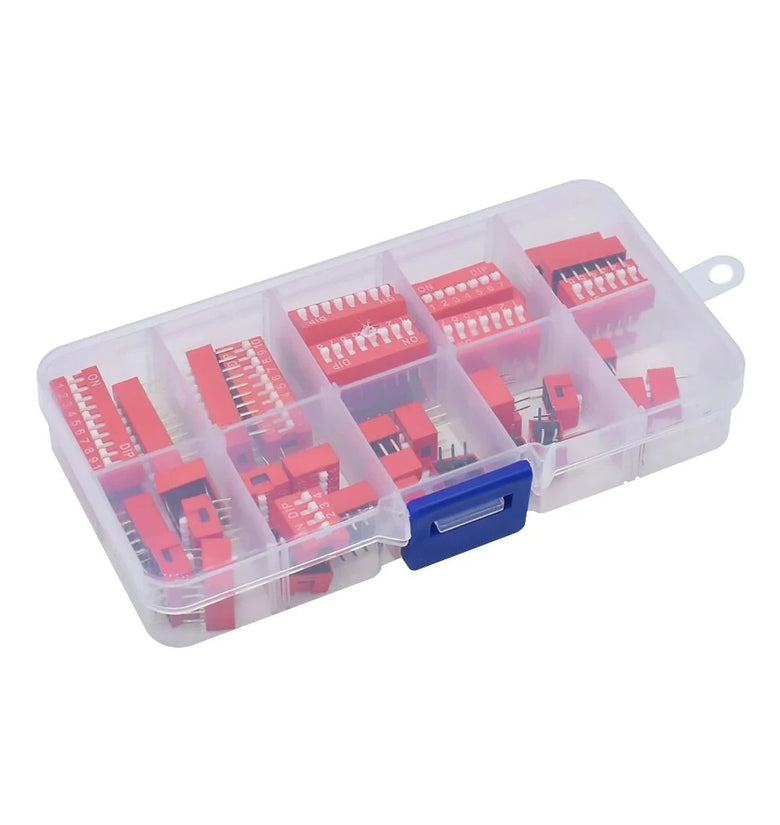

45 x 2.54mm Toggle Switch
