Specifications:
RP-C10-ST:
Thickness: 0.4mm
Trigger force: 20g, default resistance is less than 200kΩ
Pressure sensing range: 20g~2kg
Pressure action mode: static or dynamic (frequency within 10Hz)
Non-trigger resistance: greater than 10MΩ
Activation time: less than 0.01 seconds
Operating temperature: -40℃~+85℃
Hysteresis: +10%, (RF+-RF-)/FR+, 1000g force
Response time: <10ms

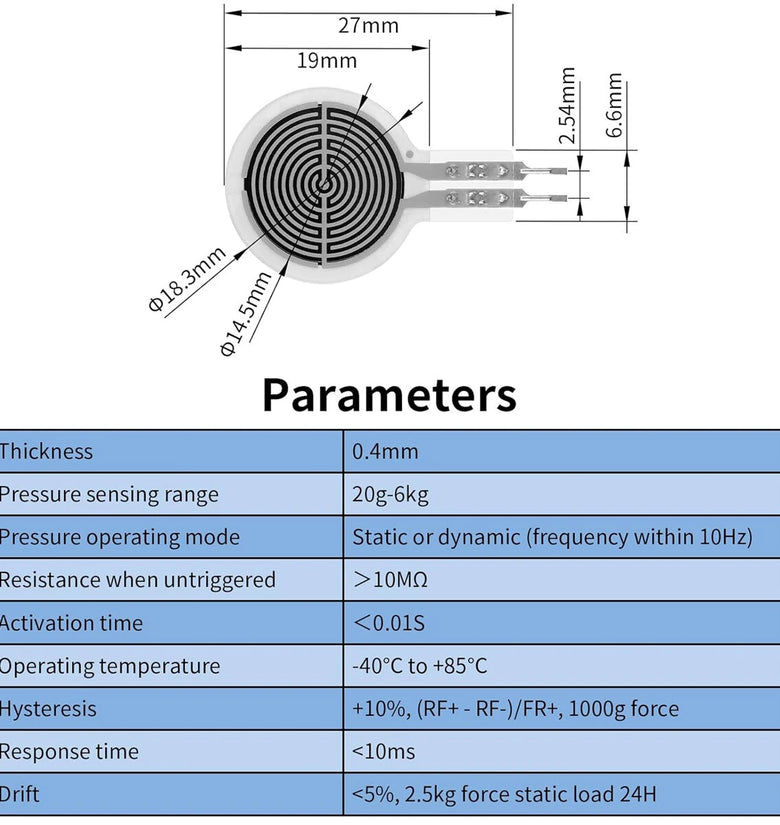

RP-C18.3-ST:
Thickness: 0.4mm
Pressure sensing range: 20g-6kg
Pressure operating mode: Static or dynamic (frequency within 10Hz)
Resistance when untriggered: >10MΩ
Activation time: <0.01s
Operating temperature: -40°C to +85C
Hysteresis: +10%,(RF+- RF-)/FR+, 1000g force
Response time: <10ms
Drift: <5%, 2.5kg force static load 24H

Features:
1. The RP-C pressure sensor is a cutting-edge force-sensitive resistor that offers a fast response time of less than 10ms. With a slim profile of only 0.4mm, this thin-film pressure sensor is ideal for Arduino projects and other applications that require accurate pressure measurement in the range of 20g to 2kg.
2. The RP-C forces sensor is designed for over one million uses, ensuring stable performance with a resistance error of no more than 3%. Its high sensitivity, triggered at only 20g-force, makes it an ideal pressure sensor for Arduino enthusiasts and professionals.
3. The flexible design and static or dynamic pressure mode of this pressure sensor make it versatile. Whether for industrial use or DIY projects, the RP-C can accommodate static and dynamic pressures at frequencies up to 10Hz.
4. The default resistance of the RP-C pressure sensor is less than 200kΩ, and its performance is stable and reliable. It operates perfectly in a temperature range of -40°C to +85°C, ensuring durability and accuracy in a variety of environments.
5. The RP-C pressure sensor is designed to be immune to electromagnetic interference (EMI) and electrostatic discharge (EDS), ensuring accurate and uninterrupted readings. Its hysteresis remains within +10% and exhibits minimal deviation after 24 hours of static loading of 1 kg.

Package Include:
4 x RP-C Pressure Sensor(RP-C10-ST/RP-C18.3-ST Optional)
