Specifications:
Input Voltage: DC up to 63V (Voltage can be increased by replacing electrolytic capacitors)
Output Voltage: DC
Current Rating: 6A or 12A options available

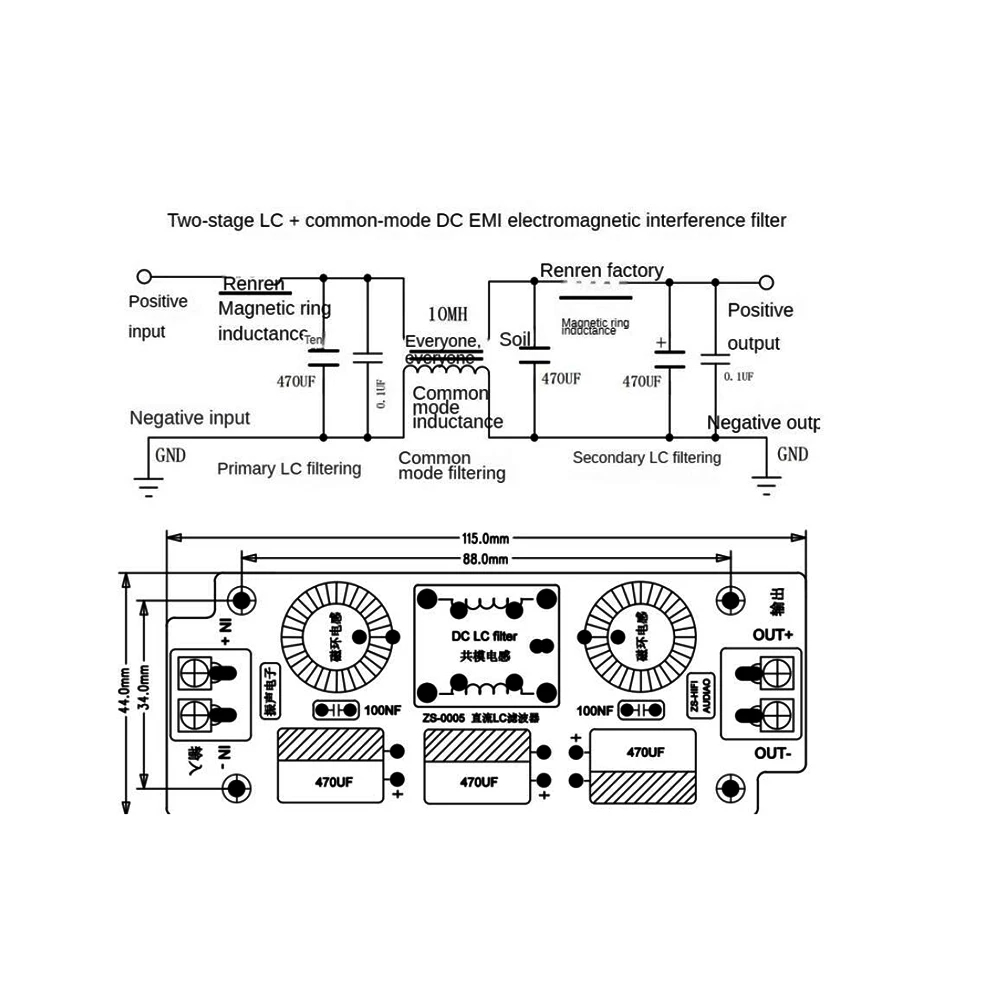

Circuit Composition:
First Stage: Level LC Filter
Second Stage: Common-Mode EMI Filter
Third Stage: Two-Stage LC Filter

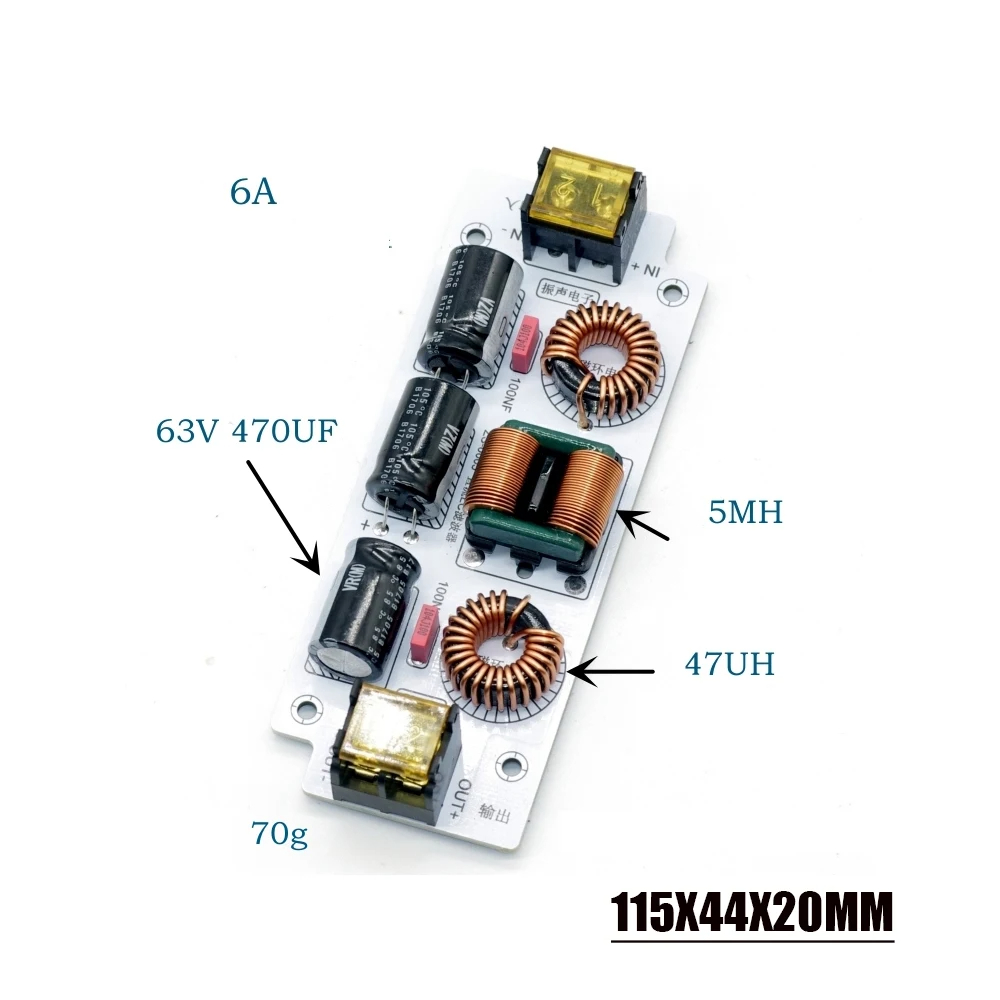

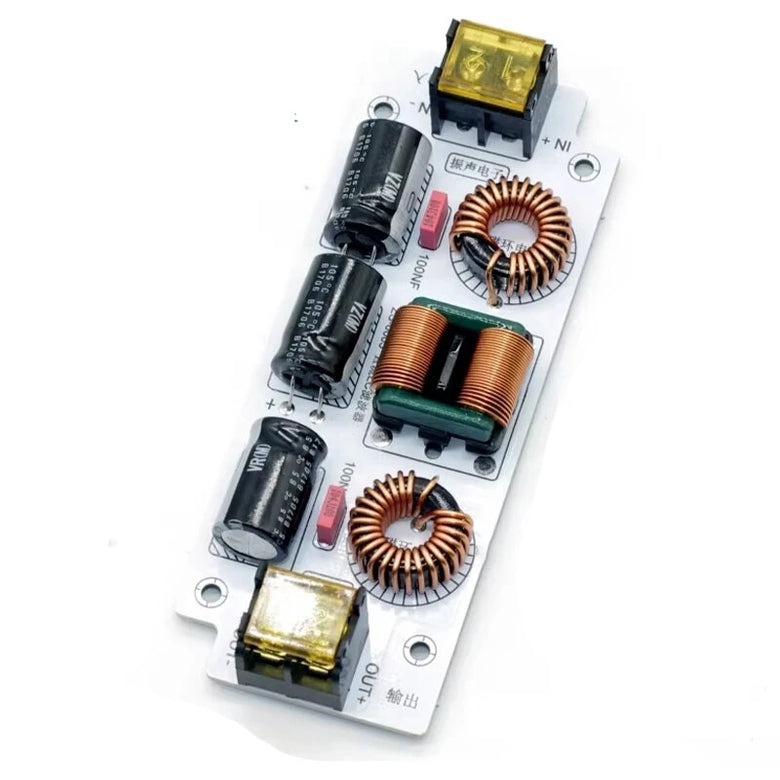

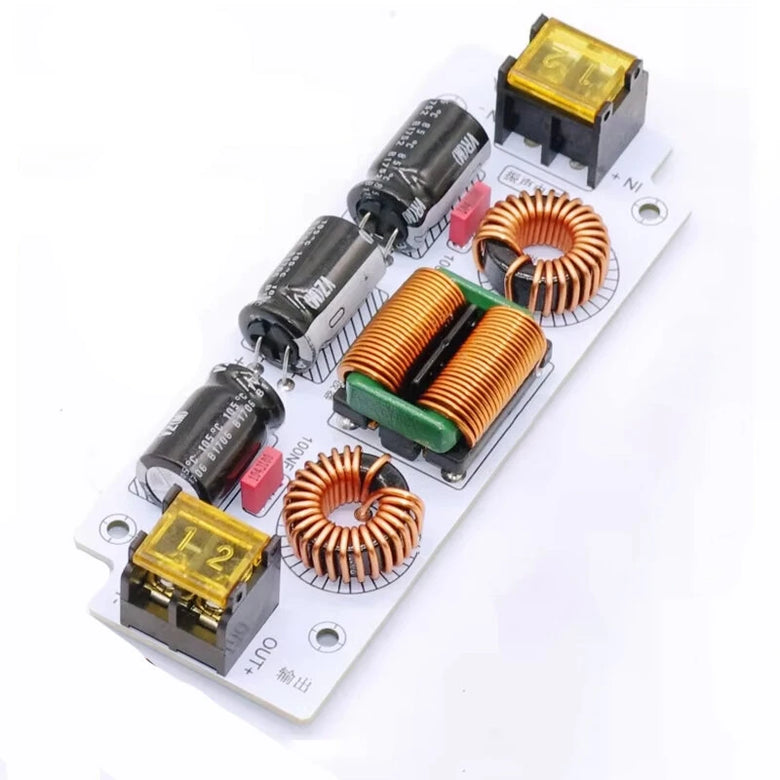

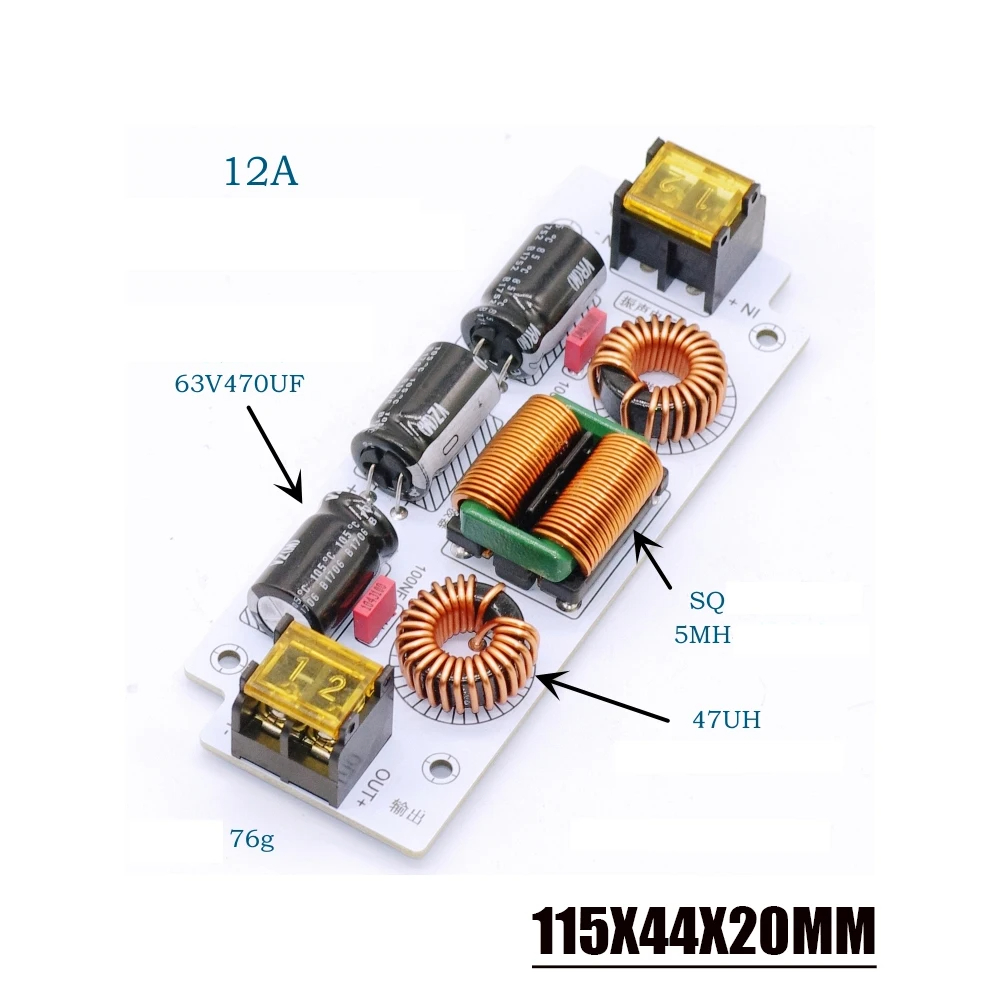

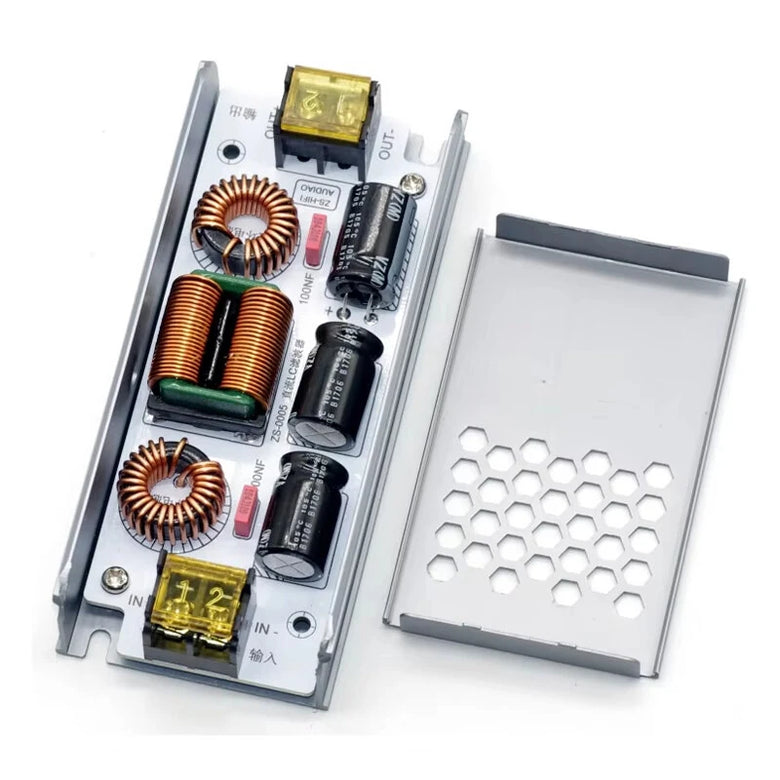

Main Components:
Circuit Board: Double-sided FR4 fiberglass board
Electrolytic Capacitors: 63V 470μF, diameter 13mm, quantity: 3 (Brands may vary due to supply fluctuations)
Film Capacitors: 100nF, quantity: 2
Magnetic Ring Inductors: Iron-silicon-aluminum inductors, quantity: 2
Common Mode Inductor: Flat copper inductor, quantity: 1
Sockets: 7.62mm pitch, 2-pin connectors, quantity: 2

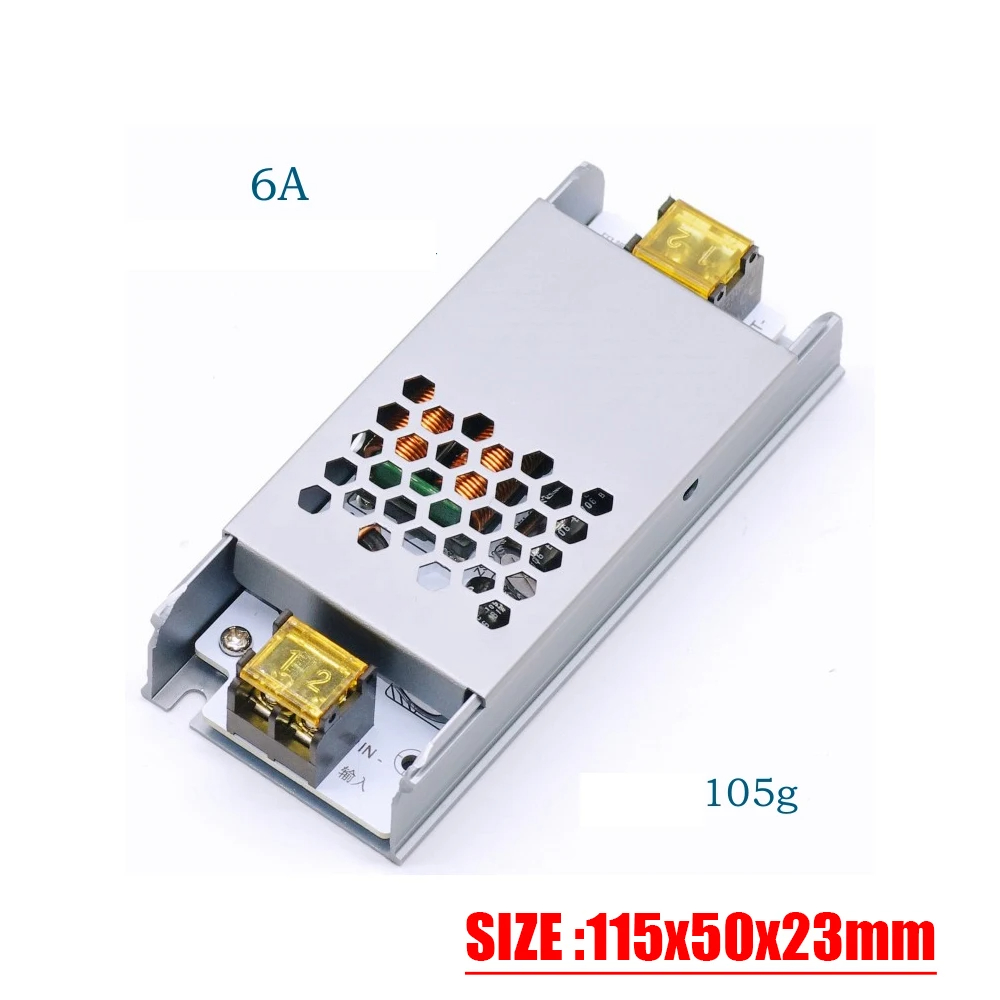

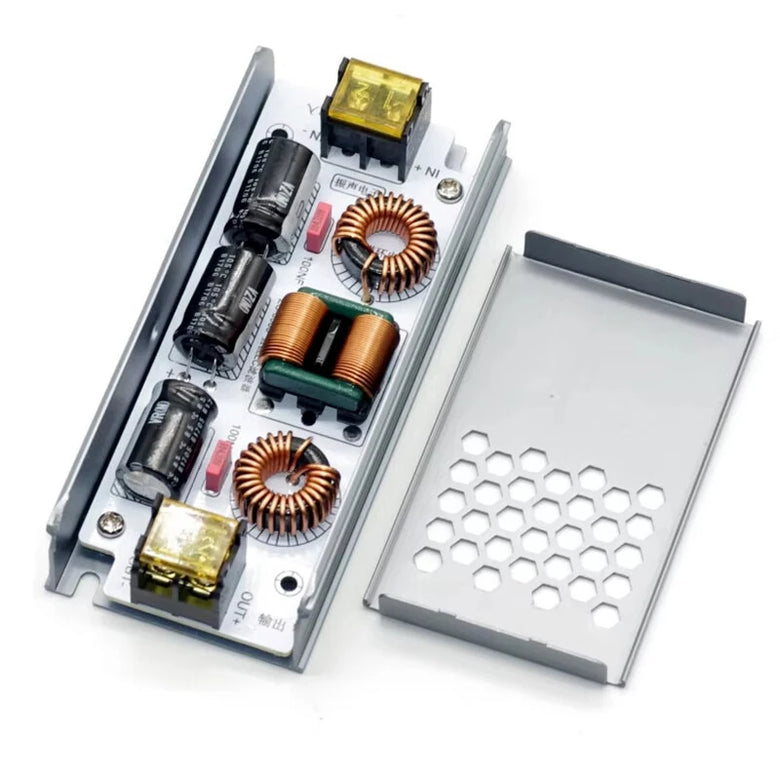

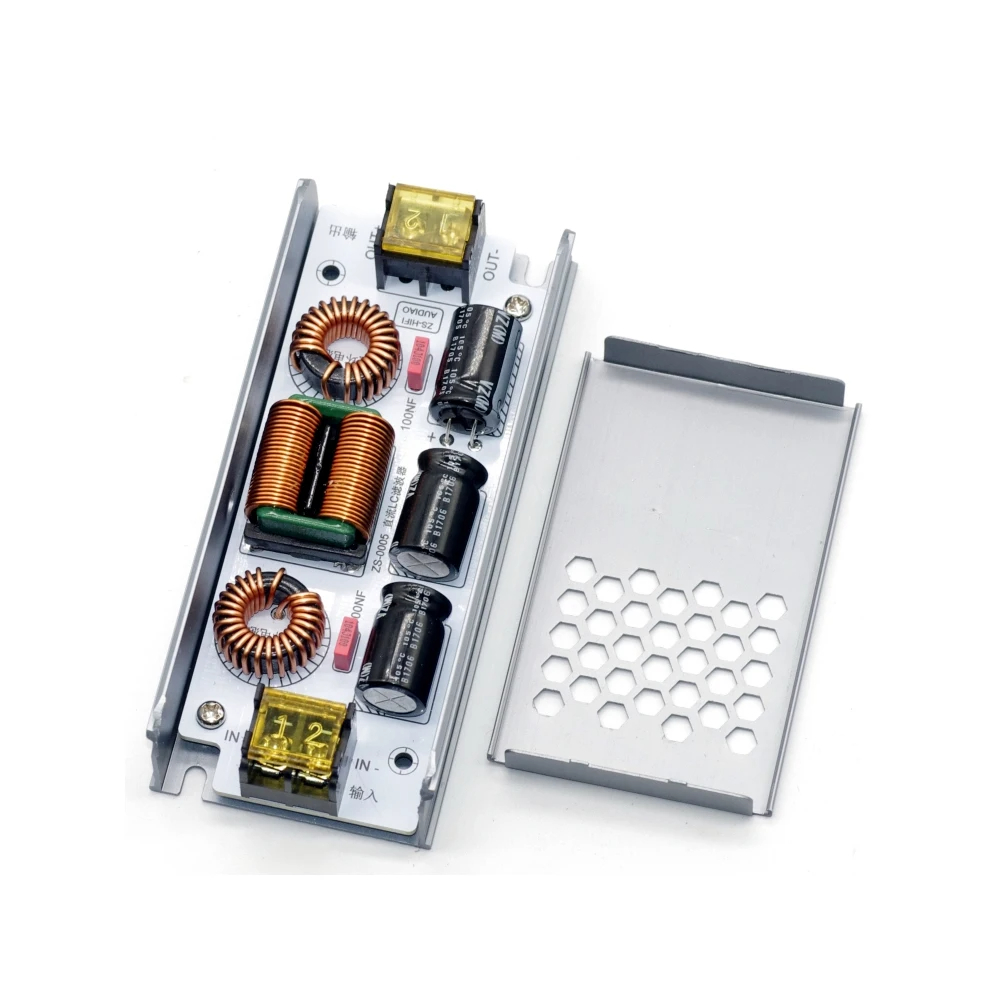

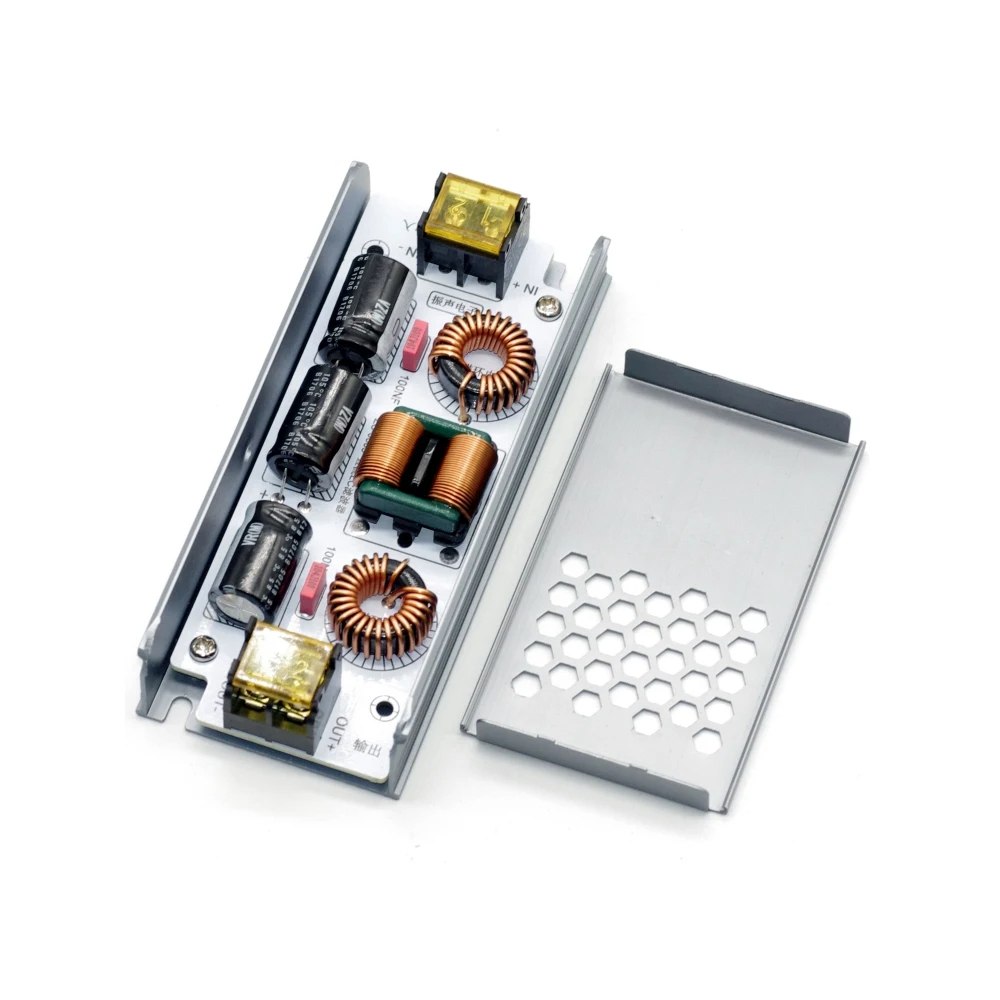

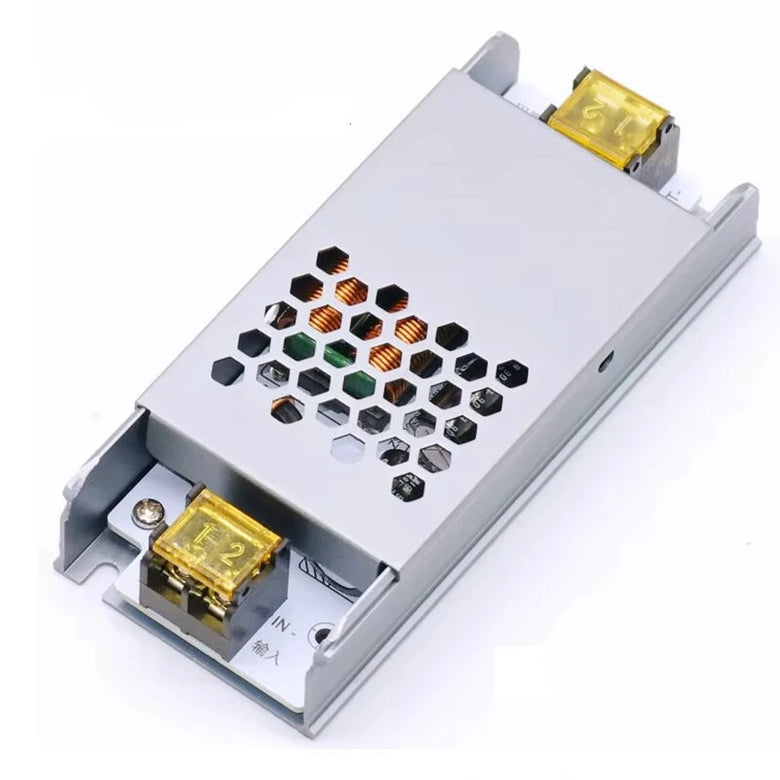

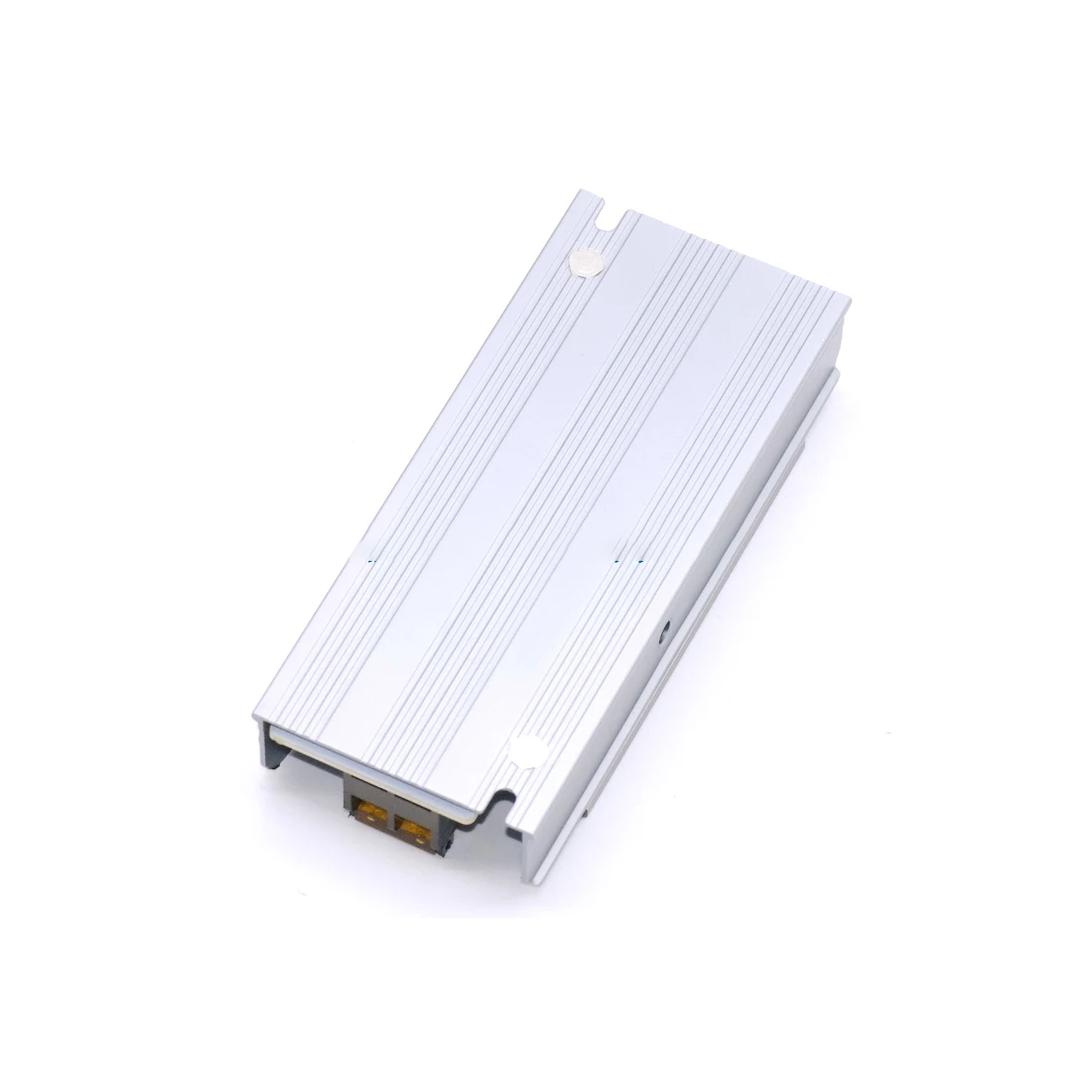

Housing: Aluminum alloy housing (optional, as required)
Features:
1. Multi-Stage Filtering for Superior Noise Reduction: Combines level LC filtering, common-mode EMI suppression, and two-stage LC filtering to effectively eliminate electromagnetic interference in DC power systems.
2. High Voltage and Current Capacity: Supports DC voltages up to 63V and handles currents of 6A or 12A, making it suitable for a wide range of applications.
3. Premium Quality Components: Constructed with a double-sided FR4 fiberglass PCB and high-quality capacitors and inductors to ensure reliable performance and effective ripple filtration.
4. Versatile Application Scenarios: Ideal for use after switching power supplies, in automotive and motorcycle electrical systems, and in any DC circuits experiencing strong electromagnetic interference.
5. Easy Integration: Features 7.62mm pitch sockets for straightforward installation and compatibility with existing setups; optional aluminum alloy housing provides additional protection if required.
Package Includes:
1 x DC LC Low-Pass High-Frequency EMI Electromagnetic Interference Filter Module Board (6A or 12A, With Case or No Case depending on selection)
