Note: This item does not support long-running programming, otherwise the screen will be damaged and the warranty will be void.
Specifications:
Model: LR79
Size: 7.9inch TFT-LCD
LCD Type: IPS
Resolution: 400*1280
Touch Function: No
Dot Pitch: 0.1485(H)x0.1485(V)
Signal Interface: MIPI
Refresh Rate: 60Hz
Viewing Direction: Free
View Angle: 170°Full View Angle
Size Ratio: 5:16
Response Time: 40ms(Typ.)(Tr+Tf)
Contrast Ratio: 900:1
Brightness: 500cd/㎡

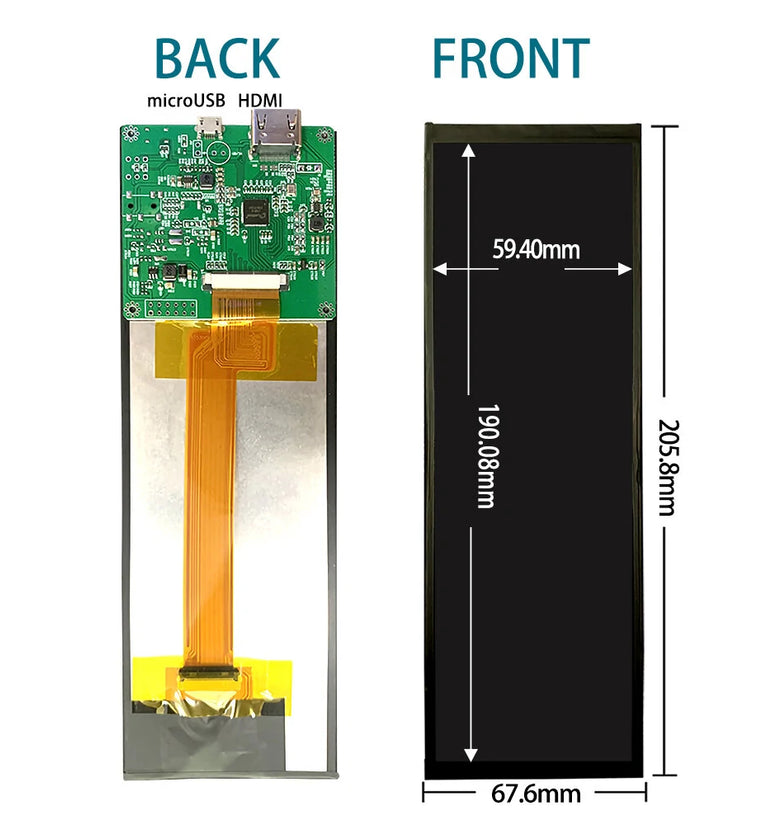

Outline Dimension: 67.6(W)x205.8(H)x13.3(T)mm
Active Area: 59.40(W)x190.08(H)mm
Color Gamut: 70% NTSC
Display Colors: 16.7M
Backlight: WLED(19.2V (Type.))
Connector: 30pins ZIF
Thickness: 16.5(mm)
Display Input: HDMI1.4
Audio Out: NO
When used on Raspberry Pi, you need to modify the 'config.txt'
Add the following code to the config.txt file:
max_usb_current=1
hdm_group=2
hdm_mode=87
hdm_timings=400 0 100 10 140 1280 10 20 20 2 0 0 0 60 0 43000000 3
Note: If it is Raspberry Pi 4, you also need to comment out dtoverlay=vc4-fkms-V3D.
Package includes:
1 x 7.9inch LCD Screen
1 x Cable
1 x USB cable
