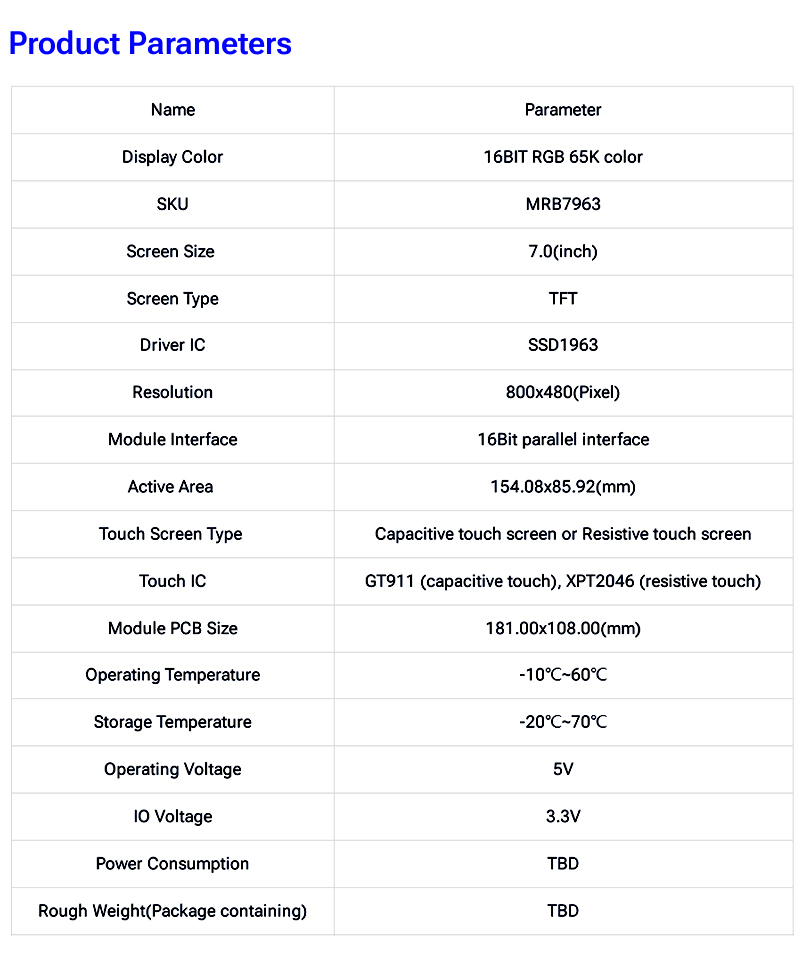

Specifications:
Display Color: 16-bit RGB 65K color
Screen Size: 7.0 inch
Screen Type: TFT LCD
Driver IC: SSD1963
Resolution: 800 x 480 pixels

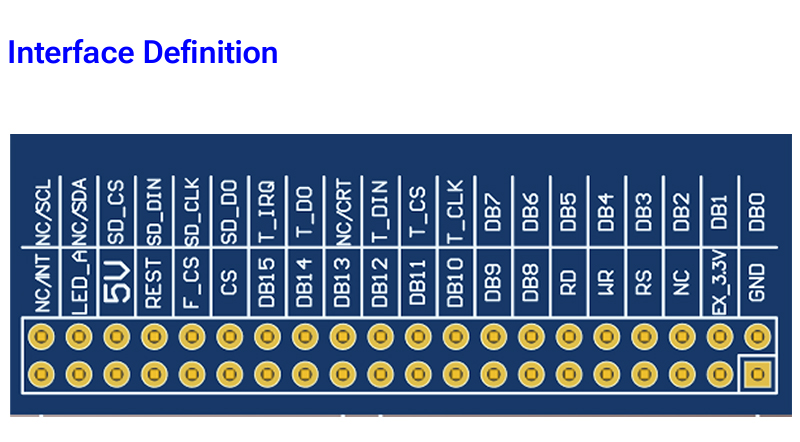

Module Interface: 16-bit parallel interface
Active Area: 154.08 x 85.92 mm
Touch Screen Type: Resistive touch screen
Touch IC: GT911 (capacitive touch), XPT2046 (resistive touch)

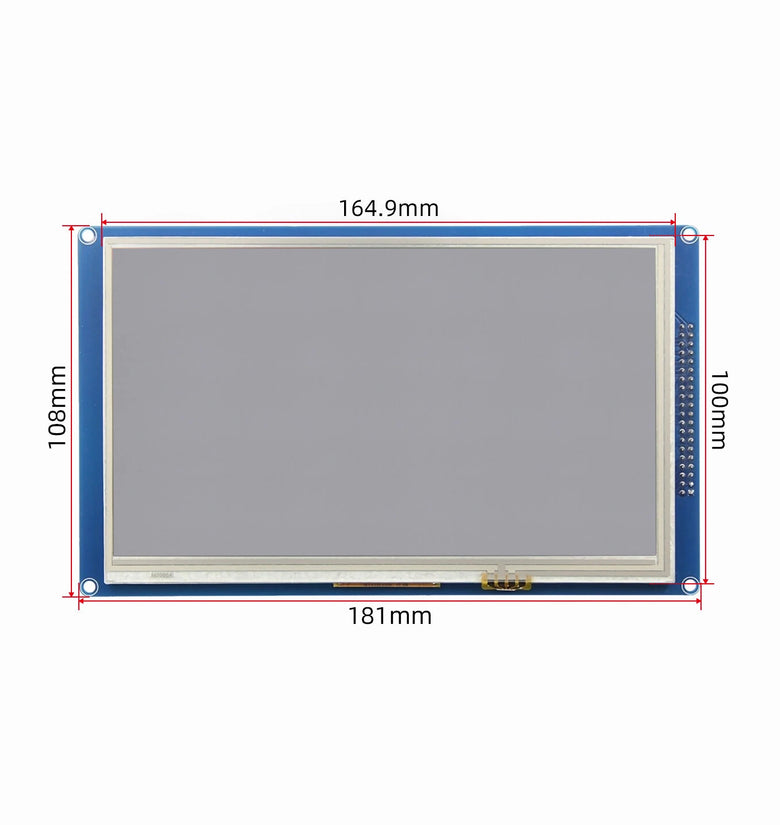

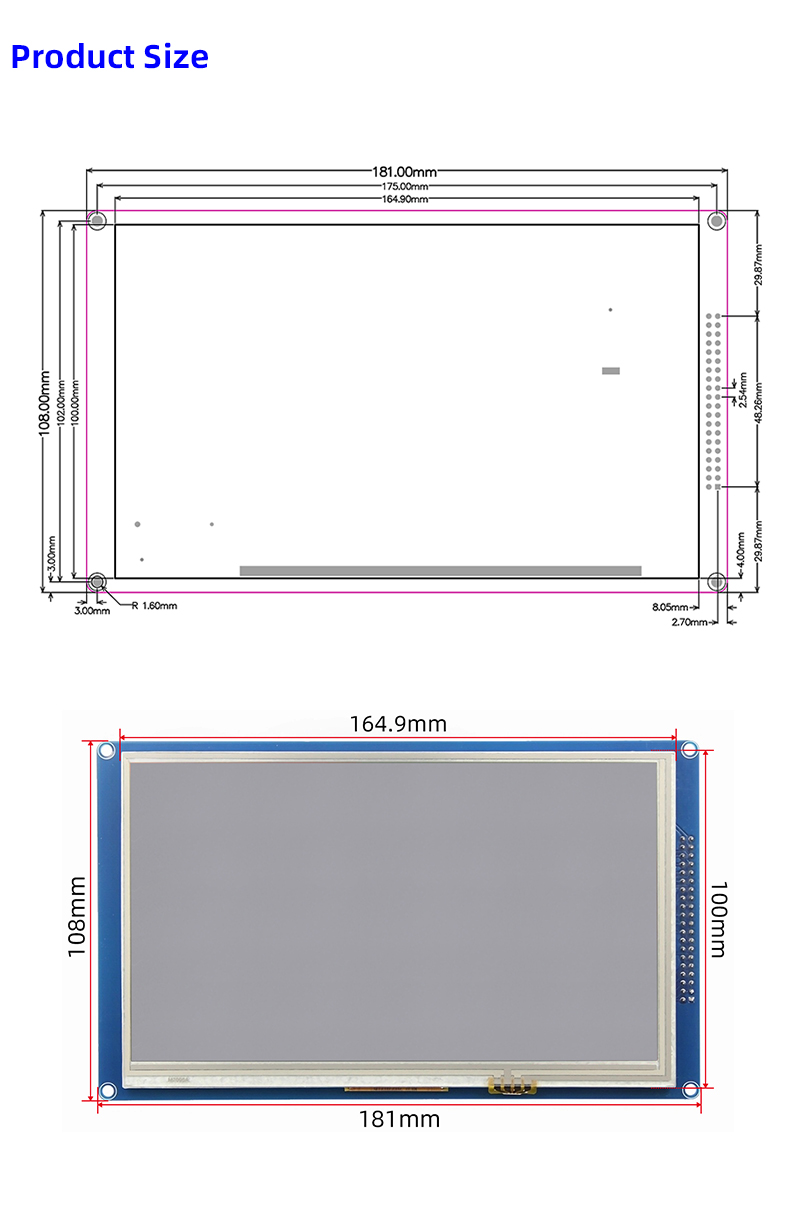

Module PCB Size: 181.00 x 108.00 mm
Operating Temperature: -10°C ~ 60°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 5V
I/O Voltage: 3.3V

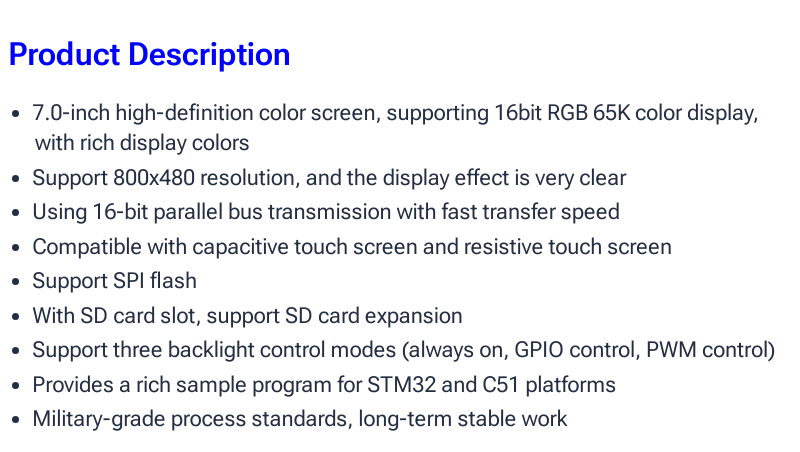

Features:

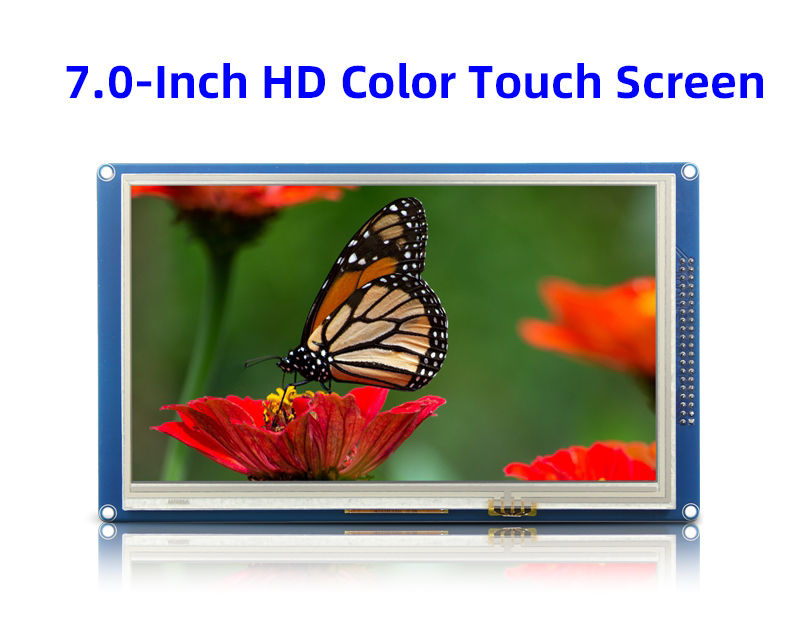

1. High-Quality Visual Experience
Equipped with a vivid 7-inch display offering 16-bit RGB 65K colors and 800x480 resolution, delivering crisp and detailed visuals for a wide range of applications.
2. Versatile Touch Compatibility
Supports both capacitive and resistive touch screen options, making it adaptable to various user input preferences and environments.
3. Efficient Data Transmission
Designed with a 16-bit parallel bus interface for fast and reliable communication, ensuring seamless integration into embedded systems.
4. Expandable Storage Options
Includes an SD card slot for storage expansion, providing flexibility for multimedia and large-data applications.
5. Stable Performance under Tough Conditions
Manufactured with robust procedures to ensure consistent performance within a wide temperature range from -10°C to 60°C.
Package Included:

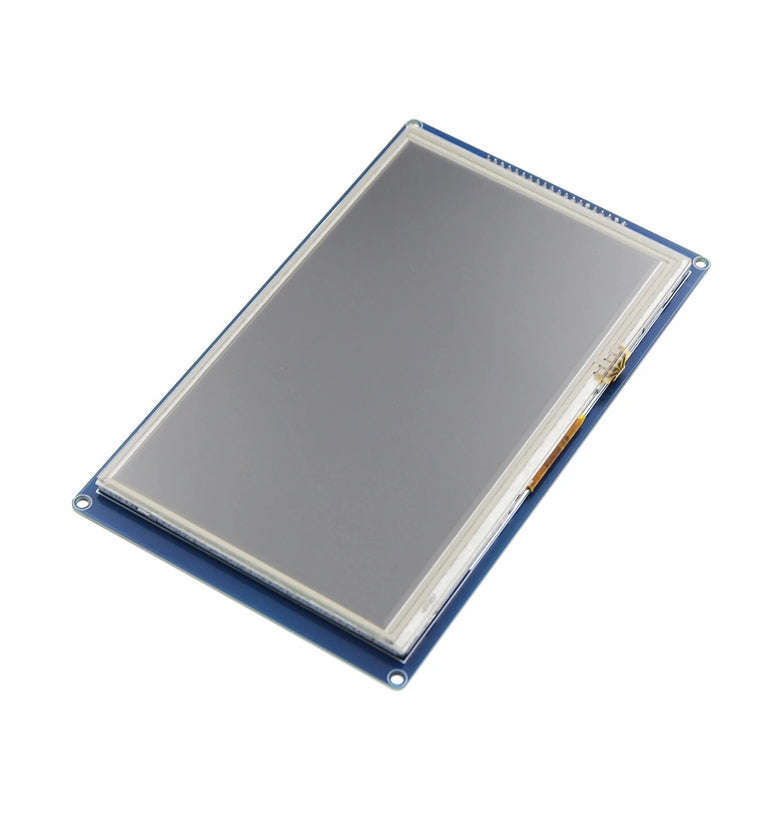

1 x 7-Inch TFT LCD Module
