Specifications:
Working Voltage: 3V-5V
Static Output Voltage: VCC/2
Working Current: 135mA (MAX)
Storage Temperature Range: -65°C to 165°C
Maximum Output Current (VIOUT-GND): 3mA
Internal Bandwidth: 120 KHz
Module Size: 37mm x 18mm
Features:

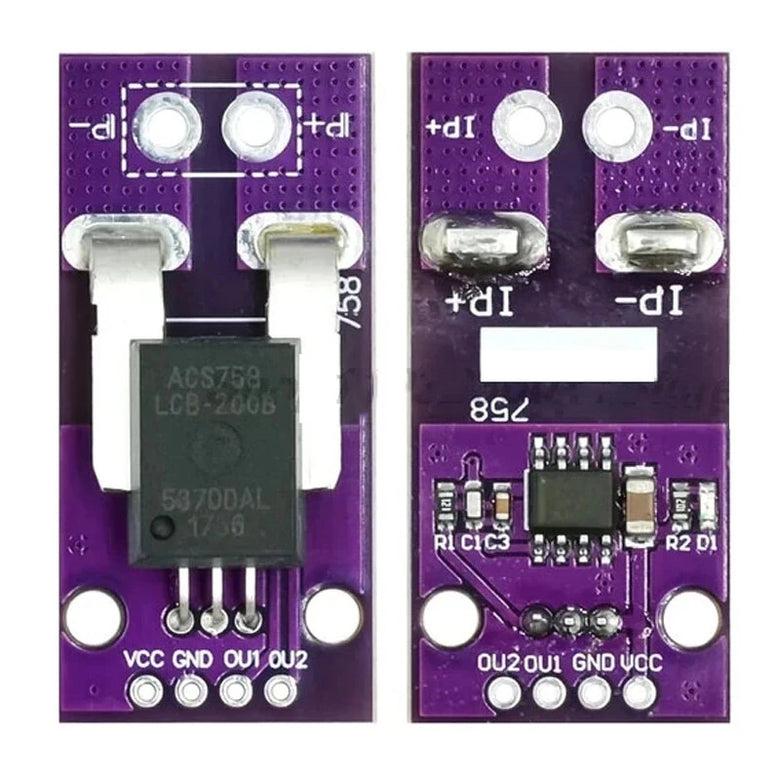

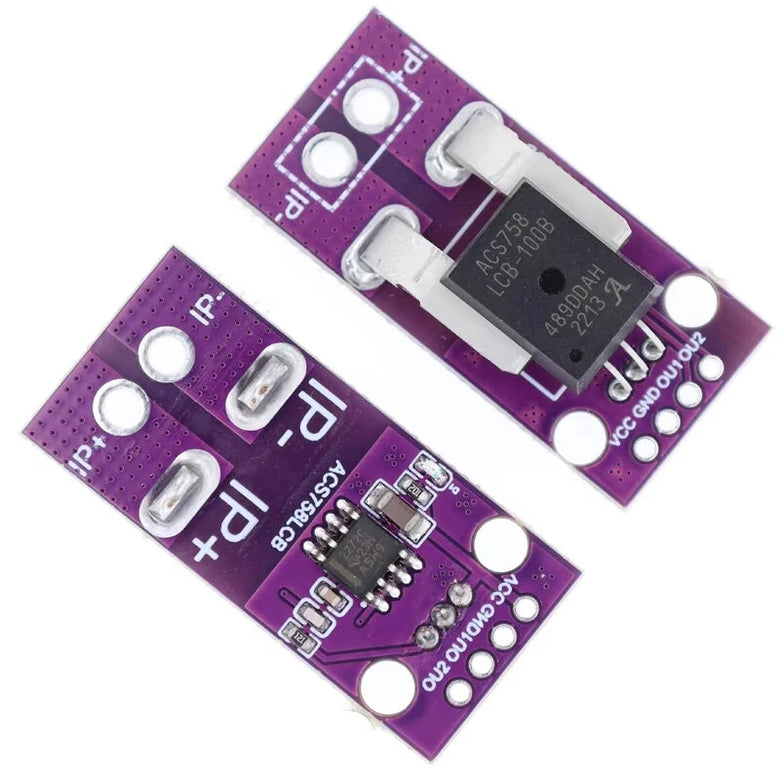

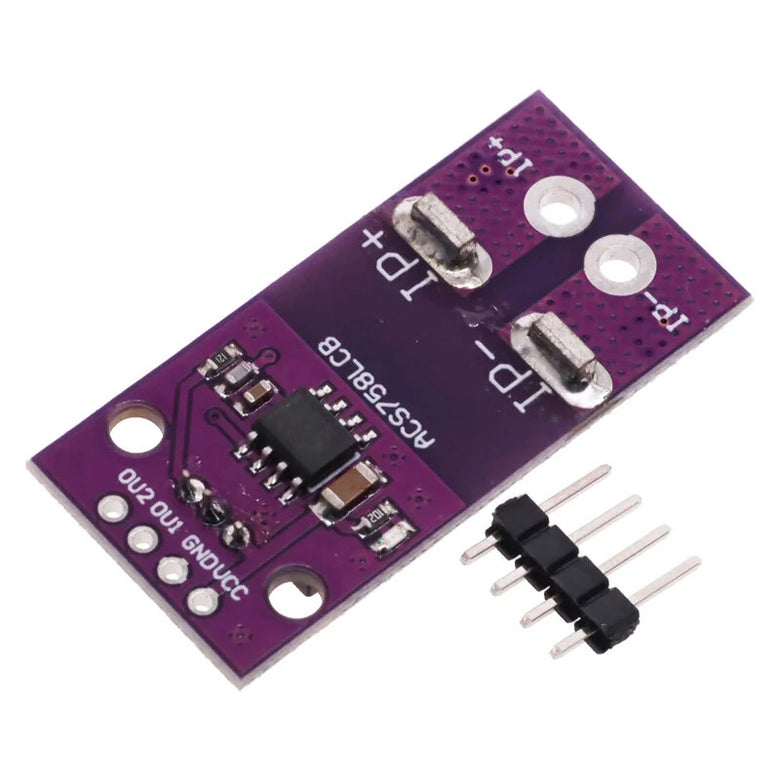

1. High-Precision Sensing: The CJMCU-758 uses the ACS758-LCB current sensor to deliver accurate current measurements. The sensor integrates a precision linear Hall sensor circuit that translates the magnetic field generated by the current-carrying copper path into a proportional voltage. This setup ensures high accuracy, making it perfect for applications requiring reliable current sensing.
2. Low Power Loss: Designed for efficiency, the copper current path of the ACS758 has a low internal resistance of approximately 100 milliohms. This ensures minimal power loss, allowing the module to operate effectively under high overcurrent conditions. Robust copper wires enhance performance, making the module suitable for demanding electrical environments.
3. Dual Output Options: The module offers two output options: direct output and voltage follower output. This flexibility simplifies integration, enabling users to choose the output method that best suits their application. A voltage follower circuit built with an operational amplifier makes the outp
