Specification:

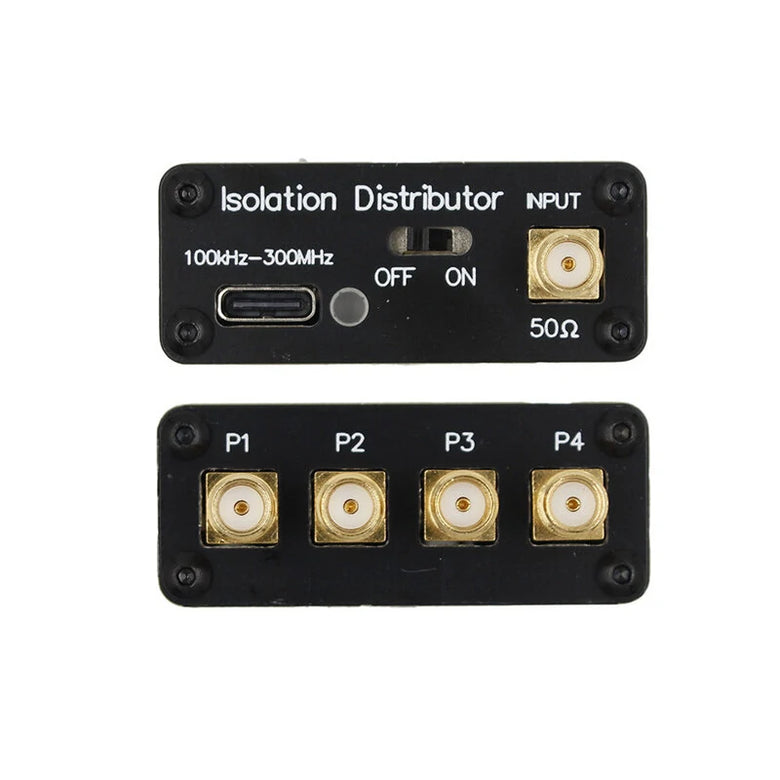

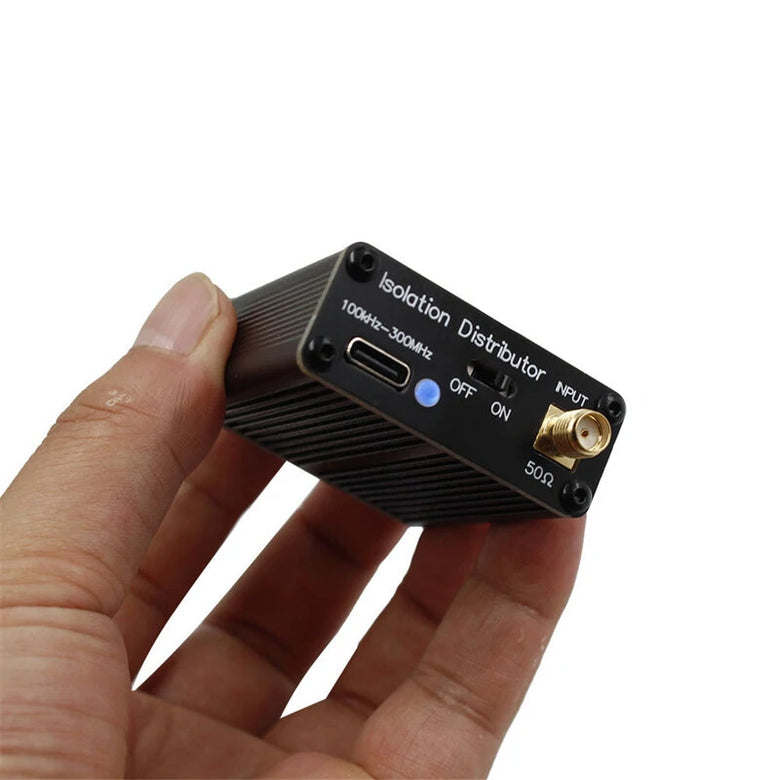

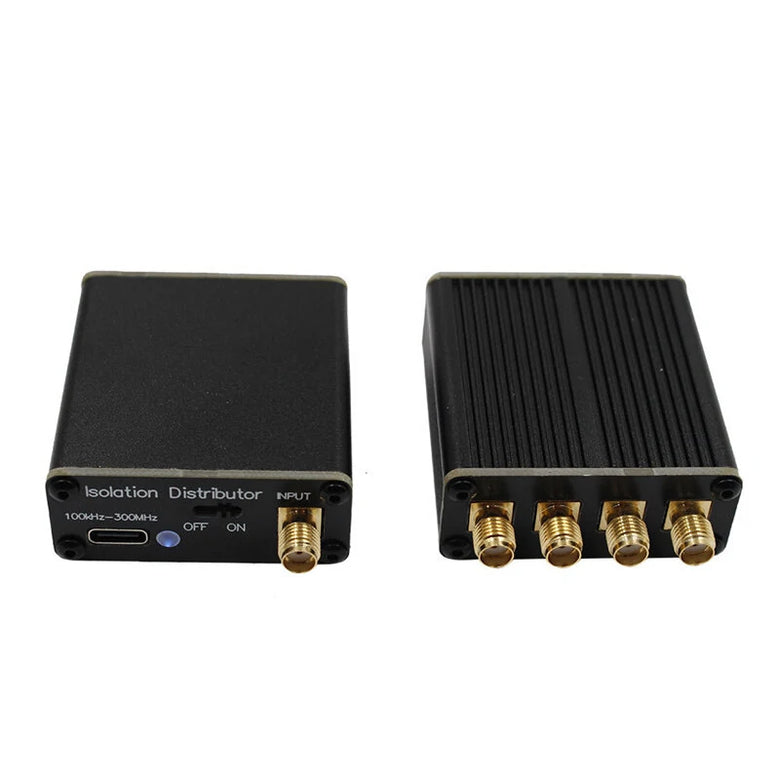

Product Name: Active RF Isolation Distributor
Operating Frequency Range: 100kHz to 150MHz
Insertion Loss: Less than 0.8dB
Output to Input Isolation: Greater than 80dB
Output Isolation: Greater than 60dB
Input Impedance: 50 ohms
Battery Capacity: 600mAh (Built-in)
Battery Life: More than 3 days of continuous operation
Dimensions: 8 x 8 x 3.5cm
Package Weight: 100 grams
Features:
Multi-Channel Distribution: The Active RF Isolation Distributor is designed to distribute RF signals into multiple channels, allowing for efficient signal distribution and isolation.
High Frequency Range: It operates within a wide frequency range from 100kHz to 150MHz, making it suitable for various RF signal applications.
Low Insertion Loss: With an insertion loss of less than 0.8dB, it minimizes signal degradation during distribution.
Impressive Isolation: Offers exceptional output to input isolation, surpassing 80dB, and output isolation exceeding 60dB, effectively reducing common mode interference and power ground wire interference.
Built-in Battery: Powered by a built-in 600mAh high-temperature lithium battery, the distributor can operate continuously for over 3 days without the need for an external power source.

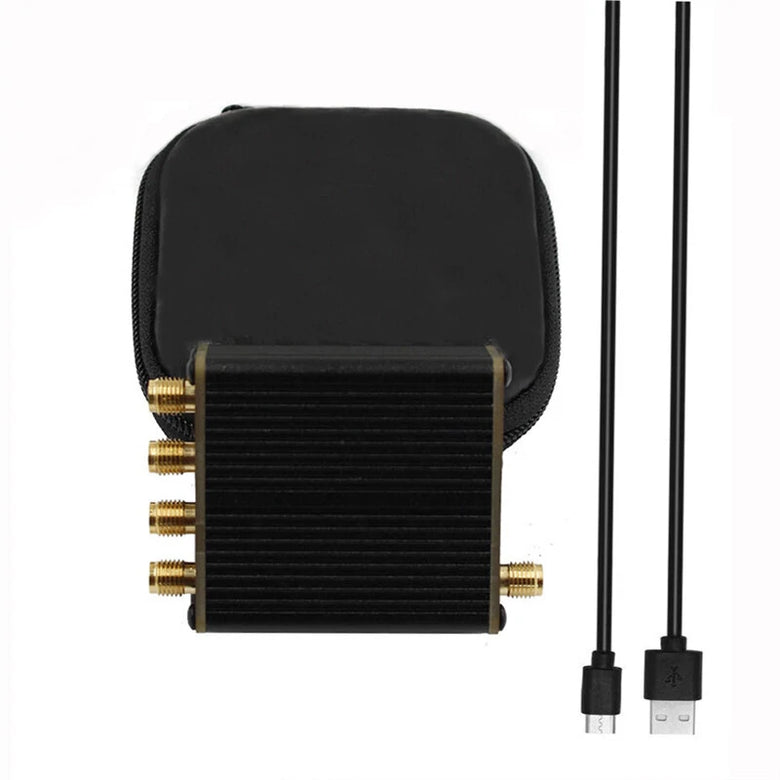

Package Include:
1x Active RF Isolation Distributor
1x Cable
